Silver square fanless mini PC with vertical stand and antennas

partaker

Partaker B1 barebone mini PC Intel Core i5 8GB 512GB

SKU CH-DFYR-DJWGR

Fanless mini PC with an Intel Core i5 8th Gen processor, 8 GB DDR4 memory, 512 GB SSD and Windows 11 Pro pre-installed

  • ColorSilver
  • CPU TypeIntel Core i5 8th Gen

Group 8GB / 512GB SSD

  • Fanless passive cooling runs completely silent
  • Intel Core i5 8th Gen processor delivers desktop performance at 15W TDP
  • Windows 11 Pro pre-installed for immediate use
  • Dual display support via VGA and HDMI 1.4 4K output
  • Expandable storage with mSATA, M.2 2280 and 2.5 inch drive bays

Fanless Intel Core i5 mini PC

The Partaker B1 is a compact barebone system built around an 8th-generation Intel Core i5 processor — either the 8250U, 8259U, 8265U or 8350U — and ships with 8 GB of DDR4 memory and a 512 GB SSD. It arrives with Windows 11 Pro already installed, so the machine is ready for office work, digital-signage playback or light development tasks straight out of the box. Its aluminium chassis measures 197 x 197 x 37 mm and weighs 2.5 kg.

Silent 15 W passive cooling

A fanless design dissipates heat through the aluminium case, delivering completely silent operation while the CPU runs at a 15 W TDP. The supplier notes typical consumption of only 1 to 2 kWh per week with eight hours of daily use, and the unit is rated for ambient temperatures from 0 °C to 70 °C. No moving parts means no fan noise and reduced long-term maintenance in dusty environments.

Dual display and versatile mounting

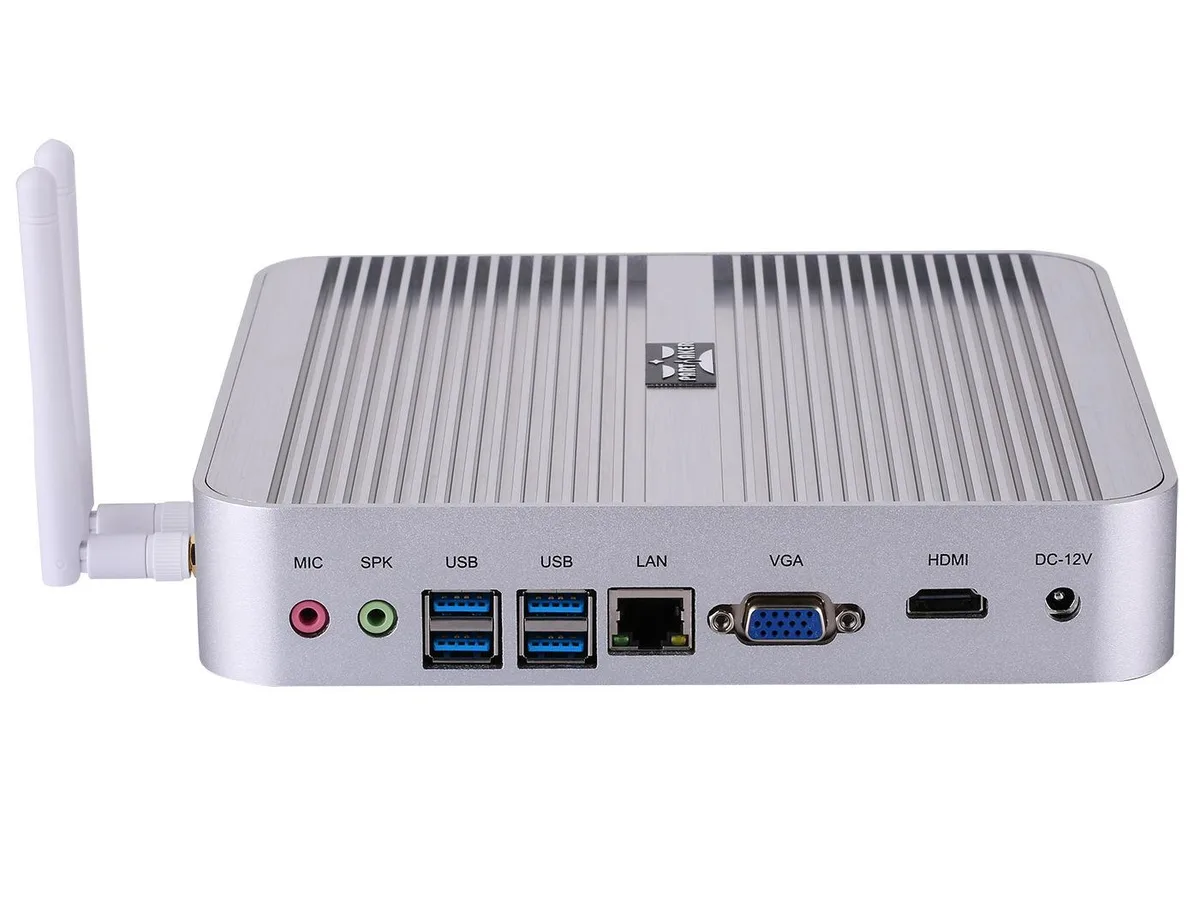

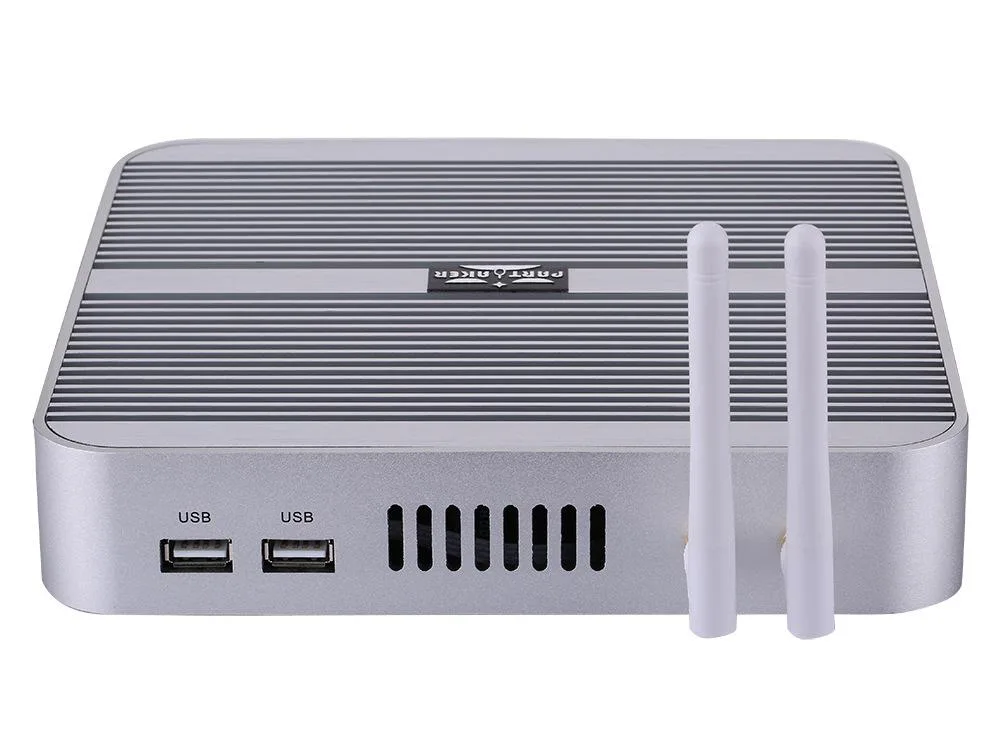

HDMI 1.4 and VGA ports drive two independent screens at up to 4096 x 2304 at 24 Hz, while four USB 3.0 and two USB 2.0 ports handle peripherals. The box includes a vertical stand, dual-band Wi-Fi antennas, a 12 V 5 A power supply and a power cord. An optional VESA mount lets you attach the PC behind a monitor, and the system supports automatic power-on after a power loss for unattended deployments.

Prednosti

  • Fanless passive cooling runs completely silent
  • Intel Core i5 8th Gen processor delivers desktop performance at 15W TDP
  • Windows 11 Pro pre-installed for immediate use
  • Dual display support via VGA and HDMI 1.4 4K output
  • Expandable storage with mSATA, M.2 2280 and 2.5 inch drive bays

Špecifikácie

ColorSilver
CPU TypeIntel Core i5 8th Gen

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How do I attach the VESA mount to the aluminium chassis, and which step do people forget?

Screw the optional VESA bracket onto the four threaded holes on the rear of the 197 x 197 mm aluminium case, then re-attach the Wi-Fi antennas before tightening the monitor arm.

Which storage slots may need an upgrade later, and what are their limits?

The board offers one mSATA SSD slot, one M.2 2280 SATA or NVME slot, and one 2.5 inch SATA bay; memory maxes out at 64 GB across two DDR4-2400 SODIMMs.

At what temperature does the fanless cooler hit its ceiling during long loads?

The passive design is rated for continuous operation up to 70 °C ambient; sustained heavy workloads above that threshold will trigger thermal throttling.
