Compact black fanless mini PC with full metal case

partaker

partaker fanless mini PC i7-8565U 16GB 512GB DDR4 NVME

SKU CH-CJ3Z-5NANQ

Fanless aluminium mini PC with a Core i7-8565U, 16 GB DDR4 and a 512 GB NVMe drive, silent 0.00 dB operation and 4K dual-display support

  • ColorBlack
  • CPU TypeIntel Core i7 8th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel UHD Graphics
  • DisplayPort1 x DisplayPort

CPU Type Intel Core i7-8550U

Group 16GB RAM / 512GB SSD

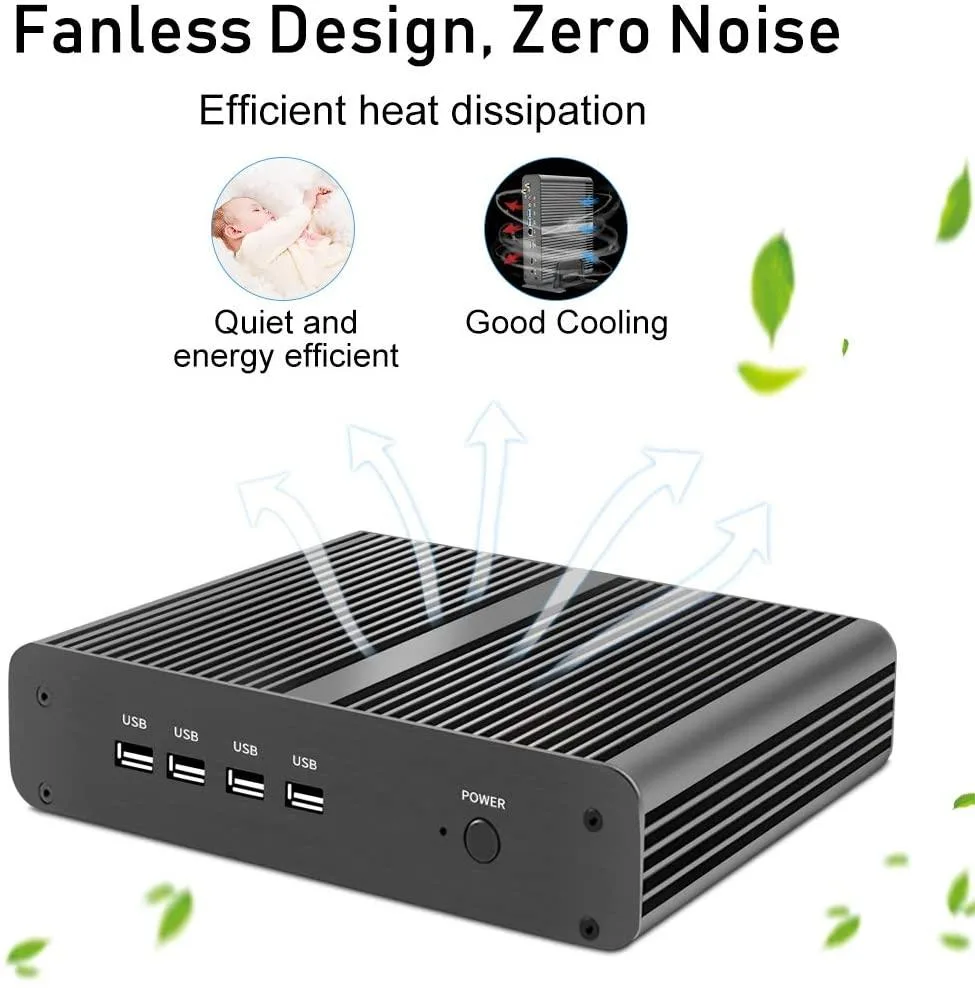

  • Fanless aluminium chassis delivers completely silent 0.00dB operation
  • Intel Core i7-8565U with 4 cores and 8 threads powers demanding workloads
  • 16GB DDR4 memory and 512GB NVME storage ensure responsive multitasking
  • Dual 4K display support via HDMI at 24Hz and DisplayPort at 60Hz
  • Comprehensive connectivity includes 4×USB 3.0, 4×USB 2.0, Gigabit LAN and audio ports

Fanless Mini PC with i7-8565U

This compact desktop uses a passive aluminium chassis to cool an Intel Core i7-8565U processor with 4 cores and 8 threads. It ships with 16GB of DDR4 memory and a 512GB NVME drive already installed. The system targets office workers, digital-signage installers and home users who need silent operation and a small footprint. It is not suited for buyers who want discrete graphics performance or user-replaceable CPU options.

Installation Notes

The unit arrives with Windows 10 Pro 64-bit preloaded so first boot goes straight to the desktop. Mounting brackets let it sit on a desk or attach to a VESA arm without tools. A single M.2 slot is occupied by the supplied NVME drive; adding a 2.5-inch SATA drive requires opening the case and connecting the internal header. Builders who need a second NVME slot or an MSATA device cannot use this chassis.

Sustained Load Behaviour

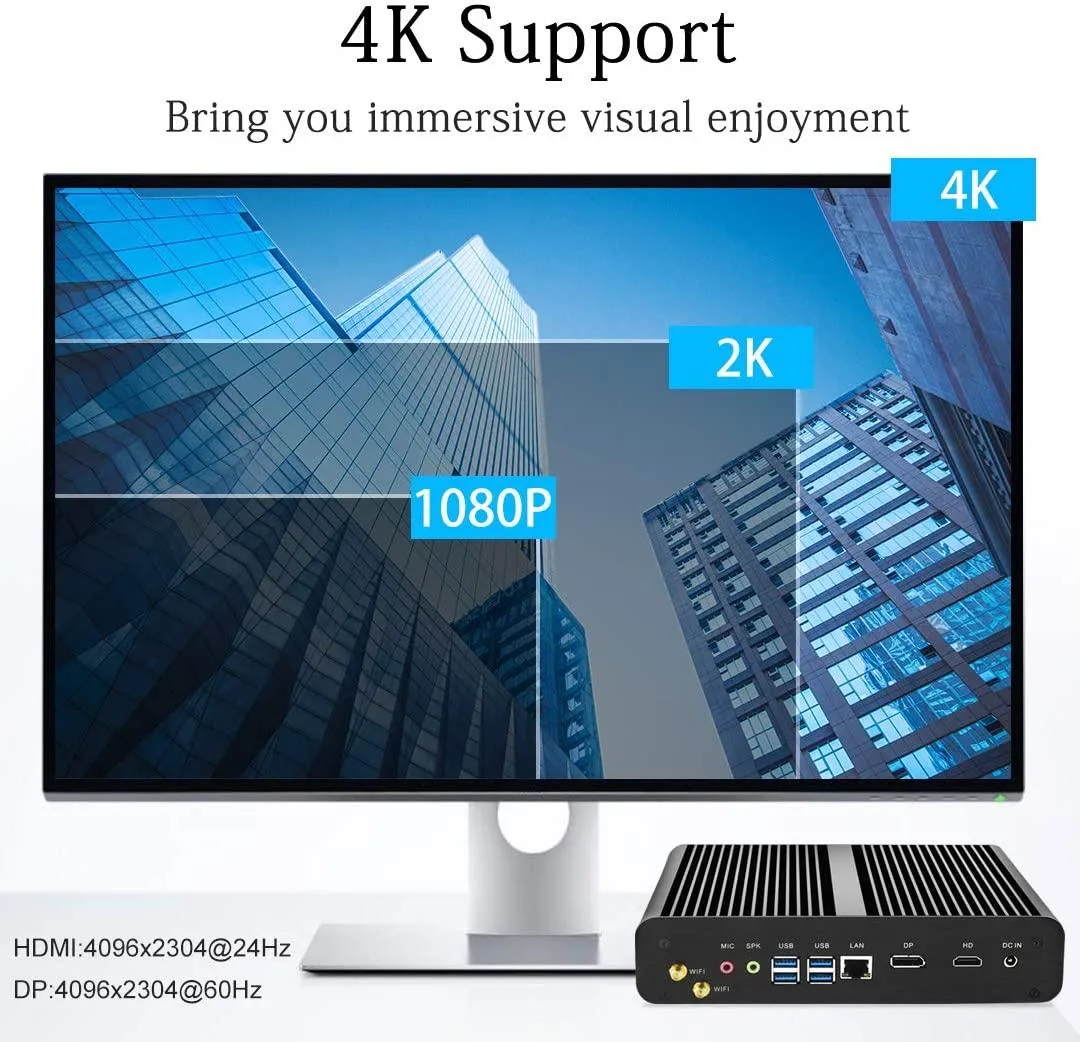

Under continuous multi-threaded work the i7-8565U holds its 1.80GHz base clock while the fanless heatsink absorbs heat across the full metal case. Turbo bursts up to 4.6GHz are short because thermal mass limits duration. Integrated Intel UHD Graphics drives one DisplayPort at 4096x2304@60Hz and one HDMI at 4096x2304@24Hz for dual 4K output. The platform is not designed for extended gaming or render sessions that demand active cooling.

Prednosti

  • Fanless aluminium chassis delivers completely silent 0.00dB operation
  • Intel Core i7-8565U with 4 cores and 8 threads powers demanding workloads
  • 16GB DDR4 memory and 512GB NVME storage ensure responsive multitasking
  • Dual 4K display support via HDMI at 24Hz and DisplayPort at 60Hz
  • Comprehensive connectivity includes 4×USB 3.0, 4×USB 2.0, Gigabit LAN and audio ports

Špecifikácie

ColorBlack
CPU TypeIntel Core i7 8th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel UHD Graphics
DisplayPort1 x DisplayPort

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How can I confirm the fanless i7-8565U mini PC is running correctly after first boot?

Windows 10 Pro 64-bit loads silently with zero noise, the Intel UHD Graphics drives 4K at 4096×2304 via DisplayPort at 60 Hz or HDMI at 24 Hz, and the Gigabit LAN port shows an active link light when a cable is plugged in.

What ships inside the box and which parts must be sourced separately?

The unit includes the full-metal fanless chassis, a mounting bracket, and Windows 10 Pro pre-installed on the 512 GB NVMe SSD; the 16 GB DDR4 SODIMM is already fitted in the dual slots, so no extra RAM or storage is required unless you add a 2.5″ SATA drive or an mSATA SSD.

Which CPU option suits a buyer who wants the highest single-thread turbo speed?

The Core i7-10510U reaches 4.9 GHz max turbo, higher than the 4.6 GHz of the i7-8565U, the 4.7 GHz of the i7-10710U or i7-1165G7, and the 4.7 GHz of the i7-1255U.
