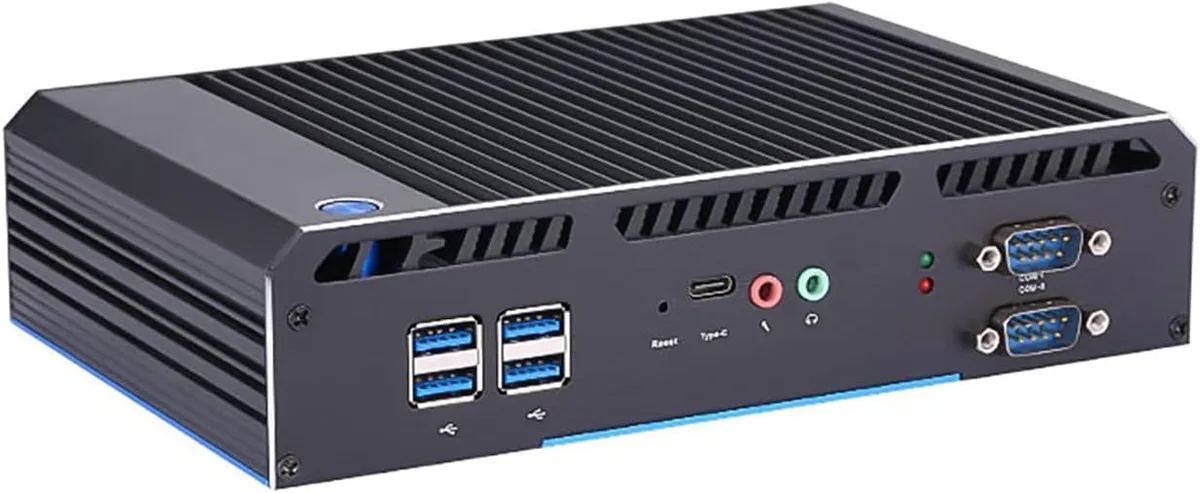

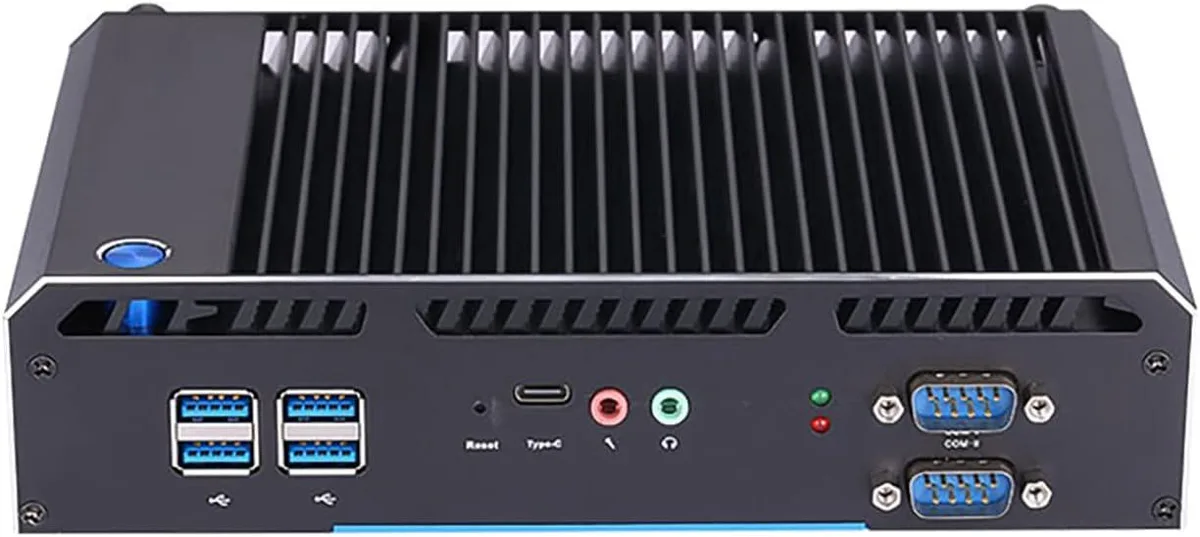

Black aluminium fanless mini PC, compact rectangular chassis with visible port array

partaker

Partaker GF2 barebone mini PC i5-5300U 8G RAM 128G SSD

SKU CH-07N0-0HGGF

Fanless mini PC with an i5-5300U, 8 GB RAM, 128 GB SSD, dual LAN, triple-display support and industrial I/O

  • ColorBlack
  • CPU TypeIntel Core i5 5th Gen

CPU Type Intel Core i5-5200U

Group 8GB / 128GB SSD

  • Fanless passive cooling enables silent operation in noise-sensitive environments
  • Intel Core i5-5300U up to 2.90 GHz delivers responsive performance for industrial workloads
  • Triple display support via 2x HDMI and VGA expands workspace flexibility
  • Wide operating range -10°C to 60°C suits harsh commercial conditions
  • 8 GB DDR3L and 128 GB mSATA SSD provide fast boot and multitasking out of the box

Industrial fanless mini PC

The Partaker GF2 is a compact barebone system built around an Intel Core i5 5th Gen processor with a 15 W TDP. Passive aluminium-alloy cooling removes moving parts for silent operation in noise-sensitive or dust-prone environments. It ships with Windows 11 Pro 64-bit pre-installed and supports Windows 7, 10, 11 and Linux Ubuntu. Virtualisation extensions VT-D and VT-X are available for container or legacy workloads.

Extensive legacy and modern I/O

Dual LAN ports using Realtek RTL8168 and 8111E controllers provide redundant wired networking for industrial reliability. Two COM RS-232 headers, VGA and dual HDMI outputs connect directly to older PLCs, serial instruments and multi-monitor stations without adapters. Four USB 3.0 ports, two USB 2.0 ports, a Type-C connector and a lock slot cover peripheral and physical security needs in a single chassis.

Ready-to-deploy accessory kit

The box includes a VESA mount, 12 V 5 A power supply with cord, mounting screws and a printed user manual so the unit can be secured behind a display or inside a cabinet immediately. An mSATA SSD and a 2.5 inch SATA bay remain accessible for storage expansion up to 16 GB of DDR3L memory. PXE boot, wake-on-LAN and auto power-on functions enable unattended rollout across distributed sites.

Prednosti

  • Fanless passive cooling enables silent operation in noise-sensitive environments
  • Intel Core i5-5300U up to 2.90 GHz delivers responsive performance for industrial workloads
  • Triple display support via 2x HDMI and VGA expands workspace flexibility
  • Wide operating range -10°C to 60°C suits harsh commercial conditions
  • 8 GB DDR3L and 128 GB mSATA SSD provide fast boot and multitasking out of the box

Špecifikácie

ColorBlack
CPU TypeIntel Core i5 5th Gen

Ďalšie verzie tohto modelu

Ďalších 5 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

What resolution does the HDMI 1.4 port cap at on this GF2?

HDMI reaches 2560 x 1600 at 60 Hz; VGA stops at 1920 x 1080 at 60 Hz.

What are the exact chassis dimensions and VESA mounting holes for the GF2?

The aluminium chassis measures 197.4 x 126.3 x 47.5 mm and includes a VESA mount bracket in the box.

How do I add a second drive to the GF2 and which screw do I use?

Open the case, slide a 2.5 inch SATA SSD or HDD into the bay and secure it with the supplied screws; the mSATA slot is already occupied by the 128 GB boot drive.
