Red M.2 to U.2 NVMe adapter board, 3.9 by 2.8 inches

STARTECH

STARTECH U2M2E125 M.2 to U.2 NVMe Adapter

SKU CH-VTK6-E7VEB MPN U2M2E125

Adapter lets you install an M.2 NVMe SSD into a U.2 (SFF-8639) host interface on a desktop or server motherboard

  • ColorRed
  • SpecificationsDrive Connectors: 1 - M.2 (NGFF, M-Key, PCIe x4) Host Connec
  • FeaturesIncrease your system speed and performance cost-effectively,
  • Add M.2 NVMe speed via U.2 (SFF-8639) interface
  • Supports one M.2 PCIe NVMe SSD (M-Key)
  • Driver-free installation with native OS support

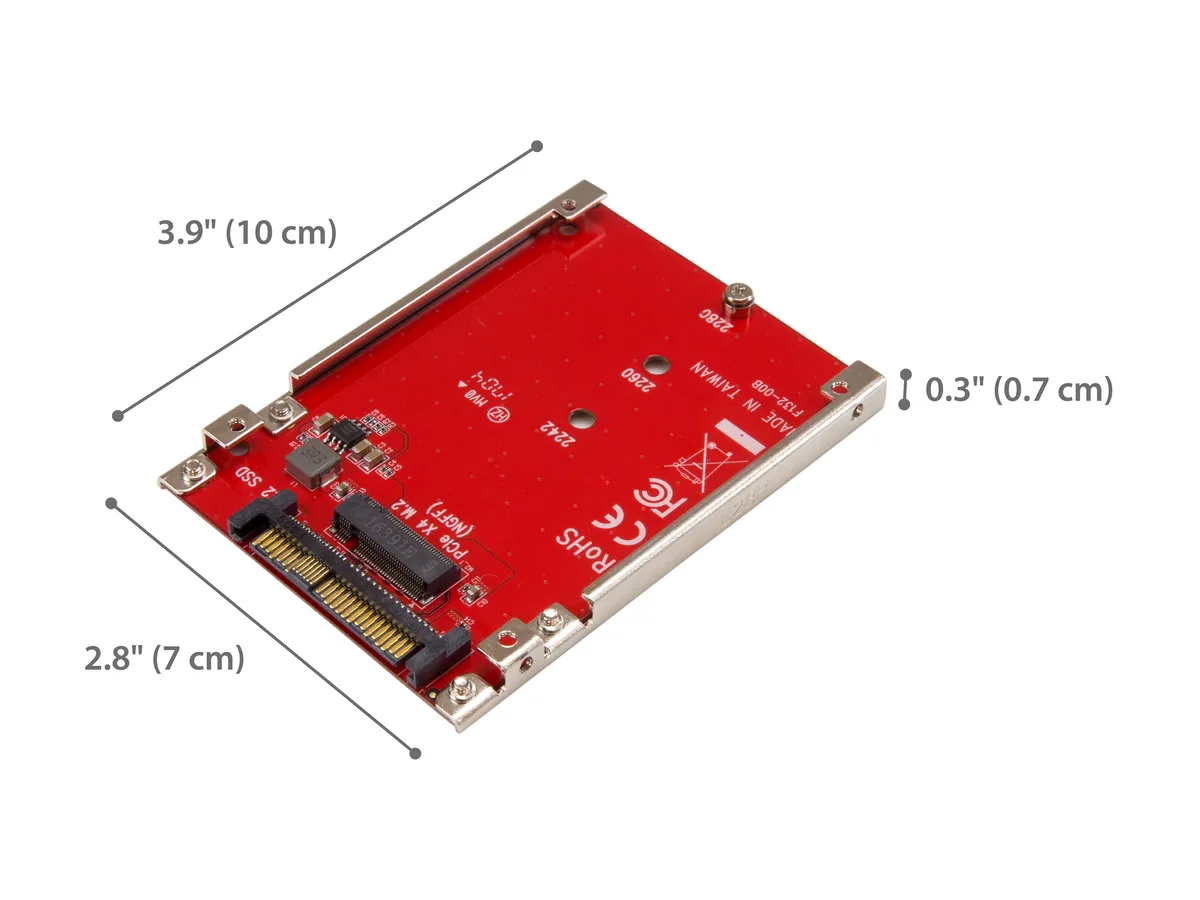

  • Compact 100 mm × 70 mm × 7 mm form factor
  • Lightweight 36 g design fits tight chassis

M.2 NVMe to U.2 Adapter

The StarTech U2M2E125 adapter lets you install a single M.2 PCIe NVMe SSD with an M-Key connector into a desktop PC or server that provides a U.2 (SFF-8639) host interface. It measures 100 mm long, 70 mm wide and 7 mm high, weighing 36 g. No drivers or software are required for installation.

For U.2-equipped builds; not for M.2-only boards

This card suits builders and IT professionals adding NVMe storage to systems with a free U.2 port or compatible drive bay. It will not work on motherboards that lack a U.2 (SFF-8639) interface or on platforms that only offer M.2 slots for direct SSD attachment.

U.2 (SFF-8639) host interface required

The adapter connects one M.2 NVMe SSD (M-Key, PCIe x4) to a single U.2 (SFF-8639) host connector running four PCIe lanes. If your board or backplane does not expose a U.2 port, this adapter cannot be used.

Prednosti

  • Add M.2 NVMe speed via U.2 (SFF-8639) interface
  • Supports one M.2 PCIe NVMe SSD (M-Key)
  • Driver-free installation with native OS support
  • Compact 100 mm × 70 mm × 7 mm form factor
  • Lightweight 36 g design fits tight chassis

Špecifikácie

BrandStarTech.com
ModelU2M2E125
ColorRed
SpecificationsDrive Connectors: 1 - M.2 (NGFF, M-Key, PCIe x4)
Host Connectors: 1 - U.2 (SFF-8639, x4 PCIe, NVMe)
Product Height: 0.3 in [7 mm]
Product Length: 3.9 in [100 mm]
Product Weight: 1.3 oz [36 g]
Product Width: 2.8 in [70 mm]
FeaturesIncrease your system speed and performance cost-effectively, by adding an M.2 PCIe NVMe SSD to your PC or server
Adapter supports one M.2 PCIe NVMe SSD (M-Key)
U.2 (SFF-8639) host interface
Fast and easy setup with native OS support
Backward compatible with earlier versions of PCIe
Prepravná hmotnosť0.45 kg
Rozmery balenia305 × 279 × 229 mm

Otázky k tomuto produktu

Does the U2M2E125 include an M.2 NVMe SSD, or do I need to buy the drive separately?

The adapter supports one M.2 PCIe NVMe SSD (M-Key); the drive itself is not included and must be purchased separately.

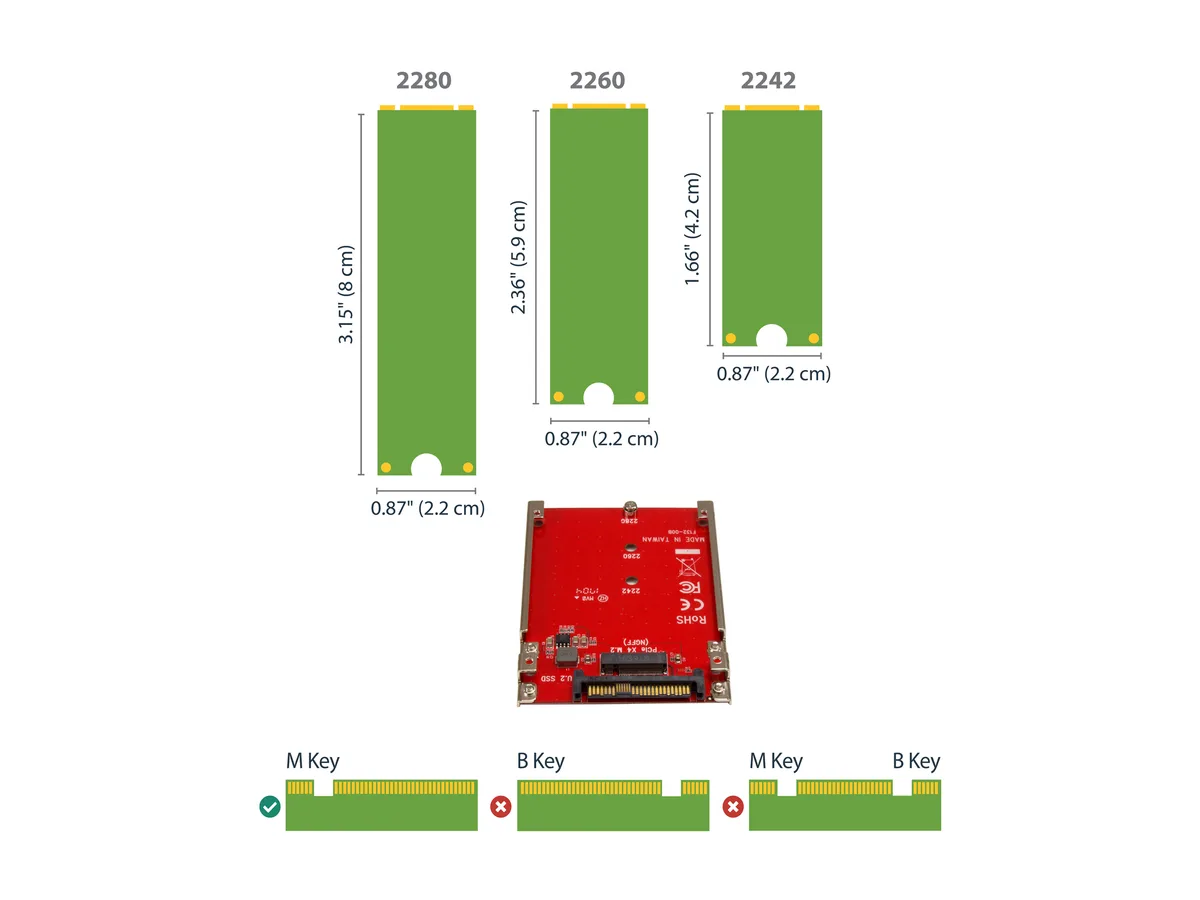

How do I know if my M.2 SSD is the right M-Key type for this U.2 adapter?

Check the SSD edge connector — an M-Key module has a single notch on the right side and is labelled PCIe x4 NVMe; only that keying fits the adapter slot.

What real-world speed can I expect when the adapter links an NVMe drive to a U.2 (SFF-8639) motherboard port?

The adapter passes through a full PCIe x4 NVMe connection, so the drive runs at its rated NVMe speeds, limited only by the drive and the host U.2 controller.
