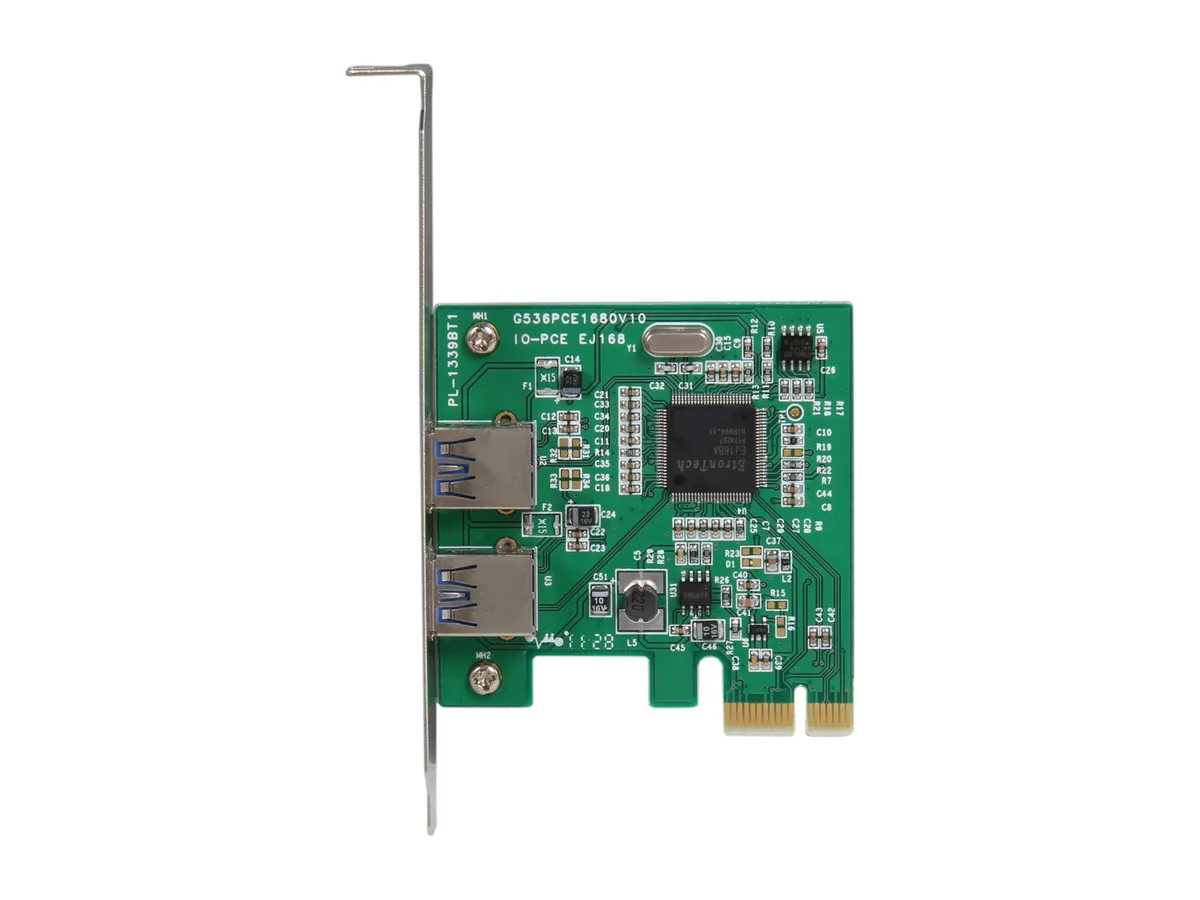

Green circuit board with silver metal bracket and two blue USB ports

Syba

Syba SY-PEX20081 USB 3.0 2-port PCI-e expansion card

SKU CH-EBDB-T83W8 MPN SY-PEX20081

Adds two USB 3.0 ports via a PCI Express 2.0 slot for up to 5.0 Gbps data transfer

  • TypePCI Express to USB Card
  • External USB Ports2x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7 32/64-bit Vista Windows XP Linux
  • FeaturesCompliant with the PCI Express Base Specification Revision 2
  • Add two USB 3.0 ports via a single PCIe slot
  • Transfer files at up to 5.0 Gbps with USB 3.0
  • Works with Windows 7, Vista, XP and Linux
  • Hot-swap devices without powering down the system
  • Low-profile card measuring 6.5 by 5.5 inches fits most cases

Add two USB 3.0 ports via PCI Express

The Syba SY-PEX20081 is a PCI Express to USB card that adds two external USB 3.0 ports to a desktop computer. It uses the Etron EJ168 chipset and delivers data transfer rates up to 5.0 Gbps. The card complies with PCI Express Base Specification Revision 2.0 and USB 3.0 Specification Revision 1.0. A driver CD and user manual are included in the package.

Suits PCs with a free PCIe slot running Windows

This card suits builders who need to add USB 3.0 connectivity to a system with an available PCI Express slot. It supports Windows 7 32/64-bit, Vista, XP and Linux. It is not for users who lack a spare PCIe slot or who require more than two additional USB ports. It also does not suit those needing internal USB headers or a different form factor such as M.2.

Two external USB 3.0 ports at up to 5.0 Gbps

The decisive specification is the two external USB 3.0 ports operating at up to 5.0 Gbps. This determines whether the card provides the port count and speed your peripherals require. The card fits a standard PCI Express slot and draws power from the bus. Verify that your chassis has a free bracket opening for the two ports.

Prednosti

  • Add two USB 3.0 ports via a single PCIe slot
  • Transfer files at up to 5.0 Gbps with USB 3.0
  • Works with Windows 7, Vista, XP and Linux
  • Hot-swap devices without powering down the system
  • Low-profile card measuring 6.5 by 5.5 inches fits most cases

Špecifikácie

BrandSYBA
ModelSY-PEX20081
TypePCI Express to USB Card
External USB Ports2x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7 32/64-bit
Vista
Windows XP
Linux
FeaturesCompliant with the PCI Express Base Specification Revision 2.0
Supports the PCI Bus Power management Interface Specification Revision 1.2
Compliant with the Universal Serial Bus 3.0 Specification Revision 1.0
Compliant with eXtensible Host Controller Interface (xHCI), Specification Revision 1.0
Hot-swapping - Connect / Disconnect Devices Without Powering Down the System
Dimensions6.5 x 5.5 x 1.5 in
Weight0.3 lbs

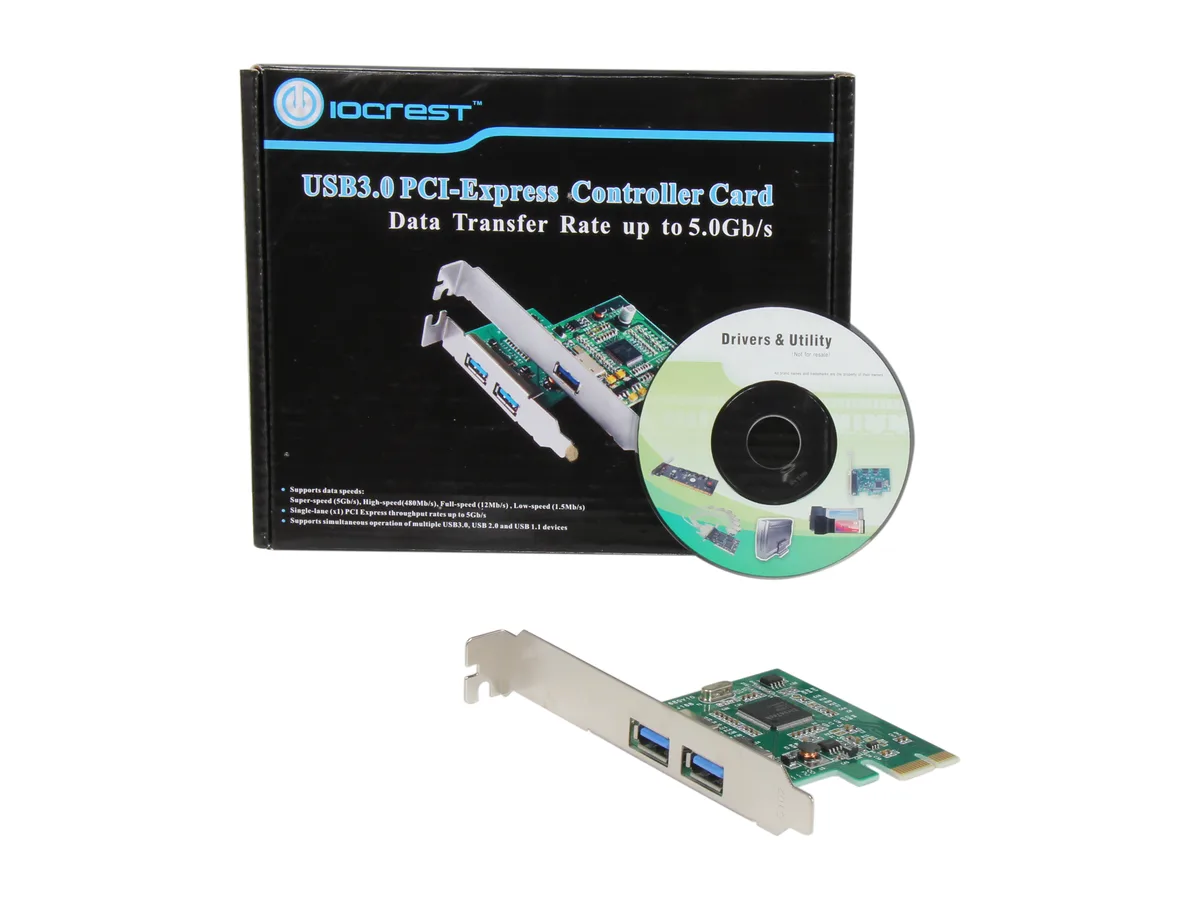

Package ContentsUSB 3.0 2-port PCI-e Card
Driver CD
User Manual
Prepravná hmotnosť0.25 kg
Rozmery balenia168 × 157 × 42 mm

Otázky k tomuto produktu

What PCI Express slot does the SY-PEX20081 need to operate?

The card requires an available PCI Express slot compliant with the PCI Express Base Specification Revision 2.0.

Will the SY-PEX20081 work if I keep my older USB 2.0 peripherals connected?

Yes, the controller is compliant with the Universal Serial Bus 3.0 Specification Revision 1.0 and maintains backward compatibility with USB 2.0 devices.

How do I confirm the SY-PEX20081 is running at 5.0 Gbps after installation?

Install the driver from the included CD, then check Device Manager to verify the Etron EJ168 controller enumerates as a USB 3.0 host controller.
