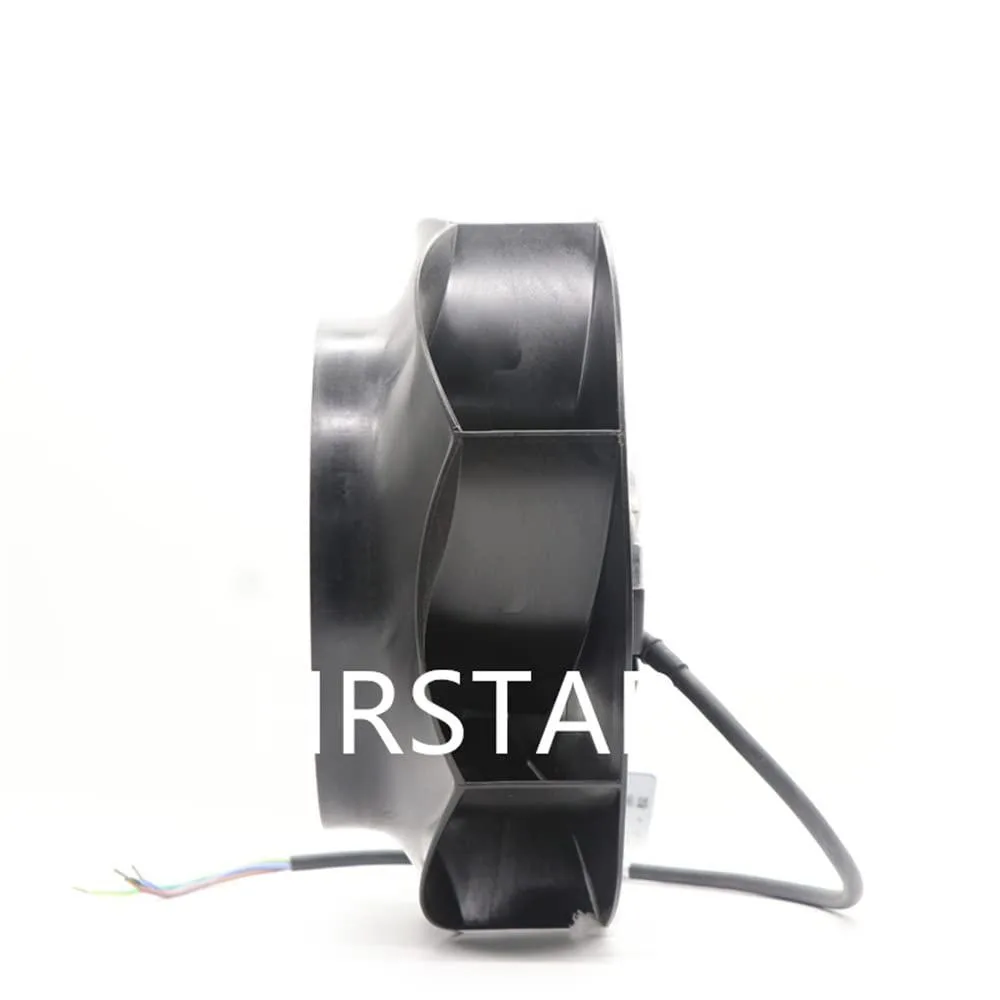

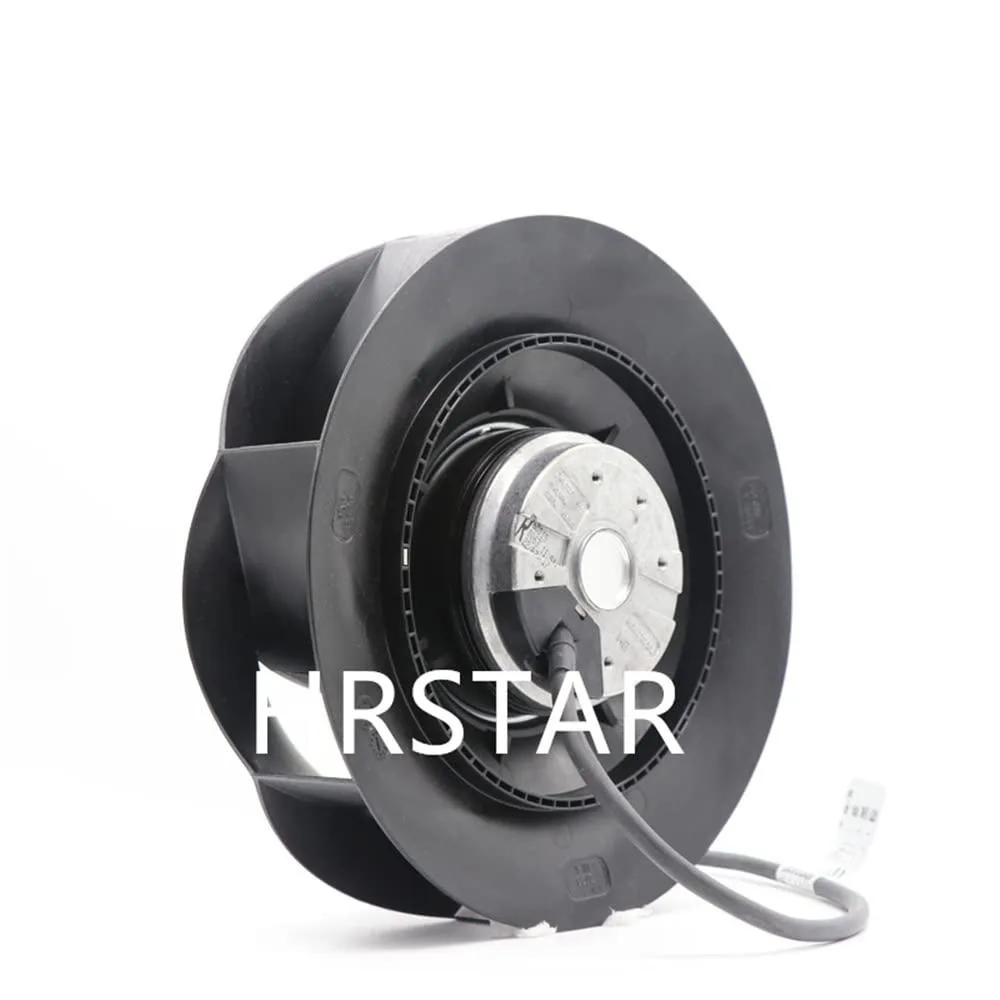

Black metal centrifugal fan with curved plastic impeller, 225 mm diameter, 99 mm deep

NDLIULEI

NDLIULEI No.R2E225-RA92-09 230V 210W 225mm case fan

SKU CH-SA6F-294XV MPN No.R2E225-RA92-09

A 225 mm backward-curved centrifugal fan delivering 705 m³/h airflow at 230 VAC with ball-bearing motor and IP44 protection

  • TypeCase Fan
  • High airflow of 705 m³/h for effective cooling
  • Ball-bearing motor rated for 2500/2600 RPM reliability
  • IP44 protection resists dust and water splashes
  • Operates from -25 °C to 70 °C in harsh environments
  • Backward-curved PA6 impeller delivers efficient 230 V AC performance

Ebmpapst Centrifugal Fan for 230 V Systems

The NDLIULEI No.R2E225-RA92-09 is an original Ebmpapst backward-curved impeller fan built for 230 VAC mains operation. It delivers 705 m³/h airflow at 2500 to 2600 RPM while drawing 155 to 210 W. The IP44-rated motor with ball bearings operates from -25 °C to 70 °C.

Suited for Industrial Air Purifiers

This unit fits machines that accept a 225 mm centrifugal fan with 230 V supply and can accommodate its 99 mm depth and 2.75 kg weight. Buyers who need low-voltage DC control, standard PC case mounting holes or a slimmer profile should look elsewhere.

230 VAC Nominal Voltage Decides Compatibility

The fan runs directly on 50 or 60 Hz mains power at 230 VAC with a current draw of 0.68 to 0.92 A. No onboard PWM or voltage regulation is provided, so the installer must supply the correct mains voltage and protection.

Poudarki

  • High airflow of 705 m³/h for effective cooling
  • Ball-bearing motor rated for 2500/2600 RPM reliability
  • IP44 protection resists dust and water splashes
  • Operates from -25 °C to 70 °C in harsh environments
  • Backward-curved PA6 impeller delivers efficient 230 V AC performance

Specifikacije

TypeCase Fan

Vprašanja o tem izdelku

How loud is the 2500/2600 RPM centrifugal fan during continuous operation?

The unit runs at 2500 RPM on 50 Hz and 2600 RPM on 60 Hz with a backward-curved impeller; ebm-papst does not publish a decibel rating for this model.

What mains wiring and mounting provisions are required to install the 230 VAC 210 W motor?

A 230 VAC supply capable of 0.92 A at 60 Hz, a grounded connection, and a 225 × 99 mm cut-out with four mounting holes for the 2.75 kg frame.

Will the 705 m³/h airflow and IP44 rating work with older filter housings designed for axial fans?

The centrifugal design delivers 705 m³/h through a 225 mm inlet; IP44 protects against splashes, but mounting pattern and pressure curve differ from typical axial units.
