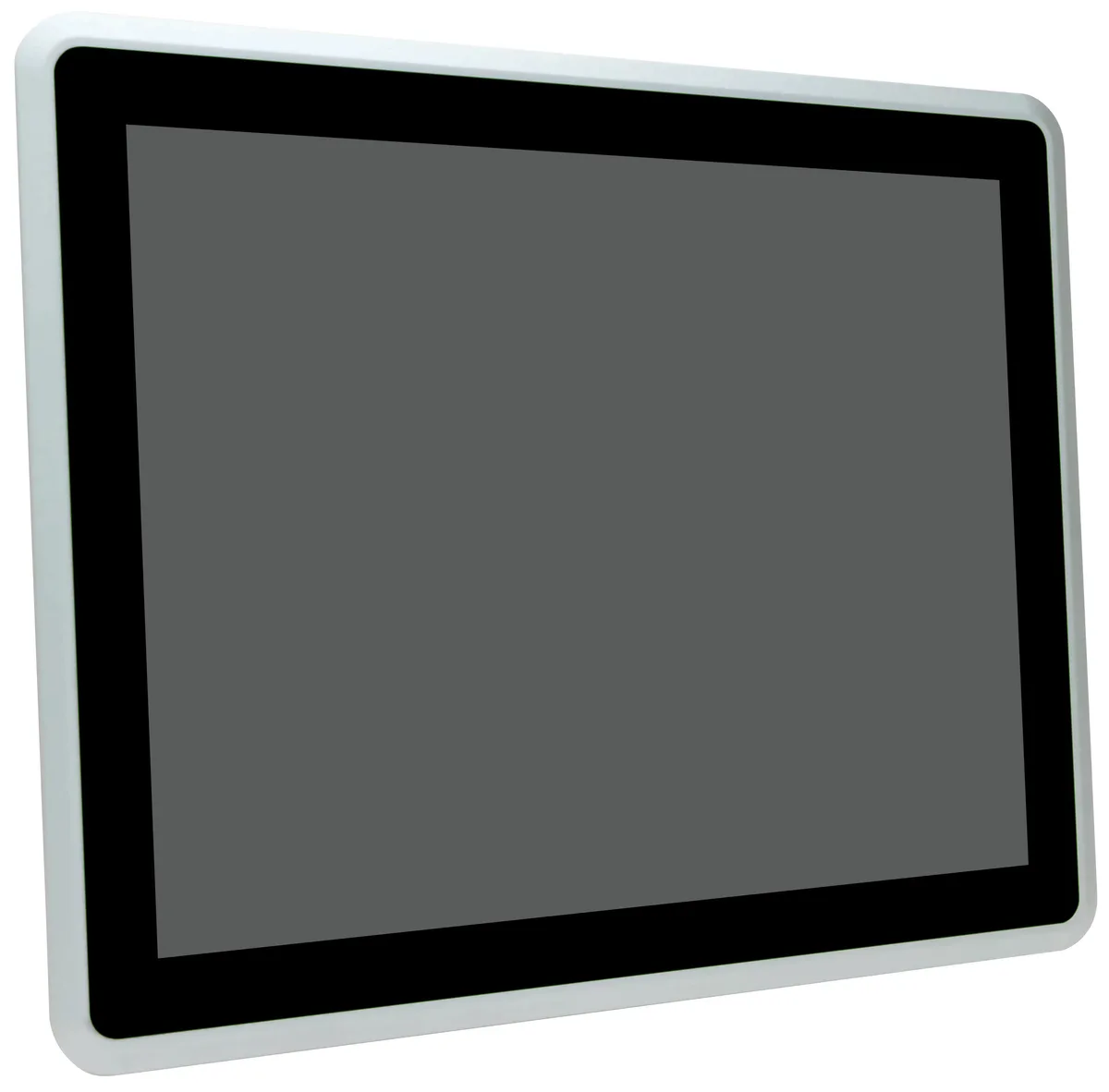

Gray 15 inch industrial all-in-one panel PC with capacitive touchscreen and fanless metal chassis

partaker

partaker A27 all-in-one PC 15" i5-4200U 8GB 256GB

SKU CH-1ZBM-ZJE81

A 15-inch IP65-rated industrial all-in-one PC with a capacitive touchscreen, fanless metal chassis, dual LAN, and Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A27 15" Capacitive I5 4200U 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently without moving parts
  • Capacitive multi-touch screen responds to multiple fingers at once
  • Dual Gigabit LAN ports enable redundant network connections
  • Wide 12–36 V DC input suits unstable power supplies

Industrial 15" All-in-One

The Partaker A27 is a 15 inch fanless panel PC built around an Intel Core i5-4200U processor with 8GB of DDR3 memory and a 256GB mSATA drive. Its IP65-rated front panel and aluminum alloy chassis target industrial automation, kiosk and HMI deployments where dust, moisture and wide temperatures are daily conditions.

Panel-mount installation

The unit fits a standard 355×279 mm cutout and ships with embedded mounting brackets for flush panel integration. DC power accepts 12V as standard with an optional 9~36V wide-range input, so wiring must match the ordered voltage option. Expansion relies on two mini PCIe slots and configurable COM ports; adding Wi-Fi, cellular or extra serial interfaces requires opening the chassis and fitting modules into those slots.

8GB RAM and 256GB storage headroom

Memory maxes out at 16GB across two DDR3 slots, so the fitted 8GB leaves one slot free for a straightforward upgrade. The single mSATA interface holds the 256GB SSD; larger capacities are possible but limited to mSATA form factor. Dual Gigabit Ethernet, HDMI and LVDS synchronous or asynchronous display outputs handle typical SCADA, signage and multi-machine visualization workloads, while the 4:3 1024×768 screen and capacitive touch suit legacy industrial software layouts.

Poudarki

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently without moving parts
  • Capacitive multi-touch screen responds to multiple fingers at once
  • Dual Gigabit LAN ports enable redundant network connections
  • Wide 12–36 V DC input suits unstable power supplies

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size15"
Screen TypeMulti-Touch Screen

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

How can I verify the IP65 front panel is sealing correctly after installation?

Inspect the gasket alignment in the 355×279 mm cutout, confirm no gaps around the bezel, then run the system at 350 cd/m² brightness in a dust-spray test to validate the rating.

Which accessories ship with the unit and which must be sourced separately?

The box includes the A27 panel PC with 8 GB DDR3, 256 GB mSATA SSD, Windows 10 Pro, and standard I/O cables; Wi-Fi/Bluetooth/4G modules, GPIO, extra COM or USB ports, and wide-voltage 9–36 V DC input are optional add-ons.

When should I choose the standard 12 V DC input versus the optional 9–36 V wide-range supply?

Select 12 V for stable factory power; choose 9–36 V when the supply fluctuates or runs from vehicle/mobile sources to maintain operation across the full -20 to +60 °C range.
