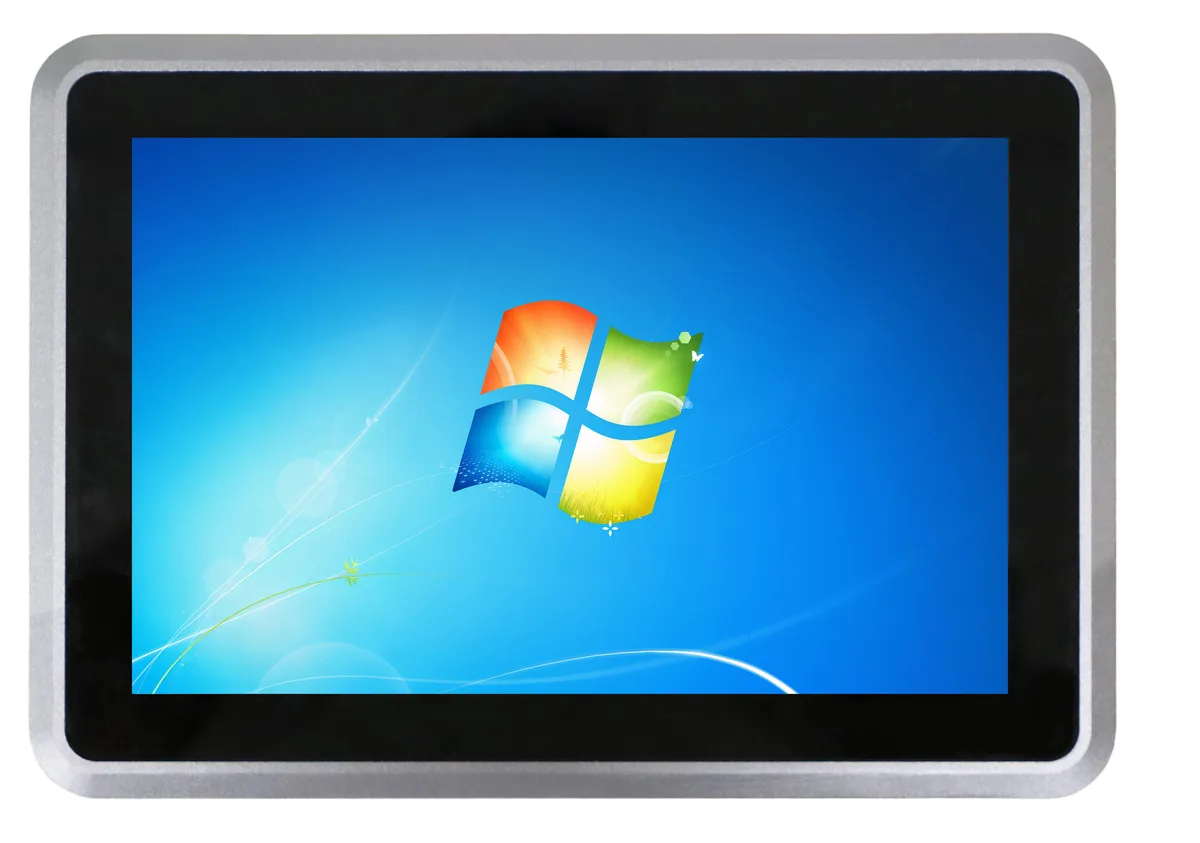

Compact gray aluminum all-in-one with 10.1 inch multi-touch screen

partaker

Partaker A25 10.1" all-in-one PC i5-4200U 8GB 512GB

SKU CH-2BP8-8JSR6

Compact 10.1" IP65-rated all-in-one PC with fanless aluminium chassis, i5-4200U processor, 8GB DDR3, 512GB storage, capacitive multi-touch display and dual Gigabit LAN for industrial control

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

Option 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum chassis runs silently with no moving parts
  • 1" capacitive multi-touch screen supports direct finger input
  • Dual Gigabit LAN ports enable reliable network redundancy
  • Intel Core i5-4200U with 8 GB DDR3 and 512 GB mSATA handles industrial workloads

Industrial Panel PC

The Partaker A25 is a 10.1-inch all-in-one panel PC built around an Intel Core i5-4200U dual-core processor with 8 GB of DDR3 memory and a 512 GB mSATA SSD. It ships with Windows 10 Pro and targets machine builders, automation integrators and kiosk operators who need a compact, sealed touchscreen computer for embedded or VESA-mounted deployment. Its IP65-rated front panel and fanless aluminum chassis make it suitable for dusty, wet or vibration-prone industrial environments.

Thermals Noise Power

The fanless design relies on the full aluminum alloy enclosure to dissipate heat silently, enabling 24/7 operation without moving parts. The system runs on a 12 V DC input with an optional 9–36 V wide-voltage range, drawing minimal power from the low-voltage supply. Two 8 W speakers provide audio output while the passive cooling keeps acoustic noise at zero during normal workloads.

Upgrade Path

The A25 replaces legacy panel PCs that lack IP65 sealing, dual Gigabit Ethernet or modern serial connectivity such as dual RS232/485 ports. It upgrades installations still running on single-core or older dual-core platforms by adding headroom up to 16 GB DDR3 and an extra Mini PCIe slot for wireless or cellular expansion. The jump is worth it when a project demands a rugged, fanless touchscreen with current OS support and flexible mounting in a 10.1-inch footprint.

Poudarki

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminum chassis runs silently with no moving parts
  • 1" capacitive multi-touch screen supports direct finger input
  • Dual Gigabit LAN ports enable reliable network redundancy
  • Intel Core i5-4200U with 8 GB DDR3 and 512 GB mSATA handles industrial workloads

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size10.1"
Screen TypeMulti-Touch Screen

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

How do I mount this 10.1 inch panel PC in a cabinet or on a VESA arm?

The all-aluminum chassis supports embedded panel mounting and standard VESA mounting; the critical step is fitting the supplied IP65 gasket and torquing every screw evenly so the front seal stays dust-tight and water-resistant.

What components can I upgrade or replace later in this fanless unit?

Two DDR3 SO-DIMM slots allow memory expansion up to 16 GB, one mSATA slot accepts a replacement SSD, and two Mini PCIe sockets let you add or swap Wi-Fi, 4G or extra I/O cards.

What thermal limit appears first when the i5-4200U runs flat-out inside the sealed enclosure?

The processor throttles at its 2.60 GHz turbo ceiling once the passive aluminum shell saturates, so sustained loads settle at the base clock rather than the peak frequency.
