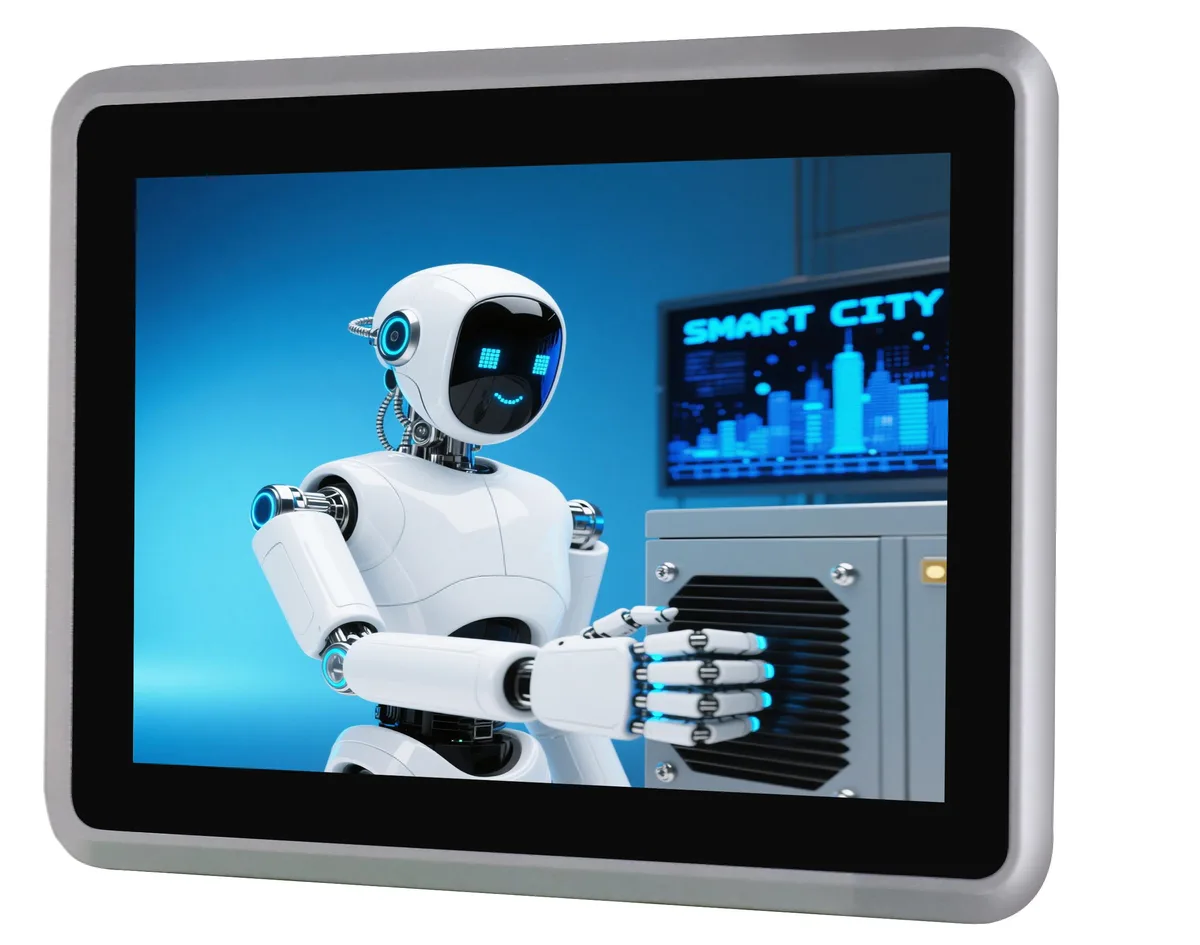

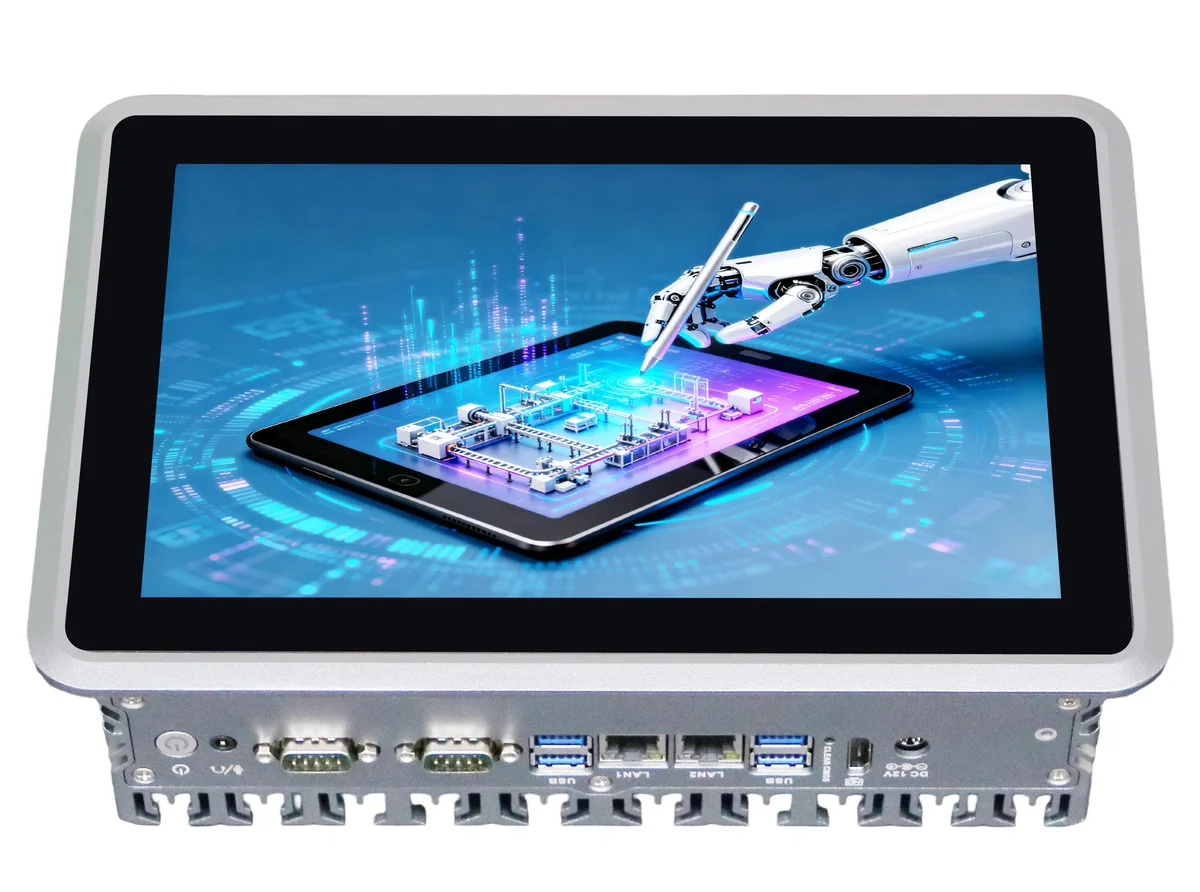

Gray 10.1 inch industrial all-in-one with flat capacitive touchscreen and aluminum chassis

partaker

partaker A25 10.1" all-in-one PC i3-5005U 4GB 128GB

SKU CH-S250-6TNKC

Compact 10.1-inch IP65 all-in-one with i3-5005U, 4GB RAM and 128GB SSD for industrial touch control

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

Option 4GB RAM / 128GB SSD

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently without moving parts
  • 1 inch capacitive touch screen removes need for external keyboard or mouse
  • Dual Gigabit LAN plus two serial ports connect industrial equipment directly
  • Core i3-5005U with 4 GB DDR3 and 128 GB mSATA handles control tasks reliably

Compact industrial panel PC

The Partaker A25 is a 10.1-inch all-in-one computer built around an Intel Core i3-5005U processor with 4GB of DDR3 memory and a 128GB mSATA drive. Its IP65-rated front panel and fanless aluminium chassis suit factory floors, kiosks and embedded control cabinets. Windows 10 Pro comes pre-installed for immediate deployment.

Embedded or VESA mounting

The unit fits into a panel cut-out or onto a standard VESA arm using the integrated brackets, and runs on a 12V DC supply with an optional 9–36V wide-range input. Installers must provide their own mounting hardware and verify the cut-out dimensions; the mini-PCIe slots for wireless or cellular modules are populated only when ordered separately.

For space-constrained automation

This panel PC serves integrators who need a sealed, silent touchscreen node with dual Gigabit LAN and dual RS232/485 ports for PLCs or legacy sensors. Buyers who want more storage, higher processing throughput, or a larger display should look at something else.

Poudarki

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis runs silently without moving parts
  • 1 inch capacitive touch screen removes need for external keyboard or mouse
  • Dual Gigabit LAN plus two serial ports connect industrial equipment directly
  • Core i3-5005U with 4 GB DDR3 and 128 GB mSATA handles control tasks reliably

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size10.1"
Screen TypeMulti-Touch Screen

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

How do I verify the 10.1 inch multi-touch display is responsive after installation?

The capacitive touch screen supports over 50 million touches and the IPS panel shows 1280×800 resolution at 430 cd/m² brightness; test by tapping icons and checking Windows 10 Pro touch gestures respond instantly.

What ships inside the box and what must I source separately?

The unit includes the aluminum-alloy panel PC with 4 GB DDR3, 128 GB mSATA SSD, Windows 10 Pro, dual Gigabit LAN, HDMI, two RS232/485 COM ports, four USB, audio jack and DC12V input; Wi-Fi/4G modules, extra COM, GPIO, wide-voltage DC9-36V and VESA brackets are optional extras.

Which processor and memory configuration should I select for my application?

Choose i3-5005U or 5010U dual-core at 2.00 GHz; memory is expandable to 16 GB DDR3 via two slots and storage uses one mSATA slot — match capacity to your multitasking and OS-image size.
