Compact gray aluminium all-in-one with 10.1 inch multi-touch screen

partaker

partaker A25 all-in-one PC 10.1" i5-4200U 8GB 256GB Windows 10 Pro

SKU CH-P9VK-VQQSK

Compact 10.1-inch IP65-rated all-in-one with fanless aluminium chassis, i5-4200U, 8 GB DDR3, 256 GB mSATA and Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

Option 8GB RAM / 256GB SSD

  • 1" multi-touch screen for keyboard-free control
  • fanless aluminum alloy chassis runs silently 24/7
  • IP65 front panel resists dust and water jets
  • dual Gigabit Ethernet plus two serial ports for industrial networking
  • i5-4200U with 8 GB DDR3 and 256 GB mSATA handles multitasking

Compact Industrial All-in-One

The Partaker A25 is a 10.1-inch fanless panel PC built around an Intel Core i5-4200U processor, 8 GB of DDR3 memory and a 256 GB mSATA SSD. Its IP65-rated front panel and aluminium alloy chassis are designed for continuous operation in dusty or wet industrial environments. Windows 10 Pro comes pre-installed for immediate deployment.

Verify Power Mounting and Peripherals

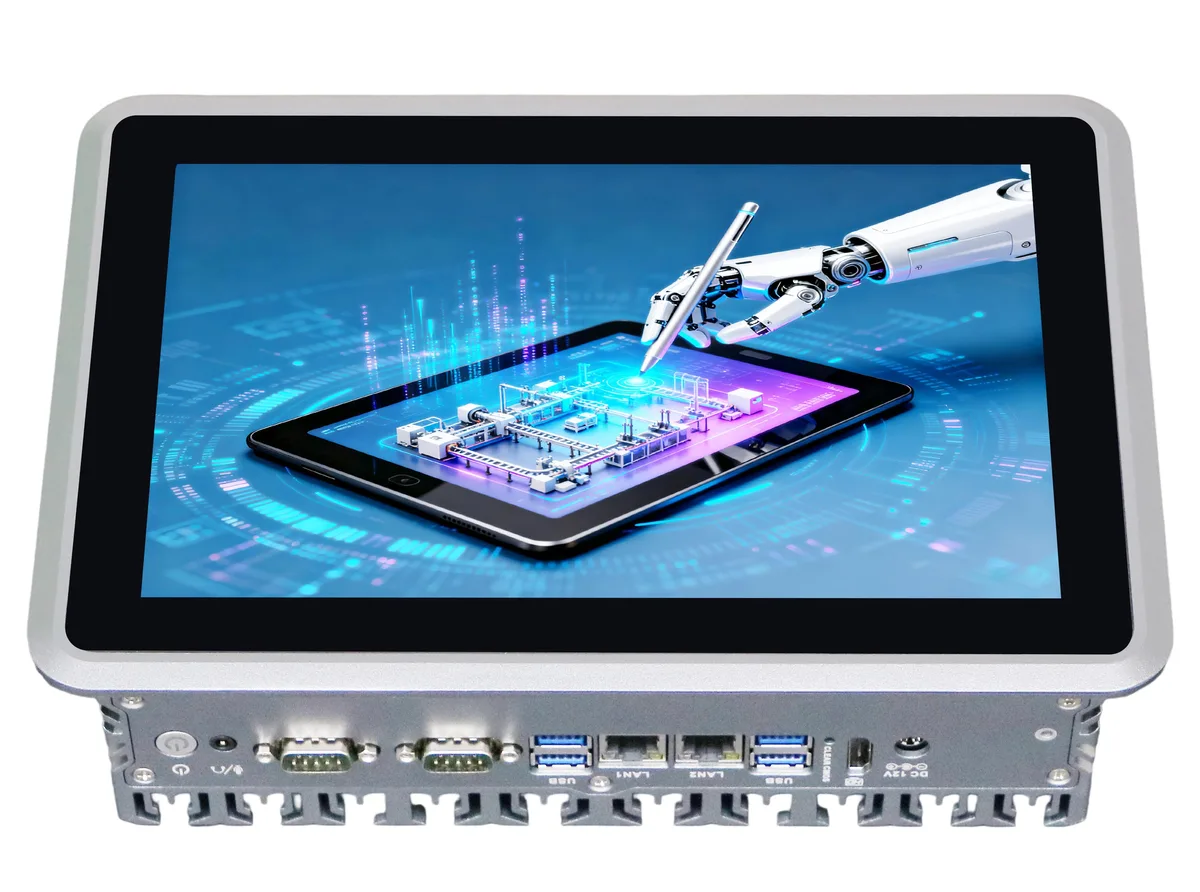

Confirm that your installation can supply DC 12 V or the optional 9–36 V wide-range input through the barrel connector. Check that the VESA or embedded cut-out matches the unit’s mounting pattern and that two Gigabit Ethernet ports, two RS232/485 COM ports, four USB ports and one HDMI output satisfy your connectivity requirements. Ensure the operating temperature range of –20 °C to +60 °C covers the intended ambient conditions.

Upgrade From Older Panel PCs

This unit replaces legacy fan-cooled or non-IP-rated panel computers that struggle with dust ingress, noise constraints or limited I/O. The jump is worthwhile when silent 24/7 operation, front-panel water resistance, dual-display capability via HDMI and LVDS, or expandable Mini PCIe slots for wireless modules are new requirements. Buyers needing a larger screen, higher resolution or newer processor generation should consider other models.

Poudarki

  • 1" multi-touch screen for keyboard-free control
  • fanless aluminum alloy chassis runs silently 24/7
  • IP65 front panel resists dust and water jets
  • dual Gigabit Ethernet plus two serial ports for industrial networking
  • i5-4200U with 8 GB DDR3 and 256 GB mSATA handles multitasking

Specifikacije

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size10.1"
Screen TypeMulti-Touch Screen

Druge različice tega modela

še 5 v isti paleti

Ista družina, različen pomnilnik, hladilnik ali takt — primerjajte, preden se odločite.

Vprašanja o tem izdelku

Does the Partaker A25 ship with the 8 GB DDR3 and 256 GB mSATA already installed, or must I add them myself?

The unit is supplied with 8 GB DDR3 memory and a 256 GB mSATA drive pre-installed; no separate purchase is required for the listed configuration.

Which memory and storage ceiling should I plan for if I need more capacity later?

The board accepts up to 16 GB DDR3 across two slots and one mSATA storage device, so that is the maximum upgrade ceiling.

What does the 2.60 GHz turbo figure mean for everyday industrial workloads?

The i5-4200U dual-core processor can boost to 2.60 GHz for short bursts, giving responsive performance for HMI, data logging and light edge-computing tasks.
