Adamant Custom Threadripper 9960X 24-Core Liquid Cooled 512GB DDR5 4TB NVMe 10TB HDD RTX PRO 6000 96GB

Target Workstation

This liquid-cooled tower workstation centres on a 24-core AMD Ryzen Threadripper 9960X processor running at 4.2 GHz with a 5.3 GHz boost and 128 MB L3 cache. It ships with 512 GB of DDR5 ECC memory, a 4 TB Samsung 990 PRO NVMe SSD, a 10 TB SATA hard drive and an Nvidia RTX PRO 6000 Blackwell GPU with 96 GB of video memory. The system targets professionals who need large memory capacity and certified GPU performance for simulation, rendering or AI workloads.

Installation Notes

The Corsair 5000D Frame case arrives assembled with a 360 mm AIO cooler already mounted to the sTR5 socket, so the heavy cooler does not stress the motherboard during transit. A 1600 W Seasonic Prime TX-1600 power supply occupies the bottom chamber and uses standard ATX cables. The Gigabyte TRX50 AERO D motherboard exposes four M.2 slots and eight SATA ports for future expansion, though the front-panel USB 3.1 Type-C header requires a compatible case connector. Windows 11 Pro 64-bit is pre-installed and activated.

Sustained Load Behaviour

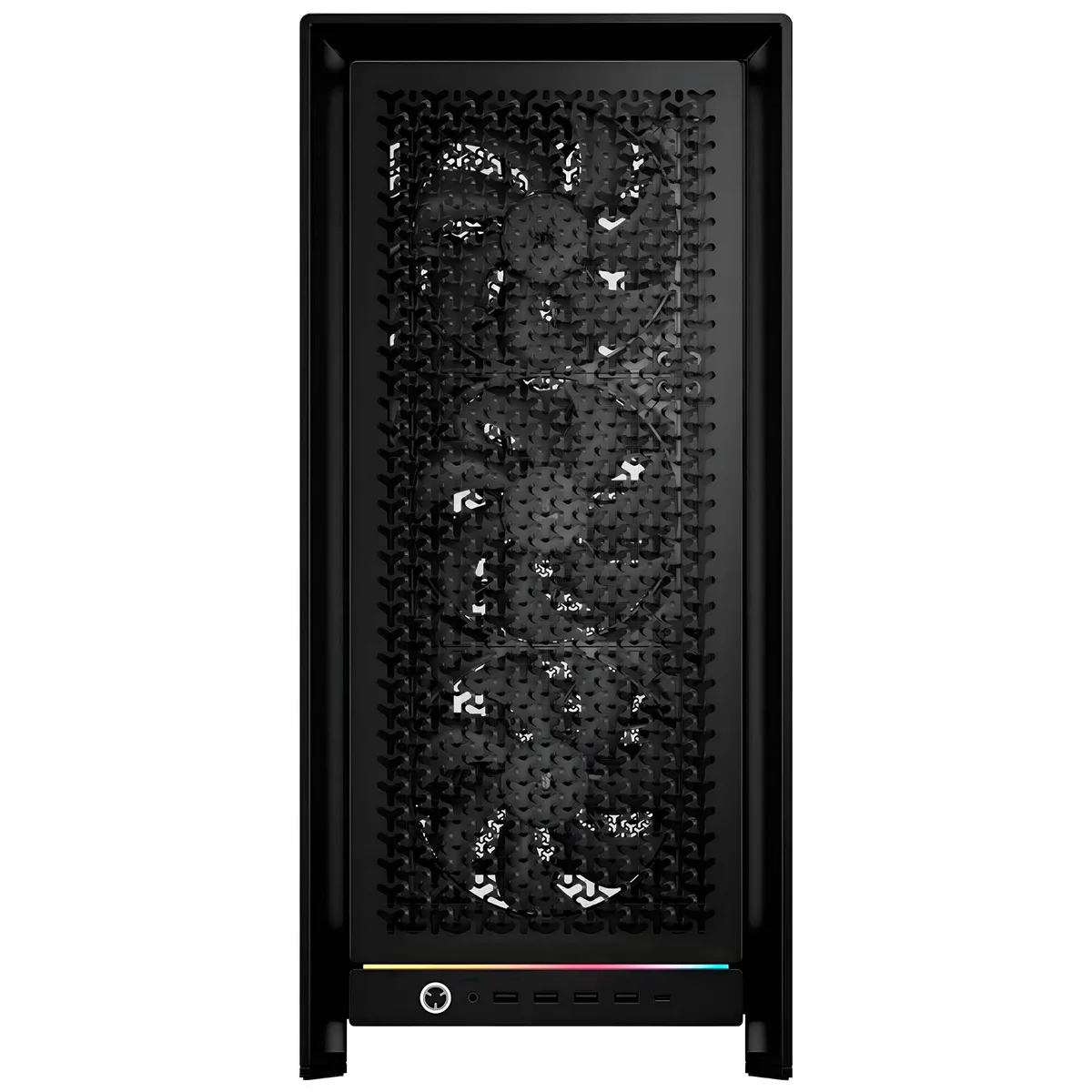

Under continuous multi-threaded compute the Threadripper 9960X maintains elevated frequencies thanks to the 360 mm liquid loop and the case's front 120 mm intake plus rear 120 mm exhaust fans. The 80 Plus Titanium power supply delivers stable output with over-voltage, under-voltage and short-circuit protection during long render jobs. GPU memory bandwidth and 96 GB frame buffer allow large datasets to remain resident without swapping to the NVMe drive, keeping latency predictable over hours of operation.
