Small black slim mini PC barebone chassis

ASUS

ASUS PN54-BB5000ETL-A barebone mini PC Ryzen AI 5 340 6-core DDR5 5600 2×M.2 Wi-Fi 7 Bluetooth 5.4

SKU CH-7S8G-018K1 MPN PN54-BB5000ETL-A

Barebone mini PC with a 6-core Ryzen AI 5 340 processor, dual-channel DDR5 5600 support up to 64 GB, two M.2 2280 PCIe Gen4 slots, AMD Radeon 840M graphics, Wi-Fi 7 and Bluetooth 5.4

  • ColorBlack
  • Form FactorSlim
  • AI FeaturesCopilot+ PC
  • CPU TypeAMD Ryzen AI 5 340
  • CPU Cores6-Core
  • Memory installedNo Memory

CPU AMD RyzenTM AI 5 340

Memory

  • memory installed
  • memory support

Genomstrukna varianter finns, men är inte i lager här.

SSD

  • SSD installed
  • Support M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD

Genomstrukna varianter finns, men är inte i lager här.

  • 6-core Ryzen AI 5 340 handles multitasking smoothly
  • DDR5 5600 dual-channel support up to 64GB
  • Dual M.2 2280 PCIe Gen4x4 slots for fast storage
  • Wi-Fi 7 and Bluetooth 5.4 give modern wireless speed
  • Toolless 0.6L chassis allows quick memory and drive upgrades

Ready-to-build mini PC with Ryzen AI 5 340

The ASUS ExpertCenter PN54 barebone arrives with a six-core AMD Ryzen AI 5 340 processor and integrated Radeon 840M graphics. It supports up to 64 GB of DDR5 5600 memory across two SO-DIMM slots and provides two M.2 2280 PCIe Gen4x4 bays for NVMe storage. Wi-Fi 7 and Bluetooth 5.4 are integrated alongside dual 2.5 Gbps LAN ports.

Check memory, storage and power before ordering

No RAM or SSDs are included, so you must supply two DDR5 5600 SO-DIMM modules and up to two NVMe drives in the 256 GB to 2 TB range. The 262-pin slots accept standard notebook memory only. A compatible USB-C power adapter with Power Delivery input is required because the unit does not ship with an external power supply.

Toolless chassis and Copilot+ readiness change

The 0.6 L slim case opens without tools, letting you install memory and storage in seconds. The AMD XDNA2 NPU delivers up to 50 TOPS for on-device AI workloads and enables the Copilot+ PC feature set. Front USB 3.2 Gen2 Type-C with DisplayPort 1.4 and rear USB4 Type-C with DisplayPort 1.4 and PD-in support up to four 4K displays.

I korthet

  • 6-core Ryzen AI 5 340 handles multitasking smoothly
  • DDR5 5600 dual-channel support up to 64GB
  • Dual M.2 2280 PCIe Gen4x4 slots for fast storage
  • Wi-Fi 7 and Bluetooth 5.4 give modern wireless speed
  • Toolless 0.6L chassis allows quick memory and drive upgrades

Specifikationer

BrandASUS
SeriesExpertCenter
ModelPN54-BB5000ETL-A
Part Number90MR01B2-M00090
ColorBlack
Form FactorSlim
AI FeaturesCopilot+ PC
CPU TypeAMD Ryzen AI 5 340
CPU Cores6-Core
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported64GB
M.2 Slot2 x M.2 2280 PCIe Gen4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsAMD Radeon 840M
LANRealtek RTL8125B-CG
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4

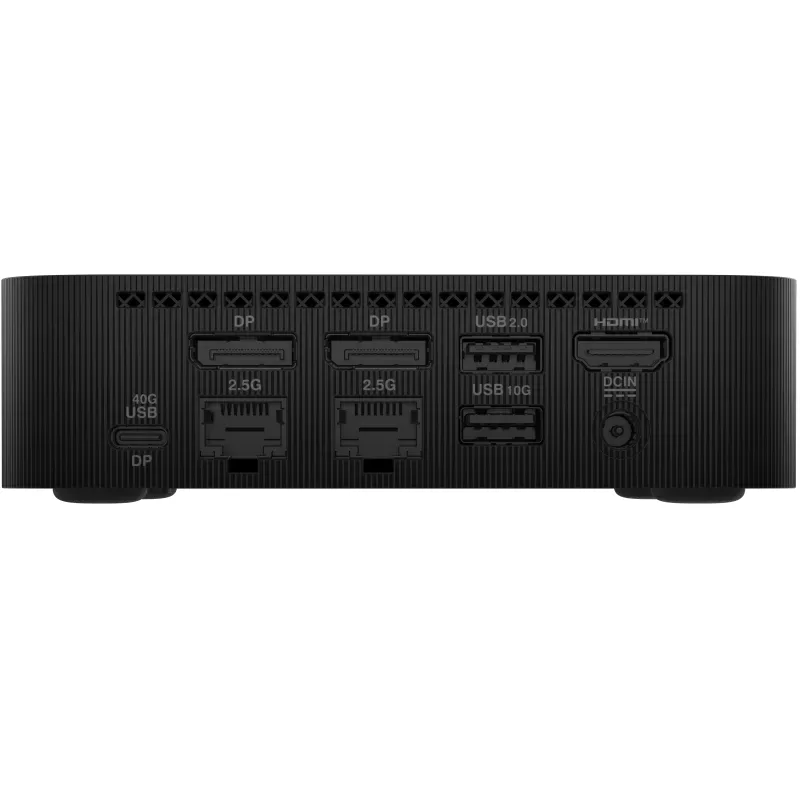

Front USB1 x USB 3.2 Gen2 Type-C (with DP1.4, 5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI1 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort2 x DisplayPort 1.4
Rear USB1 x USB 4.0 Type-C (with DP1.4/PD-in*, 5V/3A, 40Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
RJ452 x Realtek 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
Power Supply120W Power Adapter
Dimensions1.34" x 5.12" x 5.12"
Weight1.21 lbs.
PackagingVESA Mount / AC Power Adapter / Power Cord
Fraktvikt1.48 kg
Paketstorlek189 × 157 × 134 mm

Andra versioner av den här modellen

2 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Does the barebone include RAM and SSD, or do I need to buy them separately?

The unit ships with no memory and no storage installed. You must add two DDR5 5600 SO-DIMMs up to 64 GB total and one or two M.2 2280 PCIe Gen4x4 NVMe SSDs from 256 GB to 2 TB each.

How do I choose between different memory capacities for the two SO-DIMM slots?

Install two identical DDR5 5600 modules for dual-channel operation. The board supports up to 64 GB total, so select a matched pair that adds up to your target capacity.

What does the 50 TOPS NPU figure mean when the mini PC is running Windows Copilot+ features?

The XDNA2 NPU delivers up to 50 TOPS of AI throughput, enabling on-device Copilot+ experiences such as live captions, recall and image generation without cloud latency.
