Compact silver metal mini PC with fanless industrial chassis

BOESIIPC

BOESIIPC Industrial Mini PC Barebone i3-8130U 8GB DDR4 128GB NVME Windows 11 Pro

SKU CH-CSJV-Y40P6

Fanless industrial mini PC with an Intel Core i3-8130U, 8 GB DDR4, 128 GB NVME storage and Windows 11 Pro pre-installed

  • Max Memory Supported32GB
  • Integrated GraphicsIntel UHD Graphics
  • Max LAN SpeedDual 2.5Gbps
  • Wireless LAN802.11ax
  • WiFi GenerationWi-Fi 6
  • BluetoothBluetooth 5.2

RAM SSD 8GB 128GB

  • Intel Core i3-8130U up to 3.4GHz for responsive multitasking
  • Pre-installed Windows 11 Pro ready for immediate deployment
  • Dual 2.5Gbps LAN plus Wi-Fi 6 and Bluetooth 5.2 connectivity
  • Expandable DDR4 to 32GB with NVME, mSATA and 2.5-inch SATA options
  • Fanless metal chassis rated dustproof, corrosion-resistant and shockproof

Industrial Mini PC Barebone

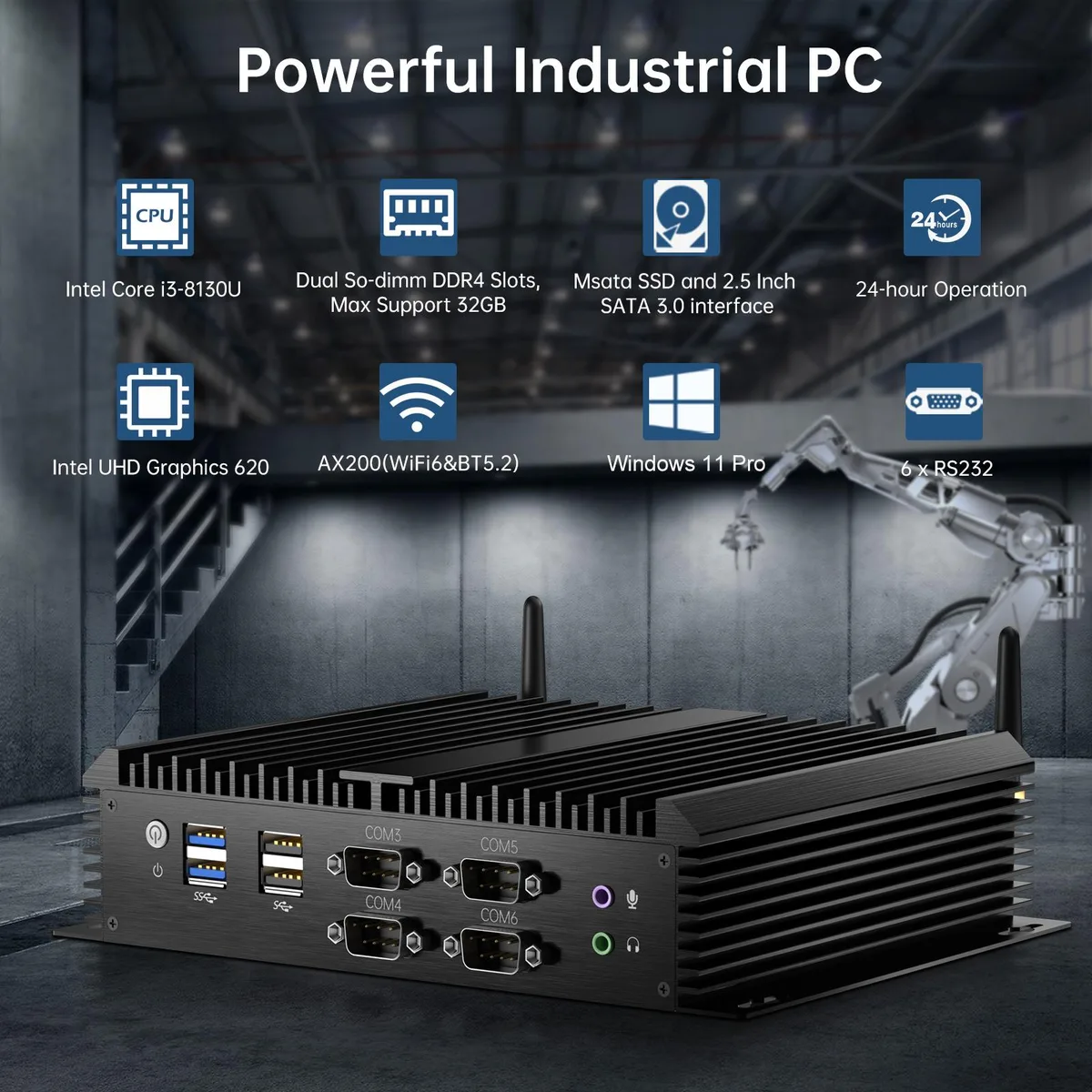

This fanless mini PC barebone ships with Windows 11 Pro pre-installed and an Intel Core i3-8130U processor running at 2.2GHz base with a 3.4GHz maximum. Integrated Intel UHD Graphics 620 drives dual displays through HDMI and VGA outputs. The system targets industrial automation, control cabinets and embedded deployments that need a sealed, dust-proof chassis.

Connectivity limits

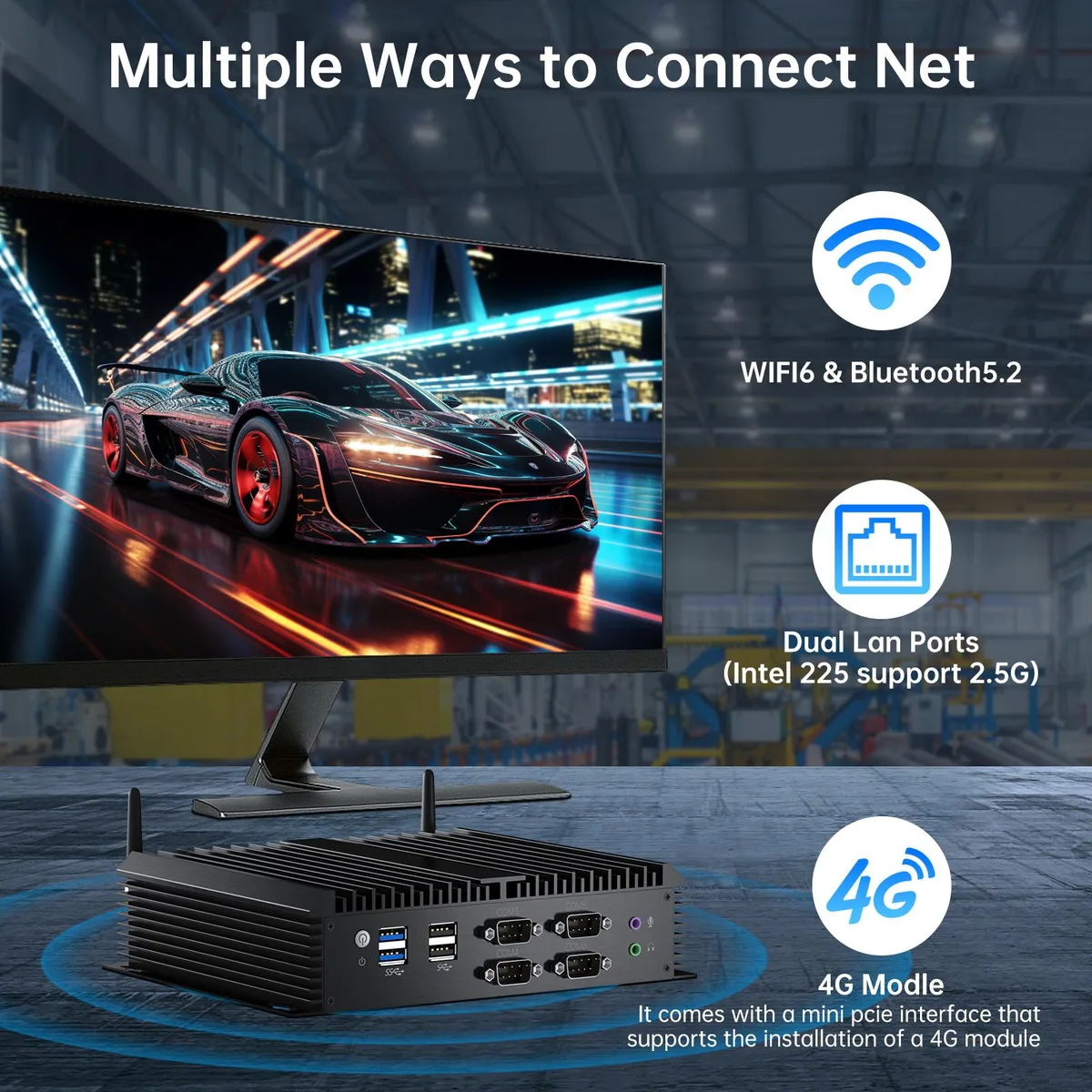

Dual 2.5Gbps LAN ports and Wi-Fi 6 with Bluetooth 5.2 handle wired and wireless networking. Six COM RS232 ports, four USB 3.0 and two USB 2.0 ports provide legacy and modern peripheral support. A Mini PCIe slot accepts a 4G module for mobile connectivity. One 2.5-inch SATA bay and an mSATA slot sit alongside the M.2 NVME drive for storage expansion.

Memory ceiling

DDR4 memory is expandable to 32GB maximum, which determines how many concurrent industrial applications or virtual machines the unit can sustain. The installed 8GB and 128GB NVME SSD cover basic workloads, but heavier logging, historian databases or edge-analytics tasks will require populating the second SO-DIMM slot.

I korthet

  • Intel Core i3-8130U up to 3.4GHz for responsive multitasking
  • Pre-installed Windows 11 Pro ready for immediate deployment
  • Dual 2.5Gbps LAN plus Wi-Fi 6 and Bluetooth 5.2 connectivity
  • Expandable DDR4 to 32GB with NVME, mSATA and 2.5-inch SATA options
  • Fanless metal chassis rated dustproof, corrosion-resistant and shockproof

Specifikationer

BrandIntel
Max Memory Supported32GB
Integrated GraphicsIntel UHD Graphics
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
2.5" Internal Bays1
HDMI1
Rear USB6
RJ452

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Should I keep the 8 GB DDR4 or upgrade toward the 32 GB maximum?

The system ships with 8 GB DDR4 and the board supports up to 32 GB; add memory if your workloads need more headroom.

What does the 3.4 GHz turbo on the i3-8130U actually deliver in daily use?

The dual-core processor runs at 2.2 GHz base and can reach 3.4 GHz for short bursts, giving responsive Windows 11 Pro performance for typical industrial tasks.

Will the 2.5 Gbps LAN ports run at full speed on my existing cabling?

Each RJ45 port is rated for 2.5 Gbps; Cat5e or better cable is required to achieve that throughput.
