Green circuit board with seven blue USB 3.0 Type-A ports along a silver bracket

ESTONE

ESTONE PCIE27USBA 7-Port USB 3.0 PCIe Front Expansion Card 7 Devices

SKU CH-XBNB-GQE01

Adds seven USB 3.0 Type-A ports through a PCI Express x1 slot with up to 5.0 Gbps transfer speed and 5V/1.5A power per port, no external PSU needed

  • TypePCI to USB Card
  • External USB Ports7-Port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11

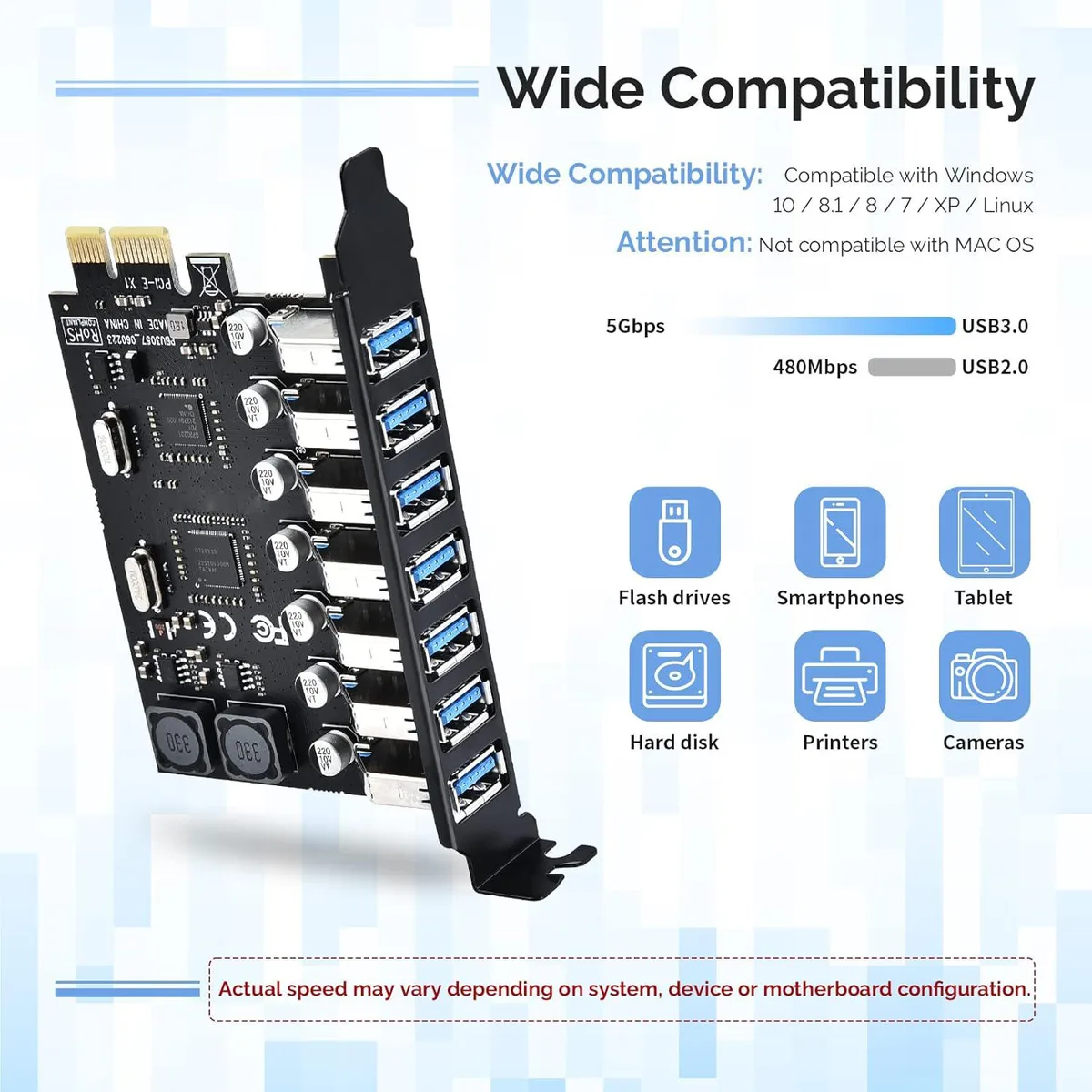

  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds seven USB 3.0 Type-A ports from a single PCIe slot
  • Up to 5.0 Gbps transfer speed for fast file access
  • Works without auxiliary PSU power using onboard 2-phase module
  • Each port has a dedicated solid capacitor for stable voltage
  • Compatible with Windows 7 through 11 (32/64-bit) and Mac OS 10.8.2+

Seven external USB 3.0 ports

The ESTONE PCIE27USBA adds seven USB 3.0 Type-A ports to a desktop through a single PCI Express slot. It suits builders who need many simultaneous connections for drives, controllers or optical units without occupying rear motherboard headers.

Independent power per port

A two-phase power module feeds each port separately so heavy devices do not starve one another. No auxiliary PSU cable is required; the card draws 5 V/1.5 A from the slot and uses solid capacitors at every interface for stable voltage. The bracket measures 4.92 x 4.06 x 1.06 inches and fits x1, x4, x8 or x16 slots.

Replaces single-port brackets

This card replaces a basic one- or two-port bracket when a front-panel hub or multiple external drives are needed. The upgrade is worthwhile when seven concurrent 5.0 Gbps links are required; it is not for systems that lack a free PCIe slot or need internal 19-pin headers only.

I korthet

  • Adds seven USB 3.0 Type-A ports from a single PCIe slot
  • Up to 5.0 Gbps transfer speed for fast file access
  • Works without auxiliary PSU power using onboard 2-phase module
  • Each port has a dedicated solid capacitor for stable voltage
  • Compatible with Windows 7 through 11 (32/64-bit) and Mac OS 10.8.2+

Specifikationer

BrandESTONE
SeriesPCIE27USBA
ModelPCIE27USBA
TypePCI to USB Card
External USB Ports7-Port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
Supports USB 3.0 specification type A connector X 7 ports.,Backward compatible with USB 1.1/USB 2.0.
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)

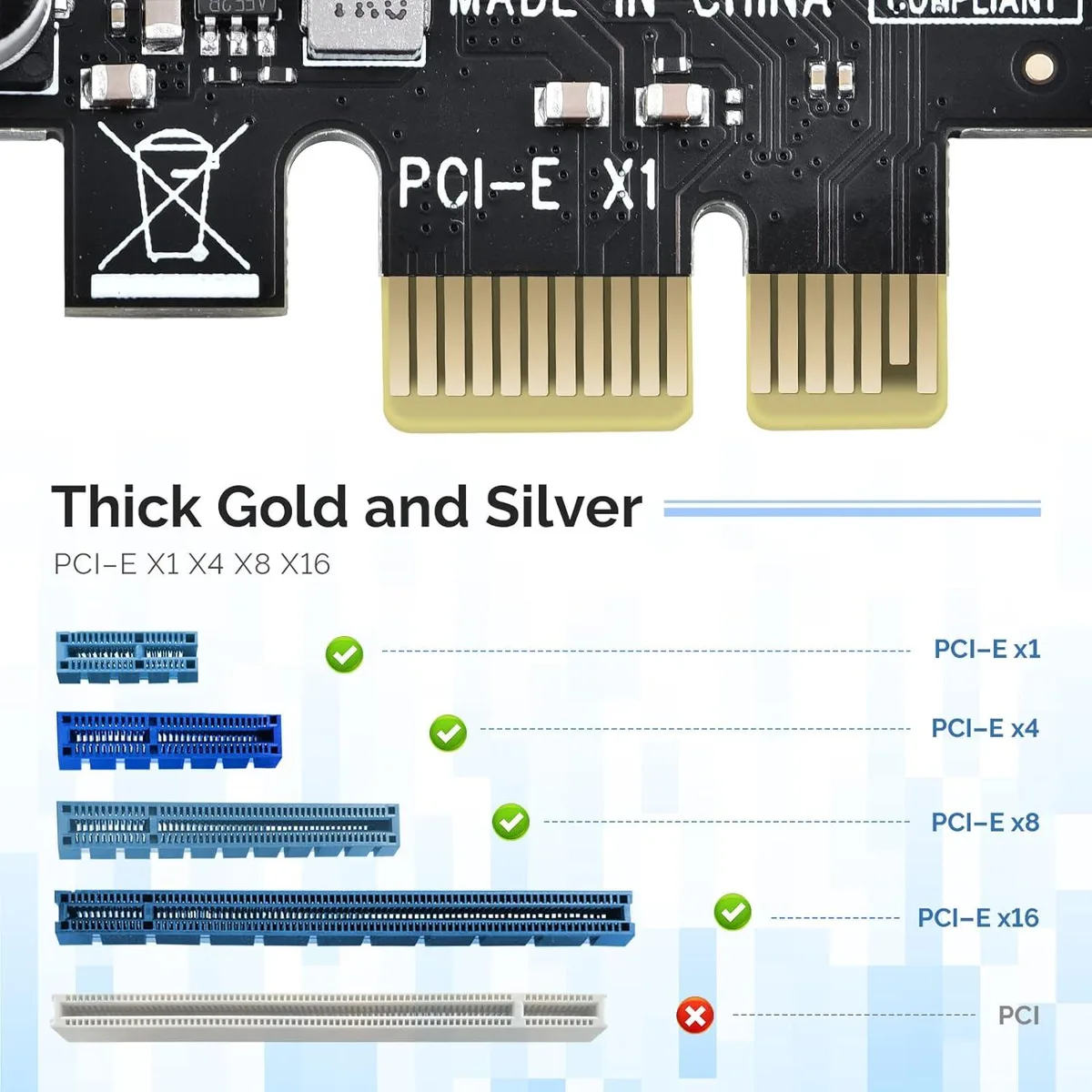

FeaturesPCIe to USB Extension Card: The PCIe extension card extends 7 USB 3.0 Type-A ports from a PCIe 3.0 slot, upward compatible with x1, x4, x8 and x16 slot.
High-Speed Transmission Rate: Three USB Type-A ports share 5Gbps bandwidth together, and the rest four ports share another 5Gbps bandwidth, with total bandwidth up to 10Gbps. Each port supports transmitting data at a rate up to 5Gbps when used solely. Note:The actual transmission speed is limited by the setting of the device connected.
Widely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 a
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Frågor om den här produkten

Does the PCIe 2.0 x1 lane cap the seven USB 3.0 ports at 5.0 Gbps total?

Yes, the card uses a PCIe 2.0 x1 connection, so all seven USB 3.0 ports share the 5.0 Gbps lane bandwidth.

What bracket height and slot width does the card need to fit a standard case?

The board measures 4.92 x 4.06 x 1.06 inches and mounts in any PCIe x1, x4, x8 or x16 slot with the included screws.

How do I install the driver on Windows 7 or 8, and what step do people skip?

Run the installer from the supplied CD before inserting the card; Windows 10 and 11 load the driver automatically.
