Black fiber-optic DisplayPort cable with gold-plated male connectors, 16 ft length, slim TPE jacket

ESTONE

ESTONE TJ-A077 DisplayPort 1.4 fiber cable 16ft 32.4Gbps 8K@60Hz 4K@144Hz

SKU CH-RV0H-SXQC0

A 16 ft fibre-optic DisplayPort 1.4 cable carrying 32.4 Gbps for 8K at 60 Hz and 4K at 144 Hz

  • TypeDisplayPort
  • ColorBlack
  • Length16 ft.
  • Cable Length16 ft.
  • Connector Number1
  • Connect From1 x DisplayPort 1.4

Cable Length 16 Feet

  • 8K clarity at 60 Hz via 32.4 Gbps fiber bandwidth
  • 4K gaming at 144 Hz refresh over 16 ft fiber link
  • EMI-free signal with hybrid glass fiber and copper construction
  • Gold-plated connectors resist corrosion for durable mating cycles
  • DP 1.4 certified with HDR 10 and 32-channel audio support

ESTONE 16 ft DP 1.4 Fiber Cable

This 16 ft DisplayPort 1.4 fiber optic cable links a DP 1.4 source to a DP 1.4 display. It targets builders and installers who need long runs without the signal loss common on copper cables at this length. The hybrid glass-fiber construction carries the full 32.4 Gbps bandwidth required for 8K at 60 Hz or 4K at 144 Hz.

Bandwidth and Resolution Limits

The cable is rated for 32.4 Gbps, the maximum defined by the DP 1.4 standard, so it cannot carry 8K at rates above 60 Hz or 4K above 144 Hz. It is backward compatible with DP 1.2 devices, but those links will run at the lower 1.2 bandwidth ceiling. The fiber core eliminates electromagnetic interference, yet the connectors remain passive and draw no external power.

Directional Install and Common Issues

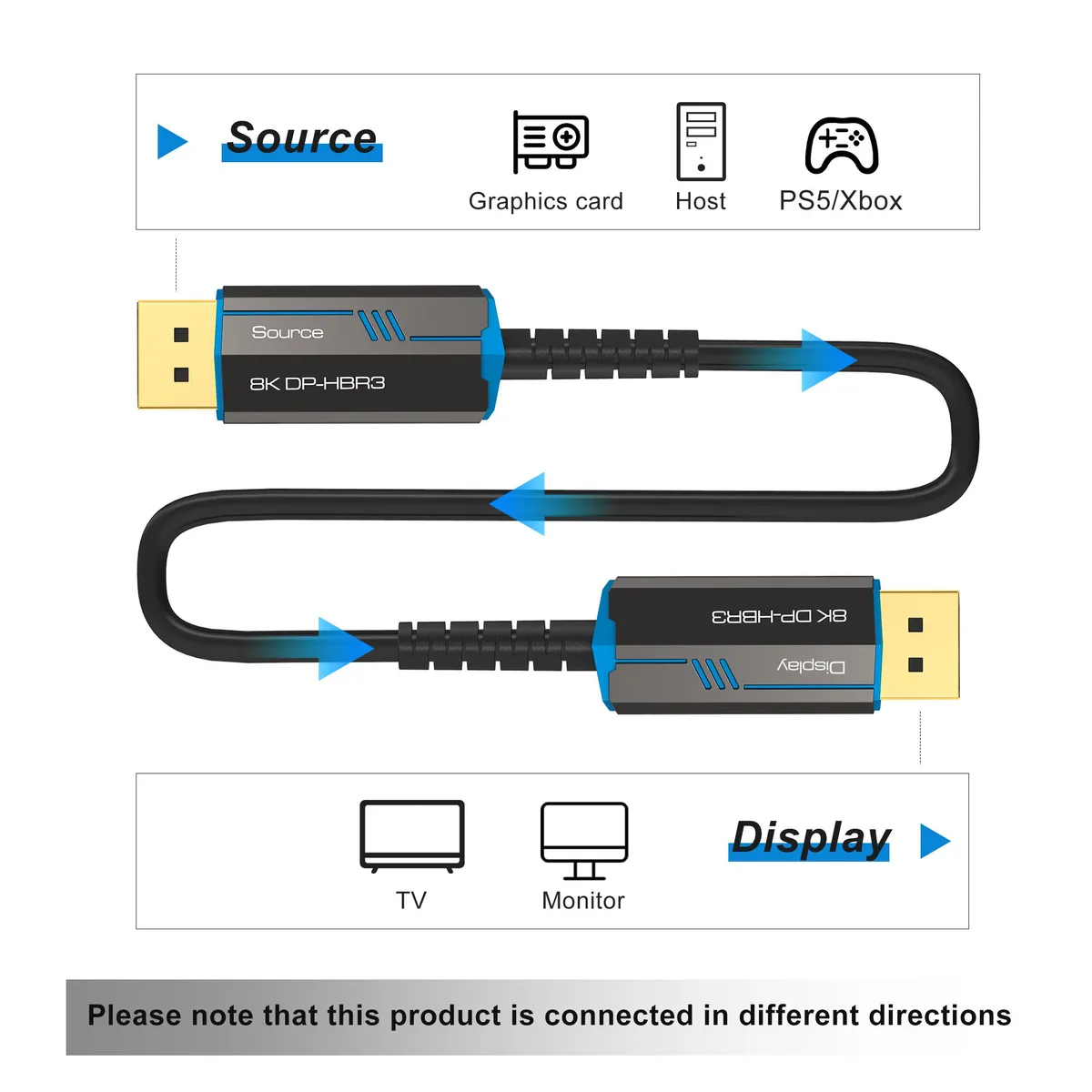

Each end is marked for source or display; reversing them breaks the link because the optical engine sits inside the display-side connector. The slim TPE jacket bends easily for in-wall pulls, but sharp kinks can fracture the glass cores. Gold-plated contacts resist corrosion, yet dust in the ports is the most frequent cause of intermittent 8K signals.

I korthet

  • 8K clarity at 60 Hz via 32.4 Gbps fiber bandwidth
  • 4K gaming at 144 Hz refresh over 16 ft fiber link
  • EMI-free signal with hybrid glass fiber and copper construction
  • Gold-plated connectors resist corrosion for durable mating cycles
  • DP 1.4 certified with HDR 10 and 32-channel audio support

Specifikationer

BrandESTONE
ModelTJ-A077
TypeDisplayPort
ColorBlack
Length16 ft.
Cable Length16 ft.
Connector Number1
Connect From1 x DisplayPort 1.4
Connect To1 x DisplayPort 1.4
Connector DetailDisplayPort to DisplayPort( Male to Male)
Terminal GenderMale to Male
SpeedSupports up to 32.4Gbps bandwidth.
SpecificationsDisplayPort 8K Long In Wall fiber optic cable
Resolution: Support 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Transfer speed: Support Transfer Rates of Up to 32.4Gbps (backward compatible with DP1.2)
Connect to the source: Source
Connect display source: Display

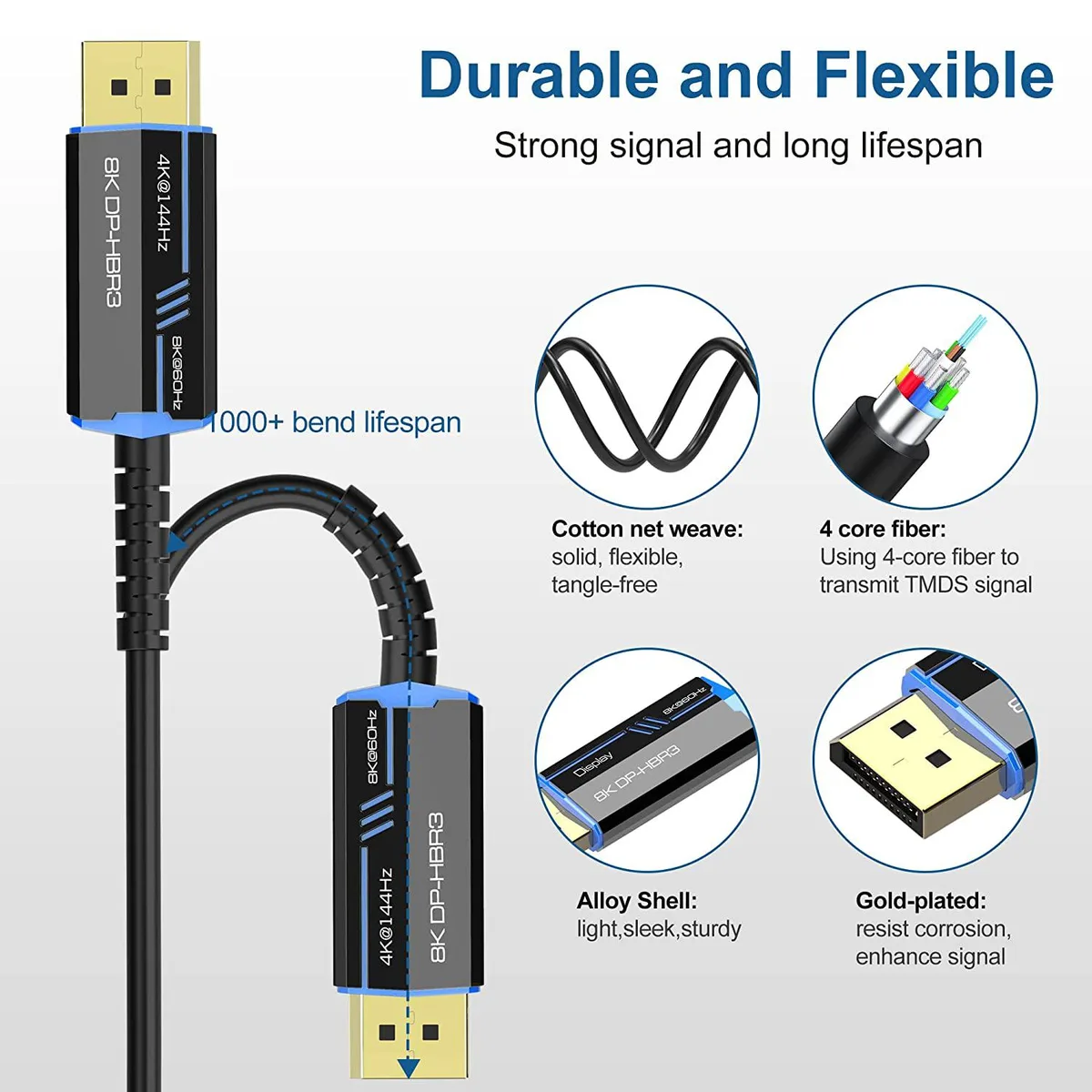

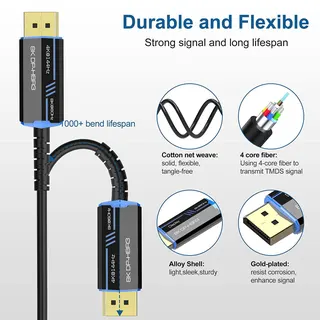

Material: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
ConductorTriple-shielded
ConstructionMaterial: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
Refresh RateSupport 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Sound QualityProduction Test
FeaturesTrue 8K, the ultimate experience: 8K dp fiber conforms to the 1.4 standard, supports 8K@60HZ, 4K@144HZ, and is backward compatible with 2K and 1080P resolutions. Supports up to 32.4Gbps bandwidth.
The ultimate audio-visual enjoyment: Support eARC, HBR3, DSC 1.2, Dolby Vision, HDR10, HDCP 2.2. Never worry about blur, distortion and delay
Safe and durable material: Using the latest smart chip, the high-strength aluminum alloy shell is firmly protected. The service life is greatly extended. The anti-bending design of the cable has also been upgraded, and the signal transmission is faste
Windows VistaCertified for Windows Vista

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Should I choose the 16 ft fiber cable or a shorter copper alternative?

The 16 ft fiber construction maintains the full 32.4 Gbps bandwidth at this length without a signal booster, while copper cables typically require active electronics beyond 10 ft to reach the same speed.

What does the 32.4 Gbps rating mean when I plug this into my monitor?

It carries enough bandwidth for true 8K at 60 Hz or 4K at 144 Hz with HDR, so high-refresh gaming and 8K media playback run without compression or chroma subsampling.

How does the DisplayPort 1.4 interface limit what I can actually run?

The DP 1.4 link caps at 32.4 Gbps, enabling 8K at 60 Hz and 4K at 144 Hz; higher refresh rates such as 4K at 165 Hz would exceed the standard's maximum bandwidth.
