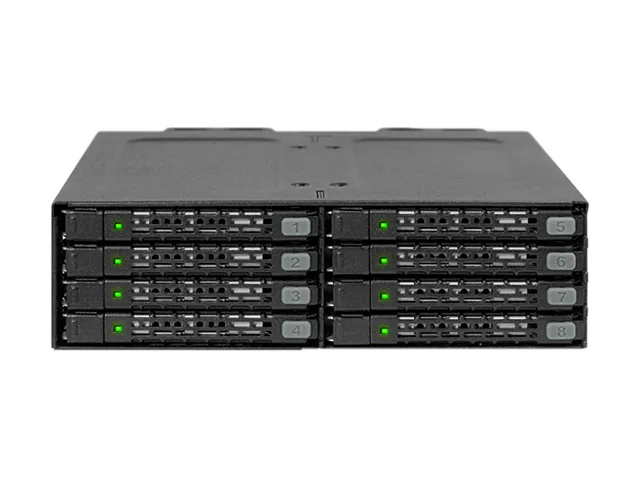

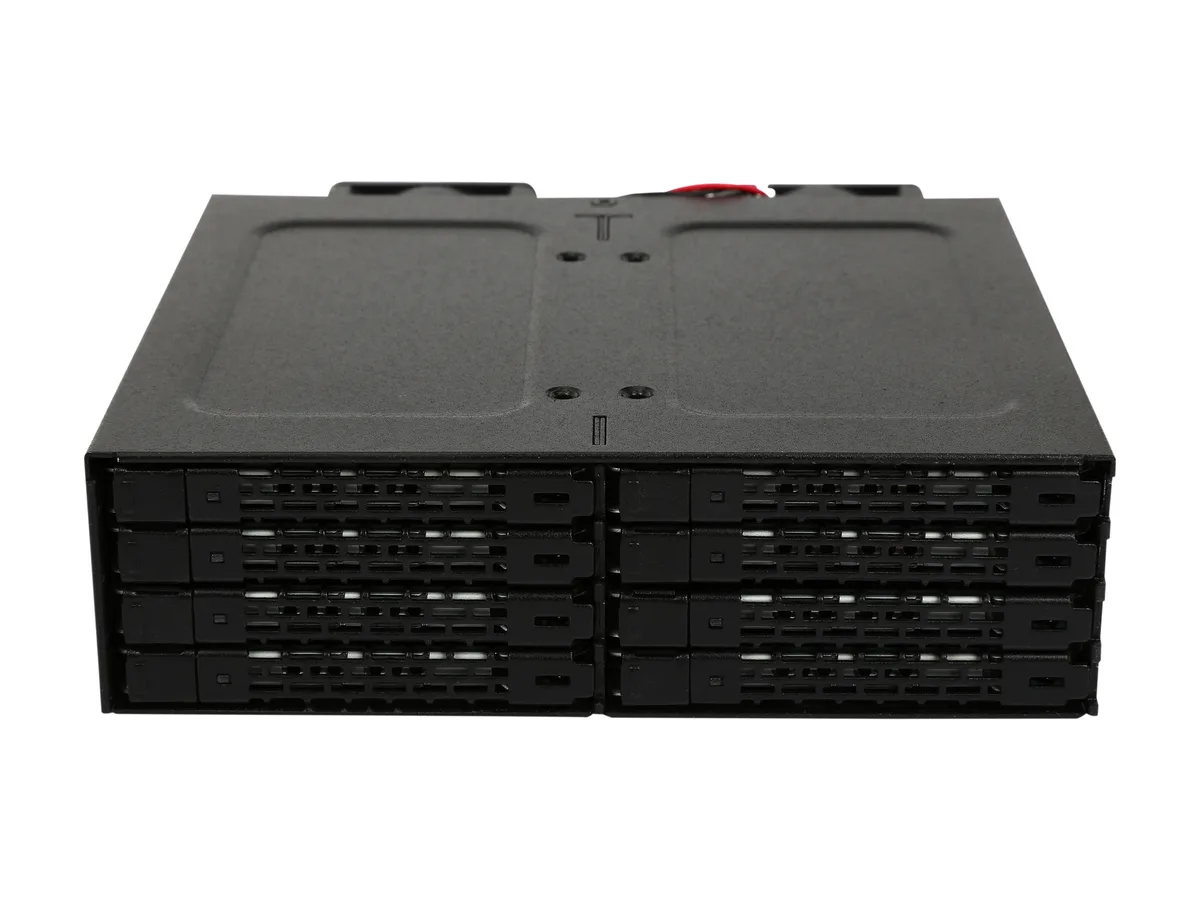

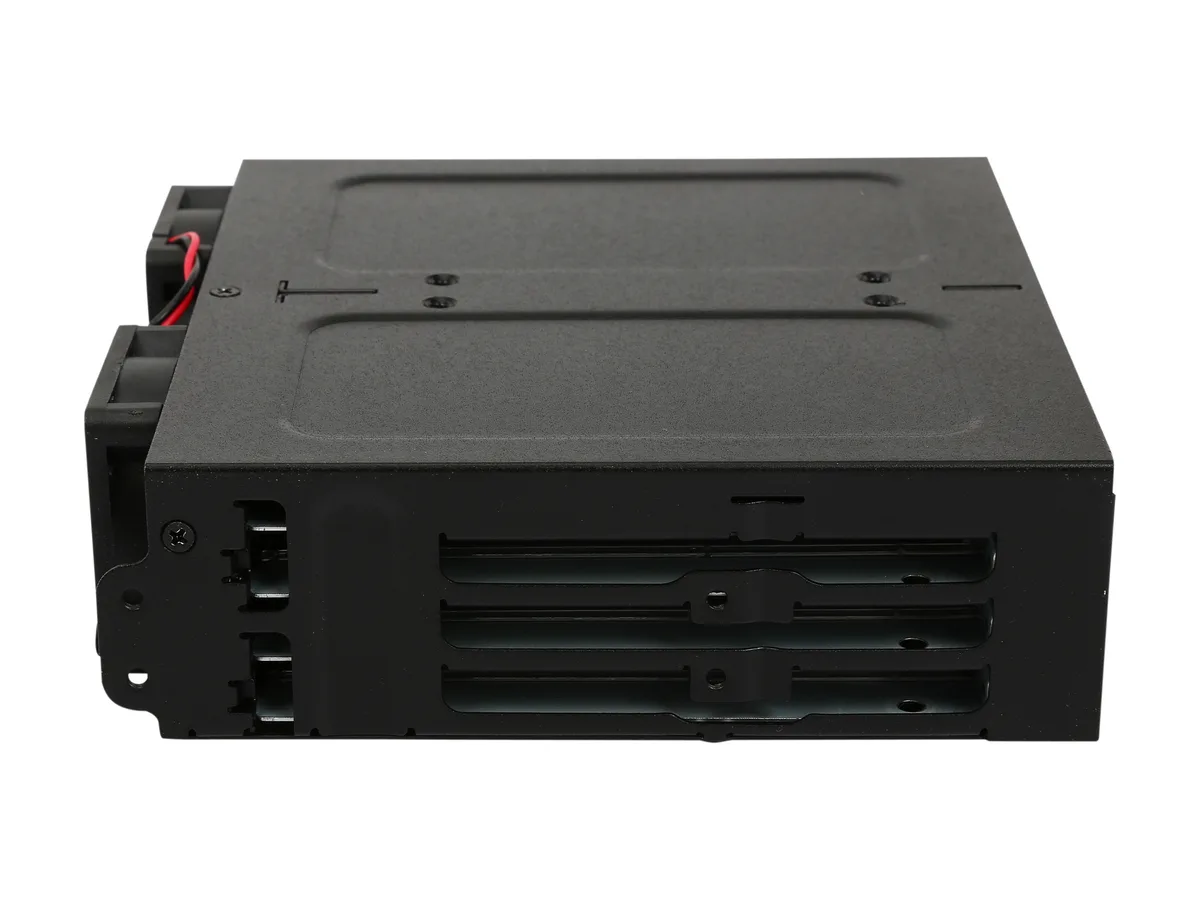

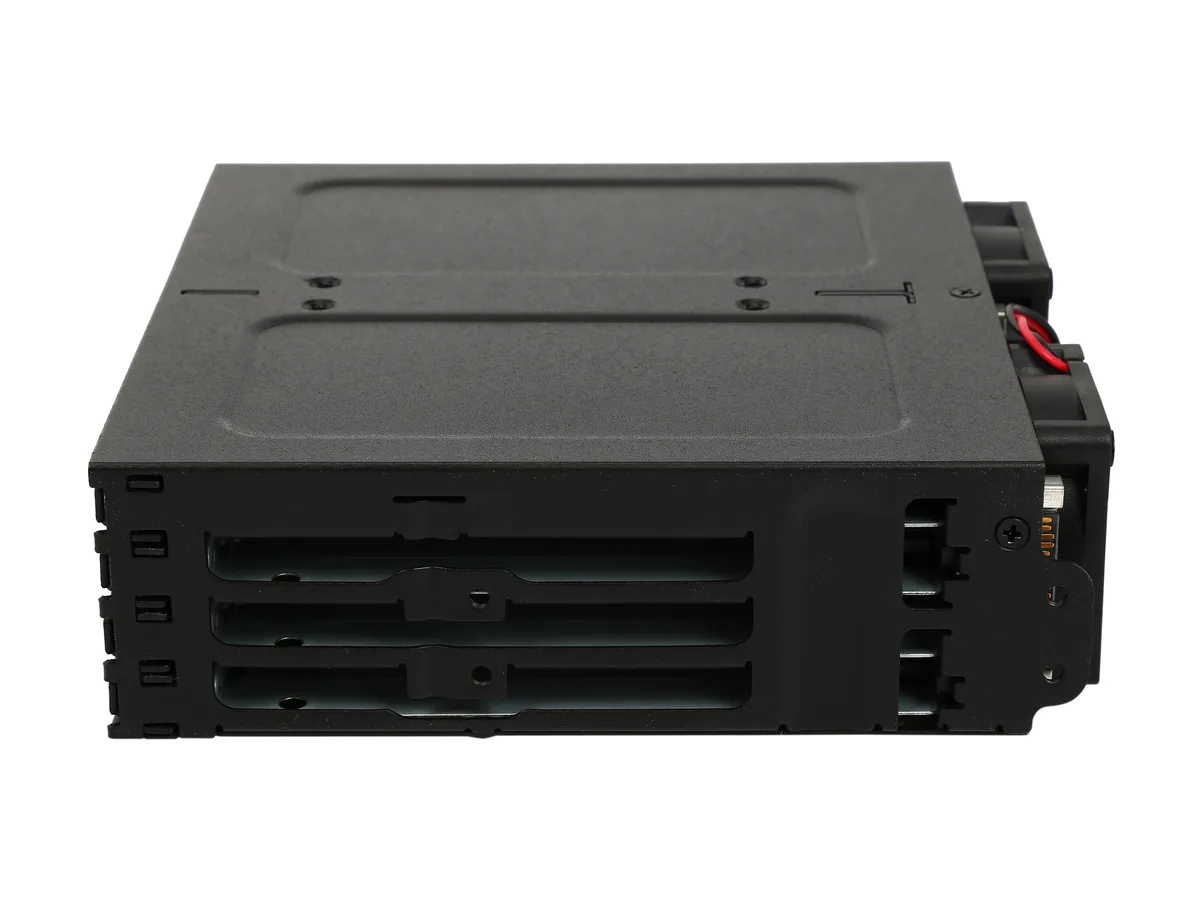

Black metal 8-bay 2.5 inch SATA SAS hot-swap cage fits single 5.25 inch bay dual 40mm fans

ICY DOCK

ICY DOCK MB998SP-B 8-bay 2.5" SATA/SAS hdd accessory

SKU CH-5ZJ3-P4MZ1 MPN MB998SP-B

Holds eight 2.5-inch SATA or SAS drives in a single 5.25-inch bay with hot-swap trays and dual 40mm cooling fans

  • ColorBlack
  • Conversion Tray2 x 5.25" Drive to 8 x 2.5" Bay
  • Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2.5"
  • Hot-swap eight 2.5" drives from a single 5.25" bay
  • Full metal chassis meets flammability standards for rugged use
  • Dual 40 mm fans with ventilated openings maximise airflow
  • SATA I II III and SAS support up to 6 Gb/sec transfer
  • EZ Slide Nano trays enable tool-free drive installation

Capacity & fit

The ICY DOCK MB998SP-B converts a single 5.25" bay into eight 2.5" SATA or SAS drive slots. It targets builders who need dense, hot-swappable storage in servers, workstations or industrial chassis.

Before ordering

Verify your chassis has a free 5.25" half-height bay and that the front panel can be removed or cut for tray access. Confirm the motherboard or controller provides eight SATA ports and that your drives are 7 mm thick.

Build integration

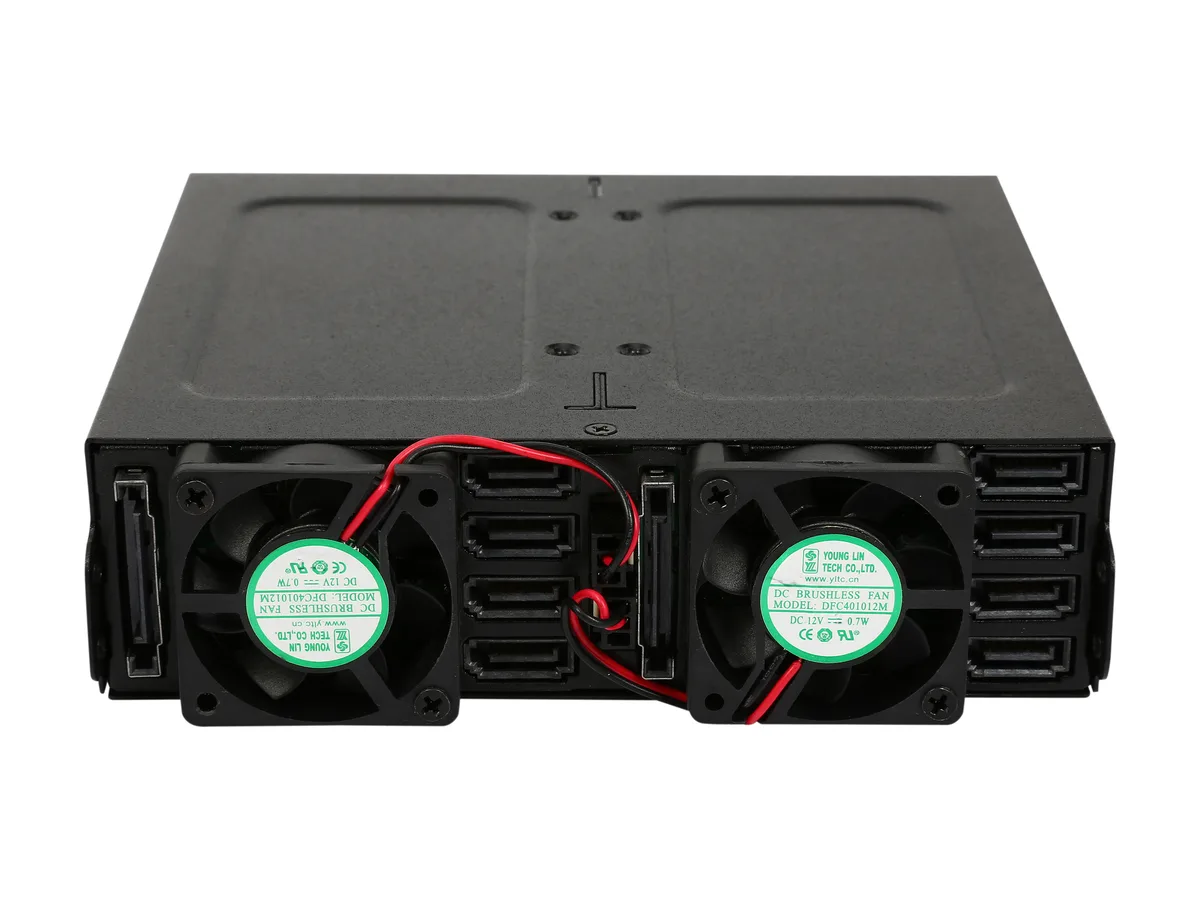

The all-metal cage mounts with standard 5.25" screws and draws power from a single 4-pin Molex connector. Dual 40 mm fans and side vents cool the stack, while EZ Slide Nano trays let you swap drives without tools or downtime.

I korthet

  • Hot-swap eight 2.5" drives from a single 5.25" bay
  • Full metal chassis meets flammability standards for rugged use
  • Dual 40 mm fans with ventilated openings maximise airflow
  • SATA I II III and SAS support up to 6 Gb/sec transfer
  • EZ Slide Nano trays enable tool-free drive installation

Specifikationer

BrandICY DOCK
ModelMB998SP-B
ColorBlack
Conversion Tray2 x 5.25" Drive to 8 x 2.5" Bay
Mobile Rack Drives SupportMulti 2.5" Drives to 5.25" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsHost Interface :
8 x 7pin SATA
Drive Fit :
8 x 2.5" SATA I / II / III SSD or HDD (7mm thickness)
Device Fit :
Single 5.25" half height device bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input :
2 x 15pin SATA power port
Insert& Extract connection Via :
Direct SATA hard drive connection
Structure :
Metal
Drive Cooling :
Dual 40mm rear cooling fan
Metal heat dispersion
Power Indicator :
Solid Green LED
HDD Access Indicator :
Flashing Amber LED
Dimension (L x W x H) :
5.75" x 5.6" x 1.63"
Weight :
1.93 lbs
Fraktvikt0.95 kg
Paketstorlek163 × 157 × 58 mm

Frågor om den här produkten

Does the MB998SP-B include the eight drive trays and mounting hardware, or must they be purchased separately?

The unit ships with eight EZ Slide Nano trays and all screws needed to secure it in a single 5.25" bay; drives are not included.

Should I choose a different ToughArmor model if my drives are taller than 7 mm?

This model accepts only 7 mm 2.5" SATA or SAS drives; thicker drives will not fit in the trays.

What does the 6 Gb/s transfer rate mean for an eight-drive RAID array?

Each bay connects through its own SATA port at up to 6 Gb/s, so total throughput depends on the RAID controller and the drives installed.
