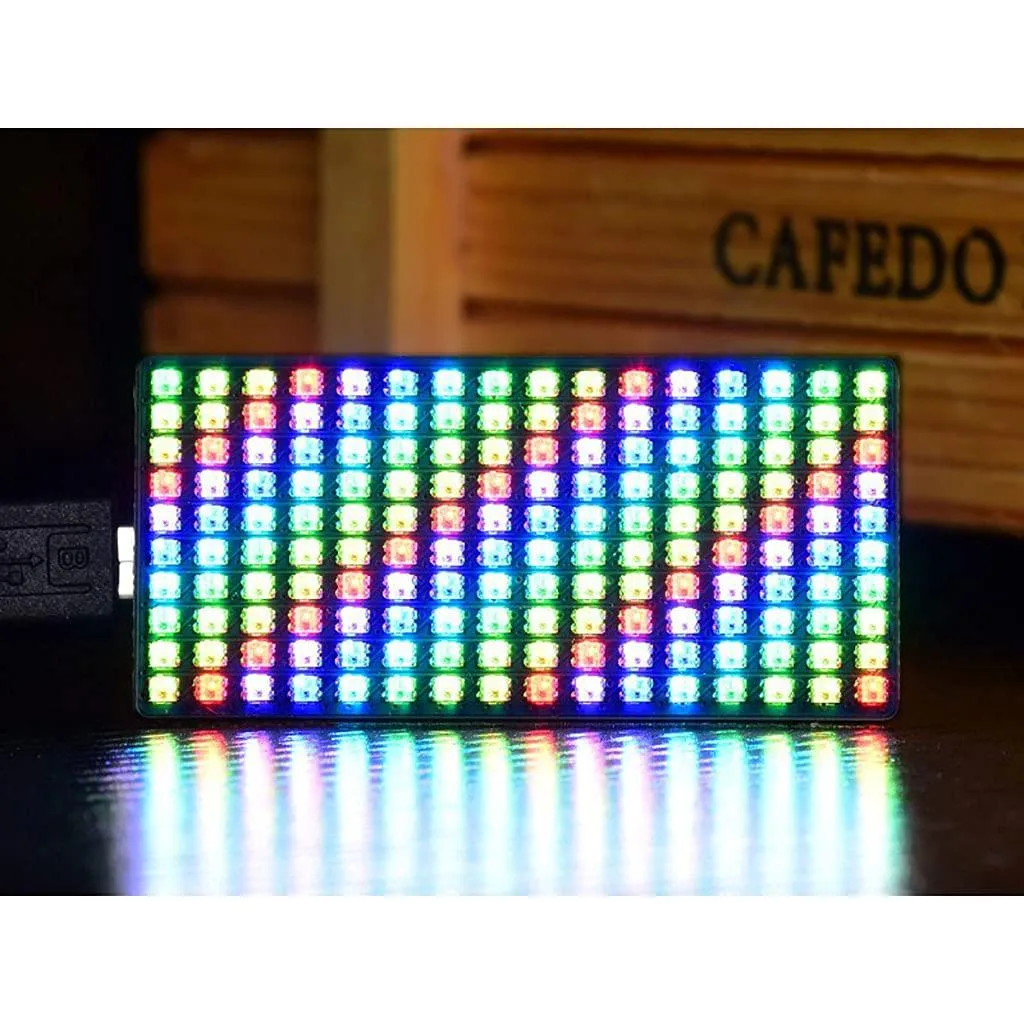

Rectangular LED matrix panel with 160 RGB lights in 16 by 10 grid, right-angled pin header on bottom edge

LORDWORLD

LORDWORLD 16×10 RGB LED Matrix Panel 160 LEDs 256 Brightness

SKU CH-91CX-E5A8A

A 16×10 RGB LED matrix with 160 addressable pixels and 256-level brightness control, designed to plug directly into a Raspberry Pi Pico header

  • Ready for Raspberry Pi Pico with standard header
  • 160 RGB LEDs in a 16×10 grid for vivid graphics
  • Adjustable 256-level brightness for precise control
  • Right-angled 2.54 mm pinheader simplifies stacking
  • Embedded controller IC ensures reliable, low-power operation

16×10 RGB matrix for Pico

The LORDWORLD panel mounts directly on a Raspberry Pi Pico series board through its standard header. One hundred and sixty 0807 RGB LEDs form a 16 by 10 grid driven by an embedded controller IC. A right-angled 2.54 mm male pinheader on the underside leaves the top side free for stacking or enclosure mounting. Brightness is adjustable across 256 levels for consistent colour mixing.

Makers adding compact visual output

Developers building status displays, small animations or sensor dashboards on a Pico board will find the fixed grid and single-wire cascade simple to drive. Projects that need larger pixel counts, wider voltage ranges or weather-sealed housings should look at other form factors. The panel draws power from the Pico header, so total current must stay within the host board limits.

160 LEDs in fixed 16×10 grid

The pixel count and physical layout are set at 160 emitters arranged in sixteen columns by ten rows. This resolution determines the detail level for graphics, text scrolling or game sprites. If the application requires a different aspect ratio or more pixels, another matrix size must be chosen.

I korthet

  • Ready for Raspberry Pi Pico with standard header
  • 160 RGB LEDs in a 16×10 grid for vivid graphics
  • Adjustable 256-level brightness for precise control
  • Right-angled 2.54 mm pinheader simplifies stacking
  • Embedded controller IC ensures reliable, low-power operation

Specifikationer

BrandLORDWORLD

Frågor om den här produkten

Should I pick the 16×10 panel or a different size for my Pico project?

This panel provides a 16 by 10 LED grid with 160 addressable RGB LEDs; choose it when that resolution matches your display needs.

What does the 256 brightness figure mean when the panel is running on a Raspberry Pi Pico?

Each LED can be driven at one of 256 discrete brightness levels, giving fine-grained dimming control from code running on the Pico.

How does the 2.54 mm pin header affect what I can connect to the panel?

The right-angled 2.54 mm male header plugs directly into a Pico board and leaves the pins accessible for stacking additional modules or jumper wires.
