Small green circuit board with two microphones, 3.5 mm jack, speaker headers and volume knob

LORDWORLD

LORDWORLD USB Audio Codec for Jetson Nano development board

SKU CH-CZQY-92GKC

USB audio codec adds driver-free recording and playback to Jetson Nano with dual MEMS microphones, 3.5 mm jack, speaker headers and volume knob

  • Driver-free USB audio for Jetson Nano with SSS1629 chip
  • Dual MEMS microphones enable stereo recording for voice projects
  • 5 mm jack and speaker header give flexible output options
  • On-board volume knob adjusts speaker level without software
  • Demo code covers synthesis, dictation, wake-up and dialogue

USB audio codec for Jetson Nano

This USB audio add-on is built for the Jetson Nano Developer Kit series and works with multiple operating systems without extra drivers. It targets developers and hobbyists who need audio input and output for voice-enabled edge projects.

Check your board and use case first

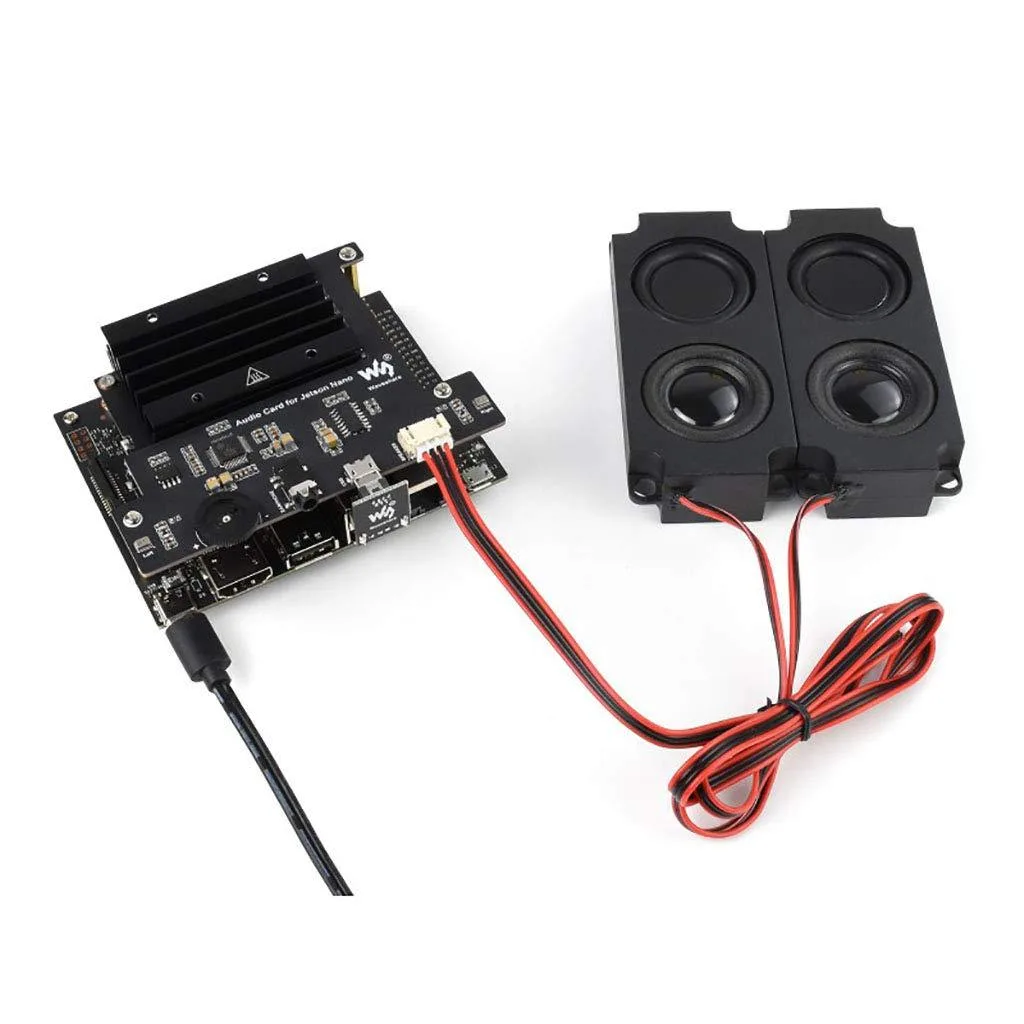

Verify you are using a Jetson Nano Developer Kit with an available USB port for power and data. The module provides a 3.5 mm headphone jack and a dual-channel speaker header with a volume knob, so plan whether you will connect headphones, passive speakers or both. No internal driver installation is required on supported systems.

Thermals noise and power in normal use

The SSS1629 audio chip draws power directly from the USB bus, keeping heat output low during typical recording and playback. Two MEMS silicon microphones capture dual-track audio without adding audible fan or coil noise. The onboard volume knob lets you set speaker levels without software gain stages that could introduce hiss.

I korthet

  • Driver-free USB audio for Jetson Nano with SSS1629 chip
  • Dual MEMS microphones enable stereo recording for voice projects
  • 5 mm jack and speaker header give flexible output options
  • On-board volume knob adjusts speaker level without software
  • Demo code covers synthesis, dictation, wake-up and dialogue

Specifikationer

BrandLORDWORLD

Frågor om den här produkten

What comes in the box with the LORDWORLD USB Audio Codec and what must I buy separately?

The board includes the USB audio codec with dual MEMS microphones, a 3.5 mm audio jack, a dual-channel speaker header and a volume knob; you only need to supply a Jetson Nano Developer Kit and any speakers or headphones you wish to connect.

Which version of this audio codec should I choose for my Jetson Nano project?

Only one version is offered — the SSS1629-based USB codec with dual MEMS microphones, 3.5 mm jack and speaker header — so select this model if those features match your requirements.

How does the SSS1629 chip perform when the board is plugged into a Jetson Nano?

The SSS1629 runs over the USB bus with no driver installation, giving plug-and-play stereo recording through the two MEMS microphones and playback through the 3.5 mm jack or the speaker header with hardware volume control.
