Compact fanless barebone mini PC with rugged metal casing

Nexcom

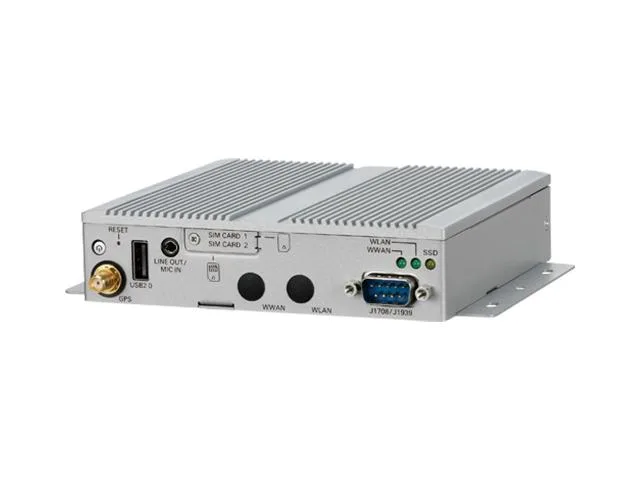

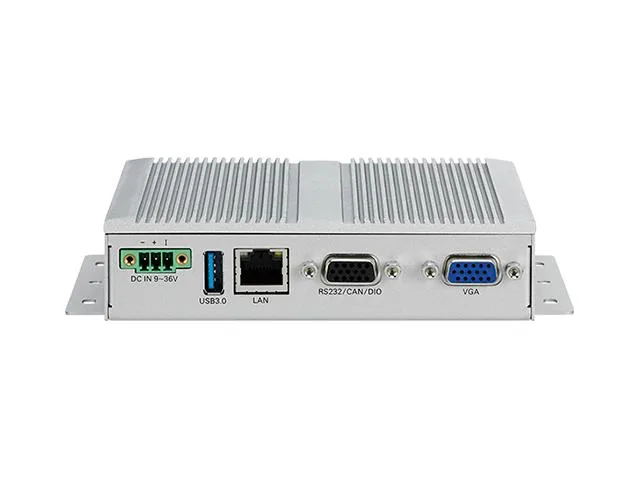

Nexcom VTC 1910-S barebone mini PC

SKU CH-PVTB-PEMS7

Fanless vehicle computer with Intel Atom E3815, CAN 2.0B, GPS, dual SIM, 9–36 V input and -40 °C to 70 °C operation

  • Integrated GraphicsIntel® integrated graphics (Bay Trail)
  • Memory slot1 x 204Pin SO-DIMM
  • Memory Type SupportedDDR3L 1600/1066
  • Max Memory Supported8GB
  • Memory installed4GB
  • CPU TypeIntel Atom
  • Fanless rugged design withstands vibration and extreme temperatures from -40°C to 70°C
  • Intel Atom E3815 at 1.46 GHz provides low-power processing for embedded tasks
  • Wide 9–36 V DC input with ignition control suits vehicle power systems
  • Built-in CAN 2.0B and optional SAE J1939/J1708 enable vehicle diagnostics
  • Dual SIM slots and u-blox M8N GPS support reliable fleet connectivity

Vehicle computer for telematics

The Nexcom VTC 1910-S is a fanless, super-slim barebone built for harsh in-vehicle environments. An Intel Atom E3815 processor at 1.46 GHz drives IoT gateway, fleet management and dispatching workloads. Integrated graphics and a DisplayPort handle local visualisation. The rugged chassis operates from -40 °C to 70 °C.

Check power and memory before ordering

Verify the vehicle supplies 9 V to 36 V DC for the wide-range input. Confirm a single 204-pin SO-DIMM slot accepts DDR3L at 1600 or 1066 MT/s, with a maximum of 8 GB. Ensure CAN 2.0B or the optional SAE J1939/J1708 module matches the diagnostics bus. Dual SIM slots require compatible WWAN modules for cellular redundancy.

Upgrades from older vehicle gateways

Replaces bulkier, fan-cooled boxes that lack ignition-controlled power management or integrated GNSS. The jump is worth it when installation space is tight, vibration resistance is critical, or dual-SIM failover improves uptime. Buyers who need higher compute performance or additional expansion slots should consider larger platforms.

I korthet

  • Fanless rugged design withstands vibration and extreme temperatures from -40°C to 70°C
  • Intel Atom E3815 at 1.46 GHz provides low-power processing for embedded tasks
  • Wide 9–36 V DC input with ignition control suits vehicle power systems
  • Built-in CAN 2.0B and optional SAE J1939/J1708 enable vehicle diagnostics
  • Dual SIM slots and u-blox M8N GPS support reliable fleet connectivity

Specifikationer

BrandNEXCOM
SeriesVTC
ModelVTC 1910-S
Integrated GraphicsIntel® integrated graphics (Bay Trail)
Memory slot1 x 204Pin SO-DIMM
Memory Type SupportedDDR3L 1600/1066
Max Memory Supported8GB
Memory installed4GB
CPU TypeIntel Atom
CPU CoresSingle-core
VGA1 x DisplayPort

Frågor om den här produkten

Does the VTC 1910-S arrive with RAM and storage already installed, or do I need to buy a SO-DIMM and drive separately?

The unit ships with 4 GB of DDR3L memory fitted in its single 204-pin SO-DIMM slot; you must add your own storage drive and any extra memory up to the 8 GB limit.

Which memory specification should I select if I want to expand the single SO-DIMM slot to the maximum 8 GB?

Choose a DDR3L 1600/1066 module; the board has one 204-pin slot and supports up to 8 GB total.

What does the 1.46 GHz Atom E3815 single-core speed mean for real-time telematics workloads in this fanless chassis?

The 1.46 GHz single-core Bay Trail processor handles CAN 2.0B, GPS and dual-SIM WWAN tasks within the -40 °C to 70 °C range without active cooling.
