Gray 15.6 inch industrial all-in-one PC with resistive touchscreen and aluminum alloy chassis

partaker

partaker A28 all-in-one PC 15.6" i5-5200U 8GB 512GB resistive touch

SKU CH-ZBR5-6163E

15.6-inch resistive touch all-in-one with IP65 front, dual LAN, dual COM, 8GB DDR3 and 512GB mSATA SSD

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A28 15.6" Resistive I5 5200U 8GB RAM / 512GB SSD

  • 6" Full HD 1920x1080 resistive touchscreen rated for 50 million touches
  • Fanless aluminium chassis runs silently from -20 to +60 °C in dusty environments
  • IP65 front panel resists water and dust for reliable embedded mounting
  • Dual Gigabit LAN plus 2 COM 4 USB and dual mini PCIe for industrial I/O
  • Intel Core i5-5200U up to 2.70 GHz with 8 GB DDR3 and 512 GB mSATA storage

Industrial Panel PC for Embedded Deployment

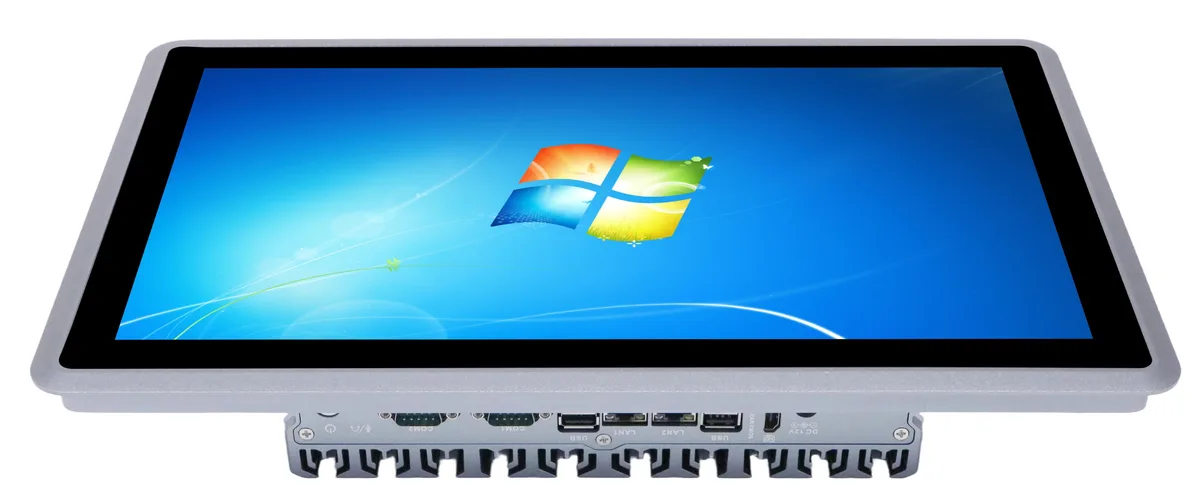

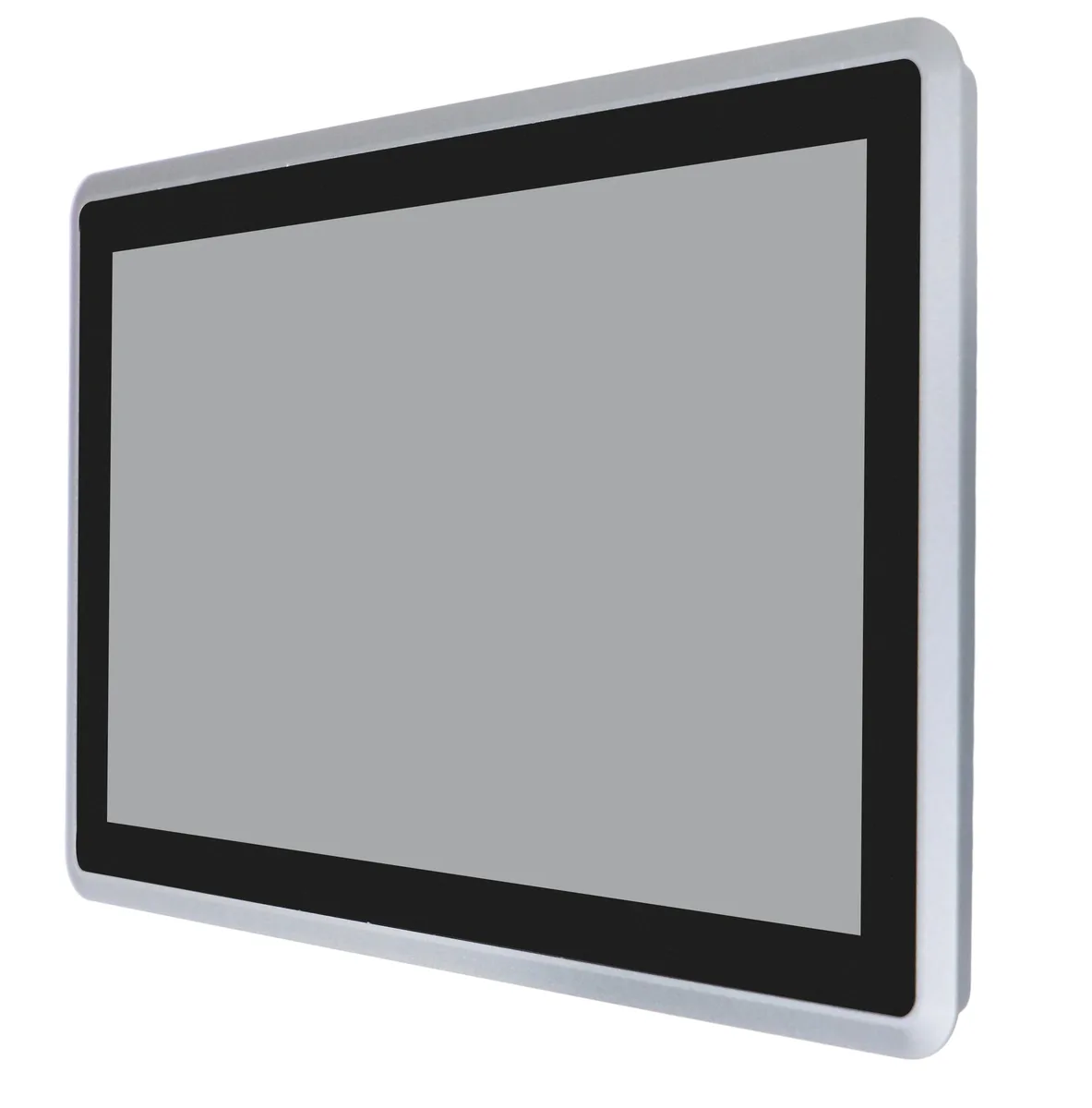

The Partaker A28 is a 15.6 inch all-in-one computer built into an aluminum alloy chassis with a fanless design for silent operation. It integrates an Intel Core i5-5200U processor and a resistive touchscreen rated to 50 million touches. The IP65-rated front panel resists dust and water ingress, making it suitable for harsh industrial environments where embedded mounting via a 385x234.3 mm cutout is required.

Dual-Core Processing with DDR3 Headroom

The i5-5200U runs at up to 2.70 GHz with two cores and 3 MB cache, paired with 8 GB of installed DDR3 memory across two slots supporting up to 16 GB total. A 512 GB mSATA SSD provides boot and application storage. This configuration handles typical HMI, data logging, and gateway workloads; compute-intensive tasks such as real-time video analytics or heavy database processing will exceed the dual-core capability.

Expansion Slots and Legacy I/O for Integration

Two mini PCIe slots accept Wi-Fi, Bluetooth, or 3G/4G modules with a SIM holder for wireless connectivity. Dual Gigabit LAN ports support wake-on-LAN and PXE boot. Two configurable RS232/485 COM ports (expandable to six), four USB ports, and HDMI output connect PLCs, barcode scanners, and secondary displays. A watchdog timer with 0-255 levels and timer power-on functions enable unattended recovery in remote installations.

I korthet

  • 6" Full HD 1920x1080 resistive touchscreen rated for 50 million touches
  • Fanless aluminium chassis runs silently from -20 to +60 °C in dusty environments
  • IP65 front panel resists water and dust for reliable embedded mounting
  • Dual Gigabit LAN plus 2 COM 4 USB and dual mini PCIe for industrial I/O
  • Intel Core i5-5200U up to 2.70 GHz with 8 GB DDR3 and 512 GB mSATA storage

Specifikationer

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size15.6"
Screen TypeMulti-Touch Screen

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Will the Partaker A28 fit into the same panel cutout as my existing 385x234.3 mm industrial enclosure?

Yes, the A28 is designed for embedded mounting using a standard 385x234.3 mm panel cutout, matching common industrial enclosure dimensions.

How can I verify the resistive touchscreen and dual LAN ports are functioning correctly after installation?

Test touch response across the 15.6 inch 1920x1080 screen and confirm both Realtek Gigabit network ports show active link lights and pass traffic.

Does the box include the DC power adapter and mini PCIe expansion cards for Wi-Fi or 4G?

The unit ships with the all-in-one PC; the 12V DC adapter and mini PCIe modules for Wi-Fi, Bluetooth or 3G/4G are sold separately.
