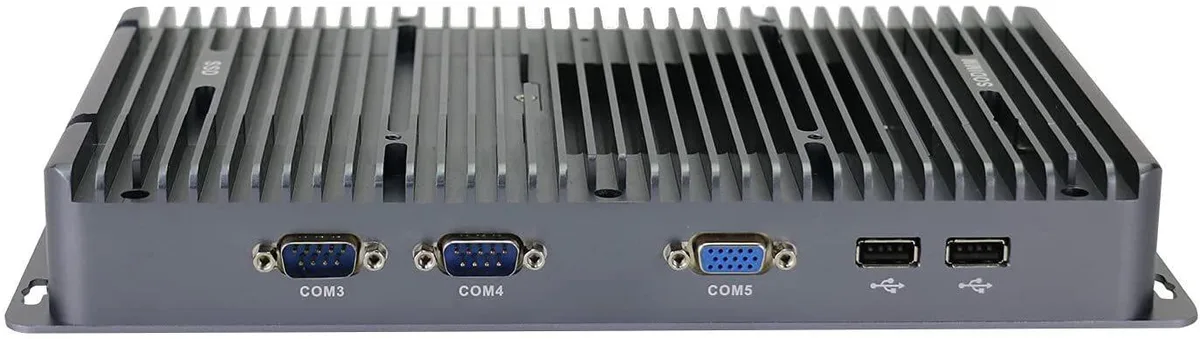

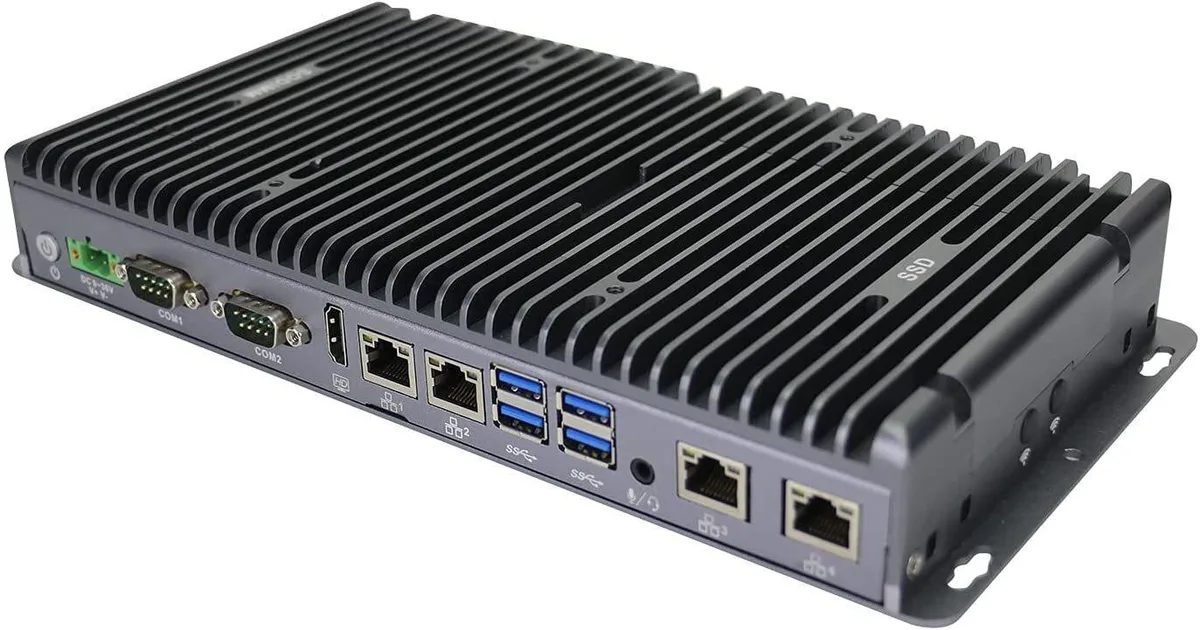

Gray aluminium fanless mini PC with mounting ears, 280 x 143 x 40 mm

partaker

partaker PA-3046 barebone mini PC i7-10810U 32GB DDR4 512GB SATA

SKU CH-T1WT-SFGHG

Fanless industrial mini PC with a 6-core i7-10810U, 32 GB DDR4, 512 GB SATA SSD, four LAN and four COM ports, 9–36 V input, TPM 2.0 and VESA mounting

  • ColorGray
  • CPU TypeIntel Core i7 10th Gen

CPU Type Intel Core i7-10710U

Group 32GB RAM+512GB SSD

  • Fanless cooling keeps the system silent in noise-sensitive sites
  • Six-core i7-10810U reaches 4.9 GHz for heavy workloads
  • 32 GB DDR4 memory handles parallel tasks without swapping
  • 512 GB SATA SSD plus 2.5-inch bay gives storage room to grow
  • Four Intel I211-AT LAN ports provide redundant network links

Industrial-grade mini PC

The Partaker PA-3046 is a fanless barebone system built around an Intel Core i7-10810U processor with six cores reaching 4.9 GHz. It ships with 32 GB of DDR4 memory and a 512 GB SATA SSD installed. The aluminum chassis supports desktop, wall, embedded or VESA mounting for industrial and commercial deployments.

SATA storage and DDR4 ceiling

Storage expansion uses SATA interfaces only: one M.2 2280 slot and one 2.5-inch bay with RAID 0/1 support. The single SO-DIMM slot accepts DDR4-2666 modules up to 32 GB, so memory cannot be expanded beyond the factory configuration. Four Intel I211-AT controllers provide gigabit Ethernet connectivity.

Voltage, mounting and OS checks

Verify that your power infrastructure delivers DC 9-36 V with polarity protection before installation. The unit operates from 0 °C to 50 °C with commercial drives or -20 °C to 60 °C with industrial SSDs. Confirm OS compatibility with Windows 10, Windows 11, Linux Ubuntu or FreeBSD-based router images.

I korthet

  • Fanless cooling keeps the system silent in noise-sensitive sites
  • Six-core i7-10810U reaches 4.9 GHz for heavy workloads
  • 32 GB DDR4 memory handles parallel tasks without swapping
  • 512 GB SATA SSD plus 2.5-inch bay gives storage room to grow
  • Four Intel I211-AT LAN ports provide redundant network links

Specifikationer

ColorGray
CPU TypeIntel Core i7 10th Gen

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Should I pick the 32 GB DDR4 / 512 GB SATA build or add a second 2.5″ SATA drive for RAID?

The unit ships with 32 GB DDR4-2666 and a 512 GB M.2 2280 SATA SSD. A second 2.5″ SATA SSD or HDD can be added and configured in RAID 0 or RAID 1 via the board.

What does the i7-10810U at up to 4.90 GHz deliver inside this fanless chassis?

The 6-core, 15 W processor sustains its turbo within the 0–50 °C commercial or -20–60 °C industrial ranges because the aluminium case acts as a heatsink; no fan noise or moving parts.

Are the four LAN ports full gigabit and what limits throughput?

Each port uses an Intel I211-AT controller rated at 10/100/1000 Mbit/s, so the practical ceiling is 1000 Mbit/s per port, shared across the PCIe bus.
