Black 360mm radiator, CPU block, reservoir and clear soft tubing laid out

Phanteks

Phanteks PH-GEF_KIT360-ST_DBK 360mm DIY Cooling Kit

SKU CH-JFV9-X3P1Q MPN PH-GEF_KIT360-ST_DBK

Complete DIY water-cooling kit with CPU block, reservoir, 360mm radiator, 3m clear PVC soft tubing and integrated 16mm fittings for Intel LGA 1700 and AMD AM4/AM5

  • TypeDIY Cooling Kit
  • Block CompatibilityIntel: LGA 1700 AMD: AM4 /AM5
  • Block Dim.72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
  • Radiator Size360mm
  • Tube Dim.3 meter
  • Tube MaterialClear PVC
  • Complete kit includes CPU block, reservoir, radiator and tubing for immediate build

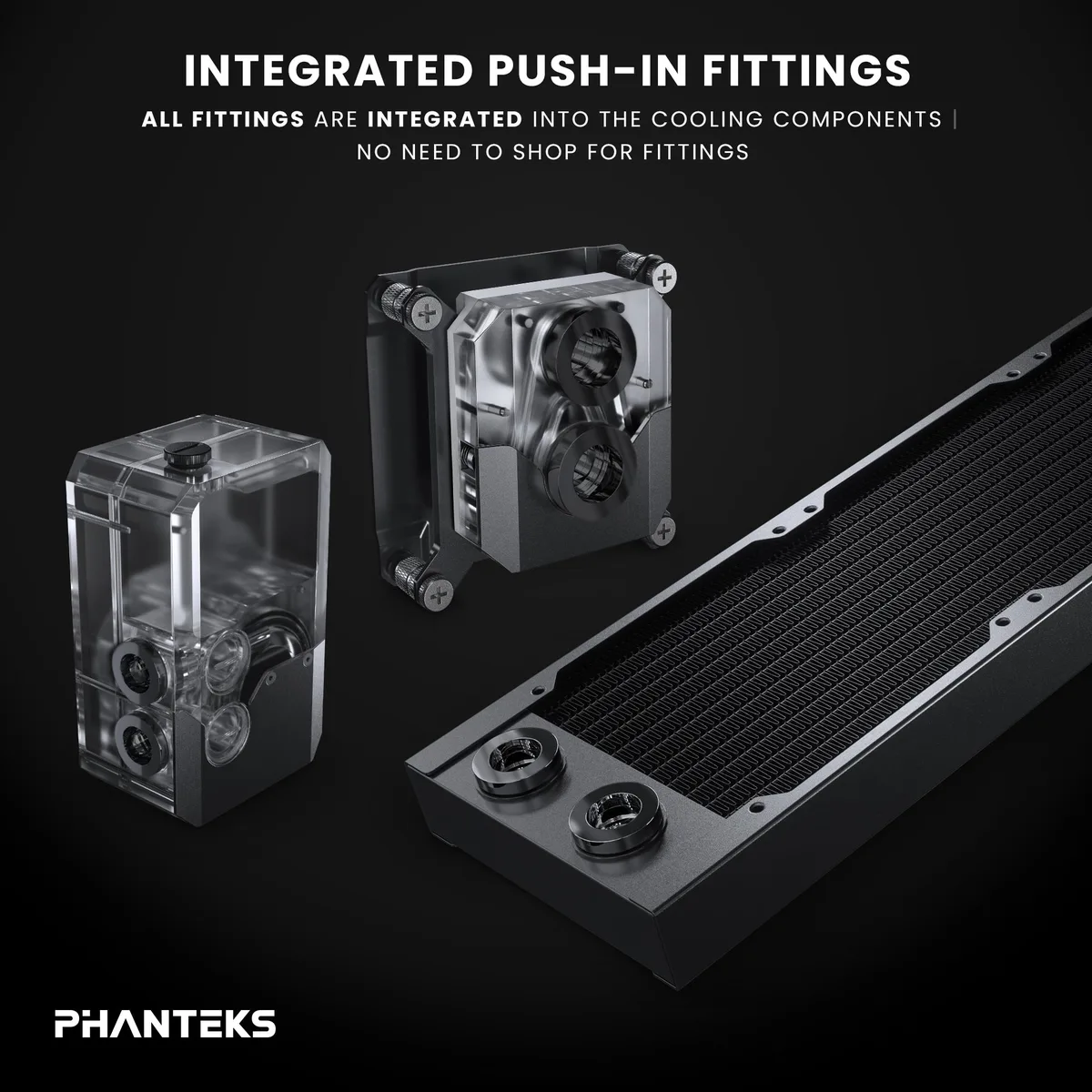

  • Integrated fittings on every component remove separate fitting purchases and simplify assembly
  • 360 mm radiator provides large surface area for effective heat dissipation
  • Supports Intel LGA 1700 and AMD AM4/AM5 sockets for broad CPU compatibility

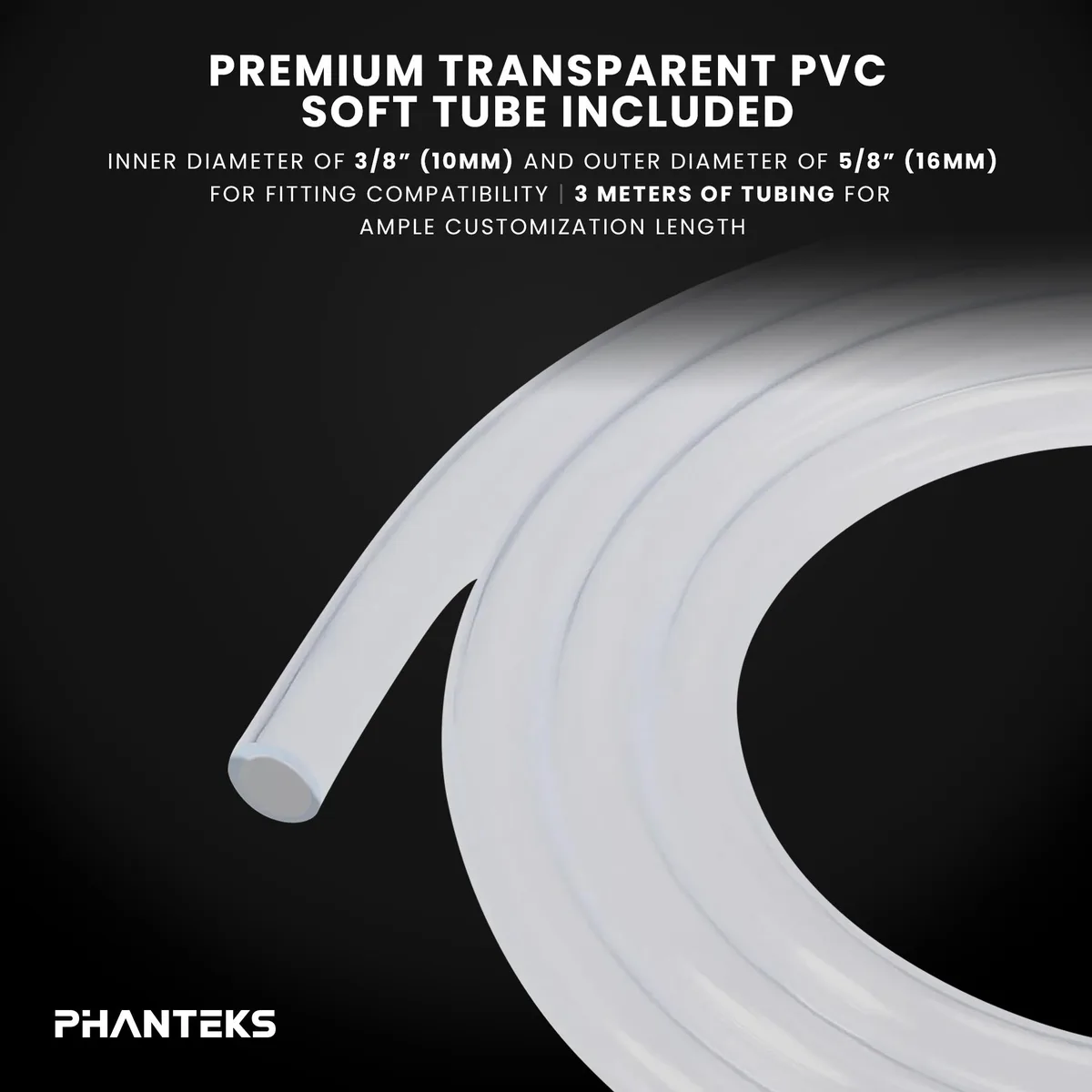

  • Three metres of clear PVC soft tubing allows flexible routing inside the case

Complete DIY Water-Cooling Kit

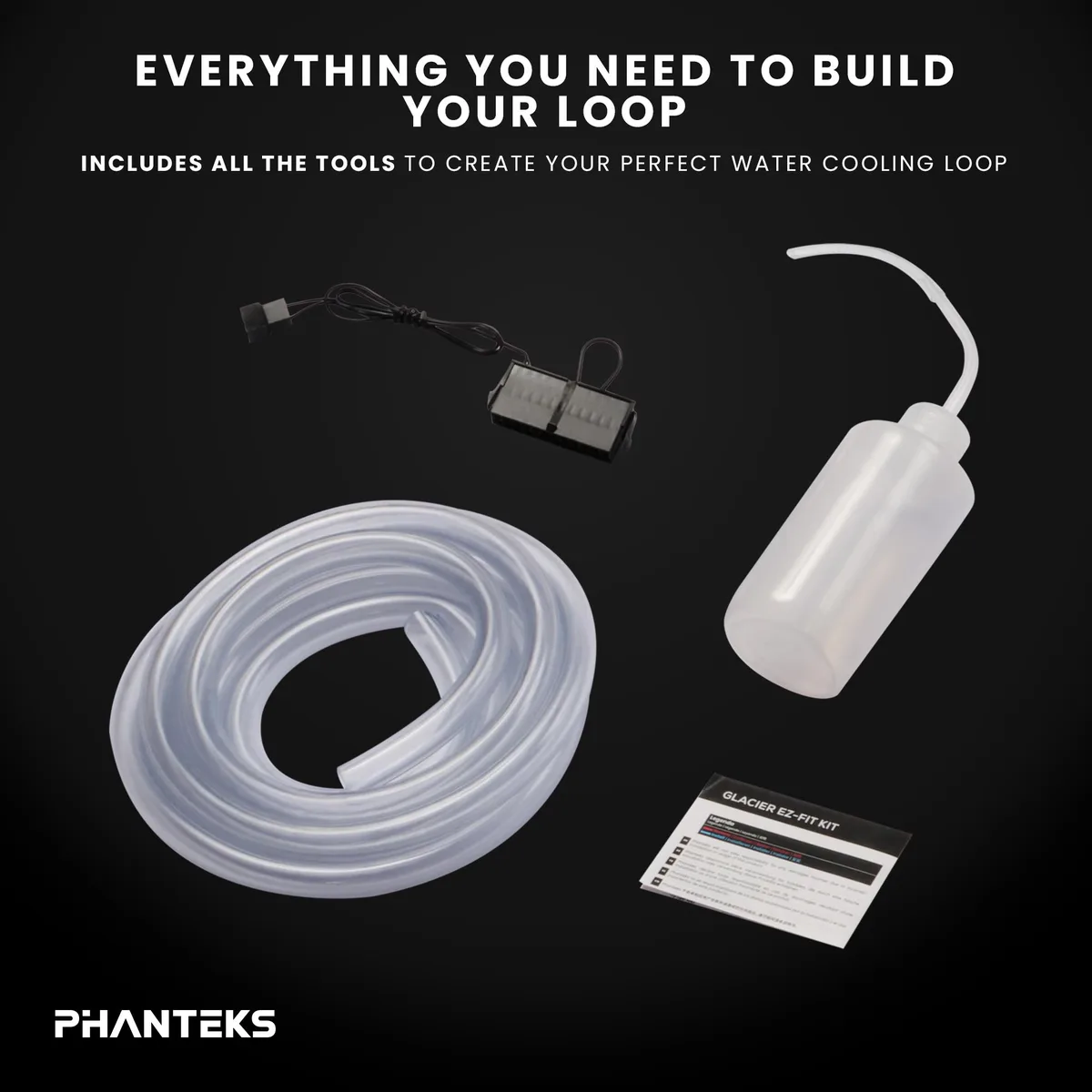

The Phanteks Glacier EZ-Fit 360 SOFT-KIT delivers a full custom loop in one package. It includes a CPU block, reservoir, 360mm radiator, three metres of clear PVC tubing, integrated 16mm EZ-Fittings, a squeeze bottle, a 24-pin jumper and tools. The kit supports Intel LGA 1700 and AMD AM4 or AM5 sockets. Everything needed for a first hard-line or soft-tube build is supplied.

Build Integration And Clearance

The CPU block measures 72 by 64 by 25.7mm and the radiator is 360mm long with a 30mm thickness. Builders must ensure their case can mount a 360mm radiator and has room for the 140mm reservoir. Integrated fittings remove the need for separate compression parts and accept both 16mm hard tubing and the included soft tubing. The 24-pin jumper allows pump testing without a motherboard connected.

Upgrade Path From Air Or AIO Coolers

This kit replaces a standard air cooler or a closed-loop AIO with a serviceable custom loop that can be expanded later. The jump is worthwhile when the builder wants full control over coolant choice, RGB lighting and future GPU block additions. It is not suited for cases that cannot fit a 360mm radiator or for users who prefer a maintenance-free sealed unit.

I korthet

  • Complete kit includes CPU block, reservoir, radiator and tubing for immediate build
  • Integrated fittings on every component remove separate fitting purchases and simplify assembly
  • 360 mm radiator provides large surface area for effective heat dissipation
  • Supports Intel LGA 1700 and AMD AM4/AM5 sockets for broad CPU compatibility
  • Three metres of clear PVC soft tubing allows flexible routing inside the case

Specifikationer

BrandPhanteks
ModelPH-GEF_KIT360-ST_DBK
TypeDIY Cooling Kit
Block CompatibilityIntel: LGA 1700
AMD: AM4 /AM5
Block Dim.72 x 64 x 25.7mm (2.83 x 2.52 x 1in)
Radiator Size360mm
Tube Dim.3 meter
Tube MaterialClear PVC
Package ContentsPH-GEF_RAD363_BK 1x
PH-GEF­_CPU450_DBK 1x
PH-GEF_RES140_DBK 1x
PH-GEF_ST16_CL 1x
Squeeze Bottle 1x
24-Pin Jumper 1x
Tool Set Manual 1x
GLACIER EZ-FIT KIT Manual 1x
Fraktvikt4.79 kg
Paketstorlek572 × 508 × 241 mm

Frågor om den här produkten

Will the 360mm radiator fit inside my case?

The radiator measures 360mm in length; compare that dimension with your case’s maximum supported radiator size before purchasing.

How much noise and heat does the pump-reservoir combo produce during continuous operation?

The PH-GEF_RES140_DBK reservoir and integrated pump run on a standard 24-pin jumper; actual acoustic and thermal output will depend on the fan speeds you configure.

Which CPU socket mounting hardware is already included in the box?

The CPU block supports Intel LGA 1700 and AMD AM4/AM5 sockets out of the box.
