Black 4U steel rackmount server chassis with front drive bays and USB ports

Rosewill

Rosewill RSV-R4200U 4U server chassis 11×3.5" 3×2.5" ATX CEB

SKU CH-Y7ZJ-Z28DT MPN RSV-R4200U

Holds up to 11×3.5" and 3×2.5" drives with four PWM fans pre-installed in a 4U rackmount steel chassis

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialSteel
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ATX / SSI CEB
  • Power SupplyNot include, supports PS2 Power Supply form factor

Chassis Type 4U · 14 Bays · 4 Fans

  • Holds 11 × 3.5″ drives plus 3 × 2.5″ devices for massive storage

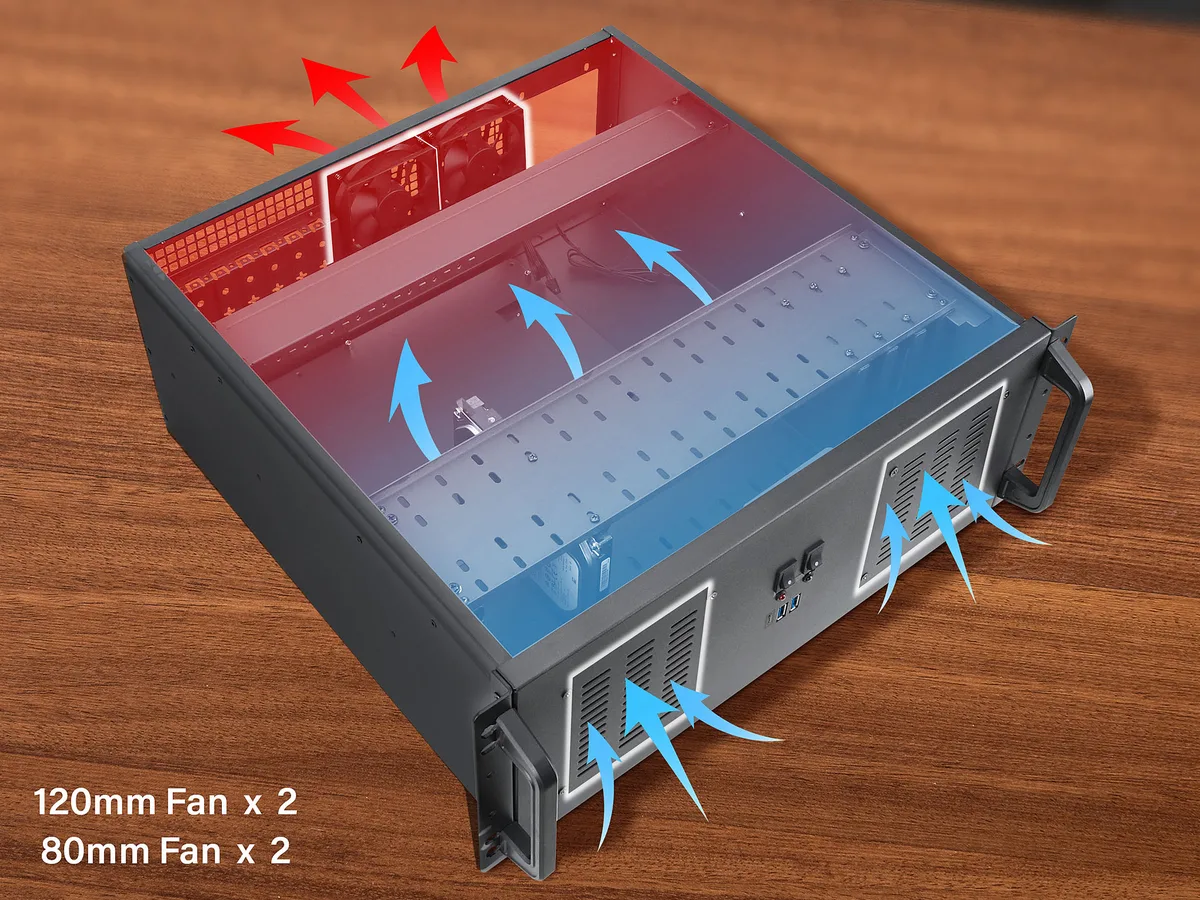

  • Four pre-installed PWM fans (2 × 120 mm front, 2 × 80 mm rear) deliver strong airflow
  • Supports ATX, E-ATX and SSI CEB motherboards for flexible builds
  • Seven expansion slots allow multiple add-in cards

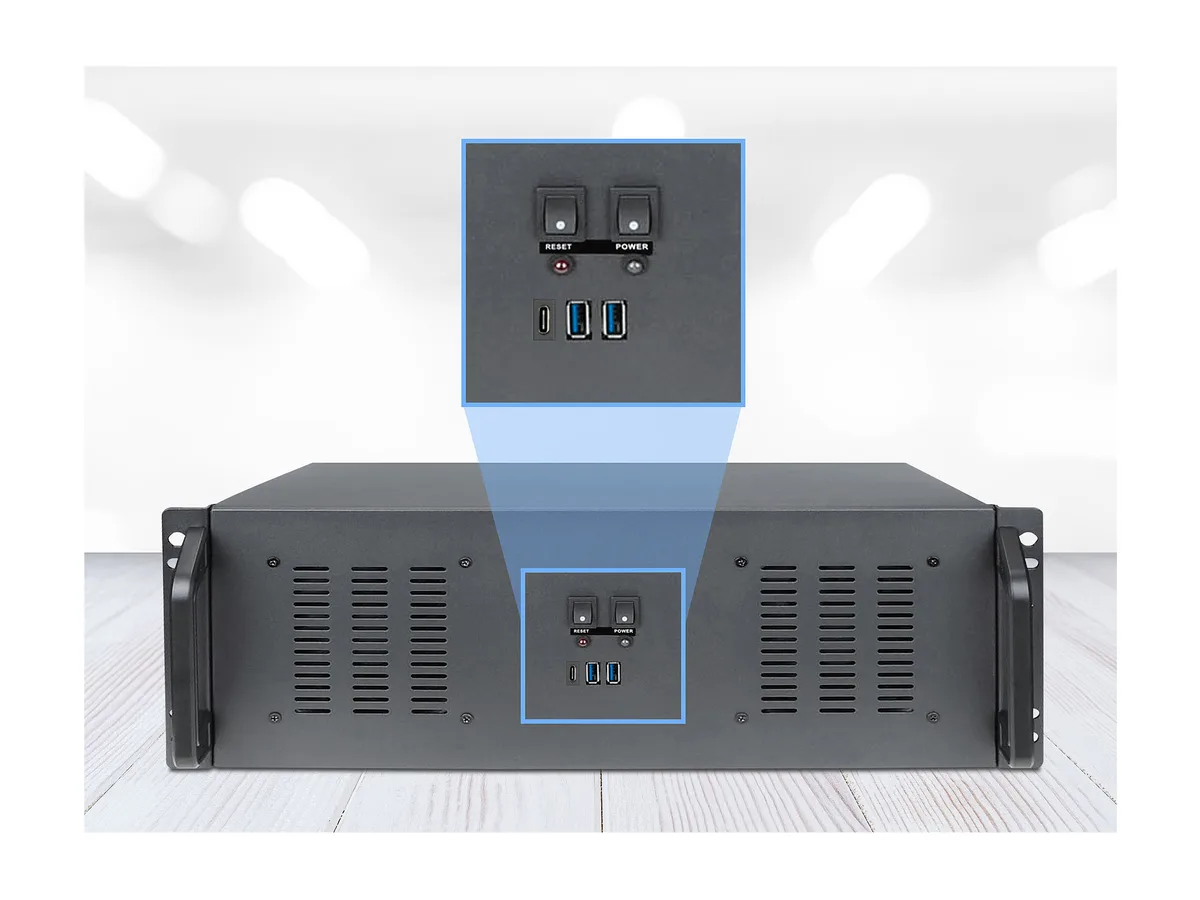

  • Front panel offers 2 × USB 3.0 and 1 × USB-C 3.1 for fast external access

Drive bay layout and board support

The Rosewill RSV-R4200U is a 4U rackmount server chassis built for high-density storage. It provides eleven internal 3.5" drive bays plus three 2.5" positions, or fourteen 2.5" bays in an alternate configuration. Motherboard compatibility covers ATX, E-ATX, Micro ATX, Mini ATX and SSI CEB form factors. Four PWM fans are pre-installed for front-to-rear airflow.

Who this suits and who should look elsewhere

This chassis suits builders who need many 3.5" drives in a standard rack footprint with CEB board support. It is not for users who require hot-swap drive trays or tool-less sleds. Buyers with 3.5" drives that only have two screw holes per side cannot mount them securely. Anyone needing graphics cards longer than 260 mm or CPU coolers taller than 140 mm should choose a larger enclosure.

The specification that decides fit

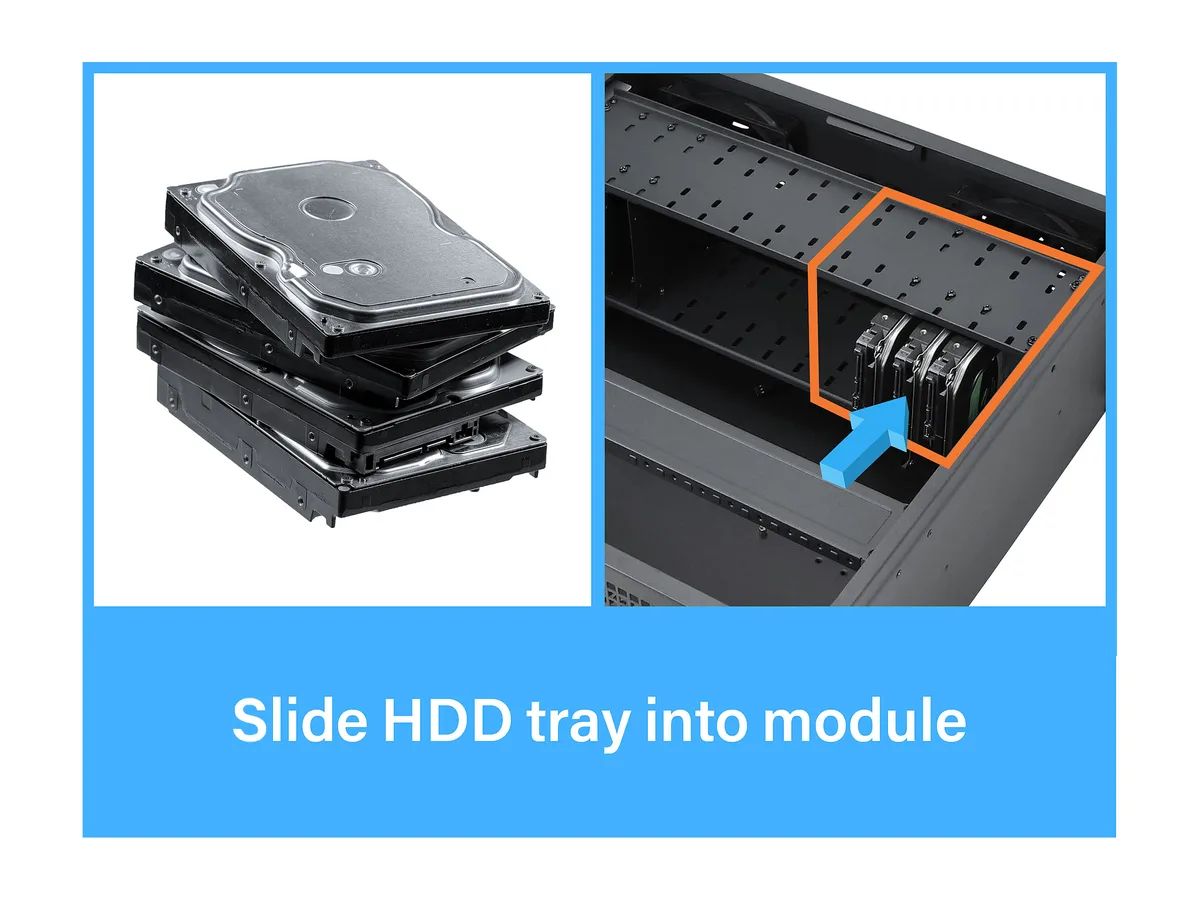

The critical constraint is the 3.5" bay mounting standard: the eleven bays accept only drives with three screw holes on each side for a three-point connection. Drives with two screw holes per side will not fit. Verify your drive hole pattern before purchase.

I korthet

  • Holds 11 × 3.5″ drives plus 3 × 2.5″ devices for massive storage
  • Four pre-installed PWM fans (2 × 120 mm front, 2 × 80 mm rear) deliver strong airflow
  • Supports ATX, E-ATX and SSI CEB motherboards for flexible builds
  • Seven expansion slots allow multiple add-in cards
  • Front panel offers 2 × USB 3.0 and 1 × USB-C 3.1 for fast external access

Specifikationer

BrandRosewill
ModelRSV-R4200U
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialSteel
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ATX / SSI CEB
Power SupplyNot include, supports PS2 Power Supply form factor
LED IndicatorsPower status, HDD activity
Internal 3.5" Drive Bays11 x 3.5", 3 x 2.5" or 14 x 2.5"
Expansion Slots7
Max CPU Cooler Height140 mm
Max GPU Length260 mm
Max PSU Length220 mm PS2 (ATX)
Front Ports2 x USB 3.0 & 1 x USB 3.1 Type-C
FeaturesThe Rosewill RSV-R4200U 4U rackmount server case features 11 internal 3.5" HDD bays plus 3 additional 2.5" devices to boost your home server or server room. Four pre-installed cooling fans help prevent your server chassis from overheating. 7 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes two USB 3.0 and one USB 3.1 type-c ports.

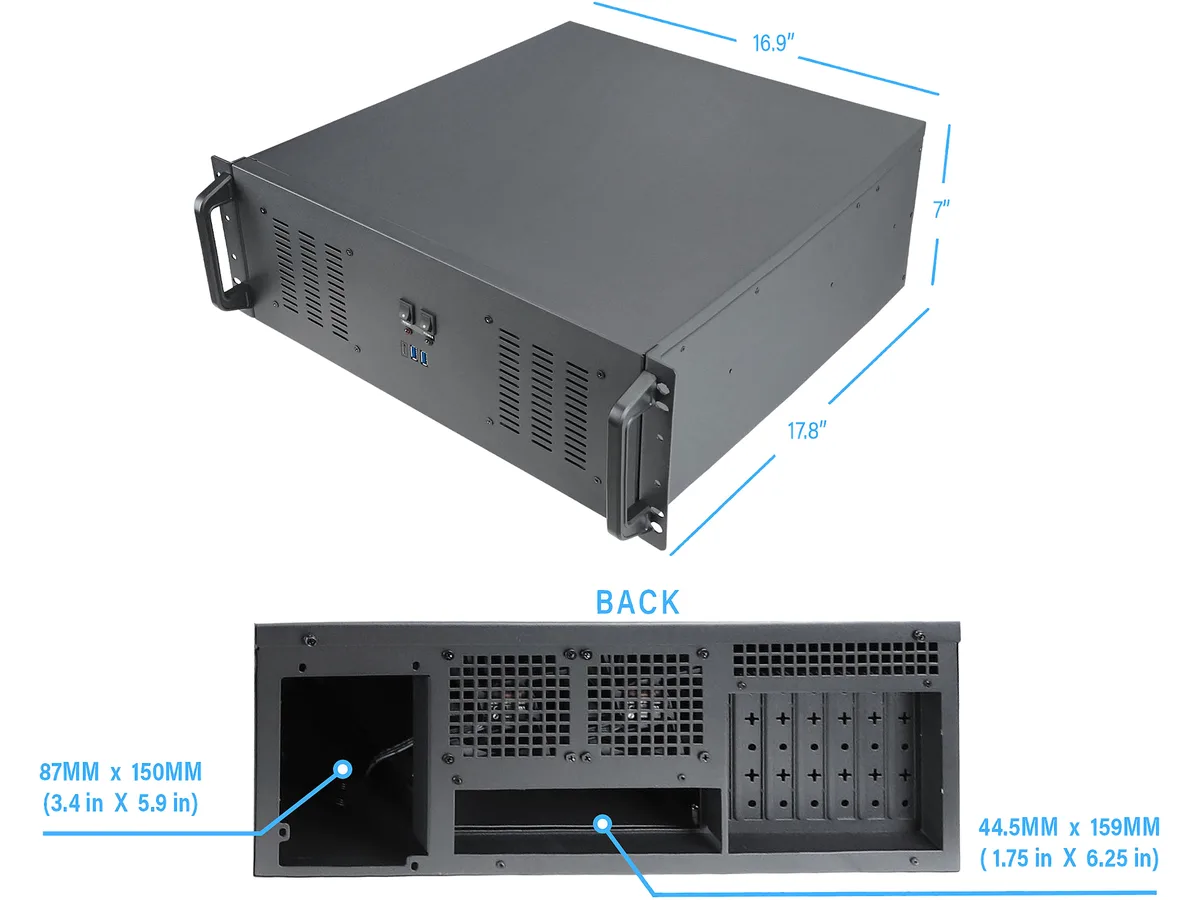

Dimensions430mm x 176mm x 451mm (16.93" x 6.93" x 17.76")
Weight7kg (15.4lbs)
Package ContentsRSV-R4200U Server Case
Screws
QIG
Fraktvikt11.34 kg
Paketstorlek603 × 533 × 254 mm

Andra versioner av den här modellen

5 till i samma serie

Samma familj, men olika minne, kylning eller klockfrekvens — jämför innan du bestämmer dig.

Frågor om den här produkten

Which motherboard form factors fit the RSV-R4200U so I can use my existing board?

The chassis accepts ATX, E-ATX, Micro ATX, Mini ATX and SSI CEB motherboards, so any board matching those standards will mount directly.

Will the pre-installed 120 mm and 80 mm PWM fans connect to my current motherboard headers?

Yes, the four PWM fans use standard 4-pin connectors that plug into any motherboard fan header for automatic speed control.

How can I confirm the chassis is cooling properly after assembly?

Watch the front power and HDD LEDs for normal operation, then verify fan speeds in BIOS or software and check that drive temperatures stay within expected ranges.
