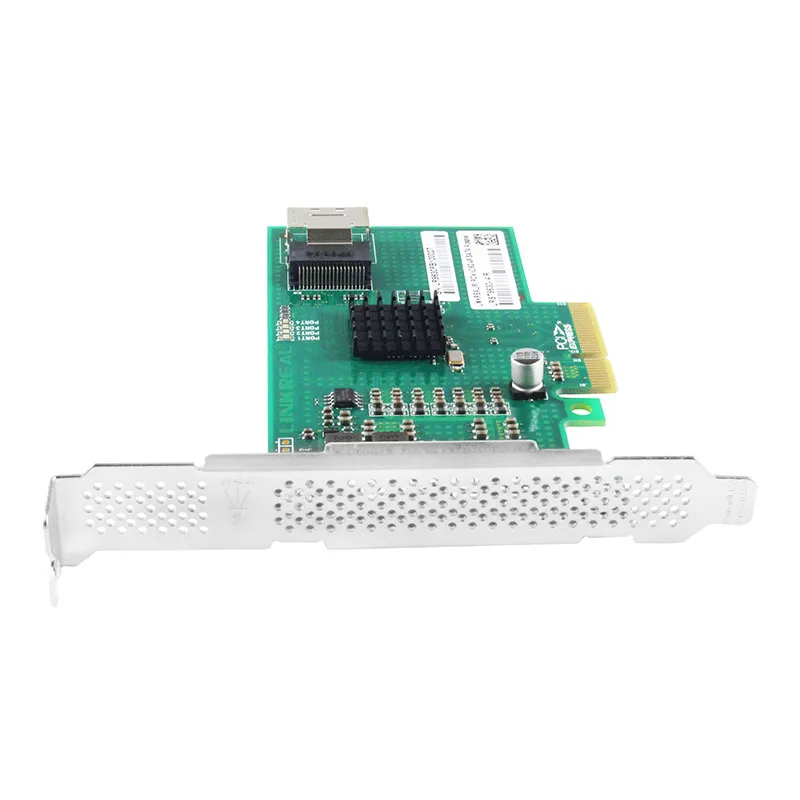

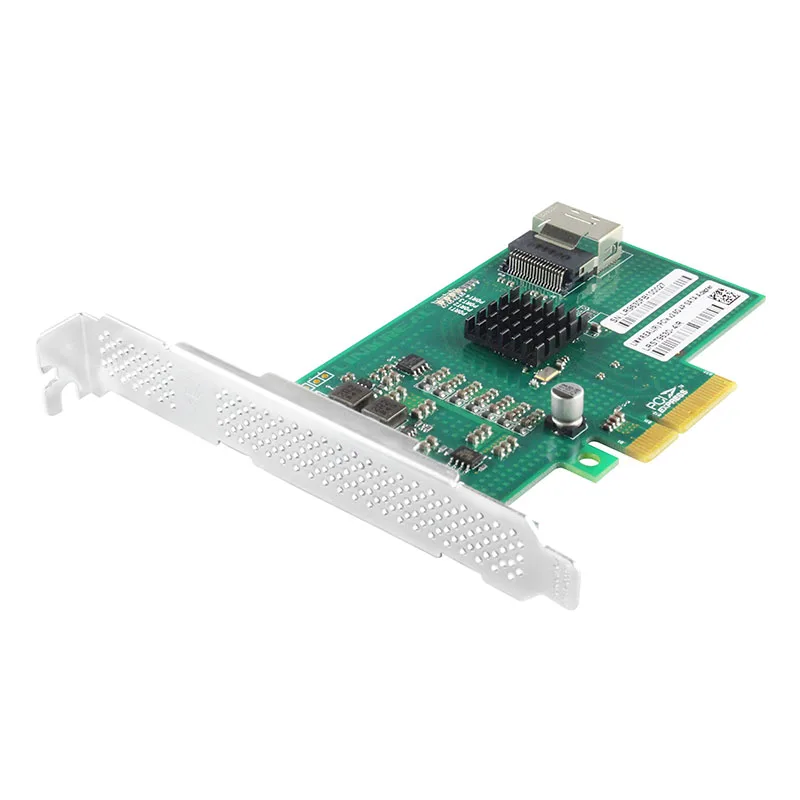

Green circuit board with SFF-8087 connector and metal bracket

Shenzhen Lianrui Information Technology

Shenzhen Lianrui Information Technology 4-Port SATA 6.0 Gbps RAID Controller Card

SKU CH-EVHY-2T655

Adds four SATA 6.0 Gbps ports via a PCIe 2.0 x4 slot using a Marvell 88SE9230 controller with RAID support

  • TypePCI Express Controller Card
  • External USB Ports4x SATA III
  • Internal Ports4 x SATA
  • Data Transfer Rate6.0 Gbps
  • Operating Systems SupportedWindows 98SE/ME/2000/XP/Vista
  • Dimensions4.57" x 2.72" x 0.24"
  • Adds four SATA 6.0 Gbps ports via PCIe 2.0 x4
  • Marvell 88SE9230 controller handles RAID and single-drive modes
  • Low-profile and full-height brackets included for any chassis
  • Operates 0 °C to 50 °C with 1 W power draw
  • Backward compatible with SATA 3.0 Gbps and 1.5 Gbps drives

Four-Port SATA 6.0 Gbps RAID Controller Card

This PCIe 2.0 add-in card uses a Marvell 88SE9230 controller to provide four SATA 3.0 ports from a single x4 slot. It is designed for users who need to connect additional hard drives or solid-state drives to a system with a free PCI Express lane.

Installation notes and common issues

The card fits x4, x8 or x16 slots and ships with both full-profile and low-profile brackets already included. Driver support is listed for Windows 98SE through Vista; newer operating systems may require a separate driver download or may not be supported at all.

Check before ordering

Verify that your motherboard has an available PCI Express x4 slot and can supply +3.3 V power to the card. The board operates from 0 °C to 50 °C and draws approximately 1 W, so ensure case airflow is adequate for the operating temperature range.

I korthet

  • Adds four SATA 6.0 Gbps ports via PCIe 2.0 x4
  • Marvell 88SE9230 controller handles RAID and single-drive modes
  • Low-profile and full-height brackets included for any chassis
  • Operates 0 °C to 50 °C with 1 W power draw
  • Backward compatible with SATA 3.0 Gbps and 1.5 Gbps drives

Specifikationer

BrandLinkreal
SeriesPCIe 2.0 to 4 Port SATA 3.0 6Gbps RAID Controller Card
Model4 Ports
TypePCI Express Controller Card
External USB Ports4x SATA III
Internal Ports4 x SATA
Data Transfer Rate6.0 Gbps
Operating Systems SupportedWindows 98SE/ME/2000/XP/Vista
Dimensions4.57" x 2.72" x 0.24"
Weight0.31 lb
Package Contents1 - SFF-8087 Raid Controller Card 1 - low-profile bracket 1 - full-profile bracket (installed) 1 - Warranty Card
OptionPCI-e (X1, X4, X8, X16) to SATA3.0*4

Frågor om den här produkten

How can I confirm the SFF-8087 RAID controller card is operating correctly after installation?

The card appears in Device Manager under storage controllers and the four connected SATA drives are visible in Disk Management at 6.0 Gbps link speed.

What accessories are included and which cables must be purchased separately?

The box contains the controller card with full-profile bracket installed, a low-profile bracket, and a warranty card; SFF-8087 to SATA breakout cables for the four ports are not included.

Which PCIe slot version should I use for the x4 channel Marvell 88SE9230 card?

Install the card in a PCI Express 2.0 x4 slot; it is also compatible with x8 and x16 slots running at 2.0 speeds.
