AddOn
AddOn EXPI9301CT-AO network card PCIe 2.0 x4 10/100/1000Mbs RJ-45
Adds a single Gigabit Ethernet port over PCIe 2.0 x4 with an Intel 82574 chipset, supporting 10/100/1000Mbs speeds up to 100m on twisted-pair cable
- StandardsIEEE 802.3
- Speed10/100/1000Mbs
- ConnectorsRJ-45
- InterfacePCI-Express
- FeaturesBus Type: PCIe 2.0 Bus Width: PCIEx4 Chipset: Intel 82574 Co
- Dimensions5.2 in. x 0.9 in. x 4.7 in.
- Gigabit Ethernet up to 1000 Mbps over copper
- PCIe 2.0 x4 interface provides 2000 MB/s bandwidth
- Intel 82574 chipset ensures broad OS compatibility
- Single RJ-45 port supports 100 m cable runs
- Low-profile 5.2 in. x 4.7 in. card fits tight spaces
Single-port Gigabit adapter

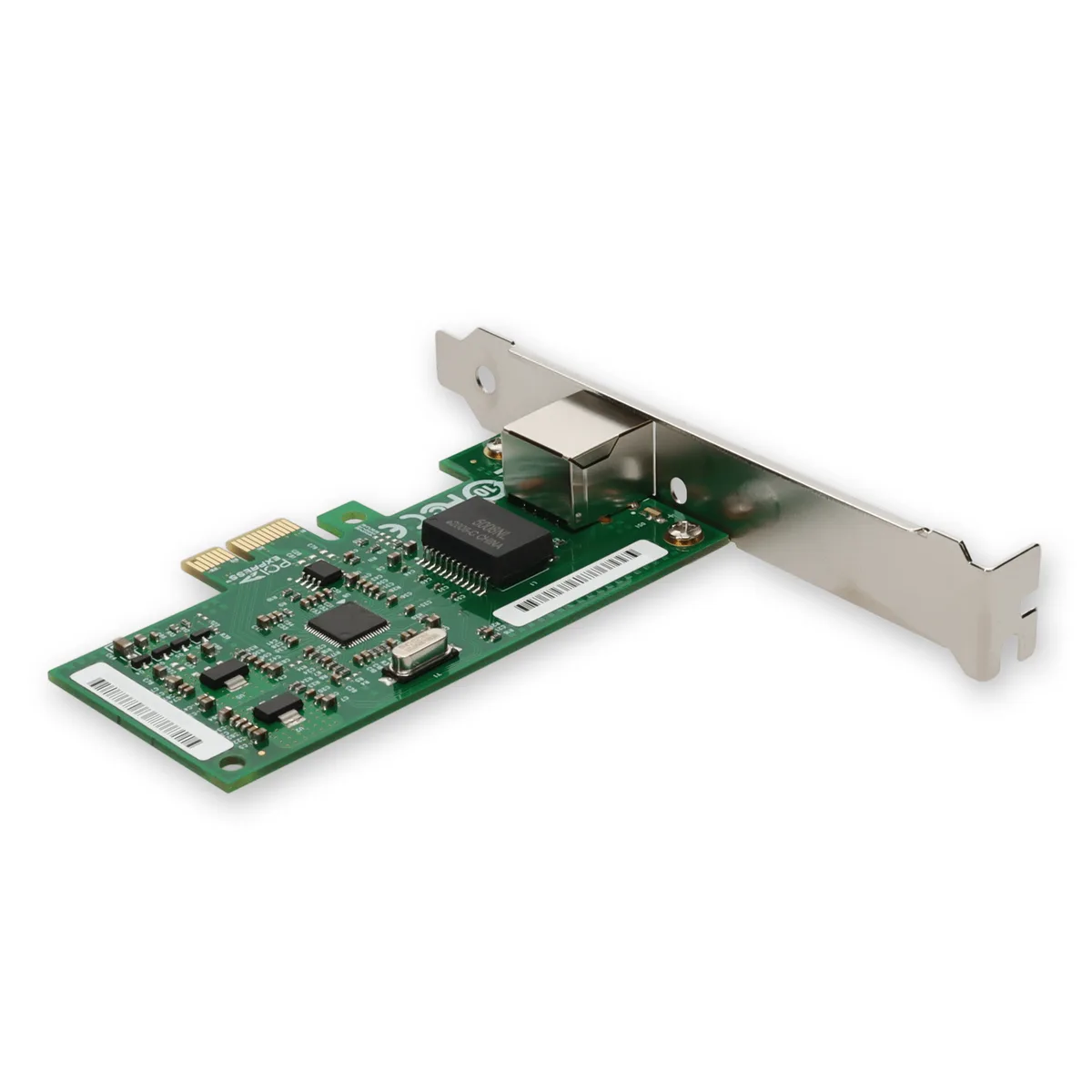

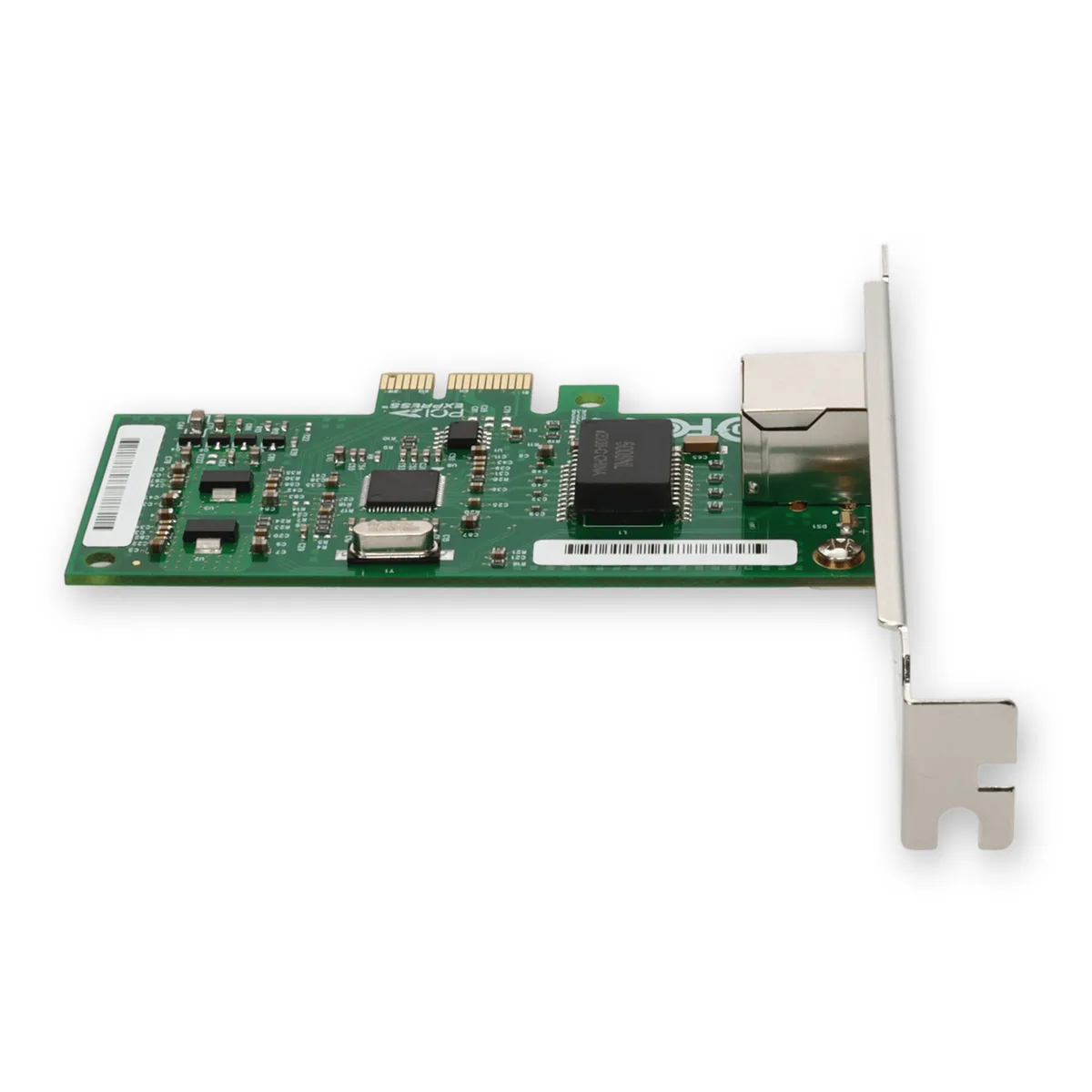

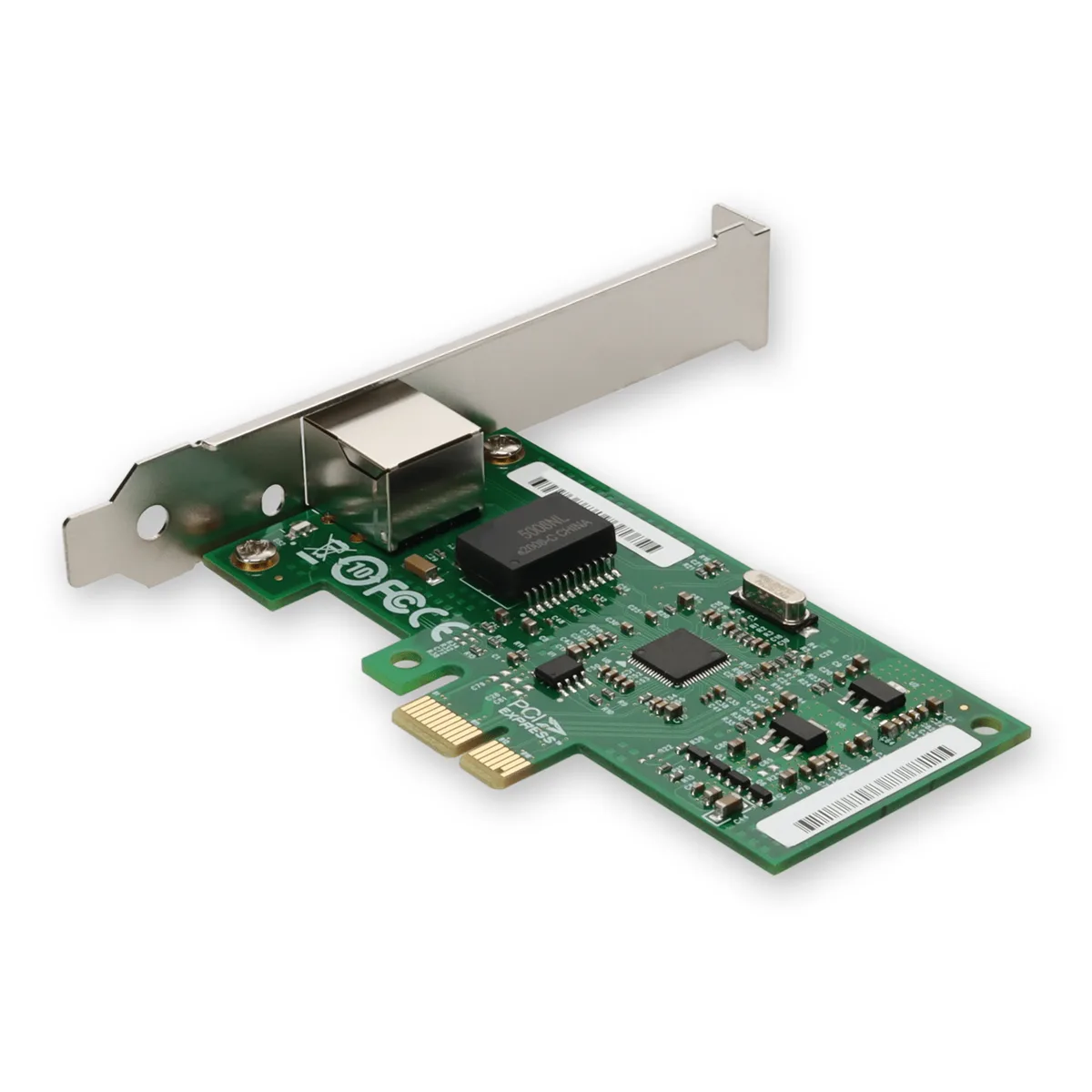

The AddOn EXPI9301CT-AO is a PCIe 2.0 x4 network card built on the Intel 82574 chipset. It provides one RJ-45 port operating at 10, 100 or 1000Mbs over copper cabling up to 100 metres. The card targets servers or workstations that need a straightforward wired Ethernet upgrade without multi-port complexity.
Verify slot and OS support
Confirm the host system has a free PCIe slot that can accept an x4 card electrically or mechanically. The driver stack covers Windows Server 2012, 2008 R2, 2008, 2003, Windows 7, 8, Vista, XP, 2000, Linux kernels 2.4.x, 2.6.x and 3.x, FreeBSD 9.x and Netware 6.5. Ensure the intended operating system appears in this list before purchase.
No extras included
The package contains only the network interface card itself. No brackets, cables, discs or software utilities are bundled, so installation relies on in-box operating-system drivers or a separate download. Buyers who need a low-profile bracket or pre-loaded driver media must source those separately.
Přednosti
- Gigabit Ethernet up to 1000 Mbps over copper
- PCIe 2.0 x4 interface provides 2000 MB/s bandwidth
- Intel 82574 chipset ensures broad OS compatibility
- Single RJ-45 port supports 100 m cable runs
- Low-profile 5.2 in. x 4.7 in. card fits tight spaces
Specifikace
| Brand | AddOn - Network Upgrades |
|---|---|
| Model | EXPI9301CT-AO |
| Standards | IEEE 802.3 |
| Speed | 10/100/1000Mbs |
| Connectors | RJ-45 |
| Interface | PCI-Express |
| Features | Bus Type: PCIe 2.0 Bus Width: PCIEx4 Chipset: Intel 82574 Compatible OEM: Intel® Compatible OS: Windows Server 2012, Windows 7 (32 and 64 bit), Windows Server 2008 R2, Windows Small Business Server 2006, Windows Server 2008 Final (32 and 64 bit), Windows Server 2003 Final (32 and 64 bit), Windows 8 (32 and 64 bit), Linux Kernel 2.4.x, 2.6.x, and 3.x, FreeBSD 9.x, Windows Vista Final (32 and 64 bit), Windows XP (and Pro) (32 and 64 bit), Windows 2000 (and Server and Advanced), Netware 6.5 Compatible With OEM Part Number(s) EXPI9301CT Data Protocol: Ethernet Data Rate: 10/100/1000Mbs E |
| Dimensions | 5.2 in. x 0.9 in. x 4.7 in. |
| Weight | 9.60 oz |
| Package Contents | 1x network interface card |
| Přepravní hmotnost | 0.18 kg |
| Rozměry balení | 132 × 119 × 23 mm |
Otázky k tomuto produktu
What comes in the box and do I need to buy a cable separately?
The package includes one network interface card. A standard RJ-45 Ethernet cable up to 100 meters is required but not included.
Which PCIe slot width does this EXPI9301CT-AO require?
It uses a PCIe 2.0 x4 interface with the Intel 82574 chipset and fits an available x4 or wider PCI-Express slot.
What real-world throughput can I expect from the 10/100/1000Mbs rating?
The card delivers up to 1000 Mbps over copper twisted-pair cable at distances up to 100 meters, limited by the single RJ-45 port and PCIe 2.0 x4 bandwidth.
