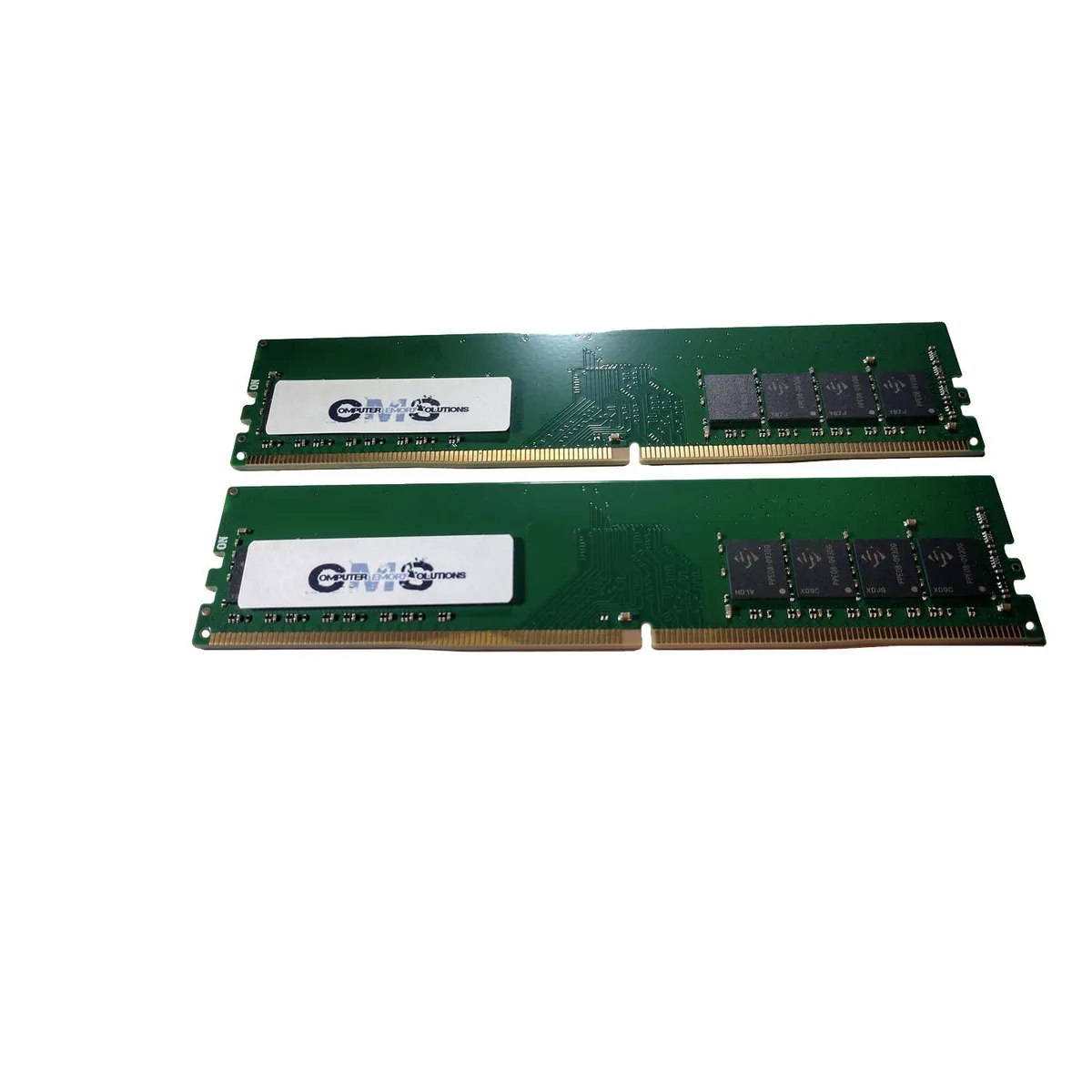

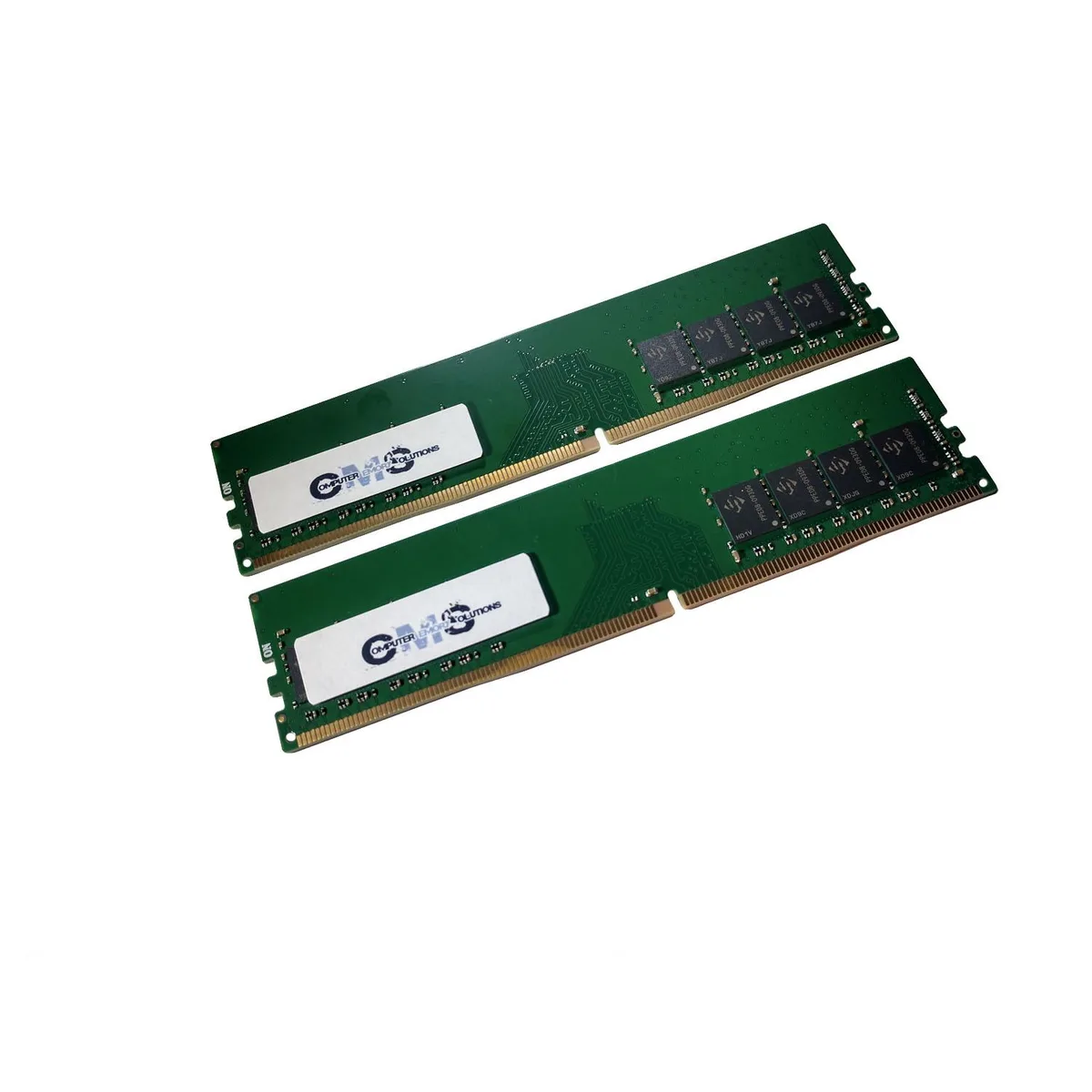

Two green DDR4 DIMM sticks without heat spreaders

Computer Memory Solutions

Computer Memory Solutions 32GB (2×16GB) DDR4 2666 CL19 DIMM — D21

SKU CH-4HTW-QQSJ5

A 32 GB DDR4 kit with two 16 GB unbuffered DIMMs running at 2666 MHz CL19 for HP Omen Obelisk 875 and Pavilion 690 desktops

  • Capacity32GB (2 x 16GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2666 (PC4 21300)
  • CAS LatencyCL19
  • Timing19-19-19
  • Voltage1.20V
  • 32 GB capacity from two 16 GB modules
  • DDR4 2666 speed rated at PC4 21300
  • CL19 CAS latency with 19-19-19 timing
  • 20 V unbuffered non-ECC DIMM design
  • Validated for HP Omen Obelisk 875 and Pavilion 690 systems

32 GB DDR4 kit for HP Omen Obelisk

This 32 GB kit contains two 16 GB unbuffered DIMMs built to DDR4 2666 speed with CL19 timing. It is designed for HP Omen Obelisk 875-1xxx and Pavilion 690-0013d systems. The modules run at 1.20 V and use major-brand chips.

DDR4 2666 bandwidth and platform ceiling

The DDR4 2666 standard delivers a peak transfer rate of 21300 MB/s per module. Total throughput is capped by the memory controller in the host system, so installed modules cannot exceed that controller limit. Mixing speeds forces all memory to run at the slowest installed rate.

64 GB maximum capacity across four slots

The supported platform accepts up to 64 GB total across four DIMM sockets. This kit fills two sockets with 32 GB, leaving room for another matched pair to reach the limit. Builders needing more than 64 GB must choose a different platform.

Přednosti

  • 32 GB capacity from two 16 GB modules
  • DDR4 2666 speed rated at PC4 21300
  • CL19 CAS latency with 19-19-19 timing
  • 20 V unbuffered non-ECC DIMM design
  • Validated for HP Omen Obelisk 875 and Pavilion 690 systems

Specifikace

BrandComputer Memory Solutions
ModelCM2048642666DIMM
Capacity32GB (2 x 16GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2666 (PC4 21300)
CAS LatencyCL19
Timing19-19-19
Voltage1.20V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemHP/Compaq Omen Obelisk Desktop 875-1xxx Series, Pavilion 690-0013d Gaming Desktop PC
Package Content2 Memory RAM Sticks

Otázky k tomuto produktu

Should I choose the 32GB (2×16GB) kit or a single 16GB module for my Omen Obelisk 875-1xxx?

The 32GB kit provides two matched 16GB DIMMs for dual-channel operation, which the board supports across its four slots; a single module would run in single-channel mode and leave capacity unused.

What does the DDR4-2666 CL19 rating deliver in an actual Omen Obelisk 875-1xxx desktop?

The modules run at 2666 MT/s with 19-19-19 timings at 1.20V, giving the rated bandwidth of PC4-21300 when the CPU memory controller supports that speed.

Does the 288-pin DDR4 DIMM interface limit the speed on my Pavilion 690-0013d?

The 288-pin DDR4 DIMM form factor carries the 2666 MT/s signal; the practical ceiling is the processor's memory controller, not the DIMM connector itself.
