Black rectangular 2U rack tower UPS with rotatable LCD panel and eight NEMA 5-20R outlets

CyberPower

CyberPower OR2200LCDRTXL2U UPS 2100VA 1650W 120V 8×NEMA 5-20R 2U Rack/Tower

SKU CH-XEMW-AQZCM MPN OR2200LCDRTXL2U

Line-interactive UPS delivers 1650 W to eight NEMA 5-20R outlets with automatic voltage regulation and a rotatable LCD panel

  • Input Voltage Range90Vac - 140Vac
  • Input Frequency47Hz - 63Hz
  • Input ConnectionNEMA 5-20P
  • VA Rating2190 VA
  • Watts1650 W
  • Output Voltage120Vac +/- 5%

Options OR2200LCDRTXL2U

  • 2100 VA / 1650 W capacity powers critical equipment
  • Line-interactive topology with AVR stabilises 90-140 V input
  • 8 NEMA 5-20R outlets connect multiple rack devices
  • Rotatable LCD panel shows real-time UPS vitals
  • USB and serial ports enable PowerPanel Business management

2U Rack/Tower UPS for 120V Environments

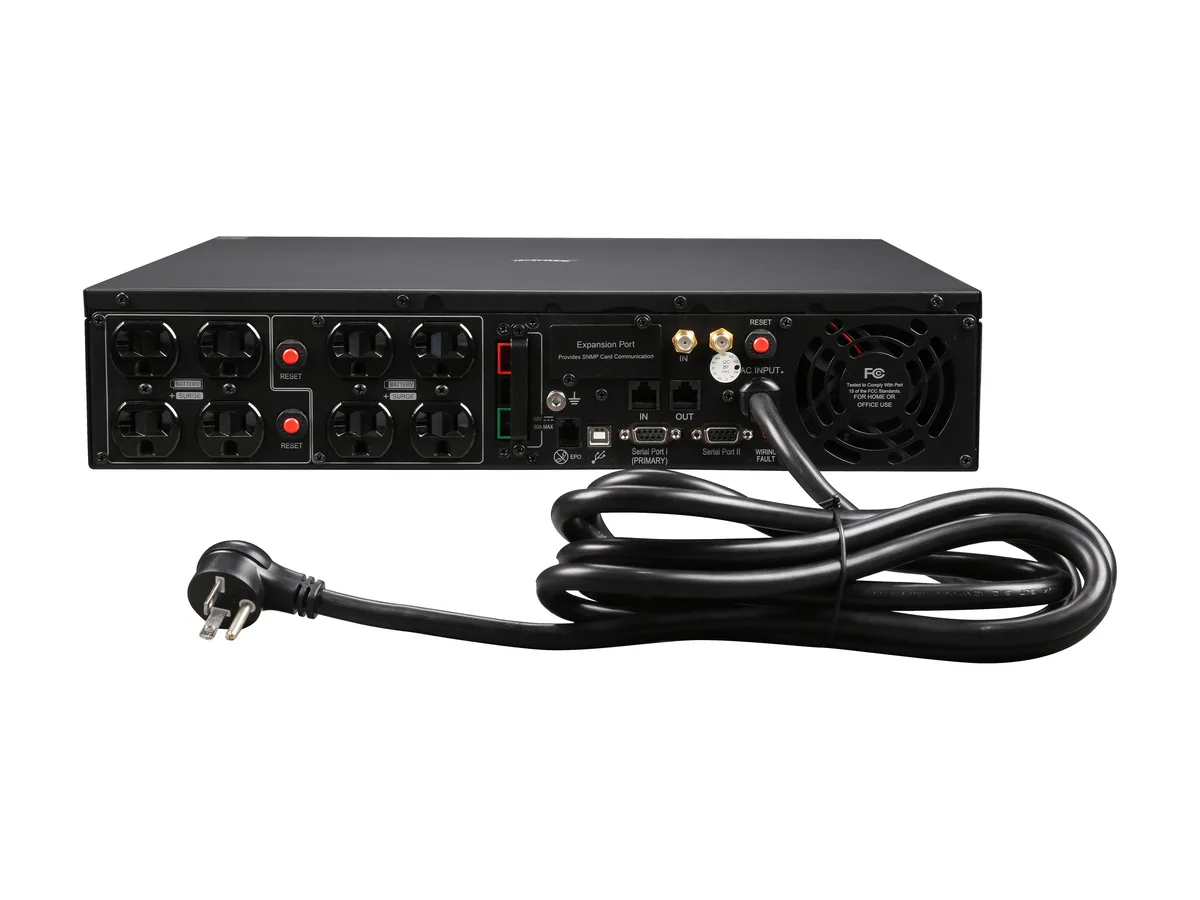

The CyberPower OR2200LCDRTXL2U is a line-interactive uninterruptible power supply rated at 2100 VA and 1650 W. It accepts 120 V input through a NEMA 5-20P plug with a 10 ft cord and delivers simulated sine-wave output at 120 V ±5%. Eight NEMA 5-20R outlets support rackmount or tower deployment in 2U spaces.

Suits Networks Without Active PFC Loads

This unit protects internetworking hardware, telecom gear, workstations and home entertainment systems that lack active power-factor-corrected supplies. Buyers needing pure sine-wave output for sensitive active-PFC equipment should look elsewhere. The 15-minute half-load and 6-minute full-load runtimes also limit suitability for extended outage scenarios.

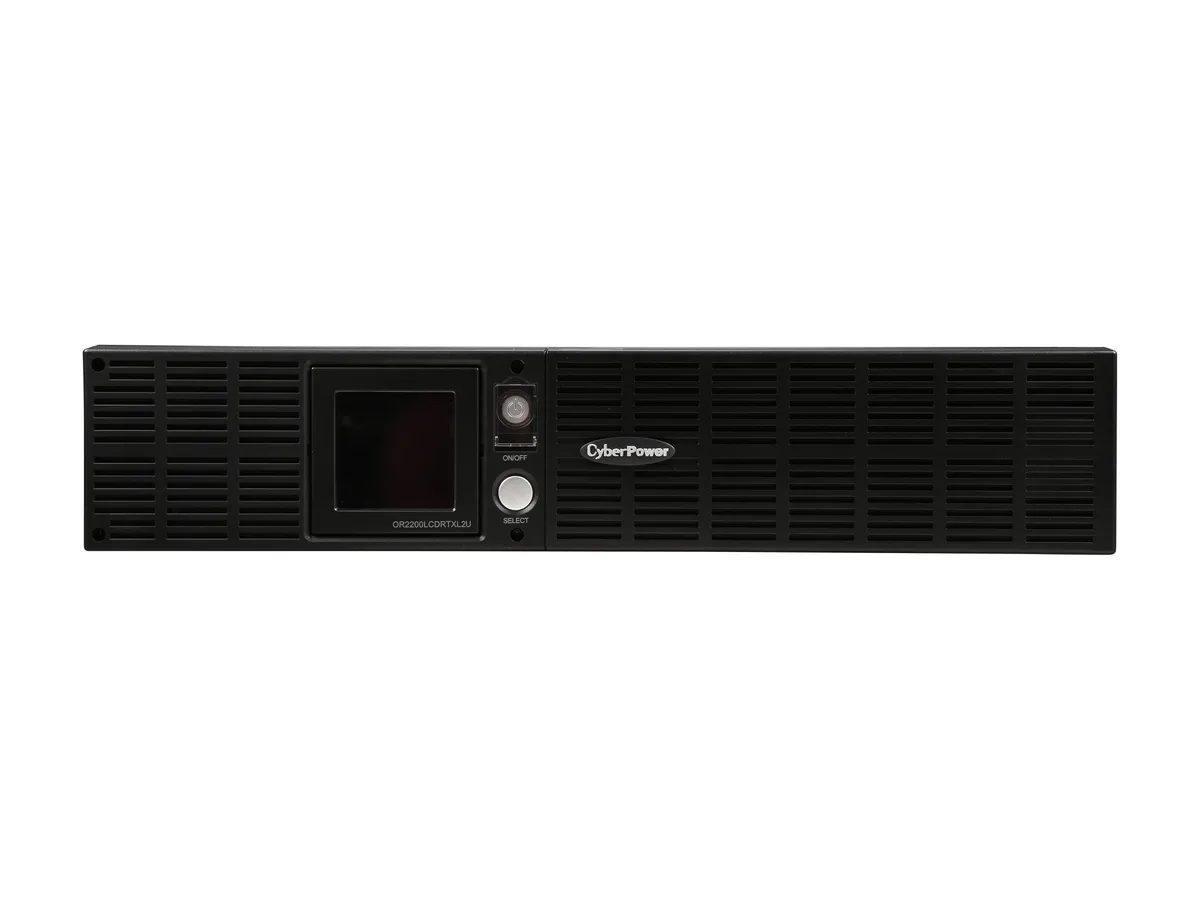

LCD Panel and PowerPanel Business Edition

A rotatable front LCD shows real-time UPS vitals for quick monitoring. Connectivity includes a HID-compliant USB port, serial port, SNMP and EPO interfaces. The bundled PowerPanel Business Edition software enables graceful shutdown, scheduling and remote management across connected systems.

Přednosti

  • 2100 VA / 1650 W capacity powers critical equipment
  • Line-interactive topology with AVR stabilises 90-140 V input
  • 8 NEMA 5-20R outlets connect multiple rack devices
  • Rotatable LCD panel shows real-time UPS vitals
  • USB and serial ports enable PowerPanel Business management

Specifikace

BrandCyberPower
SeriesSmart App LCD
ModelOR2200LCDRTXL2U
Input Voltage Range90Vac - 140Vac
Input Frequency47Hz - 63Hz
Input ConnectionNEMA 5-20P
VA Rating2190 VA
Watts1650 W
Output Voltage120Vac +/- 5%
Output Frequency60Hz +/- 1%
Outlets8
Outlet TypeNEMA 5-20R
Battery TypeSealed Lead Acid
Battery Run TimeRuntime at Half Load: 15 min.
Runtime at Full Load: 6 min.
Battery Recharge Time8 Hour(s)
Battery ReplaceableRB1290X4B
AlarmsOn battery, low battery, overload
Interface PortHID Compliant USB Port and Serial Port
Management SoftwarePowerPanel Business Edition
ApprovalsUL1778, cUL 107.3, FCC DOC Class B
Rackmountable2U
Data Line ProtectionPhone RJ11 / Ethernet RJ45, Coax Protection RG6
Surge Energy Rating2060 joules
Features2190 VA / 1650 W Simulated Sine Wave UPS
Line-Interactive Topology
AVR & GreenPower UPS
2U Rack Mount / Tower Convertible
Multifunction Rotatable LCD Display
SNMP / HTTP Remote Management Option
8 Outlets / USB and Serial Ports
EMI / RFI Filters
External Battery Pack Option
PowerPanel Business Edition
Dimensions3.50" x 17.00" x 18.00"
Weight66.10 lbs.
Přepravní hmotnost40.55 kg
Rozměry balení602 × 559 × 274 mm

Další verze tohoto modelu

Dalších 3 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does my wall outlet need to be a NEMA 5-20R to match the UPS input plug?

The UPS ships with a NEMA 5-20P plug on a 10 ft cord, so the wall receptacle must be a 5-20R rated for 20 A.

Can I keep using my older serial-managed gear alongside the USB port?

Yes, the unit provides one HID USB port and two DB9 serial ports for simultaneous management connections.

How do I verify the UPS is delivering clean 120 V output after installation?

The rotatable front LCD panel shows real-time output voltage, load percentage, battery status and AVR mode so you can confirm 120 V ± 5% operation.
