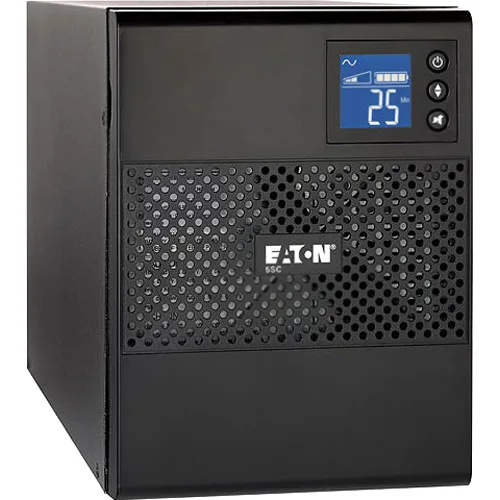

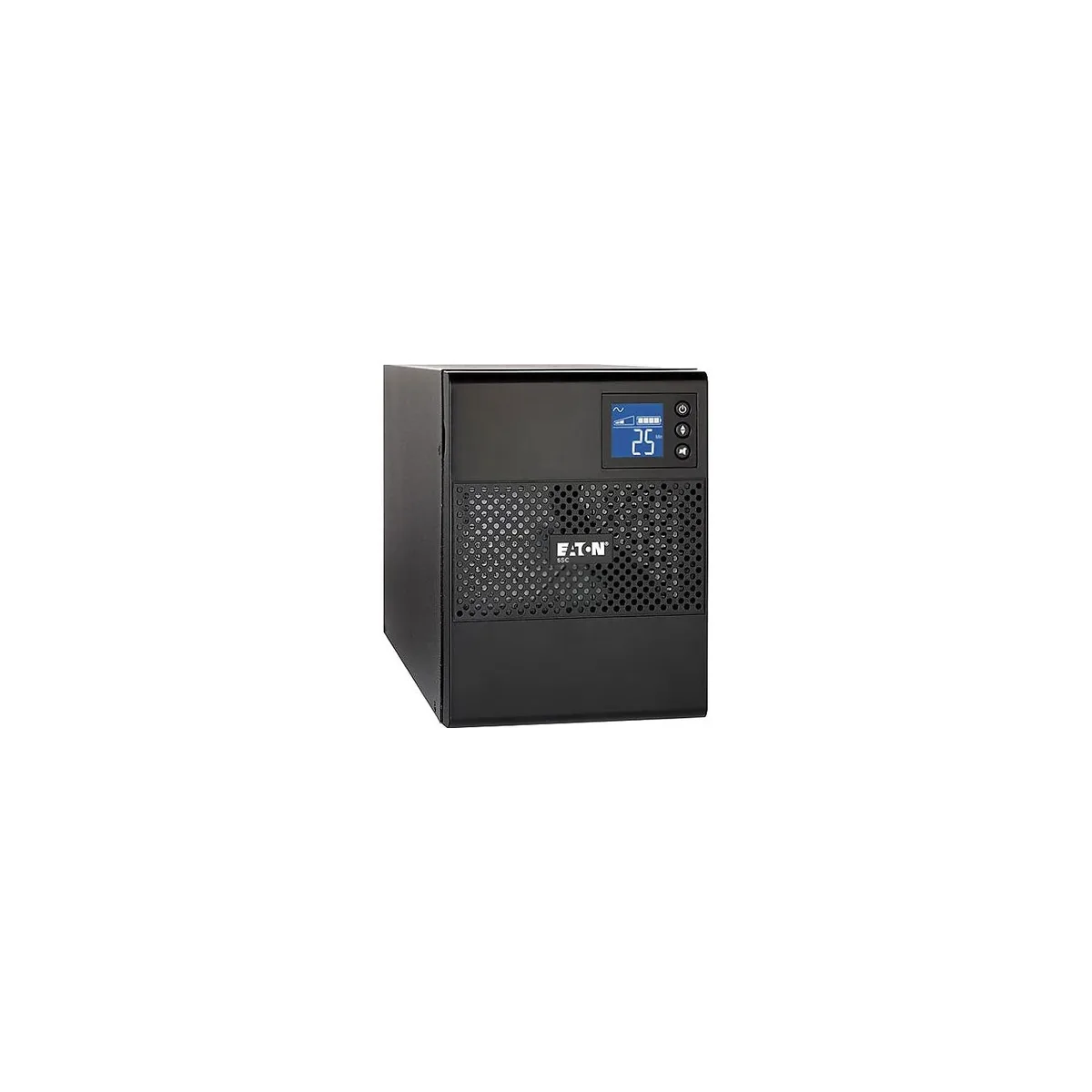

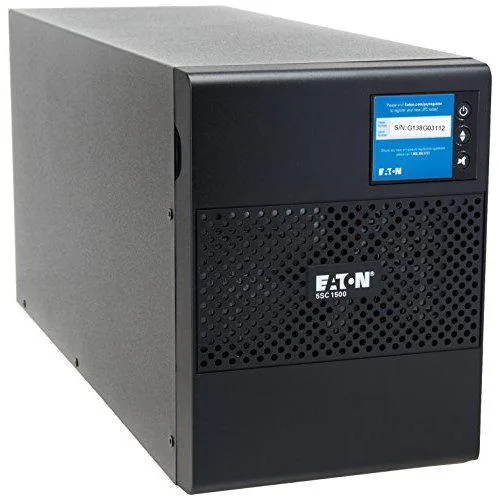

Tower UPS unit, dark finish, eight NEMA 5-15R outlets visible on rear panel

Eaton

Eaton 5SC1500 UPS 1500 VA 1080 W 120V Tower 8x NEMA 5-15R

SKU CH-1QWH-BZ8W5 MPN 5SC1500

A line-interactive UPS delivering 1500 VA and 1080 W through eight NEMA 5-15R outlets with USB and RS-232 management

  • International Version120V
  • Input Voltage Range96 - 144 Vac
  • Input Frequency45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
  • Input ConnectionNEMA 5-15P
  • VA Rating1440 VA
  • Watts1080 watts

VA 1500 VA

  • 500 VA
  • 750 VA
  • 1000 VA
  • 1500 VA

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • 1500 VA capacity supports critical equipment
  • 1080 W output handles demanding power loads
  • 13 minutes runtime at half load protects work
  • USB and RS-232 ports enable management software
  • Eight NEMA 5-15R outlets connect multiple devices

Desktop power protection

The Eaton 5SC1500 is a line-interactive tower UPS rated at 1500 VA and 1080 W for 120 V environments. It provides battery backup and surge protection for workstations, networking gear and peripherals through eight NEMA 5-15R outlets fed by a NEMA 5-15P input plug.

Home offices and small IT loads

This unit suits users who need USB and RS-232 connectivity for Eaton Intelligent Power Manager software and want a compact tower that fits on a desk or shelf. It is not for loads that exceed 1080 W, for sites without a NEMA 5-15P supply, or for installations that require rack mounting.

Runtime at full load

At full load the battery delivers five minutes of runtime, while half load provides thirteen minutes. This single figure determines whether the UPS gives enough time for an orderly shutdown of the connected equipment.

Přednosti

  • 1500 VA capacity supports critical equipment
  • 1080 W output handles demanding power loads
  • 13 minutes runtime at half load protects work
  • USB and RS-232 ports enable management software
  • Eight NEMA 5-15R outlets connect multiple devices

Specifikace

BrandEATON
Model5SC1500
International Version120V
Input Voltage Range96 - 144 Vac
Input Frequency45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
Input ConnectionNEMA 5-15P
VA Rating1440 VA
Watts1080 watts
Output Voltage120V
Outlets8
Outlet Type8 x NEMA 5-15R
Battery Run TimeRun Time at Half Load: 13 mins
Run Time at Full Load: 5 mins
Interface PortRS-232, USB
Management SoftwareEaton Intelligent Power Manager
ApprovalsFCC Part 15
CISPR22 Class A / FCC part 15 Class A
RackmountableNot rack-mountable
Temperature0° to 40°C (32° to 104°F)
Humidity0-95% non-condensing
Dimensions8.20" x 5.90" x 16.10"
Weight34.00 lbs.
Package Contents5SC UPS
User manual CD
Eaton Intelligent Power Manager Software CD
USB cable
Serial Cable (RJ45 to DB9)
Important Safety Instructions
Limited Warranty Details
Přepravní hmotnost16.78 kg
Rozměry balení550 × 308 × 240 mm

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does the Eaton 5SC1500 need a NEMA 5-15P wall outlet to operate?

Yes, the unit ships with a NEMA 5-15P input plug and requires a standard 120 V NEMA 5-15R wall receptacle rated for at least 15 A.

Will the 5SC1500’s USB and RS-232 ports work with a legacy server that only has a serial console?

The UPS provides both USB and RS-232 interfaces; connect the RS-232 cable to the server’s serial port and use Eaton Intelligent Power Manager for monitoring.

How can I confirm the 5SC1500 is delivering battery backup after installation?

Pull the input plug while a load is attached; the UPS should continue powering the outlets and the management software will report on-battery status with the expected run time.
