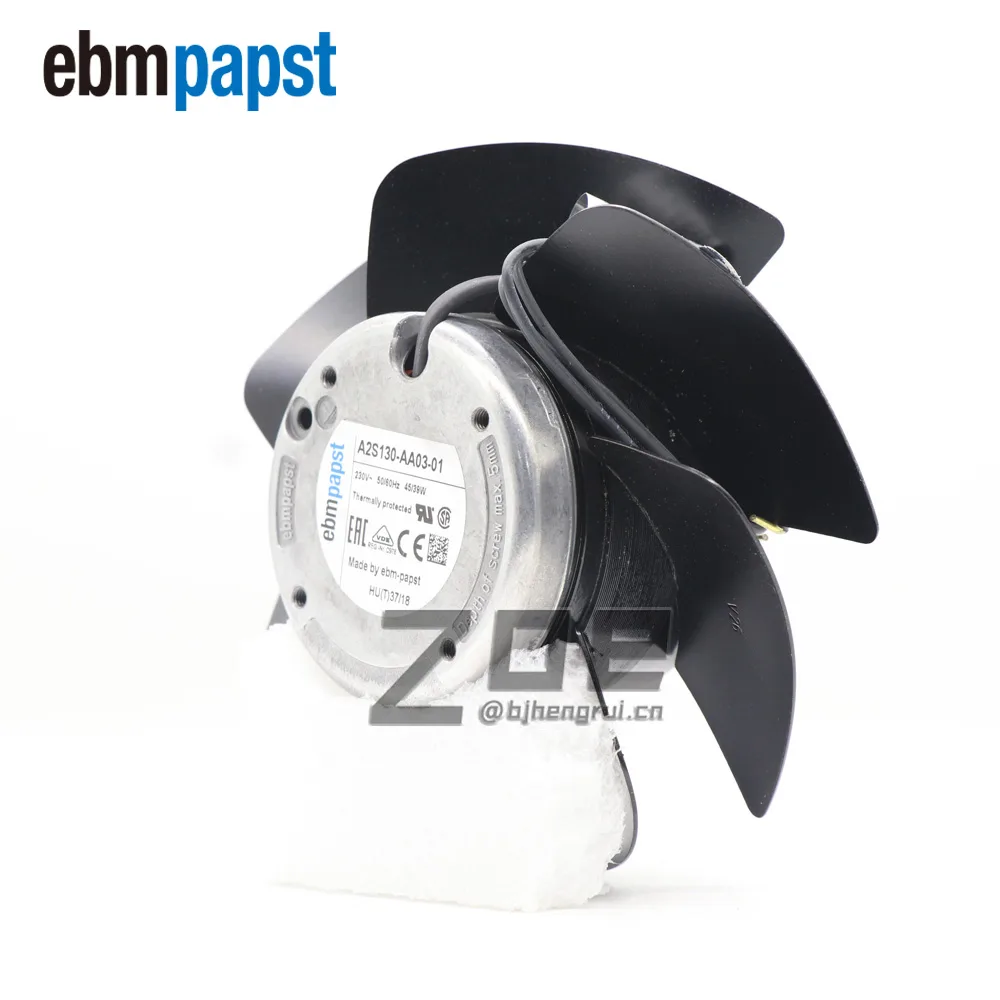

Ebm-Papst A2S130-AA03-01 AC axial fan metal housing black painted blades flange mount

Ebm-Papst

Ebm-Papst A2S130-AA03-01 230 V 50/60 Hz 2800/3250 RPM industrial cooling fan

SKU CH-5REV-XYKZA MPN A2S130-AA03-01

130 mm flange-mount AC fan delivers 233 CFM at 230 V with ball bearings and IP20 protection

  • Air Flow233 CFM
  • Voltage230 V
  • Hz50/60
  • Phase1~
  • Materialmetal
  • 233 CFM airflow for effective equipment cooling
  • 230 V AC operation at 50/60 Hz for direct mains connection
  • Ball bearing motor for long service life
  • IP20 rated with thermal overload protection
  • Multiple safety approvals including UL 507 and CE

Industrial AC fan for equipment cooling

The Ebm-Papst A2S130-AA03-01 is a 230 V single-phase axial fan designed for industrial enclosures and HVAC systems. It delivers 233 CFM airflow at 50 or 60 Hz. The unit suits engineers specifying original components for thermal management in fixed installations.

Ball-bearing motor with thermal protection

At 50 Hz the motor draws 0.31 A and consumes 45 W while turning at 2800 RPM; at 60 Hz it draws 0.25 A and 39 W at 3250 RPM. Maximum back pressure reaches 80 Pa and 120 Pa respectively. An internal thermal overload protector and insulation class B support continuous S1 operation.

Flange-mount metal housing with IP20 rating

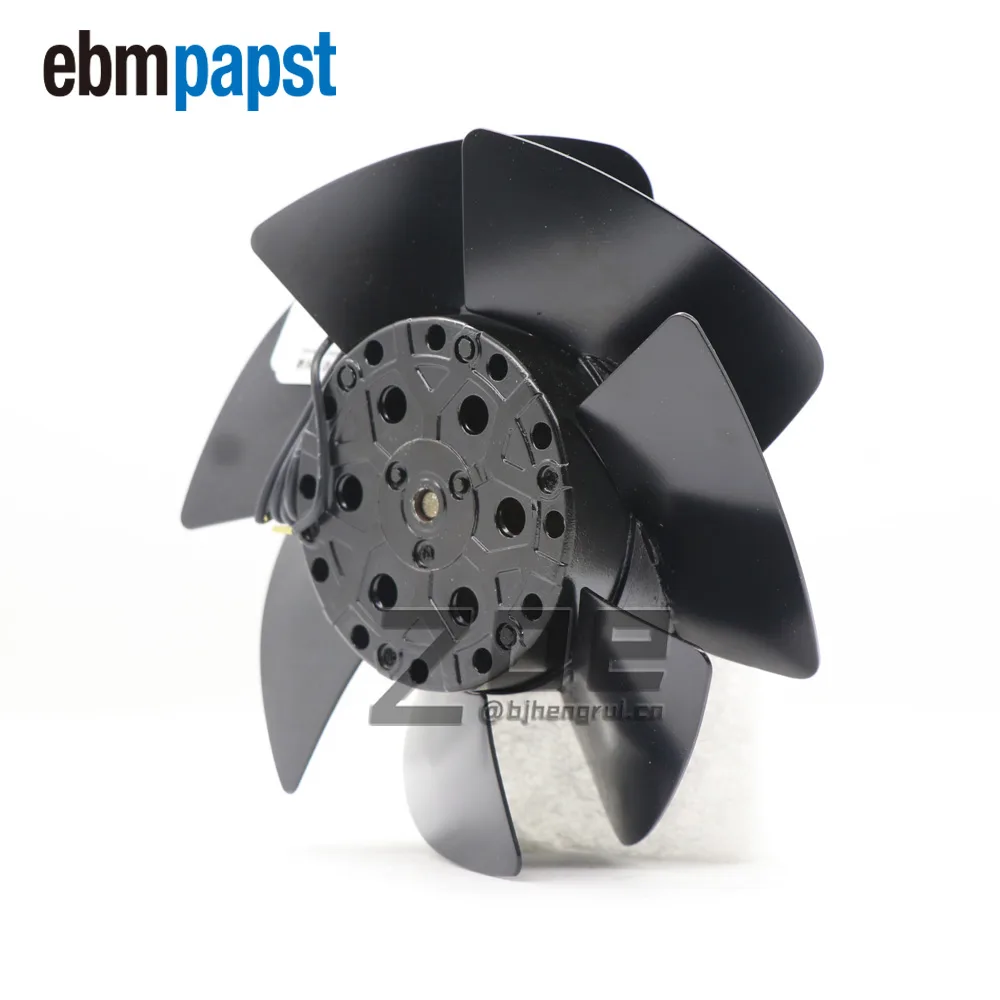

The 130 mm steel rotor and seven painted blades mount in any orientation without condensation drainage holes. Touch current stays below 0.75 mA and protective-earth connection meets protection class I. Approvals include UL 507, CCC, EAC, VDE and CSA C22.2 No. 113 alongside CE marking.

Přednosti

  • 233 CFM airflow for effective equipment cooling
  • 230 V AC operation at 50/60 Hz for direct mains connection
  • Ball bearing motor for long service life
  • IP20 rated with thermal overload protection
  • Multiple safety approvals including UL 507 and CE

Specifikace

Brandebmpapst
ModelA2S130-AA03-01
Air Flow233 CFM
Voltage230 V
Hz50/60
Phase1~
Materialmetal

Otázky k tomuto produktu

How is the A2S130-AA03-01 mounted and which step is often missed?

Use the flange on the 130 mm housing to bolt the fan to the panel; the step often missed is connecting the protective earth to meet protection class I.

What maintenance will the ball bearing motor need later?

The ball bearing motor runs in mode S1 with a TOP thermal protector; no routine lubrication is required, but verify airflow stays near 233 CFM and replace the unit if speed drops below 2800 rpm at 50 Hz or 3250 rpm at 60 Hz.

What limit appears first during continuous operation at 50 Hz?

At 50 Hz the motor reaches its maximum permitted ambient temperature of 80 °C before the 50 °C ambient rating is exceeded, so sustained use is limited by motor winding temperature.
