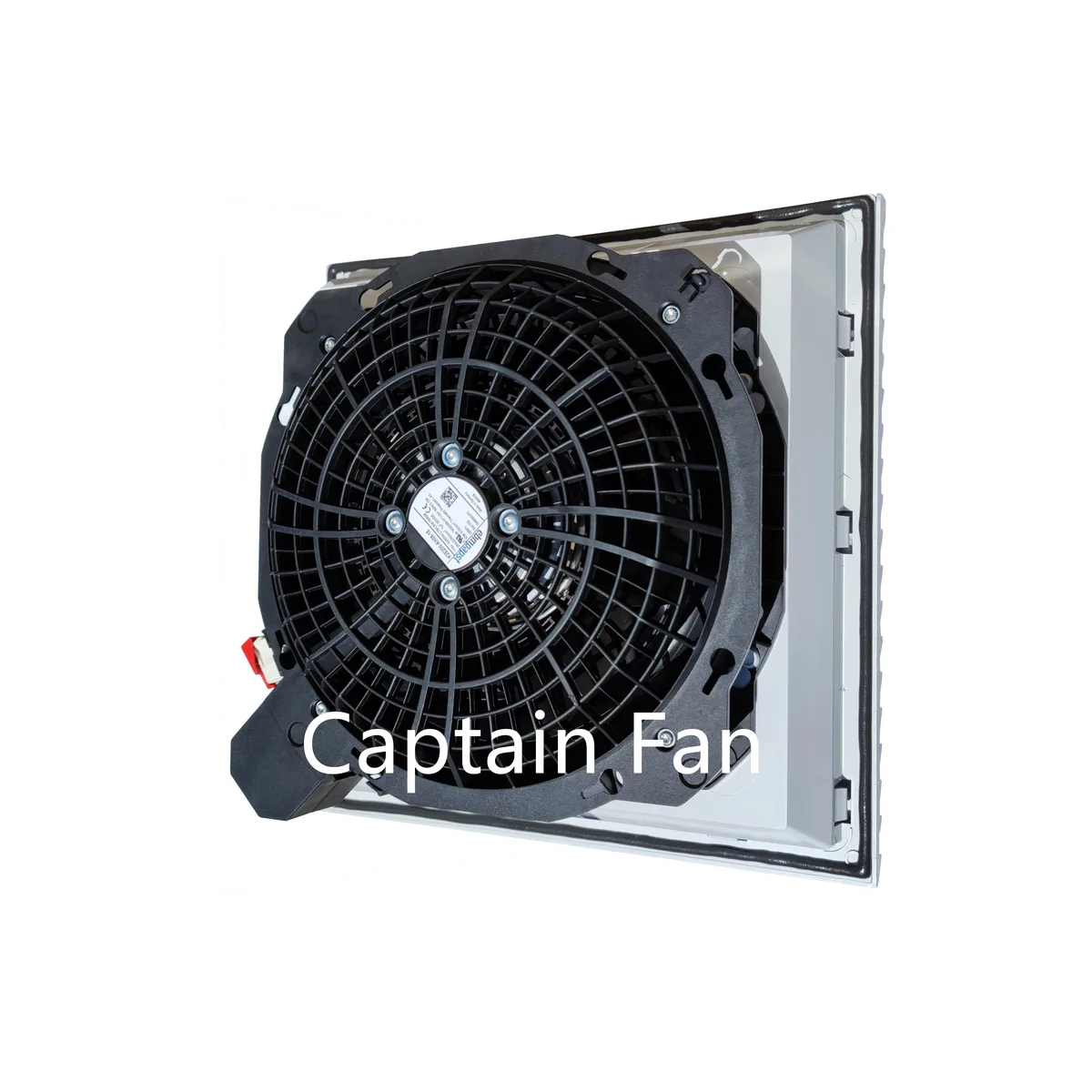

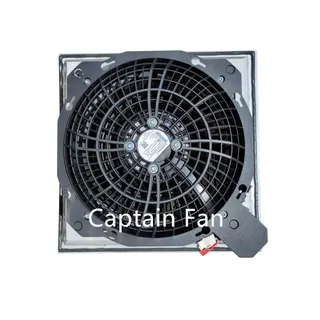

Black and white 200 mm industrial cooling fan with plastic housing

ebmpapst-automotive

ebmpapst-automotive K2E200-AH08-15 115V AC 75/90W 50/60Hz 200mm 3050RPM industrial cooling fan

SKU CH-WBH7-0703J MPN K2E200-AH08-15

200 mm AC filter fan delivers 75 to 90 W airflow at 115 V, 50/60 Hz, with speeds of 2650 to 3050 rpm for Rittal cabinet cooling

  • Runs on standard 115 V AC supply
  • Dual-frequency 50/60 Hz operation fits global power grids
  • 200 mm diameter moves high air volume for cabinets
  • 3050 RPM top speed delivers strong cooling airflow
  • 75/90 W power draw balances performance and efficiency

115 V AC cabinet filter fan

The ebmpapst-automotive K2E200-AH08-15 is a 200 mm industrial cooling fan designed for Rittal cabinet filter applications. It operates on 115 V AC at 50/60 Hz and suits engineers maintaining or building climate-controlled enclosures. The M2E068-CF motor delivers 75 W at 50 Hz and 90 W at 60 Hz for consistent airflow.

Thermals noise and power draw

At 50 Hz the fan draws 0.78 A and reaches 2650 min-1, while at 60 Hz it draws 0.80 A and reaches 3050 min-1. Power consumption scales from 75 W to 90 W across the frequency range. The plastic housing and filter construction are intended for steady industrial duty inside sealed cabinets.

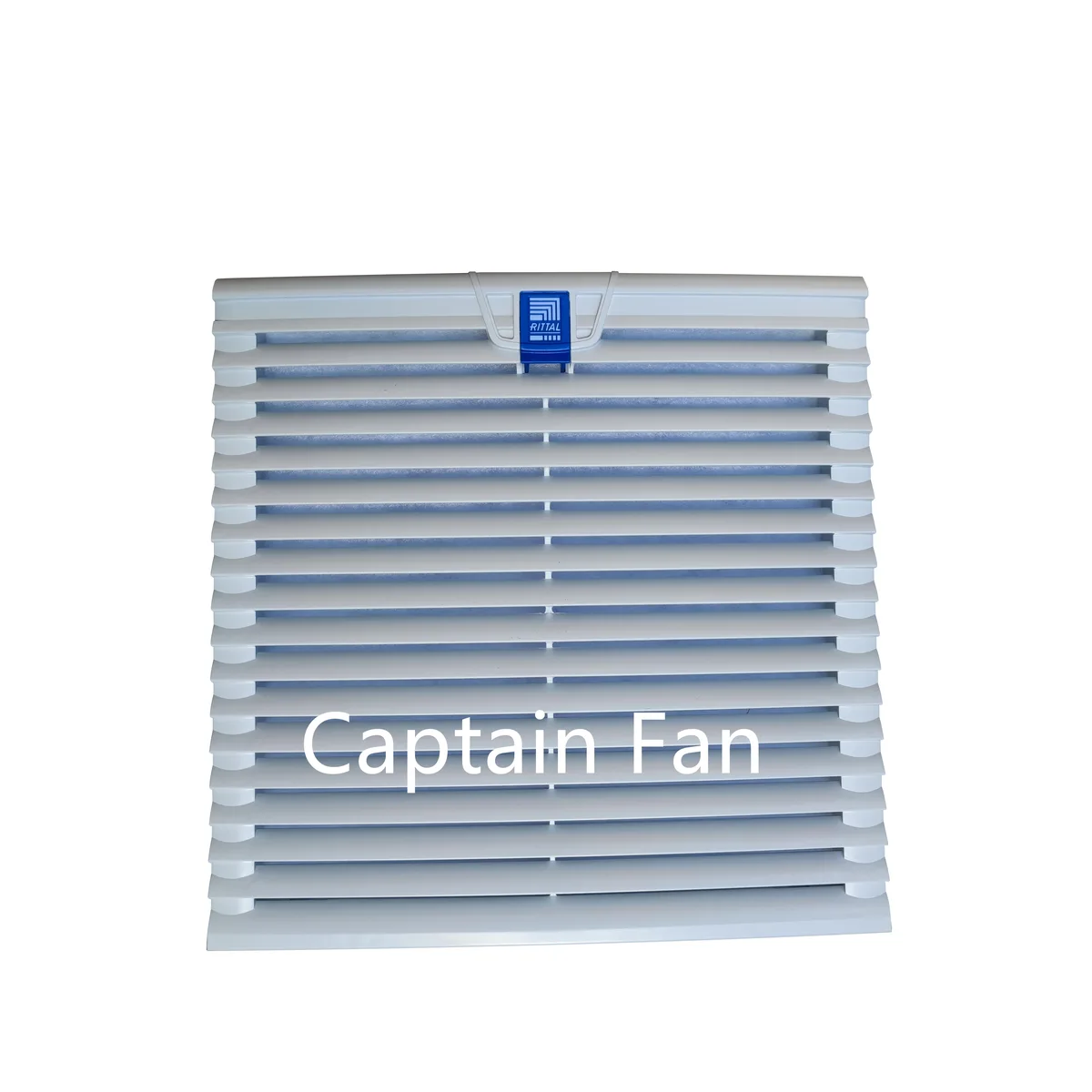

Included filter housing and packaging

The unit ships in a carton as a complete filter fan assembly with black and white plastic housing. No additional mounting hardware, speed controllers or monitoring software are bundled. Installers should verify cabinet cut-out dimensions and electrical ratings before fitting the fan.

Přednosti

  • Runs on standard 115 V AC supply
  • Dual-frequency 50/60 Hz operation fits global power grids
  • 200 mm diameter moves high air volume for cabinets
  • 3050 RPM top speed delivers strong cooling airflow
  • 75/90 W power draw balances performance and efficiency

Specifikace

Pro tento produkt zatím nejsou zveřejněny žádné specifikace.

Otázky k tomuto produktu

How do I wire the 115 V AC supply to the K2E200-AH08-15 fan terminals?

Connect live and neutral to the two motor leads; the unit runs on single-phase 115 V AC at 50/60 Hz and draws 0.78 A at 50 Hz or 0.80 A at 60 Hz, so use a fused disconnect rated for at least 1 A.

What maintenance does the filter fan need over time?

The plastic housing and M2E068-CF motor are sealed; only the external filter mat requires periodic cleaning or replacement depending on cabinet dust load.

At what point does airflow drop off during continuous operation?

The motor delivers 75 W at 50 Hz (2650 min⁻¹) and 90 W at 60 Hz (3050 min⁻¹); sustained heat buildup in the cabinet is the first limit that reduces effective cooling.
