Black DisplayPort-to-DisplayPort fibre cable with gold-plated connectors, 330 ft long

ESTONE

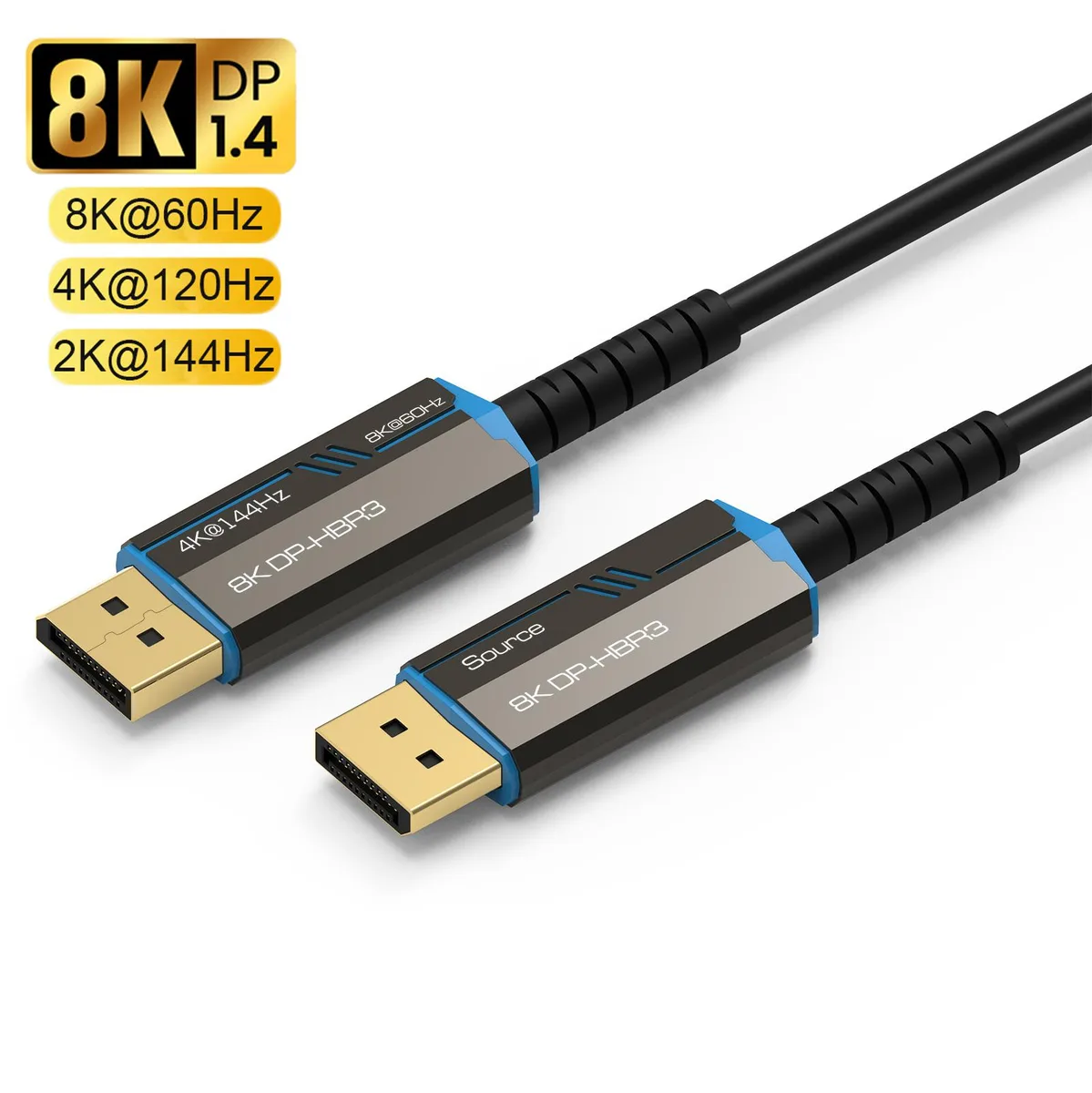

ESTONE TJ-A077 DisplayPort 1.4 fibre cable 330 ft 8K@60Hz 4K@144Hz 32.4Gbps

SKU CH-SHJ7-X1XCA

A 330 ft fibre-optic DisplayPort 1.4 cable carrying 8K at 60 Hz and 4K at 144 Hz over 32.4 Gbps without a booster

  • TypeDisplayPort
  • ColorBlack
  • Length330 ft.
  • Cable Length330 ft.
  • Connector Number1
  • Connect From1 x DisplayPort 1.4

Cable Length 330 ft.

  • 8K clarity at 60 Hz for ultra-high-definition viewing
  • 4K smoothness at 144 Hz for responsive gaming
  • 330 ft reach without signal booster thanks to fibre optic design
  • 4 Gbps bandwidth handles demanding video and audio
  • 24 K gold-plated connectors resist corrosion for lasting reliability

ESTONE TJ-A077 330 ft fibre cable

The ESTONE TJ-A077 is a 330 ft DisplayPort 1.4 fibre optic cable built for long-distance 8K@60Hz and 4K@144Hz links. It suits installers running cables through walls or across large venues where copper cables would lose signal integrity. The hybrid glass-fibre and copper construction delivers 32.4Gbps bandwidth without an external booster. It is aimed at professional AV, simulation and high-refresh gaming setups needing reliable ultra-high-definition video over extreme lengths.

Check source and display DP 1.4 ports

Before ordering, verify that both your graphics card and monitor have full-size DisplayPort 1.4 connectors. The cable uses male-to-male plugs and carries 32.4Gbps, so the source must support DSC or equivalent compression for 8K@60Hz or 4K@144Hz output. Ensure the host GPU can drive the target resolution at the required refresh rate over a single DP 1.4 lane. The cable is backward compatible with DP1.2 signals, but maximum resolution and refresh depend on the host capability. No external power adapter is required for the optical engine.

Fibre immunity and low heat operation

Because the video path uses glass fibre, the link is immune to electromagnetic interference from power cables, transformers or RF equipment commonly found in walls or ceilings. The optical converters at each end draw minimal power from the DisplayPort port itself, generating negligible heat during continuous 8K@60Hz or 4K@144Hz operation. The TPE jacket resists abrasion while staying flexible for routing. Acoustic noise is absent as there are no active cooling fans or boosters in the assembly.

Přednosti

  • 8K clarity at 60 Hz for ultra-high-definition viewing
  • 4K smoothness at 144 Hz for responsive gaming
  • 330 ft reach without signal booster thanks to fibre optic design
  • 4 Gbps bandwidth handles demanding video and audio
  • 24 K gold-plated connectors resist corrosion for lasting reliability

Specifikace

BrandESTONE
ModelTJ-A077
TypeDisplayPort
ColorBlack
Length330 ft.
Cable Length330 ft.
Connector Number1
Connect From1 x DisplayPort 1.4
Connect To1 x DisplayPort 1.4
Connector DetailDisplayPort to DisplayPort( Male to Male)
Terminal GenderMale to Male
SpeedSupports up to 32.4Gbps bandwidth.
SpecificationsDisplayPort 8K Long In Wall fiber optic cable
Resolution: Support 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Transfer speed: Support Transfer Rates of Up to 32.4Gbps (backward compatible with DP1.2)

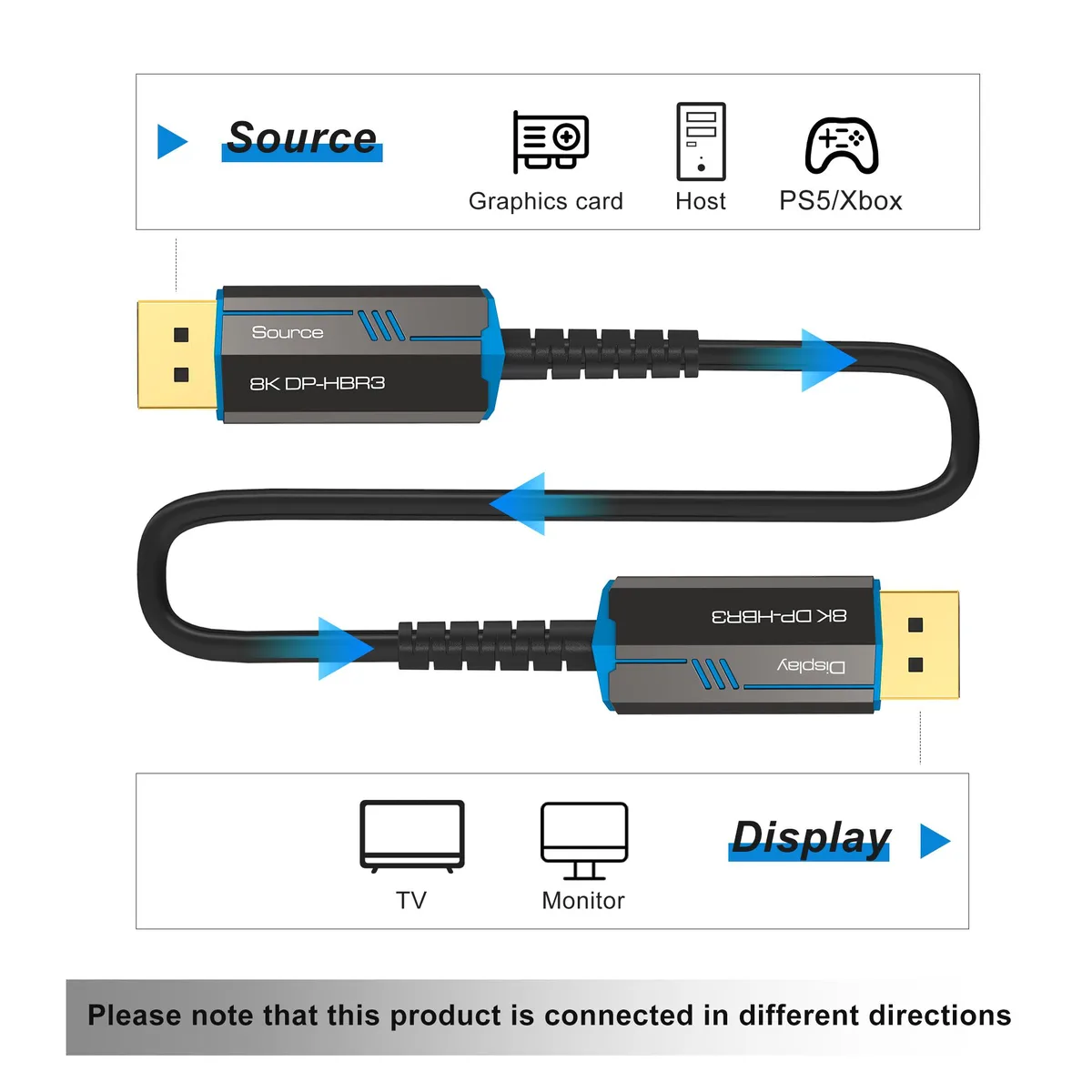

Connect to the source: Source
Connect display source: Display

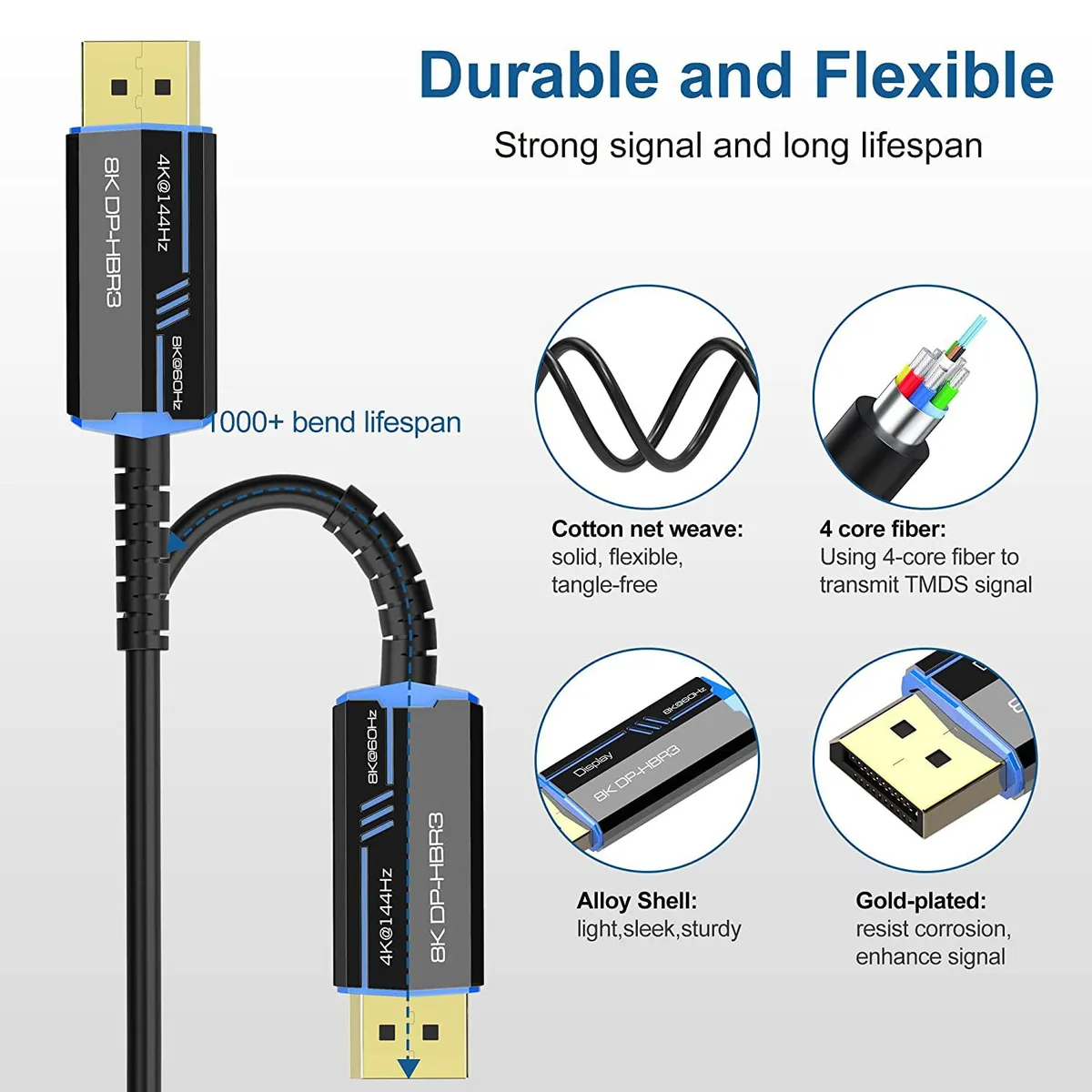

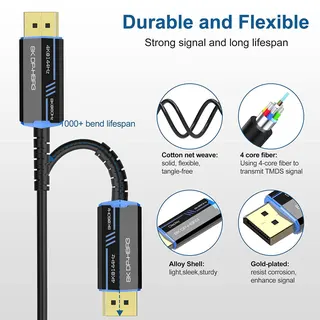

Material: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
ConductorTriple-shielded
ConstructionMaterial: 24K Gold Plated Connectors, rust resistance, durable for use. Wear-resisting TPE jacket.
4-core optical fiber: Stable & high speed transmission.
Hybrid Cable Structure: Pure glass fiber + Oxygen free copper wires.
Zinc Alloy Shell paint finish: Firm,effectively prevent cracking.
Refresh RateSupport 4K@144Hz and 8K@60HZ( backward compatible with 2K and 1080P resolutions.)
Sound QualityProduction Test
FeaturesTrue 8K, the ultimate experience: 8K dp fiber conforms to the 1.4 standard, supports 8K@60HZ, 4K@144HZ, and is backward compatible with 2K and 1080P resolutions. Supports up to 32.4Gbps bandwidth.
The ultimate audio-visual enjoyment: Support eARC, HBR3, DSC 1.2, Dolby Vision, HDR10, HDCP 2.2. Never worry about blur, distortion and delay
Safe and durable material: Using the latest smart chip, the high-strength aluminum alloy shell is firmly protected. The service life is greatly extended. The anti-bending design of the cable has also been upgraded, and the signal transmission is faste
Windows VistaCertified for Windows Vista

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What comes in the box and is any extra hardware needed for the 330 ft DisplayPort 1.4 fibre cable?

The box contains the single male-to-male DisplayPort 1.4 fibre cable at 330 ft with 24K gold-plated connectors and a TPE jacket. No separate signal booster or power adapter is required because the hybrid fibre-copper construction carries the signal the full distance.

Which version of the ESTONE TJ-A077 should I choose for 8K at 60 Hz versus 4K at 144 Hz?

There is only one version: the TJ-A077 rated for DisplayPort 1.4 with 32.4 Gbps bandwidth. That single cable supports both 8K at 60 Hz and 4K at 144 Hz, plus backward compatibility with 2K and 1080P resolutions.

What does the 32.4 Gbps headline figure mean when the cable is connected to a real GPU and monitor?

It means the link can carry the full DisplayPort 1.4 data rate, enabling 8K at 60 Hz or 4K at 144 Hz with HDR 10, 32 audio channels and 1536 KHz sample rate, provided both source and display support those modes.
