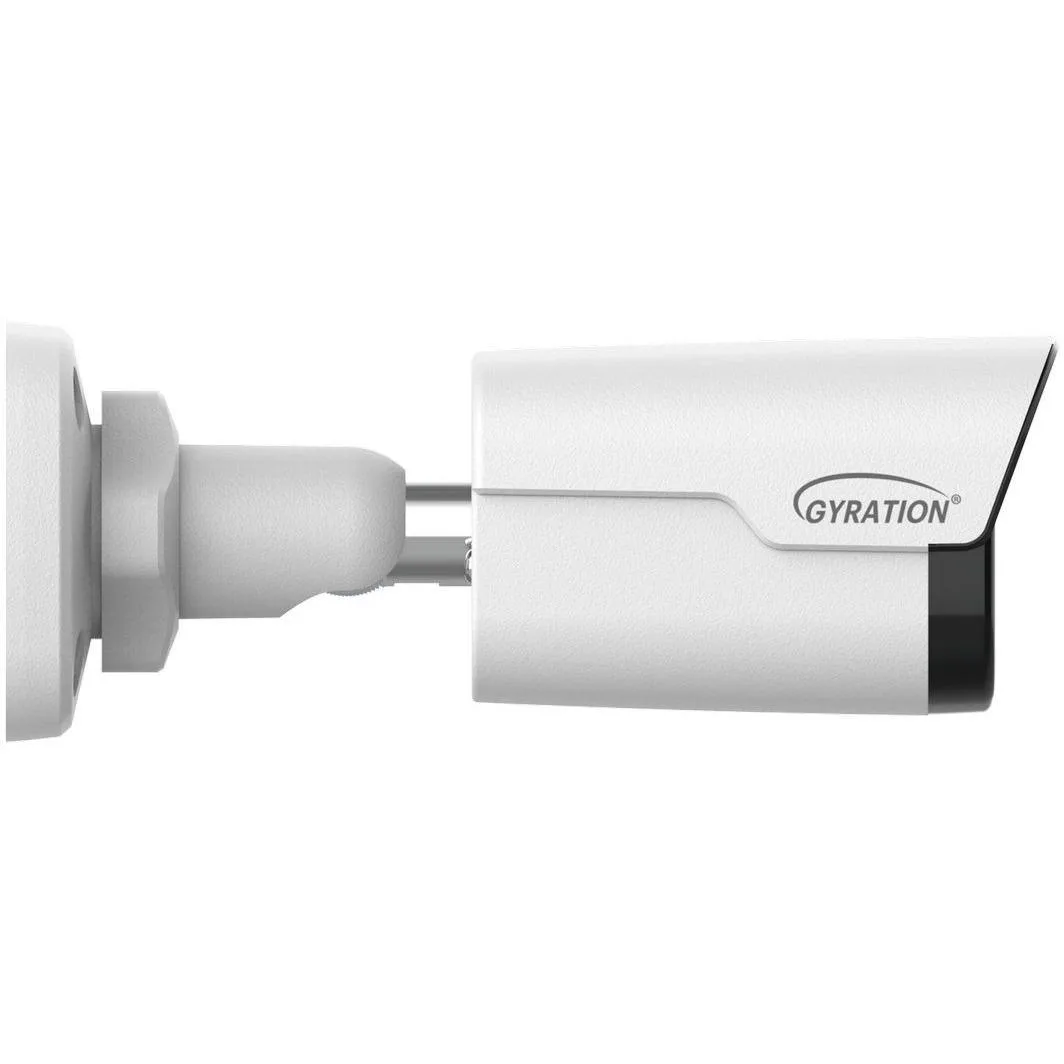

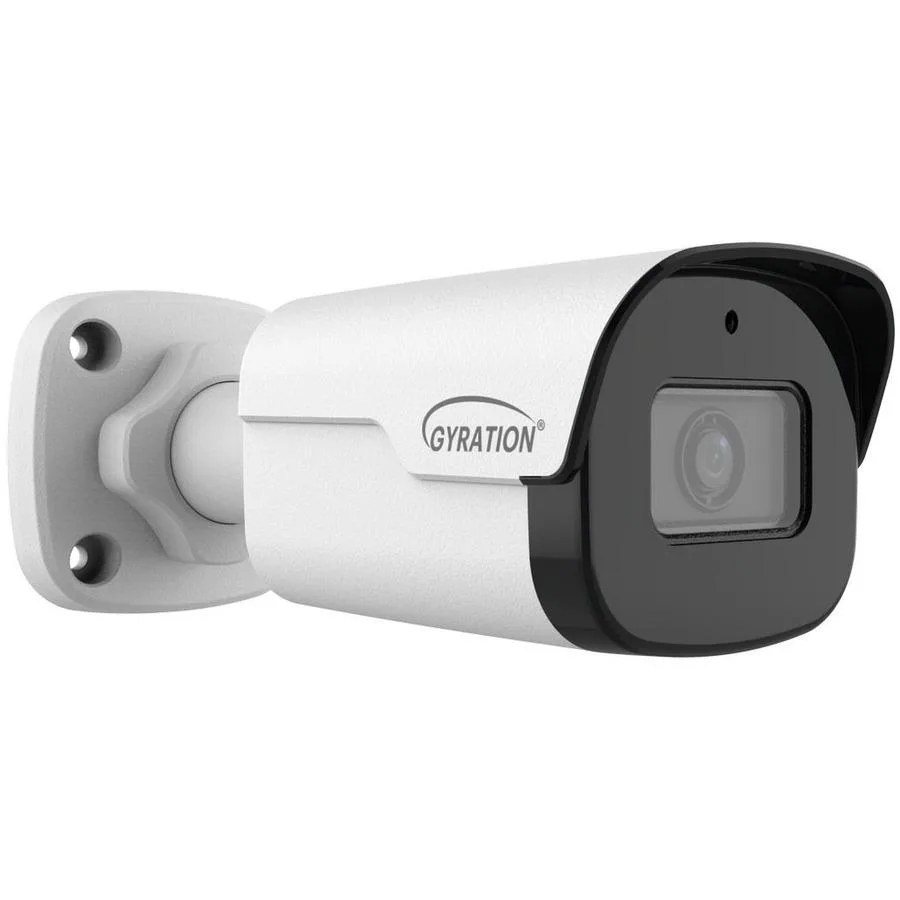

White bullet camera with varifocal lens and mounting bracket

Gyration

Gyration CYBERVIEW 811B 8MP Varifocal Bullet Network Camera

SKU CH-2RSC-EZWZK MPN CYBERVIEW 811B

8MP varifocal bullet IP camera with 107.4° to 29.2° viewing angle, PoE power and 256GB microSD storage

  • Network CameraYes
  • TypeBullet Camera
  • ColorWhite
  • Mounting LocationYes
  • Micro SD SlotSupports 256GB Micro SD card
  • Networking ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS,
  • Captures 8 MP detail at 20 fps with 1/2.8" CMOS sensor
  • Varifocal lens adjusts horizontal view from 107.4° to 29.2° for flexible coverage
  • Two-way audio enables real-time communication through built-in mic and speaker
  • PoE and DC 12 V power options simplify cabling with max 10.5 W draw
  • Micro SD slot stores footage locally on cards up to 256 GB

Product Identity

The Gyration CYBERVIEW 811B is an 8MP varifocal bullet network camera built for outdoor surveillance. It captures video at up to 3840x2160 resolution using a 1/2.8" CMOS sensor and supports Power over Ethernet for simplified cabling. Installers and system integrators deploy it where adjustable viewing angles and two-way audio are required. It is not suited for buyers who need a dome form factor or a camera without a micro SD slot.

Deciding Specification

The varifocal lens provides a horizontal angle of view ranging from 107.4° down to 29.2°, letting the installer narrow or widen the scene after mounting. Maximum frame rates reach 20fps at 8MP and 30fps at 5MP, 4MP or 1080p, with a sub stream available at 1080p, 720p or D1. Onboard storage accepts a micro SD card up to 256GB for local recording.

Installation Reality

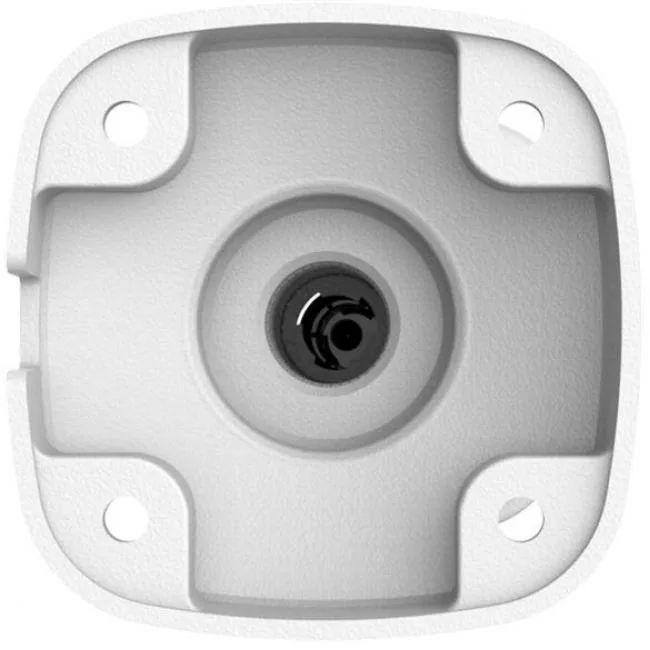

PoE (IEEE 802.3af) or 12V DC power connects through a single cable run, and the bracket allows pan 0°–360°, tilt 0°–90° and rotate 0°–360° for precise aiming. The IR-cut filter switches automatically for night vision, while the shutter can be set from 1 to 1/100000s. Common issues include exceeding the 10.5W power budget on long PoE runs and forgetting to format the micro SD card before first use.

Přednosti

  • Captures 8 MP detail at 20 fps with 1/2.8" CMOS sensor
  • Varifocal lens adjusts horizontal view from 107.4° to 29.2° for flexible coverage
  • Two-way audio enables real-time communication through built-in mic and speaker
  • PoE and DC 12 V power options simplify cabling with max 10.5 W draw
  • Micro SD slot stores footage locally on cards up to 256 GB

Specifikace

BrandGyration
ModelCYBERVIEW 811B
Network CameraYes
TypeBullet Camera
ColorWhite
Mounting LocationYes
Micro SD SlotSupports 256GB Micro SD card
Networking ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Pan/TiltPan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Sensor & Detector1/2.8" CMOS sensor
HD Resolution4K
MAX Resolution8MP(3840x2160)@20fps
5MP(3072x1728)@30/25fps
4MP(2560x1440)@30/25fps
2MP(1920x1080)@30/25fps
Frame RateMain Stream: 8MP (3840x2160), Max 20fps;5MP (3072x1728), Max 30fps; 4MP (2560x1440), Max30fps; 1080P (1920x1080), Max 30fps
Sub Stream: 1080P (1920x1080), Max 30fps;720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360,Max 30fps;
2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
Third Stream: D1 (720x576), Max 30fps; 640x360,Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
Lens TypeAngle of View (H): 107.4°~ 29.2°
Angle of View (V): 54.2°~ 16.3°
Angle of View (O): 111.0°~33.1°
Shutter ControlAuto/Manual, 1 ~ 1/100000s
Night VisionIR-cut filter with auto switch (ICR)
Audio2 Way Voice
Power over EthernetYes
PowerDC 12V+/-25%, PoE (IEEE 802.3af)
Power consumption: Max 10.5W
HumidityWorking Environment: Humidity: <=95% RH (non-condensing)
Strorage Environment: Humidity: <=95% RH (non-condensing)
TemperatureWorking Environment: -30°C ~ 60°C (-22°F ~ 140°F)
Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F)
Dimension9.60" x 3.40" x 2.80"
Weight2.03 lbs.
FeaturesHigh quality image with 8MP, 1/2.8" CMOS sensor
8MP (3840x2160)@20fps; 5MP (3072x1728)@30/25fps;
4MP (2560x1440)@30/25fps; 2MP (1920x1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG video compression Intelligent perimeter protection, including cross-line, intrusion, enter and exit area detection Smart intrusion prevention significantly reduces false alarms caused by leaves, birds and lights etc., accurately focuses on human, motor vehicle, and non-motor vehicle objects.
Starlight technology ensures ultra-high image quality in low illumination environments
120dB true WDR technology captu
Přepravní hmotnost1.16 kg
Rozměry balení300 × 130 × 127 mm

Otázky k tomuto produktu

What does 8MP at 20fps mean for recorded footage?

The camera records 3840x2160 video at up to 20 frames per second; higher frame rates of 30fps are available at 5MP, 4MP and 1080p resolutions.

How does PoE IEEE 802.3af power the unit in practice?

It delivers up to 10.5W over a single Ethernet cable, removing the need for a separate 12V DC supply and simplifying outdoor installation.

What mounting adjustment does the 360° pan and 90° tilt provide?

The bracket allows full horizontal rotation and vertical tilt up to 90°, so the bullet housing can be aimed at any angle on a wall or ceiling.
