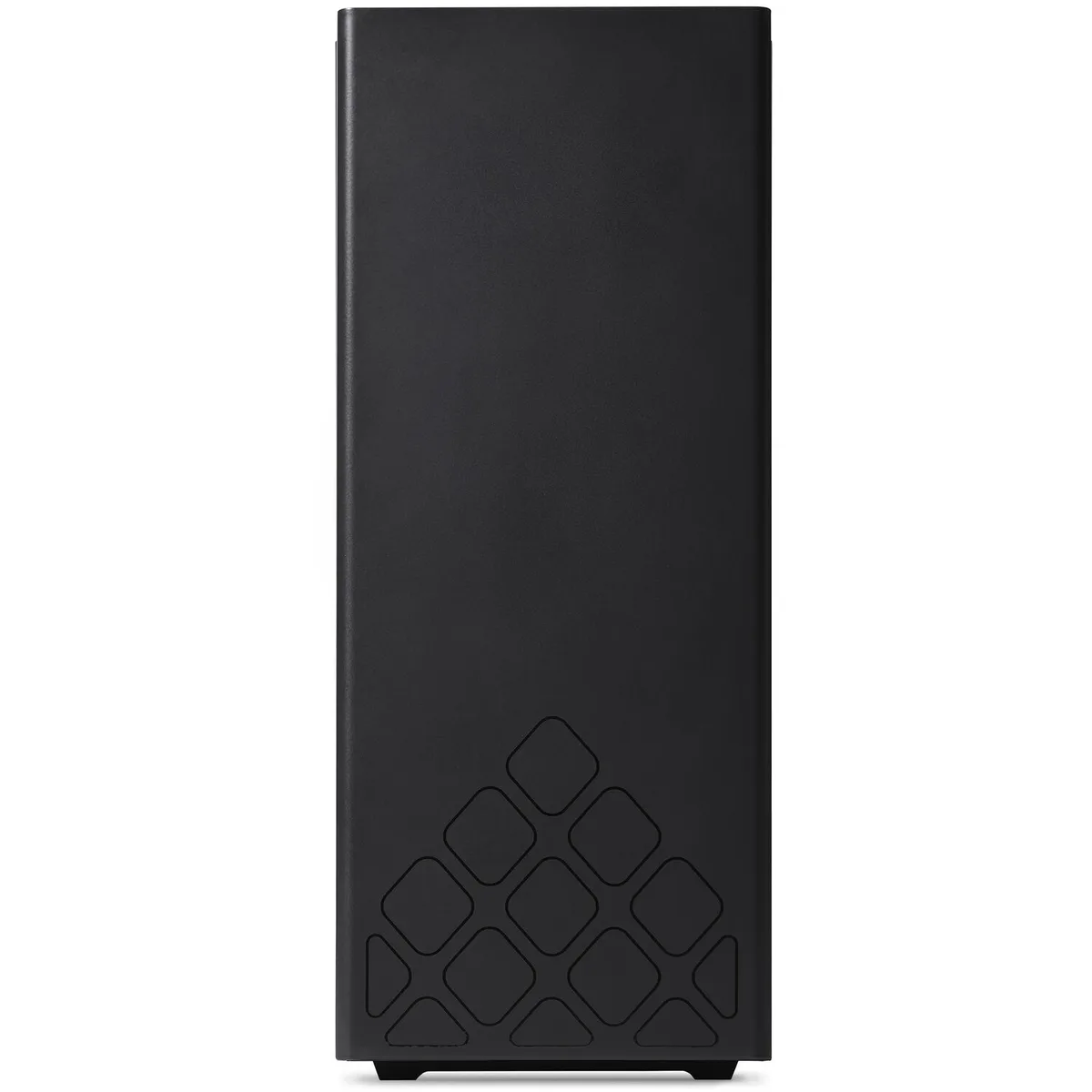

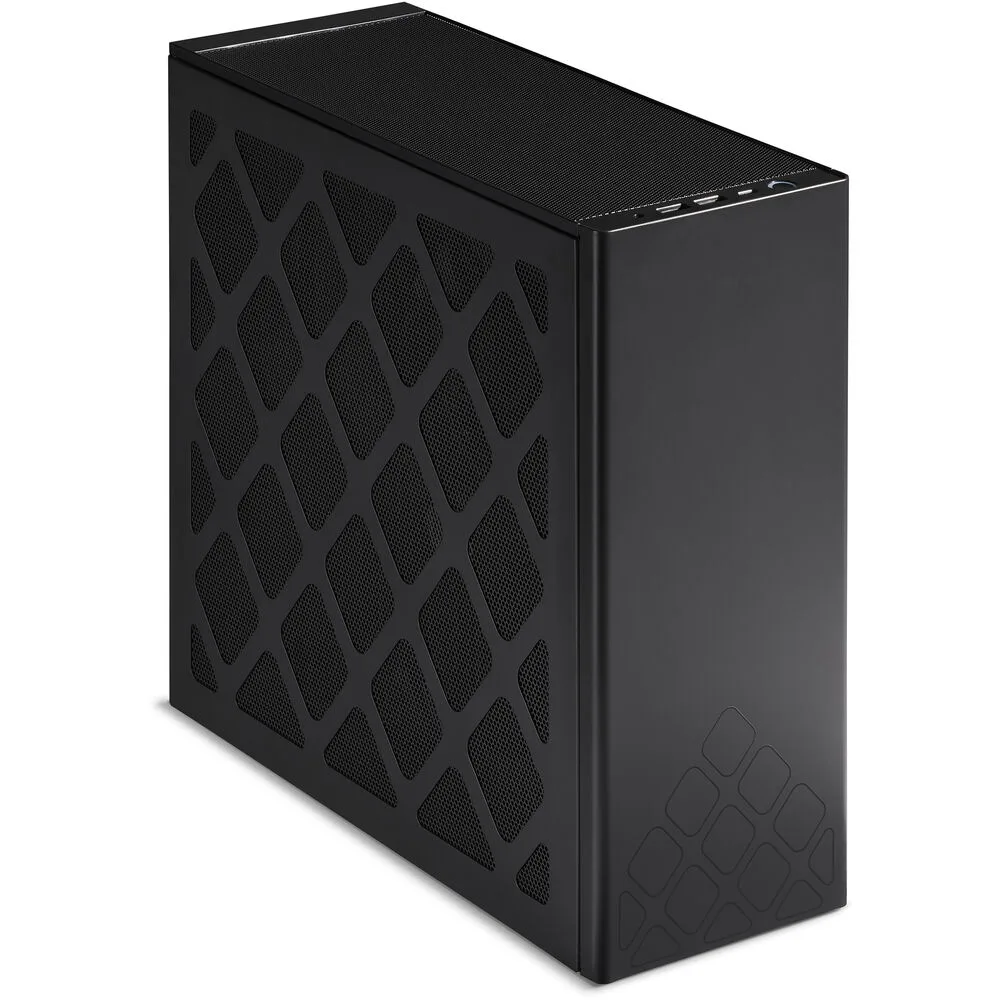

Black Intel NUC 13 barebone chassis with pre-installed Core i7-13700K processor

Intel

Intel RNUC13RNGi70001 Core i7-13700K barebone pc

SKU CH-DPQ8-BR188 MPN RNUC13RNGi70001

A 13th-generation Core i7 barebone ready for a triple-slot GPU, dual-channel DDR5 up to 64 GB, three M.2 slots, 10 Gb and 2.5 Gb LAN, Wi-Fi 6E and Bluetooth 5.2

  • ColorBlack
  • CPU InstalledIntel® Core™ i7 -13700K / 8P+8E/24T / P-Cores: up to 5.4 GHz
  • Memory installedNo Memory
  • Memory slotDual channel DDR5-4800 SODIMMs, max 64GB
  • Max Memory Supported64GB
  • Memory Channel SupportedDual Channel

CPU Intel Core i7 -13700K

  • 24-thread Core i7-13700K reaches 5.4 GHz for heavy multitasking
  • dual-channel DDR5-4800 SODIMM slots accept up to 64 GB memory
  • triple-slot GPU bay fits 313 mm cards with 63 mm thickness
  • 10 Gb and 2.5 Gb LAN plus Wi-Fi 6E AX1690i for fast networking
  • three M.2 2280 slots support NVMe Gen4 and SATA SSDs

Intel NUC 13 barebone with Core i7-13700K

This compact barebone PC arrives with an Intel Core i7-13700K processor installed, delivering 8 performance cores and 8 efficient cores for 24 threads. It targets enthusiasts who want a small-form-factor foundation for a high-performance desktop build. The Z690 platform provides PCIe x16 Gen5 support for a triple-slot graphics card up to 313mm long. Memory, storage and operating system must be supplied by the builder.

Who this suits and who should look elsewhere

Builders seeking a powerful, space-saving system with dual-channel DDR5-4800 SODIMM support up to 64GB, three M.2 slots for NVMe or SATA SSDs, 10Gb and 2.5Gb LAN, Wi-Fi 6E and Bluetooth 5.2 will find the connectivity they need. It is not for buyers who require memory or storage pre-installed, who need a smaller chassis that cannot accept a 63mm thick triple-slot GPU, or who want a fully assembled PC with an operating system ready to run.

The deciding specification

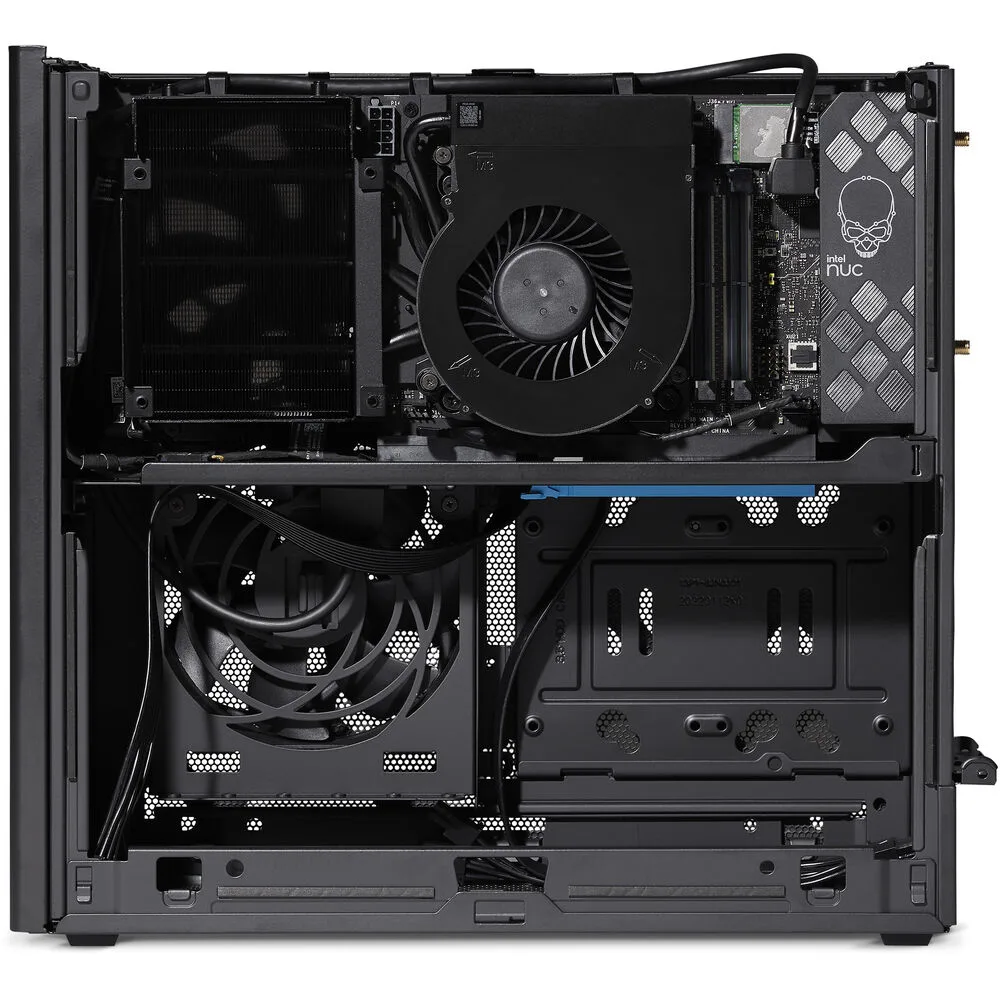

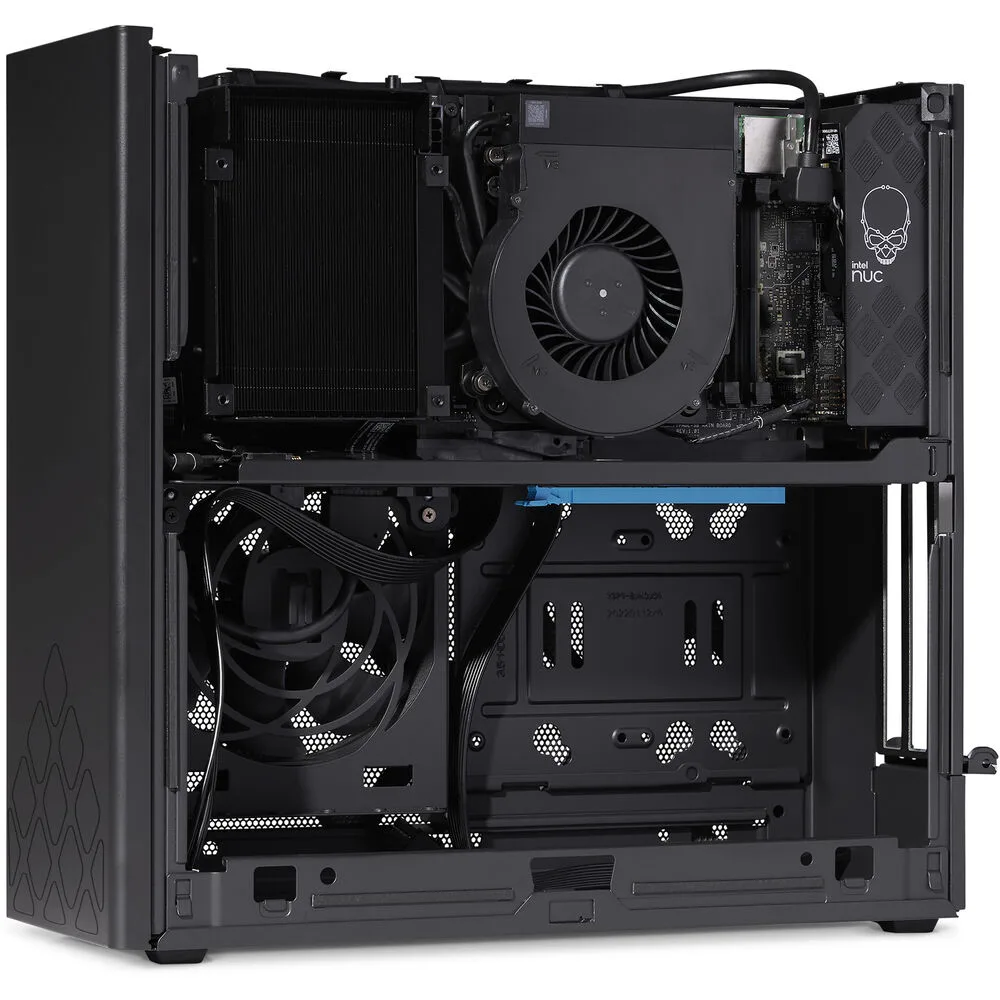

The chassis accepts a discrete graphics card up to 313mm long, 155mm tall and 63mm thick with a backplate no thicker than 3.5mm, making GPU physical dimensions the single constraint that determines whether a chosen card will fit.

Přednosti

  • 24-thread Core i7-13700K reaches 5.4 GHz for heavy multitasking
  • dual-channel DDR5-4800 SODIMM slots accept up to 64 GB memory
  • triple-slot GPU bay fits 313 mm cards with 63 mm thickness
  • 10 Gb and 2.5 Gb LAN plus Wi-Fi 6E AX1690i for fast networking
  • three M.2 2280 slots support NVMe Gen4 and SATA SSDs

Specifikace

BrandIntel
SeriesNUC 13
ModelRNUC13RNGi70001
Part NumberRNUC13RNGi70001
ColorBlack
CPU InstalledIntel® Core™ i7 -13700K
/ 8P+8E/24T / P-Cores: up to 5.4 GHz - E-Cores: up to 4.2 GHz / 30MB Intel® Smart Cache / 125W Unlocked TDP
Memory installedNo Memory
Memory slotDual channel DDR5-4800 SODIMMs, max 64GB
Max Memory Supported64GB
Memory Channel SupportedDual Channel
M.21x M.2 22x80 M-Key x4 PCIe supporting NVMe Gen4 (512GB to 4TB), Gen3 (128GB to 8TB)
2x M.2 22x80 M-Key x4 PCIe supporting NVMe Gen4 (512GB to 4TB), Gen3(128GB to 8TB) and SATA SSD (128GB to 2TB)
Discrete Graphic CardTriple-slot GPU capable
/ Max Length: 313mm / Max Slot Thickness: 63mm / Max Card Height:155mm / Max Backplate Thickness: 3.5mm
Onboard VideoIntel® UHD Graphics 770 up to 1.60 GHz /
Onboard Audio3.5mm front stereo headset jack
First LAN1x 10Gb Marvell LAN (AQC113)
Second LAN1x 2.5Gb LAN (i225-LM)
Wireless LANIntel® Wi-Fi 6E AX1690i
BluetoothBluetooth 5.2
Front USB2x USB 3.2 Gen 1 Type-A (top)
1x USB 3.2 Gen2x2 Type-C (top)
Front Audio Ports1x 3.5mm stereo headphone jack (top)
HDMI1x HDMI 2.1 TMDS compatible connector (up to 4k60)

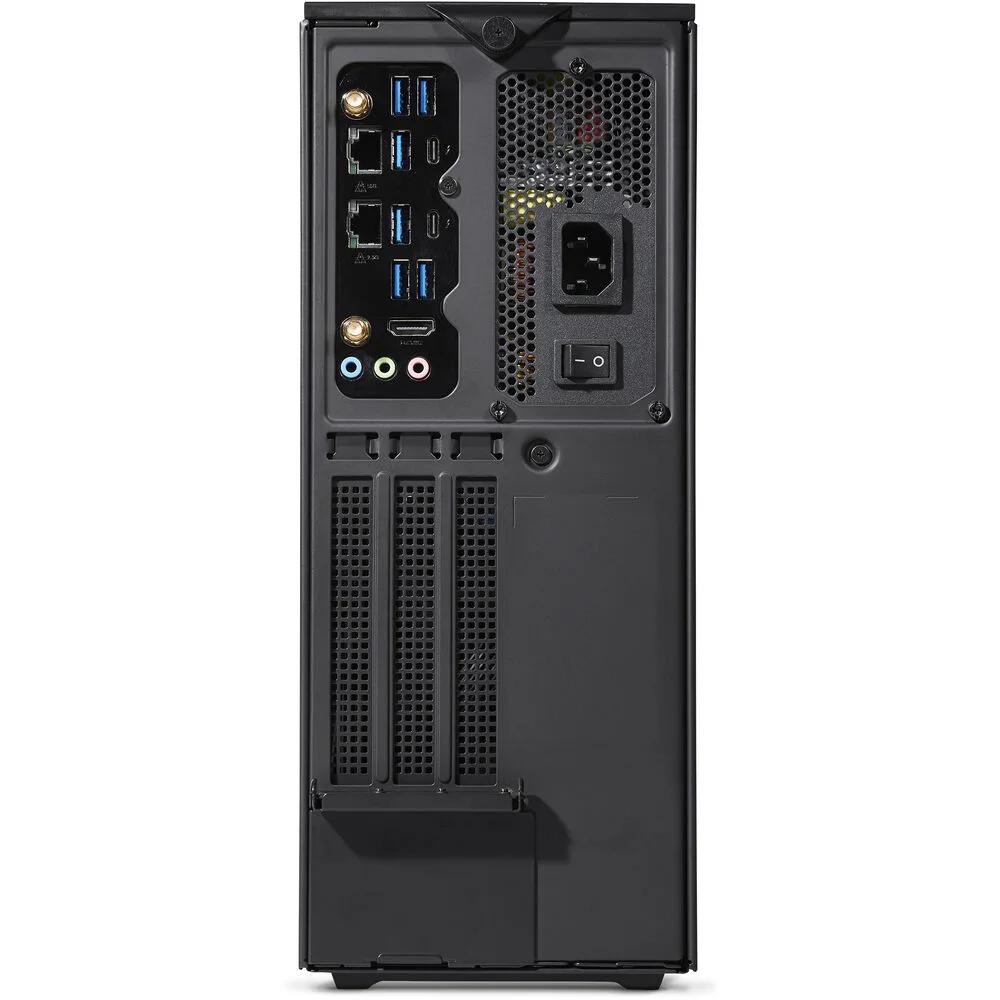

Thunderbolt 32x Thunderbolt 4 / USB4 Type-C ports
Rear USB6x rear USB 3.2 Gen 2 ports
RJ4510 Gb Ethernet (AQC113) port
Intel® 2.5 Gb Ethernet (i226-V) port
Rear Audio PortsAnalog audio with discrete Mic-in, Line-in, Speaker-out, FP audio Header
Input750W 80+ Gold SFX 12VO internal power supply
Dimensions337 x 318 x 129 mm (<14L volume)
Features2x external antennas
2x 120mm system fans
2x SATA ports / 2x 12V PWM Fan headers / USB 3.2 Gen 2 header / DC power for SATA HDDs / 4 addressable RGB headers supporting up to 120 LEDs
Přepravní hmotnost8.70 kg
Rozměry balení458 × 427 × 243 mm

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Should I pick a 512 GB or 4 TB NVMe drive for the primary M.2 slot?

The primary M.2 2280 slot supports NVMe Gen4 drives from 512 GB to 4 TB; choose capacity based on your storage budget and how many large applications or games you plan to keep installed.

What does the 5.4 GHz boost clock on the Core i7-13700K mean for daily workloads?

The 5.4 GHz maximum turbo on the performance cores delivers strong single-thread responsiveness for gaming and bursty productivity tasks, while the 8 efficient cores handle background work at up to 4.2 GHz.

How does the PCIe x16 Gen5 slot limit the graphics card I can install?

The slot accepts triple-slot cards up to 313 mm long, 63 mm thick and 155 mm tall with a backplate no thicker than 3.5 mm; the Gen5 link runs at full speed with compatible GPUs.
