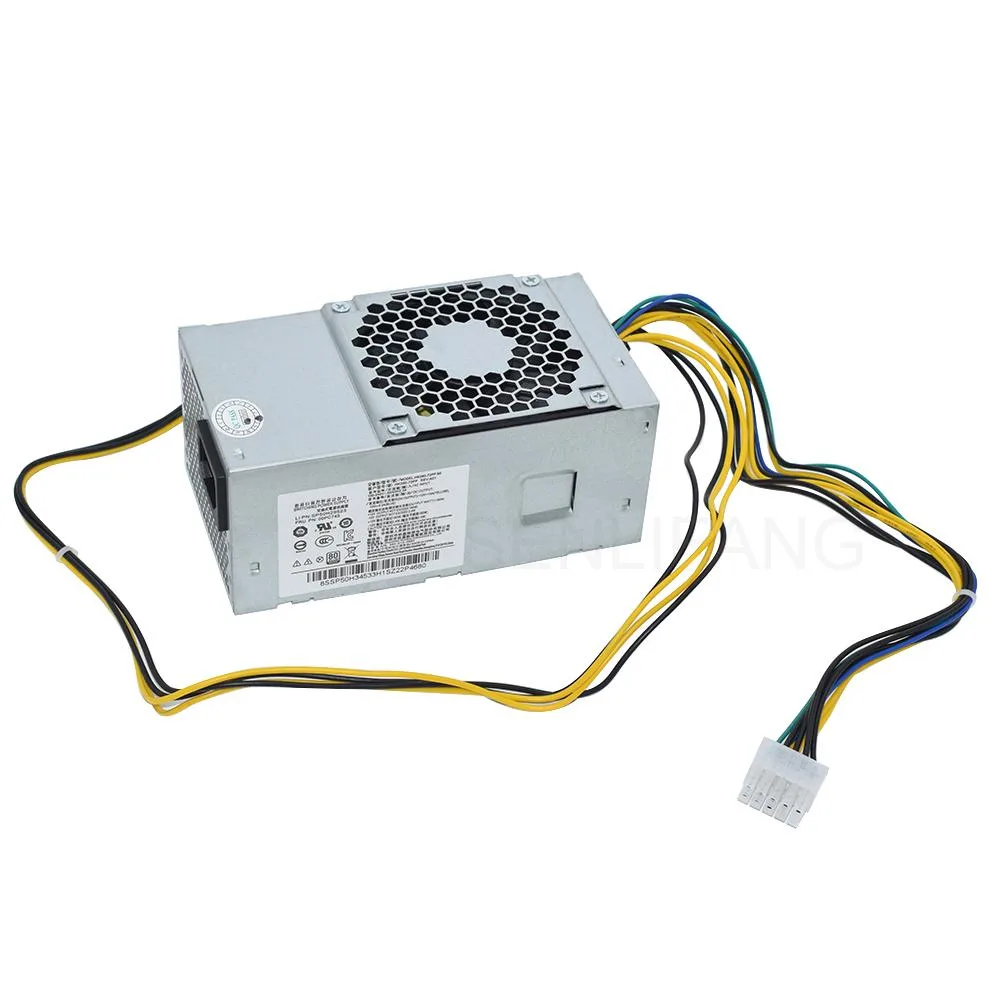

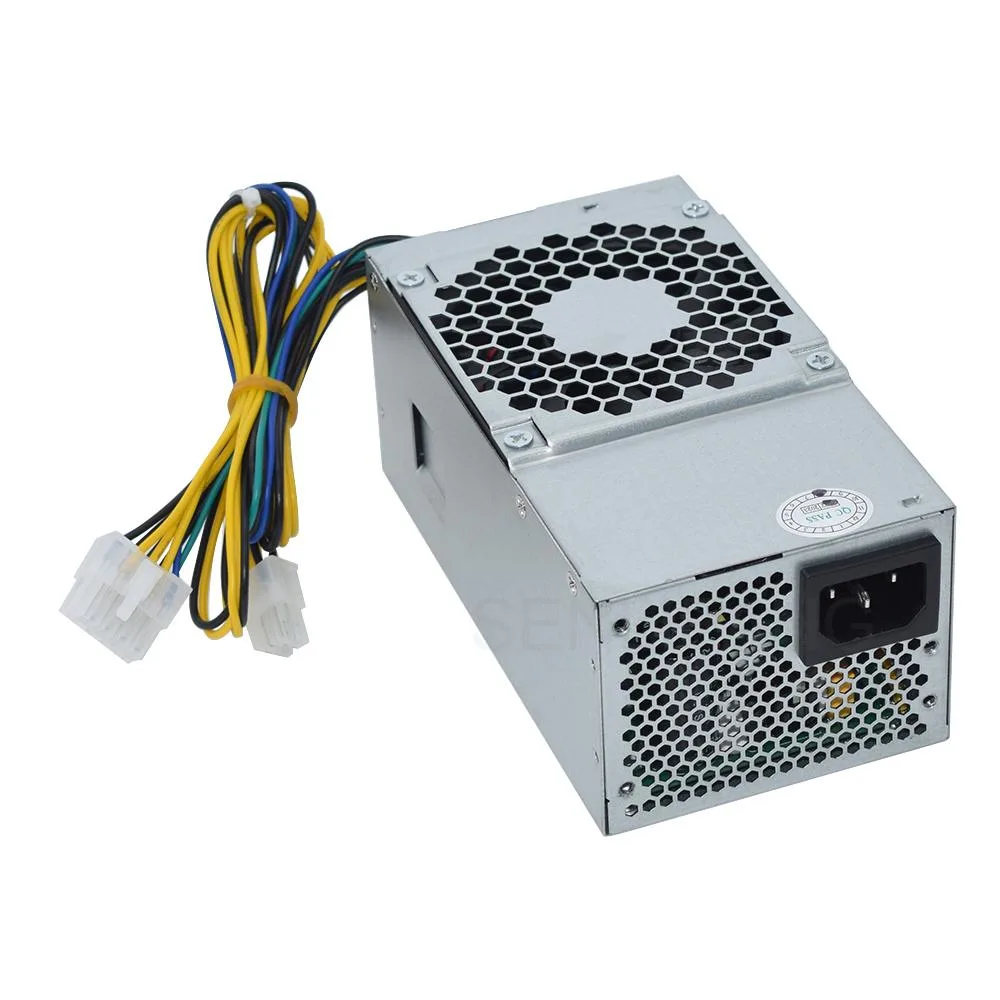

Rectangular silver server PSU, 10+4pin connector, 150 by 81 by 64mm

Lemincrash

Lemincrash FSP180-20TGBAB 180W 10+4pin server power supply

SKU CH-M2J0-TK3AR

180W server power supply with 10+4pin connector delivering 15A on the 12V rail for compatible Lenovo systems

  • Maximum Power180W
  • Main Connector10+4pin
  • Output+12V==15A -12V==0.2A
  • Input Voltage100 - 240 V
  • Input Frequency Range50/60 Hz
  • FeaturesNew
  • Delivers 180W peak power for demanding server workloads
  • 10+4pin main connector fits compatible Lenovo systems
  • Wide 100-240V input supports global rack deployments
  • Compact 150x81x64mm form factor saves chassis space
  • 80 Plus series rating indicates certified efficiency

180W Server PSU for Lenovo 10+4pin

This Lemincrash FSP180-20TGBAB unit delivers 180W maximum power through a proprietary 10+4pin connector. It is built for Lenovo systems that require the HK280-72PP form factor and the 00PC745 part number. The supply accepts 100-240V input at 50/60Hz and weighs 800g.

Verify 10+4pin connector and 150x81x64mm clearance

Confirm the host chassis uses the exact 10+4pin main connector and that the 150x81x64mm enclosure fits the available bay. The unit provides +12V at 15A and -12V at .2A, so the system's power distribution board must match these rails. No other connectors are included in the package.

Steady 180W output within 20-90% humidity

The power supply maintains its full 180W rating across the specified 20%-90% humidity range and the 100-240V AC input window. Continuous load runs at +12V 15A without exceeding the thermal limits of the 150x81x64mm housing. The 3A AC input rating reflects sustained draw rather than momentary peaks.

Přednosti

  • Delivers 180W peak power for demanding server workloads
  • 10+4pin main connector fits compatible Lenovo systems
  • Wide 100-240V input supports global rack deployments
  • Compact 150x81x64mm form factor saves chassis space
  • 80 Plus series rating indicates certified efficiency

Specifikace

BrandLemincrash
Series80 Plus
ModelFSP180-20TGBAB
Maximum Power180W
Main Connector10+4pin
Output+12V==15A
-12V==0.2A
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
FeaturesNew
Dimensions150*81*64mm
Weight800g
Humidity20%-90%
Package ContentsPSU*1

Otázky k tomuto produktu

Does the package include any cables or mounting hardware besides the PSU itself?

The package contains only the power supply unit; no cables or mounting hardware are included.

Which Lenovo part numbers does the FSP180-20TGBAB replace?

This unit replaces Lenovo part numbers PCE025, PCE010, PCG010, HK280-72PP, PA-2181-2, PA-2221-3V and 00PC745.

What does the 180 W rating mean for the +12 V rail in a server?

The +12 V rail delivers up to 15 A, providing the full 180 W for processor and memory loads.
