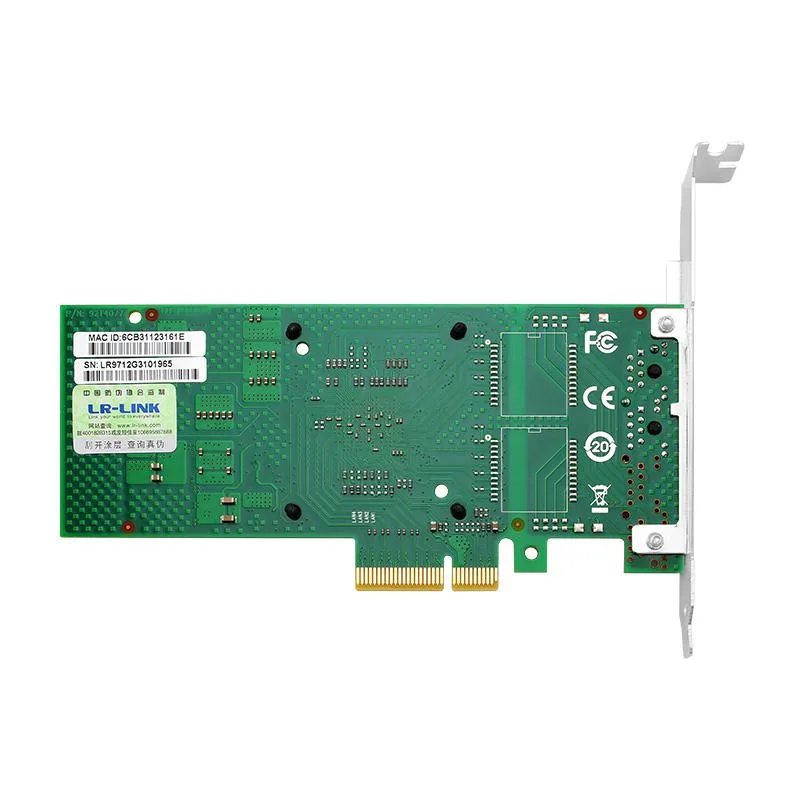

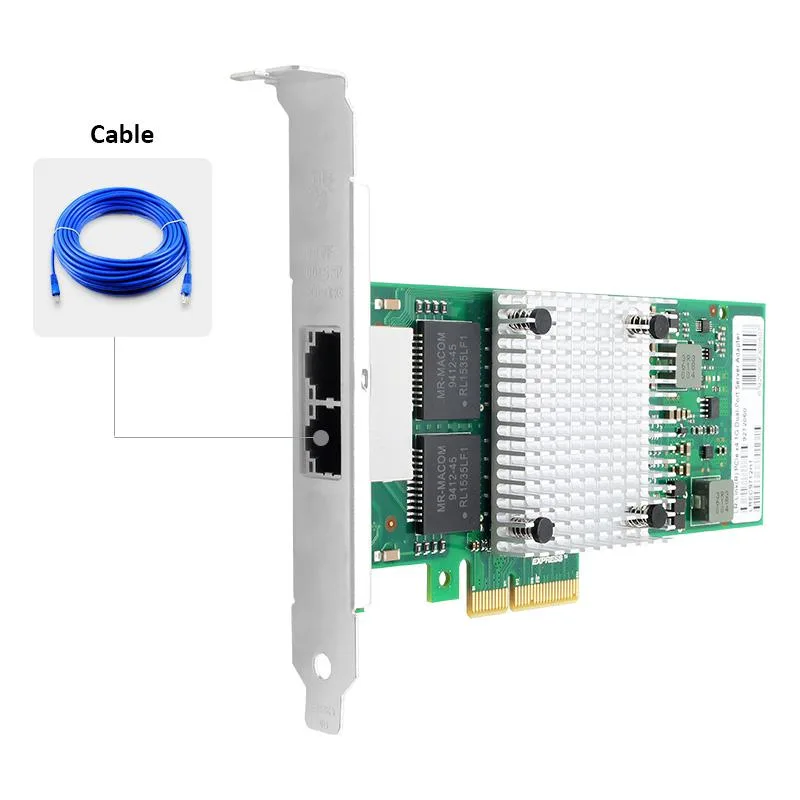

Green PCB network card with two RJ45 ports and metal bracket

LR-LINK

LR-LINK LREC9712HT PCIe x4 dual-port Gigabit network card

SKU CH-Q5NJ-BJ0ZQ

Adds two Gigabit RJ45 ports over a PCIe x4 2.1 link with 32 virtual functions for server virtualization

  • StandardsIEEE802.3
  • Speed10/100/1000Mbps
  • Connectors2 x RJ45
  • InterfacePCI-Express
  • Temperature0°C ~ 55°C
  • Humidity0 % ~ 90 % (Non-condensing)
  • Dual RJ45 ports deliver 10/100/1000Mbps wired throughput
  • PCI Express 2.1 x4 interface provides 5.0 GT/s bandwidth
  • Flexible I/O virtualization supports up to 32 virtual ports
  • Low-profile and full-height brackets fit diverse chassis
  • Broad OS support covers Windows, Linux, VMware and more

Dual-port Gigabit server adapter

The LR-LINK LREC9712HT is a PCI Express x4 network card with two RJ45 copper ports operating at 10/100/1000 Mbps. It is built on the Intel I350AM2 controller and supports IEEE 802.3 standards. The card ships with both low-profile and full-height brackets for flexible installation in servers or workstations.

Virtualisation and multi-OS environments

This adapter suits administrators who need two Gigabit links for virtual machine traffic, link aggregation or separate management networks. It offers I/O virtualisation with up to 32 virtual ports, VPD and MCTP support. Buyers who require 10 GbE speeds, fibre connectors or a single-port card should consider other models.

PCI Express v2.1 x4 interface

The card connects through a PCIe v2.1 x4 slot running at 5.0 GT/s and is compatible with x8 and x16 slots. This interface determines whether the adapter fits the target server or workstation. Verify that the host system provides an available x4, x8 or x16 slot before purchase.

Přednosti

  • Dual RJ45 ports deliver 10/100/1000Mbps wired throughput
  • PCI Express 2.1 x4 interface provides 5.0 GT/s bandwidth
  • Flexible I/O virtualization supports up to 32 virtual ports
  • Low-profile and full-height brackets fit diverse chassis
  • Broad OS support covers Windows, Linux, VMware and more

Specifikace

BrandLR-LINK
ModelLREC9712HT
StandardsIEEE802.3
Speed10/100/1000Mbps
Connectors2 x RJ45
InterfacePCI-Express
Temperature0°C ~ 55°C
Humidity0 % ~ 90 % (Non-condensing)

Otázky k tomuto produktu

Will the PCIe 2.1 x4 link saturate before the two 1000 Mbps ports do under sustained load?

The card uses a PCI Express 2.1 x4 interface at 5.0 GT/s, giving ample bandwidth for both Gigabit ports running at full 1000 Mbps simultaneously.

What thermal and acoustic impact should I expect when the adapter runs continuously in a 55 °C environment?

Operating range is 0 °C to 55 °C with no fan on the card; it adds negligible noise and relies on chassis airflow to stay within limits.

Which bracket and slot type must my server already have to install this dual-port adapter?

The kit includes low-profile and full-height brackets and requires an available PCIe x4, x8 or x16 slot.
