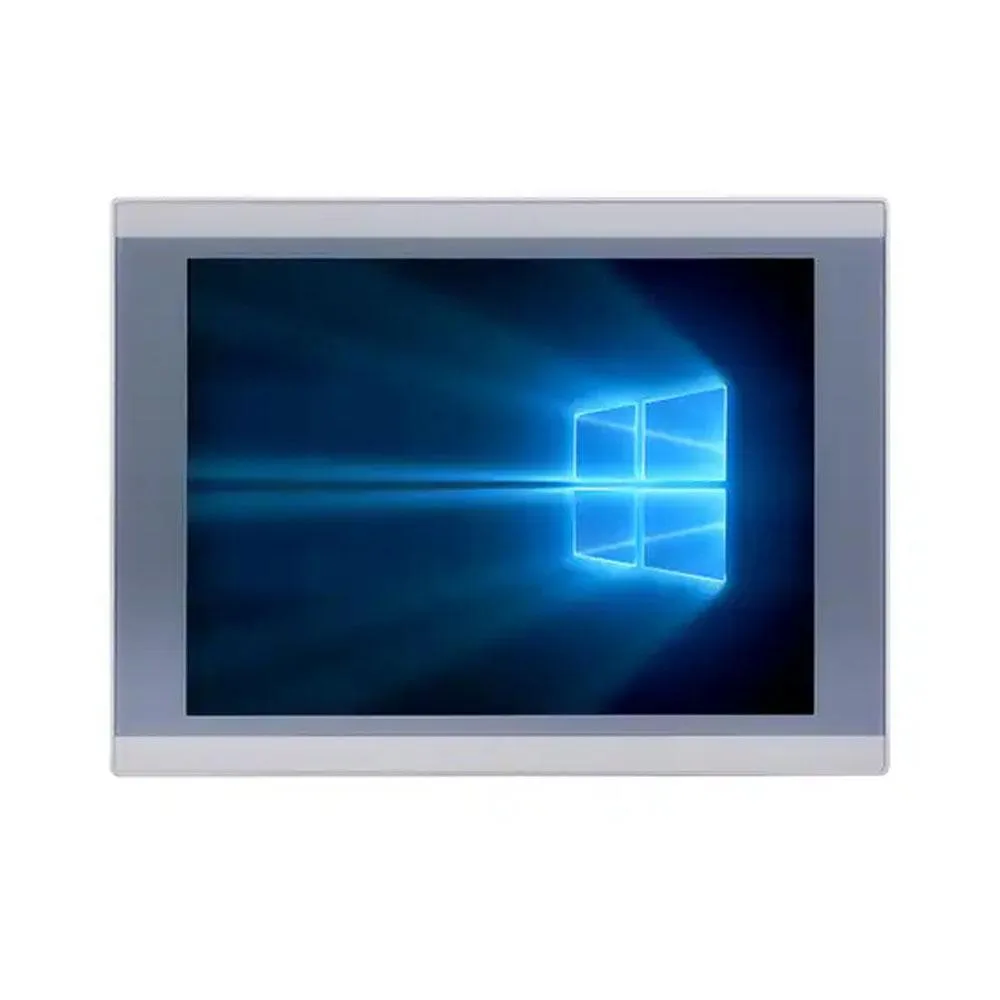

Silver 12.1 inch fanless all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

Partaker A1 12.1" all-in-one PC i5-8265U 32GB DDR4 512GB SSD 1TB HDD

SKU CH-HJ7R-QXFGG

A 12.1" IP65 industrial panel PC with 10-point capacitive touch, Intel Core i5-8265U, 32GB DDR4, 512GB SSD and 1TB HDD, fanless aluminium cooling for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i5 8th Gen

CPU Name Intel Core i5-8265U

GPU Intel UHD Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touchscreen enables precise multi-touch input
  • Fanless aluminium chassis runs silently 24/7
  • 32 GB DDR4 plus 512 GB SSD and 1 TB HDD for ample storage
  • Dual LAN and dual COM ports suit industrial connectivity

Industrial touch panel PC

The Partaker A1 is a 12.1 inch all-in-one computer with an IP65 rated front panel and ten-point projected capacitive touchscreen. It runs on an Intel Core i5-8265U processor with Intel UHD Graphics and ships with Windows 11 Pro pre-installed. The fanless aluminium alloy chassis enables silent operation in industrial environments.

Upgrade from basic HMIs or older panels

This unit replaces simpler human-machine interfaces that lack full x86 compatibility or modern connectivity. The jump is worth it when an application needs Windows or Linux on a rugged, fanless platform with dual LAN, dual COM and multiple USB ports for peripheral integration. It supports 7 x 24 hour continuous operation in temperatures up to 50 °C with SSD storage.

32 GB DDR4 and dual-drive storage

The system includes 32 GB of DDR4-2400 memory across two SODIMM slots, expandable to 64 GB. Storage combines a 512 GB SSD with a 1 TB HDD, using mSATA, M.2 2280 and 2.5 inch SATA bays. The 1024 x 768 TFT LED panel delivers 350 cd/m² brightness and 1000:1 contrast, while the touchscreen is rated for 200 million touches.

Přednosti

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touchscreen enables precise multi-touch input
  • Fanless aluminium chassis runs silently 24/7
  • 32 GB DDR4 plus 512 GB SSD and 1 TB HDD for ample storage
  • Dual LAN and dual COM ports suit industrial connectivity

Specifikace

ModelA1-PA-121TPC-CE6B(I58)-32G512G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What are the panel-cutout dimensions for the 12.1" embedded installation?

The front panel requires a 301 x 229 mm opening hole for embedded mounting.

How is the 12V DC power connected, and what is the common wiring mistake?

The 12V DC jack accepts the included 100-240V AC adapter; reversing polarity on the barrel connector will prevent power-up.

Which storage bays will need drive replacements first under 24/7 operation?

The 2.5" SATA HDD has moving parts and a 0–40 °C operating limit, so it typically fails before the mSATA and M.2 SSDs.
