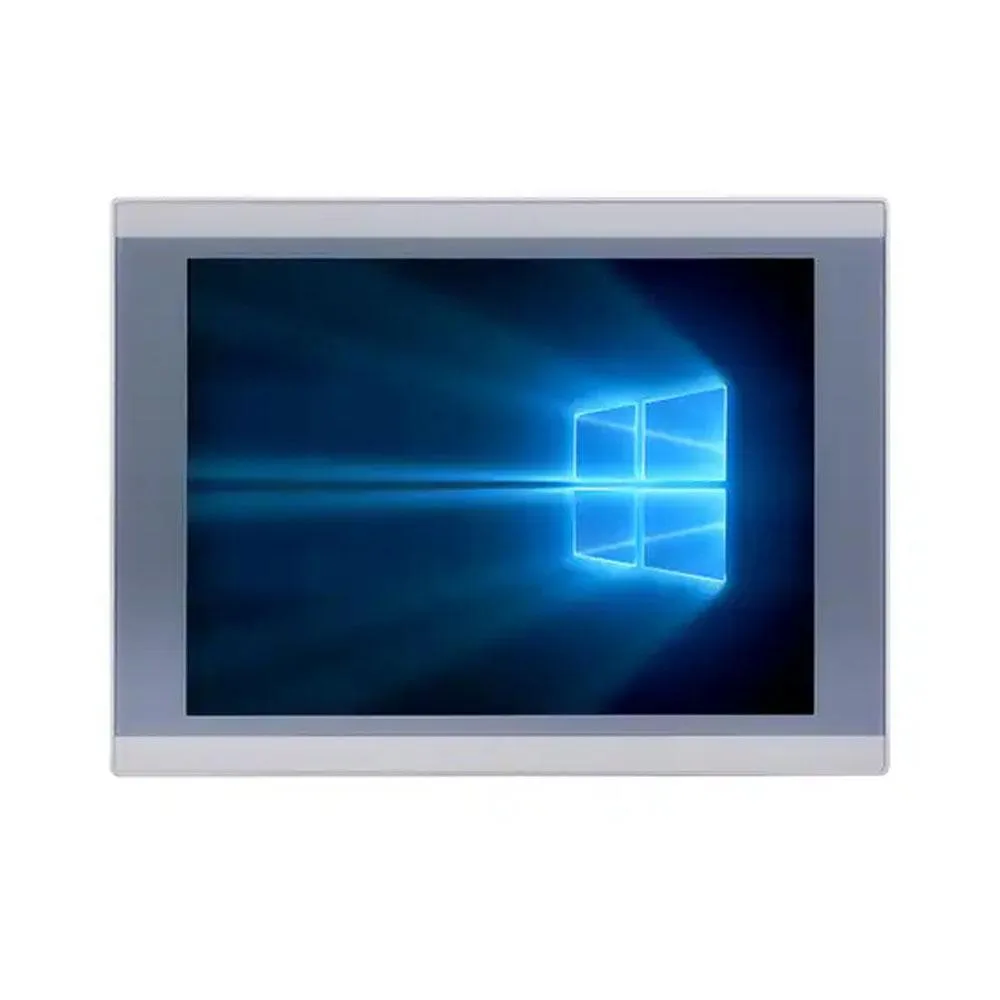

Silver 12.1 inch fanless all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

partaker A1 12.1" IP65 all-in-one PC i5-8265U 16GB 256GB 1TB

SKU CH-H4E9-V6A5W

A 12.1 inch IP65 industrial panel PC with 10-point capacitive touchscreen, Intel Core i5-8265U, 16GB DDR4, 256GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i5 8th Gen

CPU Name Intel Core i5-8265U

GPU Intel UHD Graphics

Memory 16GB DDR4

SSD 256GB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touchscreen supports multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • Dual storage with 256GB SSD and 1TB HDD
  • Expandable to 64GB DDR4 via two SODIMM slots

Industrial all-in-one for embedded deployments

The Partaker A1 is a 12.1 inch fanless panel PC with an IP65 front bezel and 10-point projected capacitive touch. It runs an Intel Core i5-8265U processor with 16GB DDR4 memory, a 256GB SSD and a 1TB HDD. Windows 11 Pro is pre-installed for immediate deployment in industrial automation, kiosk or HMI roles.

Verify mounting cut-out and DC power before ordering

The unit requires a 301 x 229 mm panel cut-out for embedded installation and operates on a 12V DC supply. Two SODIMM slots support up to 64GB DDR4-2400 if more memory is needed. Expansion includes a Mini PCIe slot with SIM holder for wireless modules. Operating temperature is 0 to 50°C with the SSD and 0 to 40°C when the HDD is active.

Replaces older fan-cooled panel PCs

The aluminium alloy chassis removes moving parts, cutting acoustic noise and dust ingress while fitting a 54.5 mm depth. Dual LAN, dual COM, HDMI and VGA cover legacy and modern I/O without extra adapters. The jump is worthwhile when 24/7 silent operation, IP65 front protection and a 1024 x 768 touchscreen are required in a single sealed enclosure.

Přednosti

  • IP65 front panel resists dust and water jets
  • 10-point capacitive touchscreen supports multi-finger input
  • Fanless aluminium chassis runs silently 24/7
  • Dual storage with 256GB SSD and 1TB HDD
  • Expandable to 64GB DDR4 via two SODIMM slots

Specifikace

ModelA1-PA-121TPC-CE6B(I58)-16G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What comes in the box and what must I supply myself?

The package includes the A1 panel PC, a 12 V power supply, a power cord and embedded buckle kits for mounting. You will need to provide any Wi-Fi or 4G module for the mini PCIe slot, a SIM card if using cellular, and cables for HDMI, VGA, USB, LAN, audio or COM connections.

Should I choose the 256 GB SSD plus 1 TB HDD configuration or a different capacity?

This model ships with a 256 GB mSATA SSD and a 1 TB 2.5″ SATA HDD already installed. There is also a free M.2 2280 slot that accepts NVMe or SATA SSDs if you want to add faster storage later.

What does the 3.90 GHz turbo figure mean for everyday performance?

The Core i5-8265U can boost a single core to 3.90 GHz for short bursts, while sustained multi-core speeds run lower. In this fanless chassis the CPU will throttle under prolonged heavy load, so expect peak responsiveness for brief tasks and steadier but reduced clocks during continuous 7 × 24 operation.
