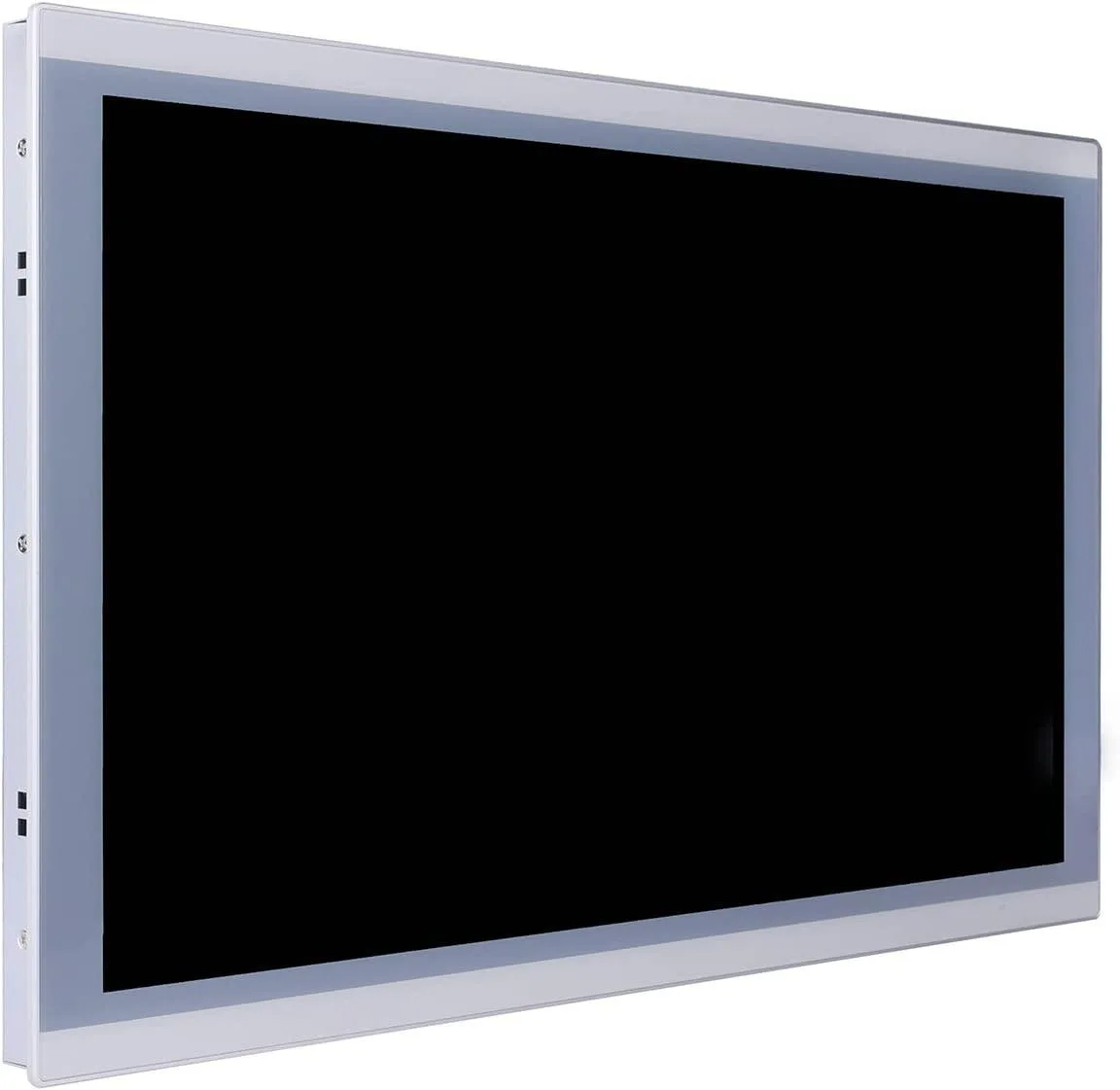

Silver 18.5-inch industrial all-in-one panel PC with projected capacitive touchscreen

partaker

partaker A12-PA-190TPC-CE6B(J19) 18.5" all-in-one PC Celeron J1900 8GB DDR3 512GB SSD

SKU CH-23TJ-FXS22

18.5" industrial all-in-one with IP65 front panel, 10-point capacitive touch, fanless Celeron J1900, 8GB DDR3 and 512GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front-panel protection for dust and water resistance
  • 10-point projected capacitive touch screen for precise multi-touch input
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • Intel Celeron J1900 quad-core processor with 8 GB DDR3L and 512 GB SSD
  • Wide 12 V DC input with VGA, 3 COM, USB 3.0, 3 USB 2.0 and LAN connectivity

Industrial all-in-one with IP65 front panel

This 18.5-inch all-in-one PC integrates an Intel Celeron J1900 quad-core processor with 8GB DDR3L memory and a 512GB SSD. The fanless aluminium chassis runs silently and supports continuous 24/7 operation. A 10-point projected capacitive touch screen with IP65 front protection handles wet or dusty environments. Windows 10 Pro is pre-installed for immediate deployment.

Suited for kiosks, HMIs

The compact 460.3 x 282.4 x 54.5 mm frame fits standard 454 x 276.5 mm cut-outs and includes embedded buckle kits for flush mounting. Three COM ports, VGA, LAN, USB 3.0 and USB 2.0 cover legacy and modern industrial peripherals. A Mini PCIe slot with SIM holder allows optional 4G or Wi-Fi expansion. Buyers needing a larger display, higher brightness or a more powerful CPU should consider other form factors.

512GB SSD and 8GB RAM handle typical SCADA

The single mSATA slot is occupied, while a 2.5-inch SATA bay remains free for additional storage. DDR3L memory is already at the 8GB maximum, so no further RAM upgrades are possible. The Celeron J1900 and Intel HD Graphics drive the 1366 x 768 panel smoothly for visualisation tasks but will bottleneck heavy multi-threaded processing or 3D rendering.

Přednosti

  • IP65 front-panel protection for dust and water resistance
  • 10-point projected capacitive touch screen for precise multi-touch input
  • Fanless aluminium alloy cooling for silent 24/7 operation
  • Intel Celeron J1900 quad-core processor with 8 GB DDR3L and 512 GB SSD
  • Wide 12 V DC input with VGA, 3 COM, USB 3.0, 3 USB 2.0 and LAN connectivity

Specifikace

ModelA12-PA-190TPC-CE6B(J19)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size18.5"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does this panel PC need a separate 12 V DC power supply to operate?

Yes, it ships with a 12 V DC adapter that accepts 100–240 V AC input, so you only need a standard mains socket.

Can I run the existing display at 1366 x 768 while adding an external monitor through the VGA port?

The integrated 18.5″ screen is fixed at 1366 x 768; the VGA output can drive a second monitor at its own supported resolution.

After powering on, how do I confirm the 10-point capacitive touch layer is active?

Touch the screen with multiple fingers — the OS will register up to ten simultaneous contact points if the touch controller is working.
