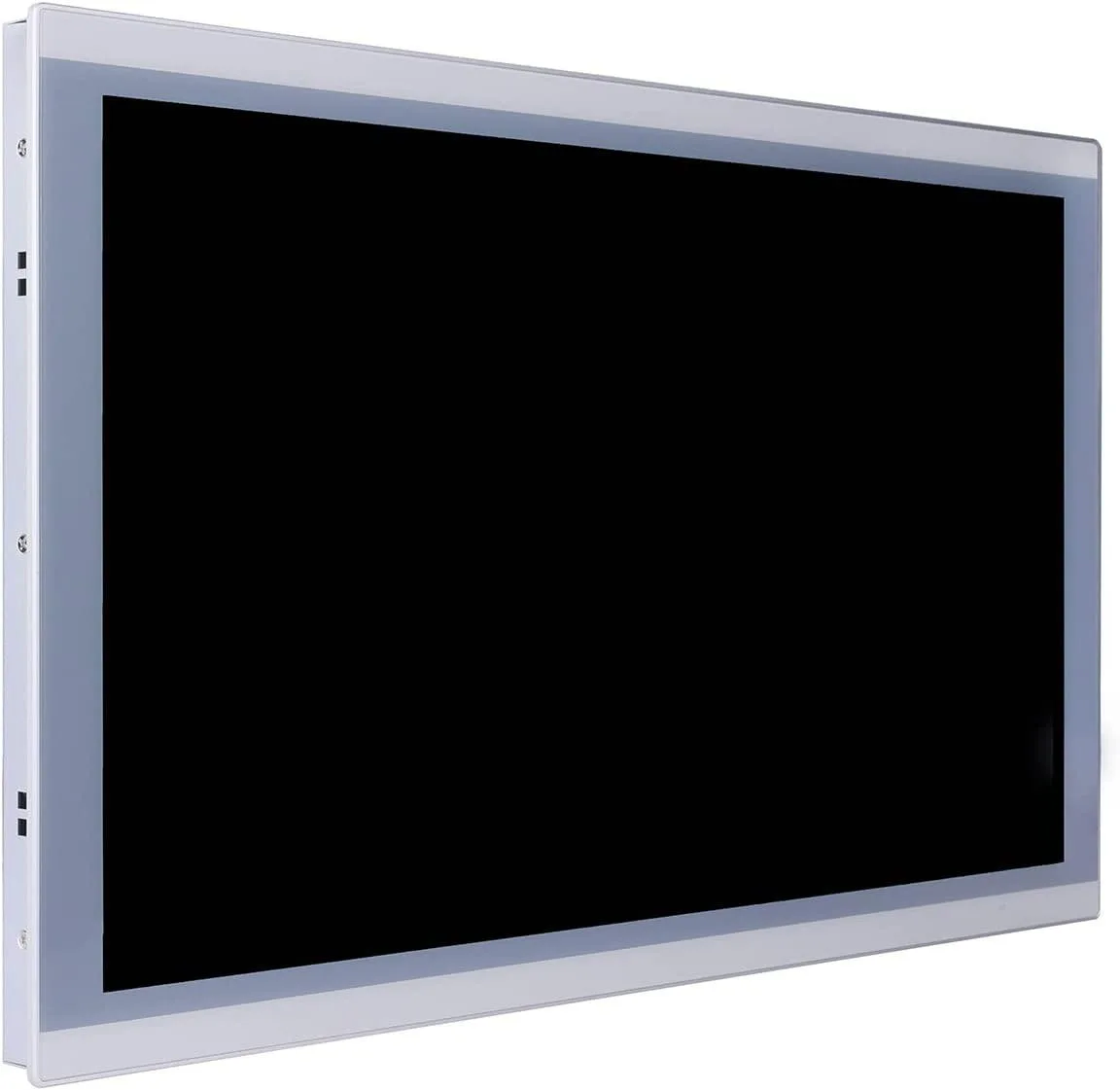

Silver 18.5 inch industrial all-in-one PC with 10-point capacitive touchscreen and fanless aluminum chassis

partaker

Partaker A12-PA-190TPC-CE6B(J64) 18.5" All-in-One PC J6412 8GB DDR4 512GB SSD 1TB HDD

SKU CH-6KE3-7ZMHW

An 18.5" IP65-protected industrial all-in-one with 10-point capacitive touch, Intel Celeron J6412, 8GB DDR4, 512GB SSD and 1TB HDD, fanless aluminium cooling for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel UHD Graphics
  • 10-point capacitive touch for precise multi-finger control
  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently 24/7
  • Intel Celeron J6412 up to 2.60 GHz handles industrial workloads
  • Dual storage with 512 GB SSD and 1 TB HDD

Industrial touch panel PC

The Partaker A12-PA-190TPC-CE6B(J64) is an 18.5" all-in-one system built for continuous industrial use. An Intel Celeron J6412 processor, 8GB DDR4 memory, 512GB SSD and 1TB HDD provide reliable compute and storage. The front panel carries an IP65 rating and a 10-point projected capacitive touchscreen. Windows 10 Pro is pre-installed for immediate deployment.

Fanless cooling and power

An aluminium alloy chassis dissipates heat passively, eliminating fan noise and moving parts for 7 x 24 hour operation. The system runs on a 12V DC input with a 100-240V AC adapter. Operating temperature spans 0 to 50°C with the SSD installed, or 0 to 40°C when the HDD is active. Typical power draw stays low thanks to the efficient quad-core processor.

Connectivity and mounting

I/O includes HDMI, four USB 3.0 ports, dual LAN, three COM ports and audio. An M.2 2280 slot supports SATA SSDs, while a second 2.5" bay handles additional SATA storage. A SIM slot is available as a custom option. The unit measures 460.3 x 282.4 x 54.5mm with a 454 x 276.5mm cut-out, and embedded buckle kits enable panel, wall, desktop or cantilever mounting.

Přednosti

  • 10-point capacitive touch for precise multi-finger control
  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently 24/7
  • Intel Celeron J6412 up to 2.60 GHz handles industrial workloads
  • Dual storage with 512 GB SSD and 1 TB HDD

Specifikace

ModelA12-PA-190TPC-CE6B(J64)-8G512G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
SSD512GB
HDD1TB
Screen Size18.5"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I mount the 18.5" panel PC and what clearance does the 454 x 276.5 mm cut-out require?

Use the included embedded buckle kits for panel mounting; cut a 454 x 276.5 mm opening and ensure the 54.5 mm depth fits behind the surface.

Which storage drives can I upgrade later and what are the limits?

One M.2 2280 SATA SSD and one 2.5" SATA SSD or HDD; memory uses a single DDR4 SODIMM slot supporting up to 32 GB.

At what temperature does the HDD configuration throttle compared to the SSD configuration?

Operating range is 0 – 40 °C with the 1 TB HDD installed, and 0 – 50 °C when only the 512 GB SSD is used.
