Compact 12.1 inch industrial all-in-one panel PC with flat IP65 front, aluminium fanless chassis, resistive multi-touch screen

partaker

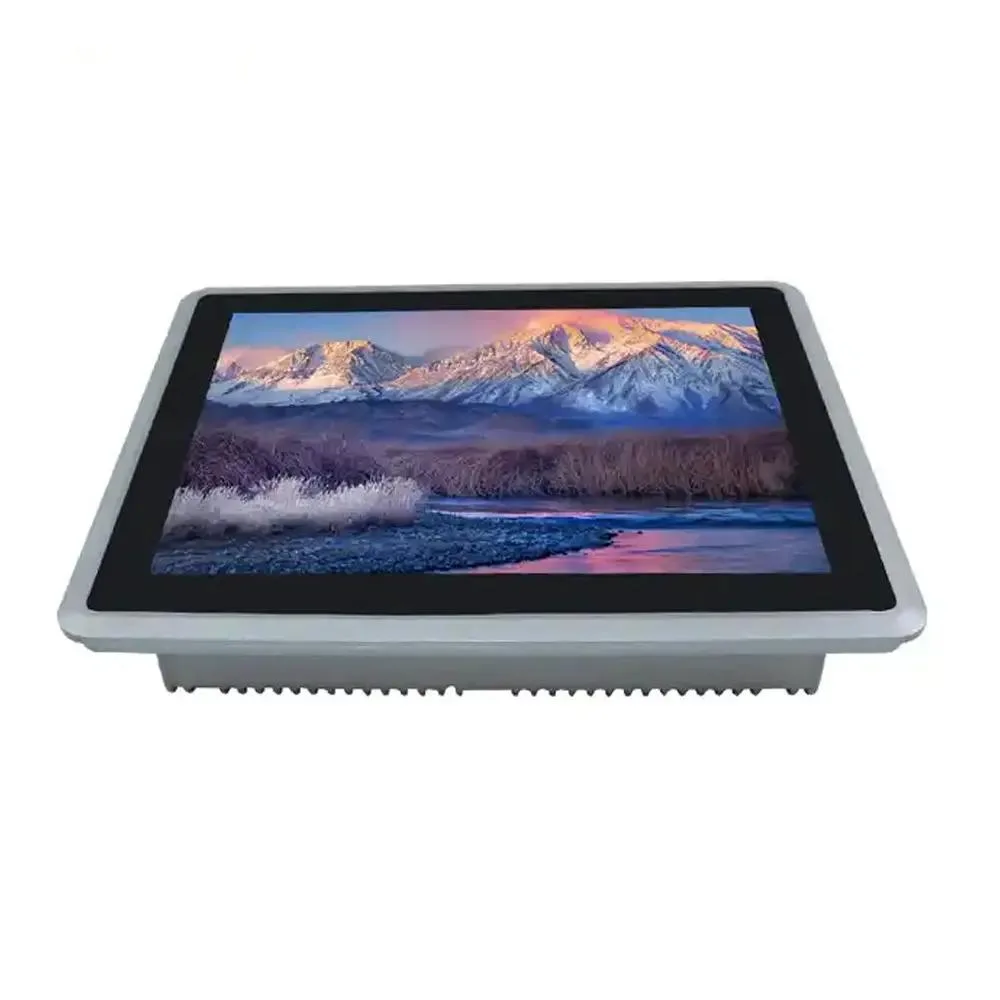

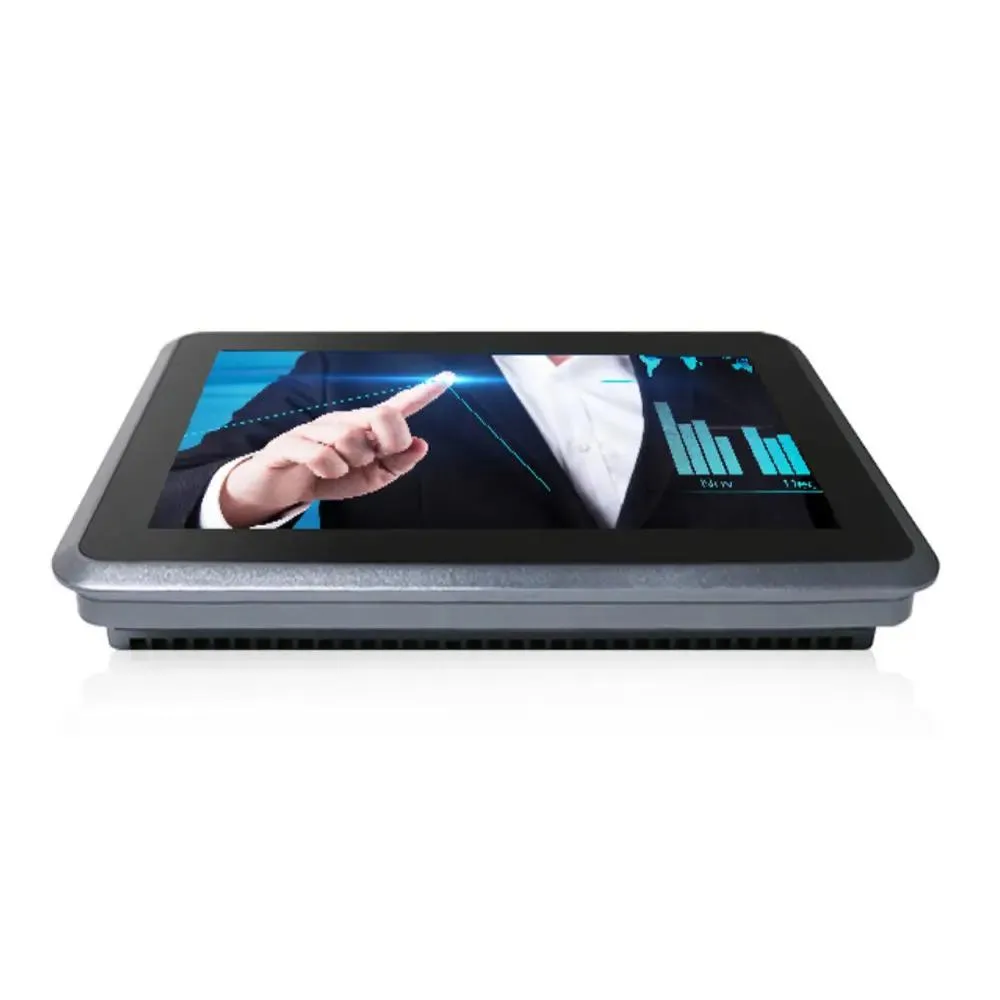

Partaker A19 12.1" Industrial IP65 All-in-One PC J6413 32GB DDR4 512GB SATA

SKU CH-95BE-QVPZT

A 12.1-inch IP65-rated all-in-one PC with a fanless aluminium chassis, multi-touch resistive screen, Windows 11 Pro, 32 GB DDR4 memory and a 512 GB SATA SSD

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeCeleron
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Celeron

Memory Capacity 32GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 1" 1024×768 multi-touch screen enables glove-friendly control
  • 32 GB DDR4 and 512 GB SATA storage handle industrial workloads
  • Wide 9–36 V DC input suits unstable power environments

Industrial 12.1" touch panel PC

The Partaker A19 is a 12.1-inch all-in-one computer with an IP65-rated front panel, Intel Celeron J6413 processor, 32GB DDR4 memory and a 512GB SATA SSD. It runs Windows 11 Pro out of the box and is built for continuous 7×24 operation in industrial environments. The fanless aluminium chassis provides silent cooling and a wide 9–36V DC input suits unstable power sources.

Sustained load behaviour

Fanless aluminium construction dissipates heat without moving parts, so acoustic noise stays at zero during extended shifts. The Intel Celeron J6413 runs at up to 3.00 GHz with a 1.5M cache, while the 32GB DDR4 3200MT/s SODIMM handles multitasking without throttling. Operating temperature ranges from 0 to 50°C for commercial use or –20 to 60°C with an industrial SSD, and humidity tolerance spans 5–95% non-condensing.

Pre-installation checks

Verify that your mounting cut-out matches the 298.5×237mm embedded footprint and that the 309.5×248×60mm overall dimensions fit the enclosure. Confirm the site can supply 9–36V DC through the 2-pin Phoenix connector or use the included 12V 5A adapter. Ensure legacy RS232/RS422/RS485 devices match the two COM ports and that three Gigabit LAN ports satisfy network redundancy needs.

Přednosti

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 1" 1024×768 multi-touch screen enables glove-friendly control
  • 32 GB DDR4 and 512 GB SATA storage handle industrial workloads
  • Wide 9–36 V DC input suits unstable power environments

Specifikace

ModelA19-New-J6412-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeCeleron
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How quiet and cool does the fanless J6413 system stay during 24/7 operation?

The aluminium-alloy fanless chassis runs silently and handles continuous 7×24 workloads within the 0–50 °C commercial or –20–60 °C industrial temperature ranges.

What power source and mounting hardware must I already have to install this panel PC?

You need a 9–36 V DC supply via the 2-pin Phoenix connector (a 12 V 5 A adapter is included) and a cut-out of 298.5 × 237 mm for embedded mounting.

Will the dual COM ports and triple Intel LAN work with my existing RS-485 devices and 1 GbE network?

Yes, both COM ports support RS-232/422/485 and the three LAN ports are Intel 1000M interfaces compatible with standard Gigabit Ethernet.
