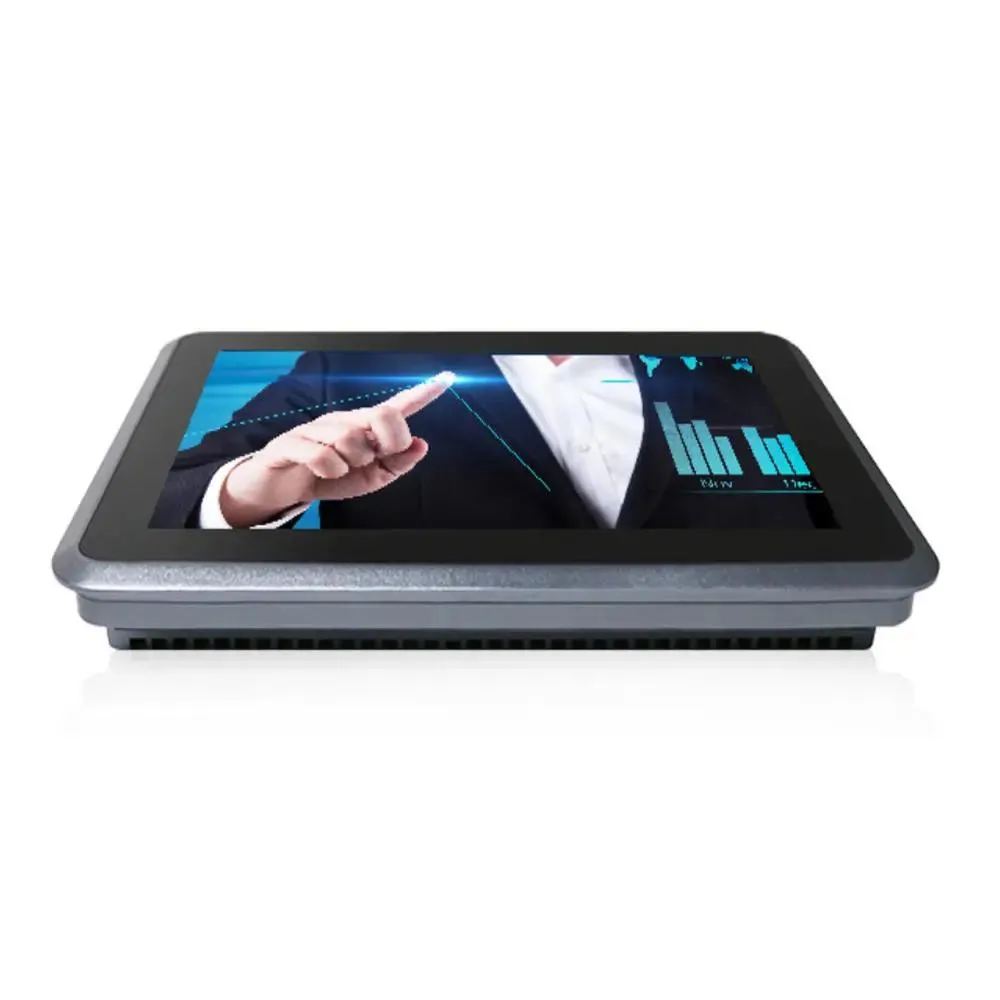

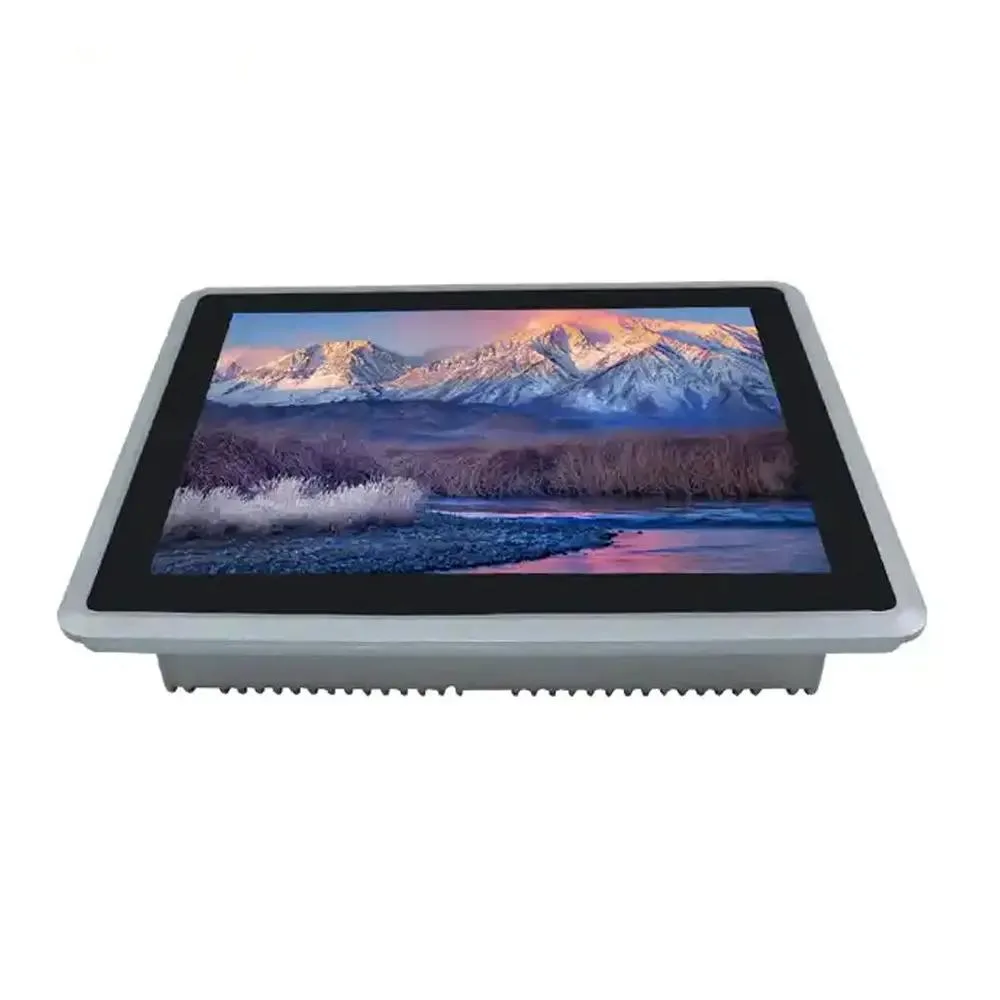

12.1 inch flat front panel all-in-one PC aluminium finish

partaker

partaker A19 12.1" IP65 i5-10310U 8GB DDR4 256GB all-in-one PC

SKU CH-P111-VVBHW

12.1-inch IP65 industrial all-in-one with Core i5-10310U, 8 GB DDR4, 256 GB SATA SSD and Windows 11 Pro

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water jets
  • 1 inch multi-touch resistive screen for gloved operation
  • Intel Core i5-10310U up to 4.40 GHz with 8GB DDR4
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • 2× COM, 2× LAN, HDMI, 4× USB 3.0 and 9-36 V Phoenix power

Industrial 12.1" panel PC

The Partaker A19 is a fanless all-in-one system built around a 12.1-inch IP65-rated resistive touchscreen and an Intel Core i5-10310U processor. It ships with Windows 11 Pro, 8GB of DDR4 memory and a 256GB SATA SSD. The aluminium chassis is rated for continuous 7×24 operation in temperatures from 0°C to 50°C, making it suited for factory automation, kiosk or machine-interface deployments.

Wide-voltage power and legacy I/O

A 9–36V DC Phoenix connector lets the unit run directly from industrial power buses without an external adapter. Two COM ports support RS232, RS422 or RS485 for PLCs and legacy instruments, while dual Intel Gigabit LAN ports provide redundant network paths. Four USB 3.0 ports, HDMI output and audio jacks cover modern peripherals, and a Mini PCIe slot with a SIM holder allows optional 4G or Wi-Fi expansion.

Check mounting cut-out and memory plan

The embedded installation cut-out measures 298.5mm by 237mm; verify your panel or enclosure matches these dimensions before ordering. The single SODIMM slot accepts DDR4-2666 modules up to 32GB total, so plan any memory upgrade at purchase. Storage can be expanded via the internal 2.5-inch SATA bay, which also supports RAID 0 or 1 with the M.2 drive.

Přednosti

  • IP65 front panel resists dust and water jets
  • 1 inch multi-touch resistive screen for gloved operation
  • Intel Core i5-10310U up to 4.40 GHz with 8GB DDR4
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • 2× COM, 2× LAN, HDMI, 4× USB 3.0 and 9-36 V Phoenix power

Specifikace

ModelA19-New-I5-10310U-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Will the 256 GB M.2 SATA SSD need to be replaced for more capacity?

The board has one M.2 2280 SATA slot and a 2.5" SATA bay, both supporting RAID 0/1, so you can add a second drive or swap to larger SATA SSDs without removing the original.

Which thermal limit appears first during continuous 7×24 operation?

The fanless aluminium chassis is rated for 0–50 °C commercial or –20–60 °C industrial ambient; sustained load will hit the 60 °C upper ambient ceiling before any active throttling occurs.

How much power does the 12.1" panel draw when running all day?

The unit accepts 9–36 V DC through a Phoenix connector and ships with a 12 V 5 A adapter, so maximum input is 60 W; fanless cooling means no extra fan power.
