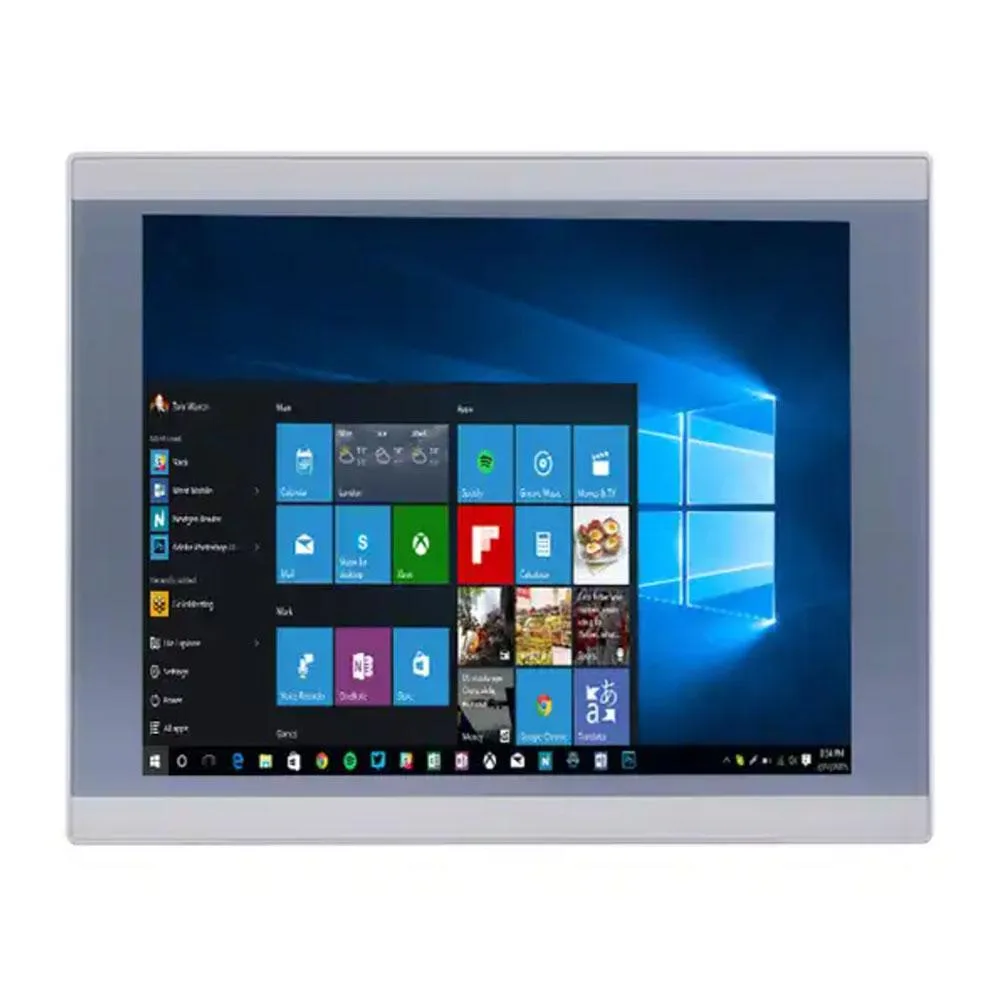

Silver 12.1 inch fanless industrial panel PC with resistive touchscreen

partaker

partaker A2 12.1" Industrial Panel PC Core i7-1165G7 8GB DDR4 256GB SSD 1TB HDD

SKU CH-ST06-X6DG9

12.1-inch IP65-rated industrial panel PC with resistive touchscreen, Core i7-1165G7, 8 GB DDR4, dual 256 GB SSD and 1 TB HDD storage, fanless aluminium chassis for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • 1" resistive touchscreen operates up to 50 °C
  • Fanless aluminium chassis runs silently 24/7
  • Dual LAN and dual COM ports connect industrial gear
  • 8 GB DDR4 expandable to 64 GB with dual storage

12.1" IP65 Industrial Panel PC

The Partaker A2 is a 12.1 inch fanless all-in-one computer built around an Intel Core i7-1165G7 processor with Intel Iris Xe graphics. It comes with 8GB DDR4 memory, a 256GB SSD and a 1TB HDD, running Windows 11 Pro. The front panel carries an IP65 rating and a high-temperature 5-wire resistive touchscreen on a 1024 x 768 TFT LED display.

Suited for sealed enclosures.

This unit fits embedded, wall-mounted or desktop installations where dust and water jets are a concern and silent fanless operation is required. It supports 7 x 24 hour duty cycles in temperatures up to 50°C with the SSD or 40°C with the HDD. Buyers who need projected capacitive multi-touch input or a wider operating temperature range should look elsewhere.

12.1" 5-wire resistive touchscreen, IP65 front

The decisive specification is the 12.1 inch high-temperature 5-wire resistive touchscreen with an IP65-rated front bezel. It delivers 350 cd/m² brightness, 1000:1 contrast and a 30,000 hour backlight life, while the resistive layer allows gloved or stylus operation in harsh environments. This single feature determines whether the panel meets the sealing and input demands of your application.

Přednosti

  • IP65 front panel resists dust and water jets
  • 1" resistive touchscreen operates up to 50 °C
  • Fanless aluminium chassis runs silently 24/7
  • Dual LAN and dual COM ports connect industrial gear
  • 8 GB DDR4 expandable to 64 GB with dual storage

Specifikace

ModelA2-PA-121TPC-CE5B(I7B)-8G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How often will the 5-wire resistive touch screen need replacement given its 35 million touch durability rating?

The High Temperature 5-Wire Resistive Touch Screen is rated for a minimum of 35 million touches, so replacement depends entirely on your application's daily touch frequency.

Which thermal limit appears first during continuous 24/7 operation with the installed 1TB HDD?

The HDD limits sustained operation to 0–40 °C ambient, while the SSD-only configuration tolerates up to 50 °C; the HDD ceiling is reached first.

Does the fanless aluminium chassis stay silent and cool when running all day at full load?

Yes, the fanless aluminium alloy cooling system operates silently; the CPU runs at up to 4.70 GHz within the 0–50 °C (SSD) or 0–40 °C (HDD) operating envelope.
