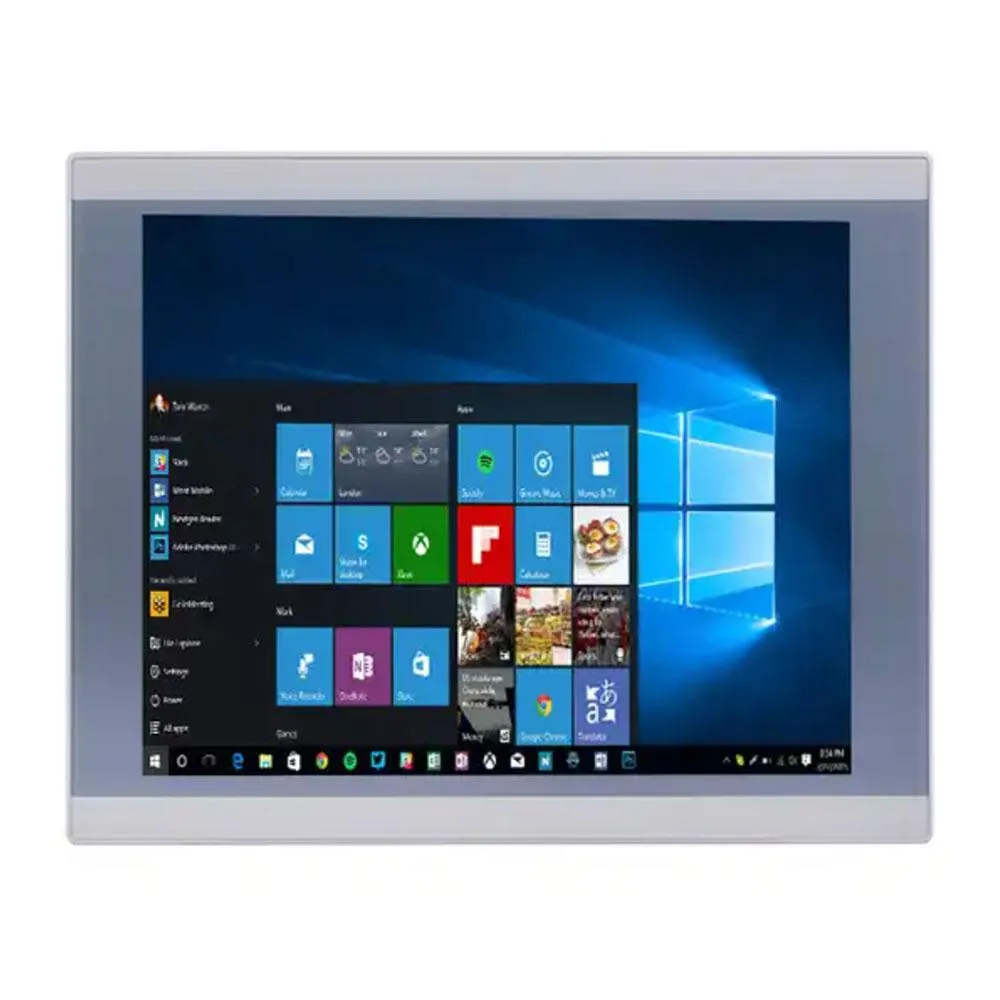

Silver 12.1 inch fanless industrial panel PC with resistive touchscreen

partaker

partaker A2 12.1" IP65 Industrial Panel PC i7-1165G7 8GB DDR4 256GB

SKU CH-ECD7-1ZGYP

A 12.1" IP65-rated industrial all-in-one with an Intel Core i7-1165G7, 8GB DDR4, 256GB SSD, resistive touchscreen and fanless aluminium cooling for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD None

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i7-1165G7 delivers up to 4.70 GHz for demanding industrial workloads
  • Fanless aluminium alloy chassis ensures silent 24/7 operation without moving parts
  • 1" resistive touchscreen rated for 35 million touches with high-temperature durability
  • Dual LAN, dual COM, HDMI, VGA and four USB ports connect legacy and modern equipment

Industrial panel PC for 24/7 use

The Partaker A2 is a 12.1 inch all-in-one computer built around an Intel Core i7-1165G7 processor with Intel Iris Xe Graphics. It ships with Windows 11 Pro, 8 GB of DDR4 memory and a 256 GB SSD. The fanless aluminium chassis is rated IP65 on the front panel and designed for continuous operation in industrial environments.

Suits factories and kiosks; not for upgrades

This unit fits embedded, wall-mounted or desktop installations where a sealed resistive touchscreen and legacy I/O such as VGA, two COM ports and dual LAN are required. It operates from 0 to 50 °C with the installed SSD. Buyers who need a larger display, higher brightness, multi-touch capability or user-serviceable storage bays should look at alternative form factors.

8 GB RAM and 256 GB SSD with expansion headroom

The system runs 8 GB DDR4-3200 in two SODIMM slots and supports up to 64 GB total. The M.2 slot accepts 2260 or 2280 PCIe x1 or SATA SSDs, and a 2.5 inch SATA bay is available for additional drives. The 350 cd/m², 1024 x 768 panel is rated for 35 million touch cycles and a 30 000 hour backlight life.

Přednosti

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i7-1165G7 delivers up to 4.70 GHz for demanding industrial workloads
  • Fanless aluminium alloy chassis ensures silent 24/7 operation without moving parts
  • 1" resistive touchscreen rated for 35 million touches with high-temperature durability
  • Dual LAN, dual COM, HDMI, VGA and four USB ports connect legacy and modern equipment

Specifikace

ModelA2-PA-121TPC-CE5B(I7B)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What power supply must I already have for this panel PC to operate?

The unit requires a 12 V DC input and includes a 100–240 V AC adapter with power cord, so no separate supply is needed.

Will the two COM ports and VGA output still work with my legacy PLC and monitor?

Yes, the I/O panel provides two COM ports and a VGA connector alongside HDMI, USB 3.0 and USB 2.0 for older industrial equipment.

How can I confirm the IP65 front seal and resistive touch are functioning after installation?

Verify the front panel meets IP65 rating by checking for water and dust ingress resistance, and test the 5-wire resistive touch response across the 1024 x 768 screen.
