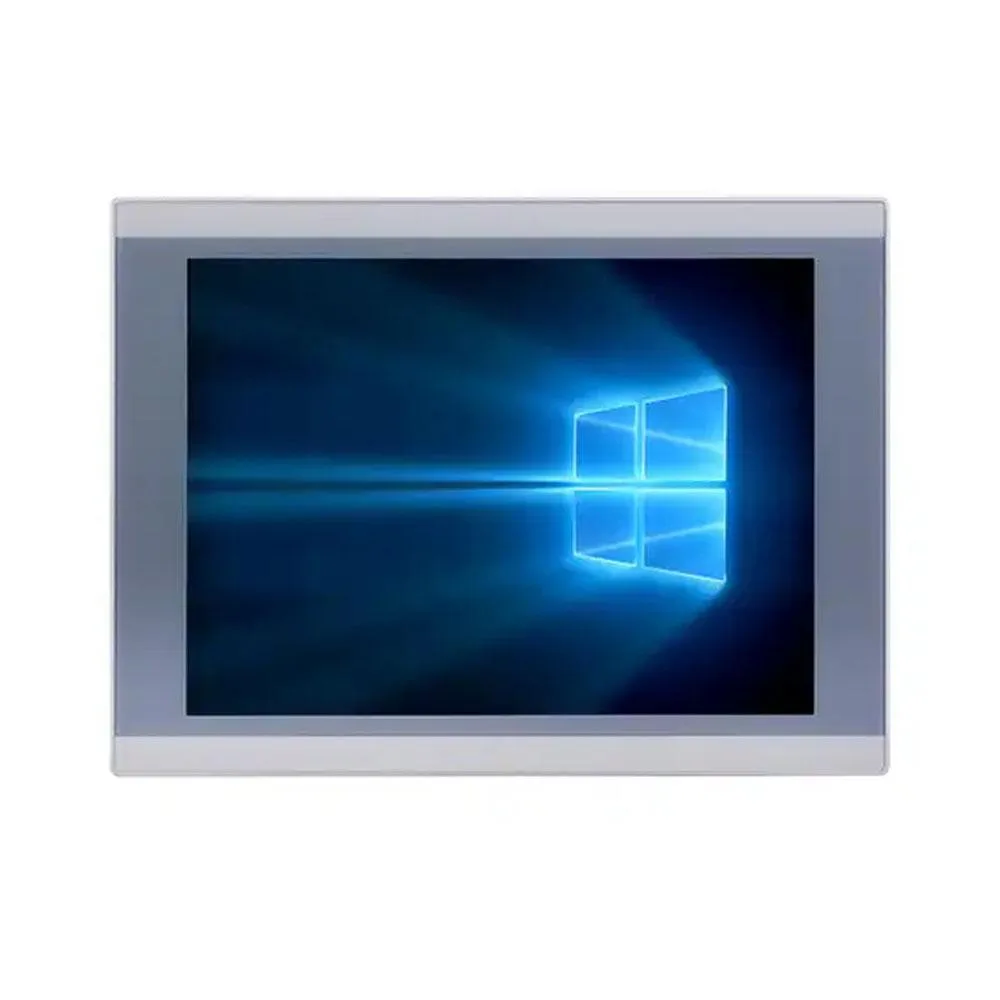

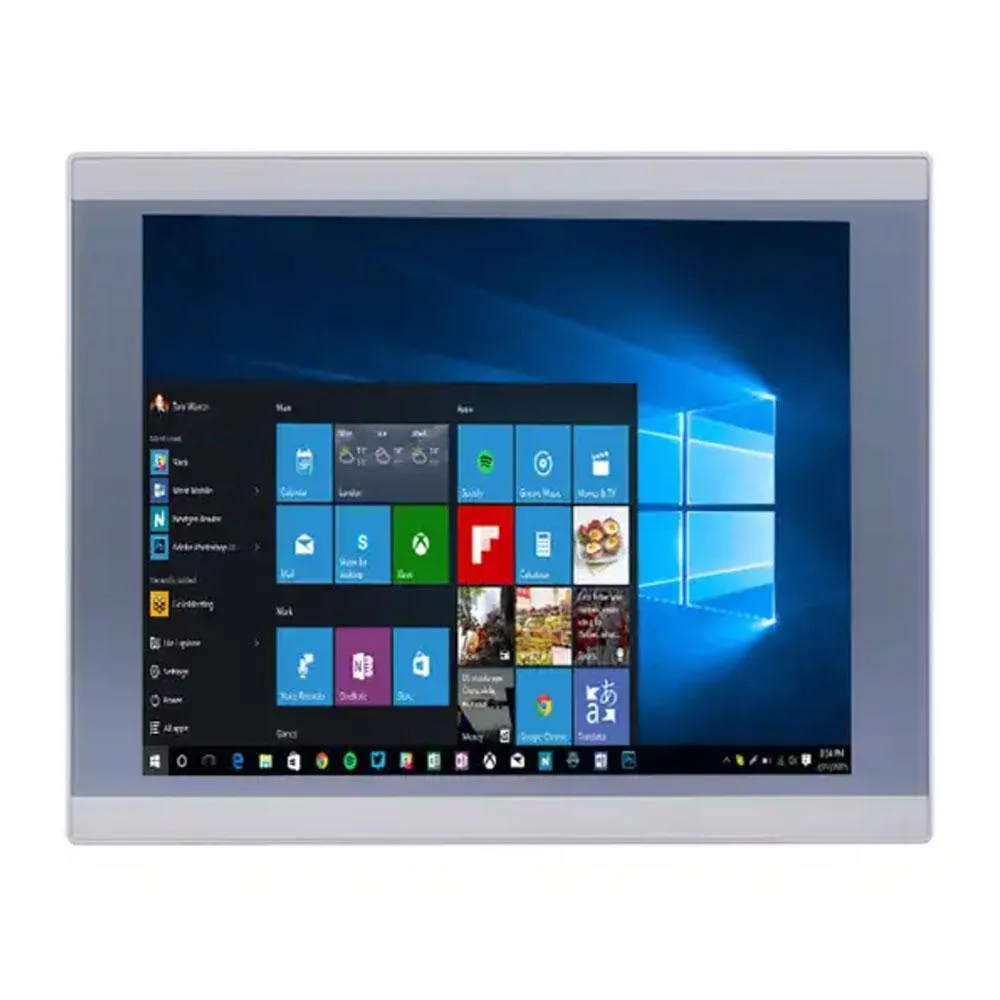

Silver 12.1 inch fanless all-in-one panel PC with resistive touchscreen

partaker

partaker A2 12.1" IP65 Resistive Touch i5-1135G7 32GB DDR4 512GB all-in-one PC

SKU CH-D4NK-09JSN

12.1 inch IP65 resistive touch all-in-one with Core i5-1135G7, 32GB DDR4 and 512GB SSD for industrial 24/7 use

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel protects against dust and water ingress
  • Fanless aluminium alloy chassis runs silently and efficiently
  • 32 GB DDR4 memory supports multitasking and up to 64 GB expansion
  • High-temperature 5-wire resistive touch rated for 35 million touches
  • Intel Core i5-1135G7 with Iris Xe graphics delivers responsive performance

Industrial All-in-One with IP65 Front Panel

The Partaker A2 is a 12.1 inch fanless panel PC built around an Intel Core i5-1135G7 processor with 32GB of DDR4-3200 memory and a 512GB SSD. Its aluminium chassis runs silently and supports continuous 7×24 operation in temperatures from zero to fifty degrees Celsius. Windows 11 Pro comes pre-installed for immediate deployment.

Suited for Embedded Control and HMI Roles

This unit fits machine builders and integrators who need a compact, sealed touchscreen with dual LAN, dual COM ports and VGA plus HDMI video outputs. The 5-wire resistive screen works with gloves and survives thirty-five million touches. Buyers who require a projected-capacitive multi-touch surface or a larger display diagonal should evaluate alternative models.

Maximum Memory Decides Upgrade Path

Two SODIMM slots accept DDR4-3200 modules up to a combined total of sixty-four gigabytes, so the current thirty-two gigabyte configuration can be doubled if workloads demand it. The M.2 Key E and Key B sockets allow WIFI6 or 5G expansion cards with a SIM slot. Storage expansion uses one M.2 2260/2280 slot and one two-point-five inch SATA bay.

Přednosti

  • IP65 front panel protects against dust and water ingress
  • Fanless aluminium alloy chassis runs silently and efficiently
  • 32 GB DDR4 memory supports multitasking and up to 64 GB expansion
  • High-temperature 5-wire resistive touch rated for 35 million touches
  • Intel Core i5-1135G7 with Iris Xe graphics delivers responsive performance

Specifikace

ModelA2-PA-121TPC-CE5B(I5B)-32G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What resolution does the 12.1-inch panel support, and how does that cap the display output?

The 1024 x 768 native resolution limits the built-in panel to XGA detail; external monitors via HDMI or VGA can run higher resolutions independently.

What are the exact opening-hole dimensions for an embedded mount?

The panel requires a 301 x 229 mm cut-out; the overall chassis measures 306.8 x 235.12 x 54.5 mm and weighs 3.1 kg.

How is the unit powered, and which step do installers often miss?

It runs on an external 12 V DC adapter (100–240 V AC input); the step often missed is wiring the POWER_SW terminals for remote on/off or auto-power-on after power failure.
