Silver 12.1 inch industrial all-in-one with resistive touchscreen and fanless aluminum housing

partaker

Partaker A2-PA-121TPC-CE5B(I53) 12.1" all-in-one PC, 8GB DDR3, 512GB SSD

SKU CH-RPFS-Z3JPD

A 12.1 inch IP65-rated industrial all-in-one with a five-wire resistive touchscreen, Intel Core i5 third-gen CPU, 8 GB DDR3L memory and a 512 GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • Compact fanless aluminium housing runs silently
  • IP65 front panel resists dust and water jets
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Core i5 3rd Gen with 8 GB DDR3L and 512 GB SSD
  • VESA 75 mount plus DC 12 V, HDMI, VGA, LAN, 4 × USB 2.0, 2 × COM

Industrial Panel PC

The Partaker A2-PA-121TPC-CE5B(I53) is a 12.1-inch all-in-one computer built for embedded industrial use. Its aluminium alloy chassis carries an IP65-rated front panel and a fanless cooling system. The unit ships with Windows 10 Pro installed and supports Linux Ubuntu. It targets automation, kiosk and machine-interface deployments where a compact sealed display is required.

5-Wire Resistive Touch

The display uses a high-temperature five-wire resistive touchscreen rated for 200 million touches and 86±5% transmittance at 550 nm. Resolution is 1024 x 768 with 350 cd/m² brightness and a 1000:1 contrast ratio. Viewing angles reach 80° in all four directions. The resistive layer allows operation with gloves or stylus in harsh environments.

Fanless Thermal Design

Heat dissipates through the aluminium housing without moving parts, enabling continuous operation from 0 to 50°C with the fitted 512GB SSD. A watchdog timer of 255 steps and automatic power-on after power failure improve uptime in unattended settings. The DC 12V input accepts 100-240V AC via the included adapter.

Přednosti

  • Compact fanless aluminium housing runs silently
  • IP65 front panel resists dust and water jets
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Core i5 3rd Gen with 8 GB DDR3L and 512 GB SSD
  • VESA 75 mount plus DC 12 V, HDMI, VGA, LAN, 4 × USB 2.0, 2 × COM

Specifikace

ModelA2-PA-121TPC-CE5B(I53)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What real-world performance does the 1.70 GHz Core i5 3rd Gen deliver in this fanless industrial panel PC?

The 1.70 GHz dual-core CPU with Intel HD Graphics handles typical HMI, SCADA and lightweight edge tasks within the 0–50 °C operating range; fanless aluminium cooling keeps it silent but limits sustained turbo so plan workloads for steady-state speed.

Which video outputs does the HDMI port actually drive and what resolution ceiling applies?

HDMI and VGA share Intel HD Graphics; the built-in 12.1" panel is fixed at 1024 x 768, while external displays can run higher resolutions supported by the 3rd Gen GPU — check your monitor EDID for the exact ceiling.

What mounting hardware and cut-out dimensions are needed to install the 12.1" unit in a cabinet?

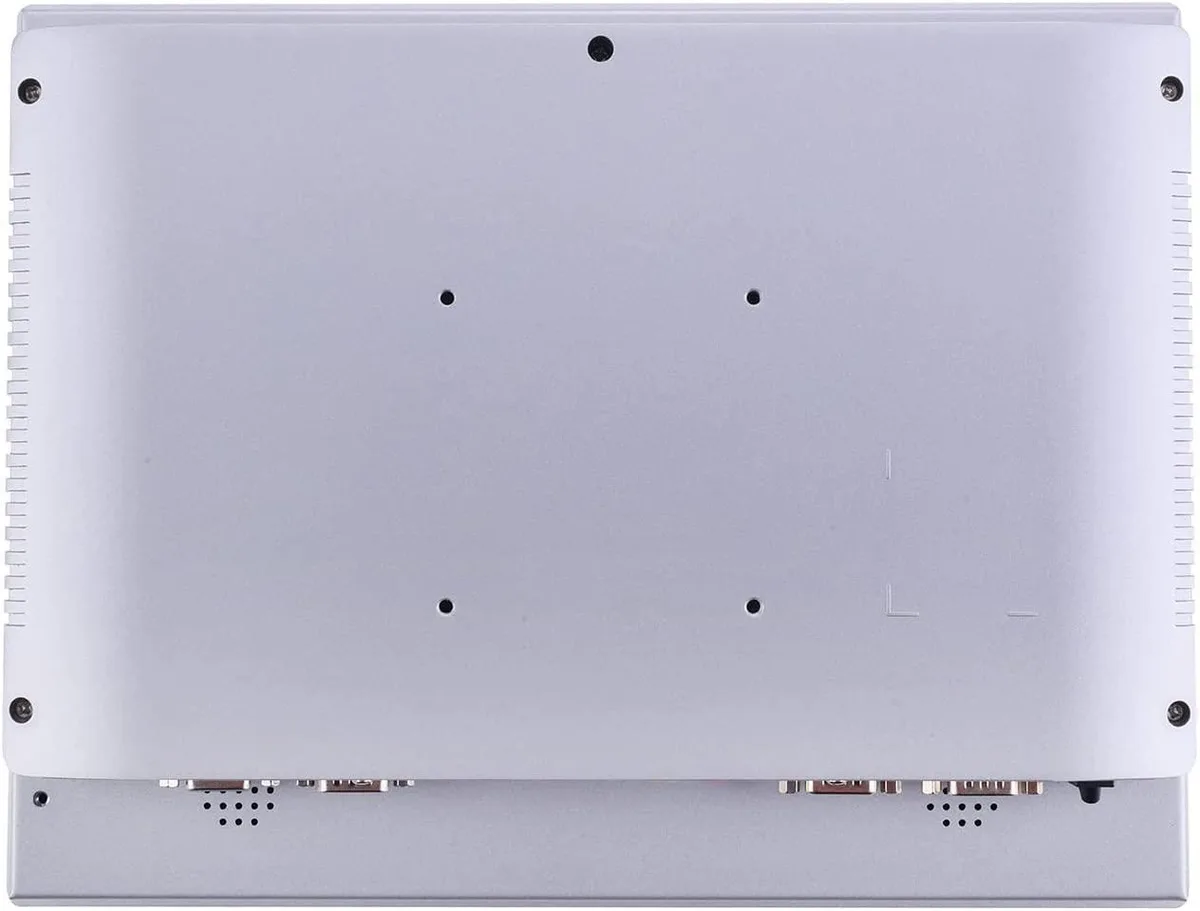

The panel measures 306.8 x 235.12 x 54.5 mm with a 301 x 229 mm cut-out; VESA 75 brackets and embedded buckle kits are included for flush, wall, desktop or cantilever mounting.
