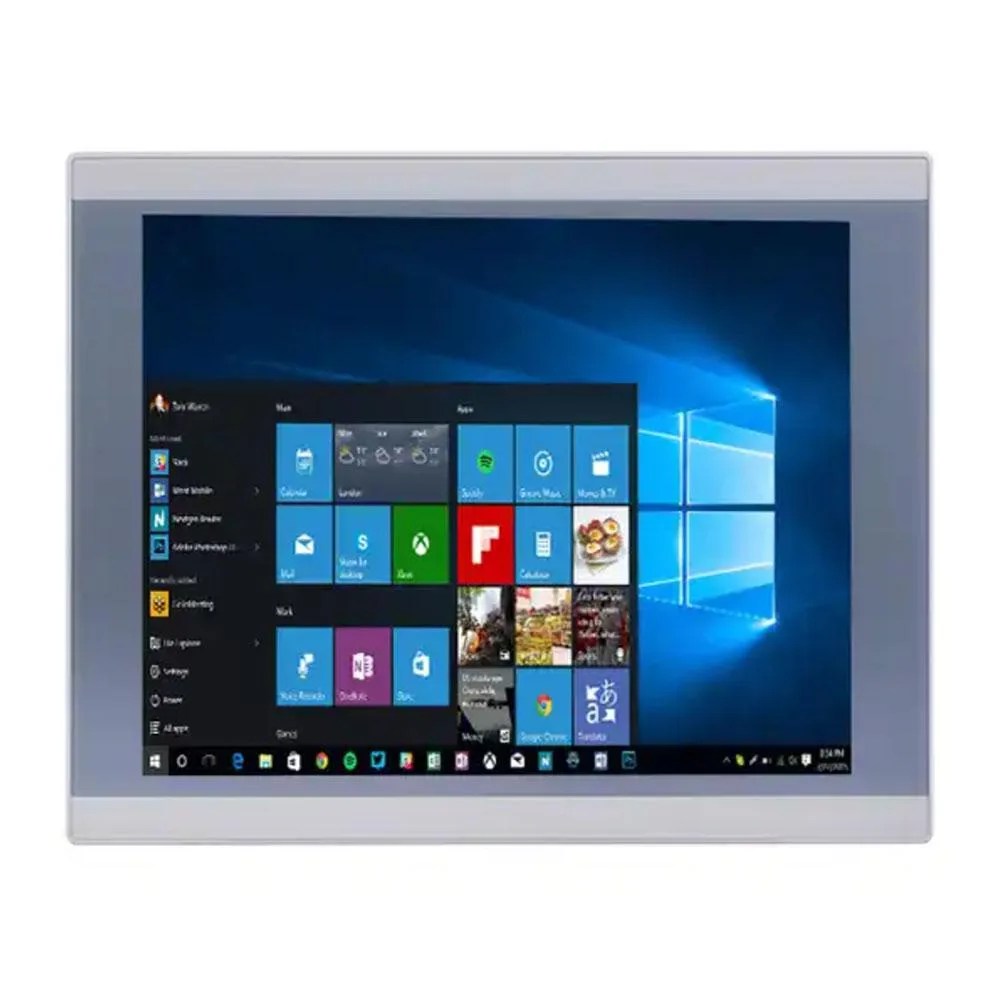

Silver 12.1 inch fanless all-in-one panel PC with resistive touchscreen

partaker

partaker A2-PA-121TPC-CE5B(I58)-8G256G all-in-one PC

SKU CH-XC3H-7MKT8

12.1 inch IP65 industrial panel PC with Core i5-8265U, 8GB DDR4, 256GB SSD and high-temperature 5-wire resistive touchscreen

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i5 8th Gen

CPU Name Intel Core i5-8265U

GPU Intel UHD Graphics

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

HDD None

Přeškrtnuté varianty existují, ale zde nejsou skladem.

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touch works in high temperatures
  • Fanless aluminium alloy runs silently 24/7
  • Intel Core i5-8265U with 8 GB DDR4 and 256 GB SSD
  • Expandable to 64 GB RAM via two SODIMM slots

Industrial Panel PC

This 12.1 inch all-in-one computer combines an Intel Core i5-8265U processor with 8 GB DDR4 memory and a 256 GB SSD. The IP65-rated front panel and resistive touchscreen suit factory floors, kiosks and embedded control cabinets. Windows 11 Pro is pre-installed for immediate deployment. Fanless aluminium construction enables silent 7 x 24 operation.

Buyers needing a sealed front for wash-down

The resistive screen works with gloved hands but lacks multi-touch gestures common in office or retail settings. Systems requiring a larger display, higher resolution or PCIe expansion slots should consider alternative form factors. Units that must operate above 50 °C or below 0 °C fall outside the rated range.

12.1 inch IP65 resistive touchscreen

The 1024 x 768 TFT LED panel delivers 350 cd/m² brightness with 80° viewing angles in all directions. The 5-wire resistive layer is rated for 35 million touches and functions across the full 0 to 50 °C operating window. This screen specification determines fit for industrial HMI and outdoor kiosk installations.

Přednosti

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touch works in high temperatures
  • Fanless aluminium alloy runs silently 24/7
  • Intel Core i5-8265U with 8 GB DDR4 and 256 GB SSD
  • Expandable to 64 GB RAM via two SODIMM slots

Specifikace

ModelA2-PA-121TPC-CE5B(I58)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How quiet and cool does the fanless aluminum alloy chassis stay when the Core i5-8265U runs 24/7 at up to 3.90 GHz?

The fanless aluminum alloy design provides silent, energy-efficient cooling with no moving parts, rated for stable 7 × 24 hour operation at 0–50 °C with the installed SSD.

Which cables and peripherals must I already have to power and connect this panel PC out of the box?

You need a mains outlet for the included 12 V DC power supply and cord, plus any HDMI or VGA display cables, USB devices, Ethernet patch leads, and serial cables for the two COM ports you plan to use.

Will the two LAN ports and legacy COM ports work reliably with older PLCs and HMIs I keep on the same network?

Yes, the dual LAN and two COM ports are built for industrial integration, supporting long-term 24/7 operation alongside legacy automation equipment.
