15 inch industrial all-in-one PC flat aluminium front panel multi-touch screen fanless design

partaker

Partaker A20 15" IP65 all-in-one PC i7-10510U 32GB DDR4 1TB SATA

SKU CH-N68P-R2R6M

15-inch IP65 industrial all-in-one with Core i7-10510U, 32 GB DDR4, 1 TB SATA SSD, Windows 11 Pro, fanless aluminium chassis, dual LAN, HDMI, two COM ports and 9–36 V Phoenix power input

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 32GB DDR4

SSD 1TB

  • IP65 front panel resists dust and water jets
  • Intel Core i7-10510U up to 4.90 GHz handles heavy workloads
  • 32 GB DDR4 memory supports demanding multitasking
  • 1 TB SATA SSD provides fast industrial storage
  • Fanless aluminium alloy cooling runs silently 24/7

Industrial 15-inch panel PC

The Partaker A20 is a 15-inch all-in-one computer with an IP65-rated front panel and a resistive multi-touch screen. It runs on an Intel Core i7-10510U processor with Intel UHD Graphics, 32 GB of DDR4 memory and a 1 TB SATA SSD. Windows 11 Pro is pre-installed. The fanless aluminium chassis measures 366 x 290 x 60 mm and weighs 3.9 kg.

Suited for fixed industrial installations

This unit fits embedded, wall-mounted or desktop setups that need a sealed 4:3 display running at 1024 x 768 and 350 cd/m² brightness. It operates from 0 °C to 50 °C with a commercial SSD or -20 °C to 60 °C with an industrial SSD. Buyers who need a capacitive touchscreen, a wider aspect ratio, higher resolution or a different mounting standard should look elsewhere.

9–36 V DC Phoenix power input

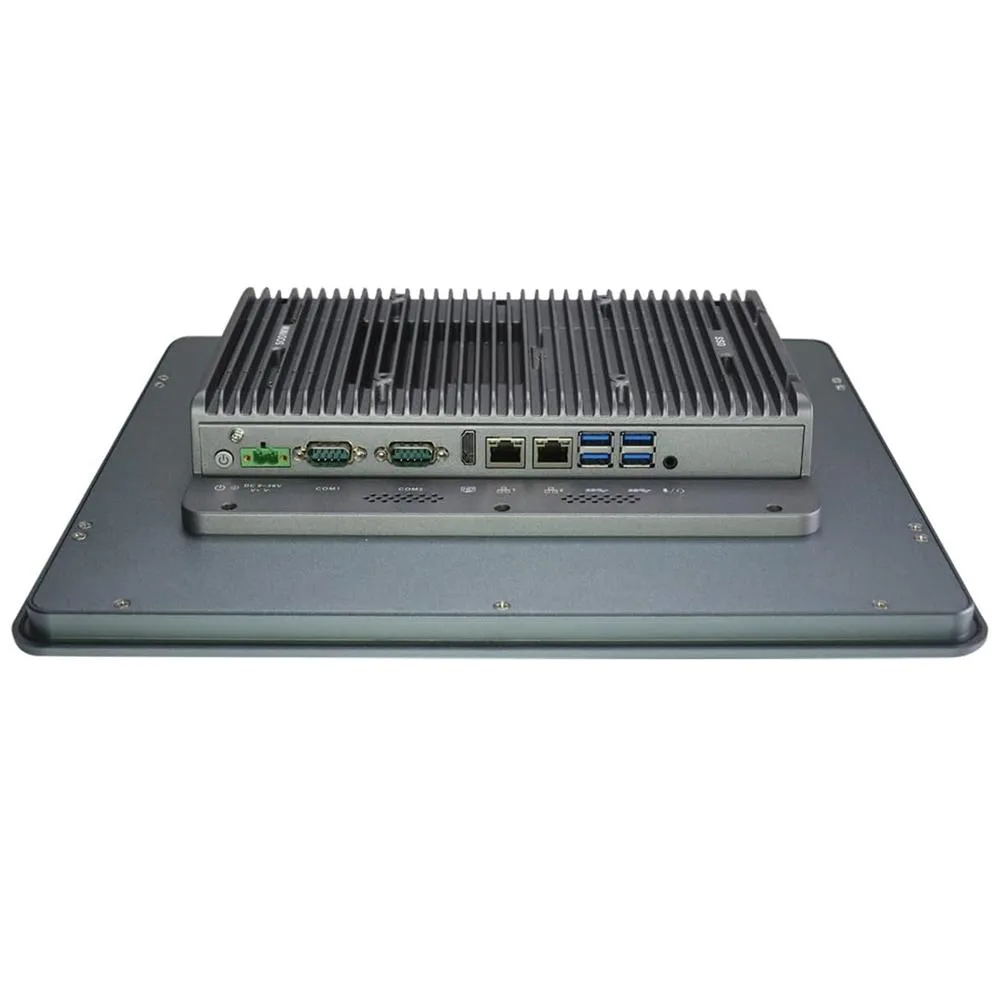

The system accepts a wide 9 V to 36 V DC supply through a 2-pin Phoenix connector, a common requirement in industrial cabinets and mobile equipment. Two Intel 1000M LAN ports, two COM ports configurable for RS232/RS422/RS485, HDMI, four USB 3.0 ports and audio complete the I/O. A Mini PCIe slot with a SIM holder is available for optional wireless modules.

Přednosti

  • IP65 front panel resists dust and water jets
  • Intel Core i7-10510U up to 4.90 GHz handles heavy workloads
  • 32 GB DDR4 memory supports demanding multitasking
  • 1 TB SATA SSD provides fast industrial storage
  • Fanless aluminium alloy cooling runs silently 24/7

Specifikace

ModelA20-New-I7-10810U-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD1TB
HDDNo
Screen Size15"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I confirm the A20 is running correctly after the initial Windows 11 Pro setup?

Check that the 15" IP65 front panel shows the 1024 x 768 desktop, the multi-touch resistance screen responds to input, both Intel 1000M LAN ports link up, and the fanless aluminium chassis stays within the 0–50 °C commercial range.

What ships with the A20 and what must I source separately?

The unit includes the 15" panel PC with i7-10510U, 32 GB DDR4, 1 TB SATA SSD, Windows 11 Pro, 12 V 5 A adapter, 2-pin Phoenix power connector and embedded mounting kit; Wi-Fi or 4G modules for the Mini PCIe slot and SIM card are not included.

Which configuration should I choose if I need RAID redundancy on the A20?

Select the version that provides the second 2.5" SATA bay so the M.2 2280 SATA SSD and the 2.5" SATA drive can be paired in RAID 1; the listed model already has 32 GB DDR4 and 1 TB SSD installed.
