21.5 inch flat aluminium all-in-one with resistive touch screen and industrial connectors

partaker

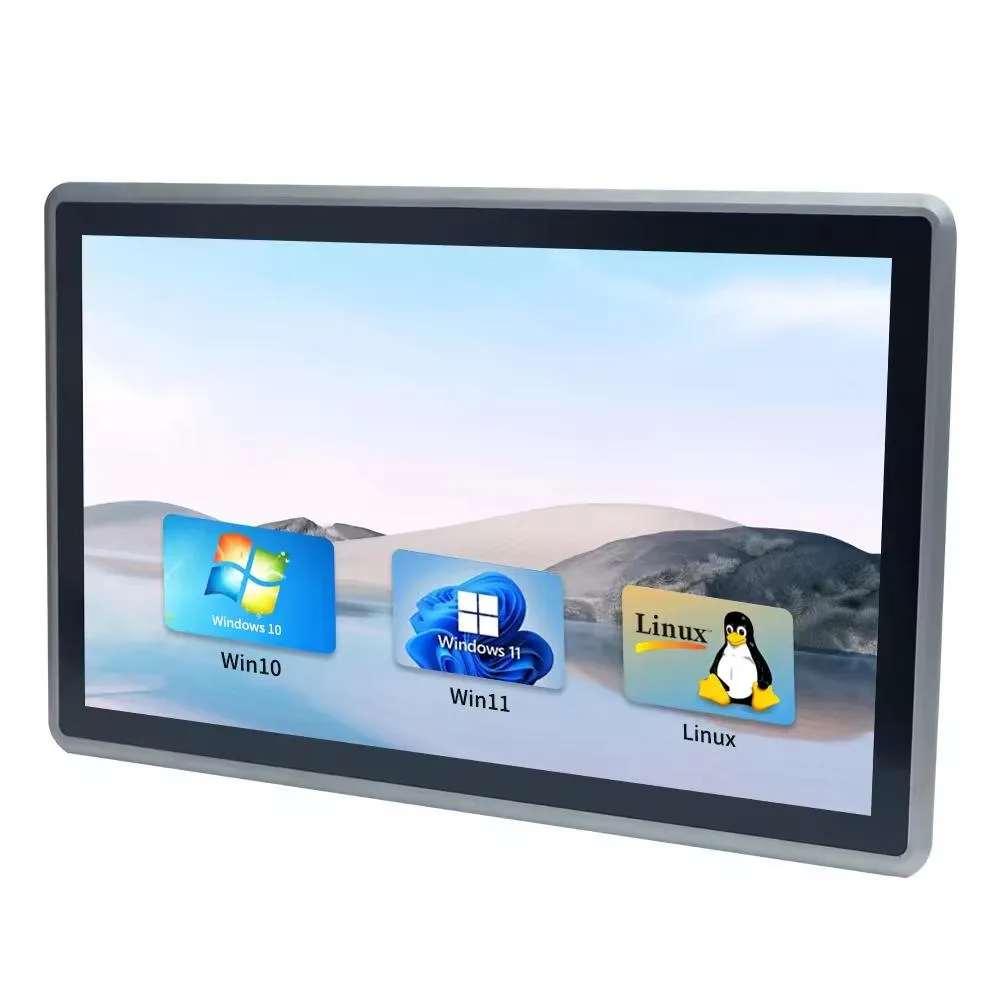

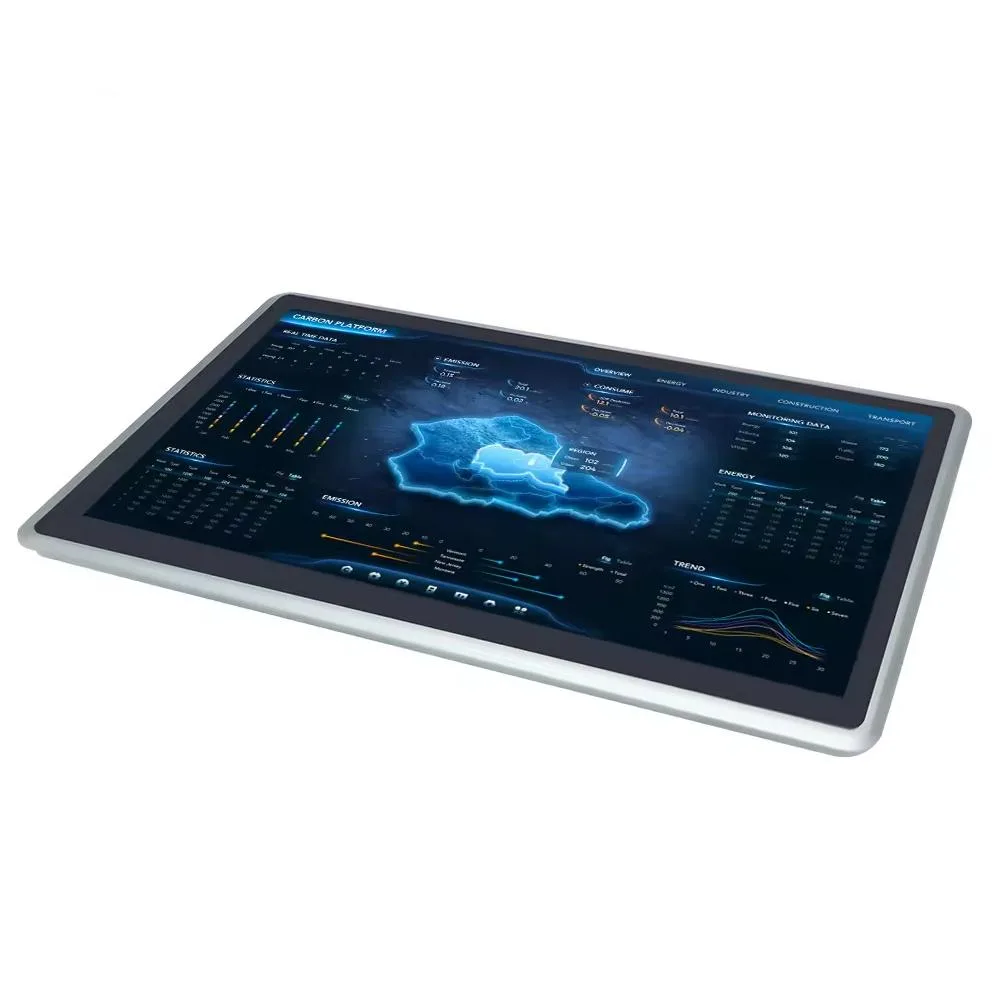

Partaker A22 21.5" Core i7-10510U 8GB 128GB all-in-one PC

SKU CH-MY5B-X6TKP

A 21.5 inch IP65 front-panel all-in-one PC with a resistive touch screen, Intel Core i7-10510U processor, 8 GB DDR4 memory, 128 GB SATA SSD, Windows 11 Pro, fanless aluminium cooling, dual LAN, HDMI.

  • IP65 front panel resists water and dust ingress
  • Core i7-10510U up to 4.90 GHz handles heavy workloads
  • Fanless aluminium alloy cooling runs silently 24/7
  • Dual Intel LAN plus 2 COM ports connect industrial gear
  • 128 GB SATA SSD with M.2 2280 slot for expansion

Industrial all-in-one for embedded control

The Partaker A22 is a 21.5 inch TFT LED panel PC built around an Intel Core i7-10510U processor with 8 GB of DDR4 memory and a 128 GB SATA SSD. Its IP65-rated front panel and resistive touchscreen suit factory automation, kiosk and HMI deployments. Windows 11 Pro comes pre-installed for immediate deployment.

Fanless aluminium chassis runs silently

An aluminium alloy enclosure dissipates heat without moving parts, so the system stays quiet in noise-sensitive environments. The 9 V to 36 V DC Phoenix connector accepts wide-range industrial power, while dual Intel gigabit LAN ports provide reliable wired connectivity. Typical draw stays modest thanks to the low-power mobile CPU.

Sustained loads stay within thermal limits

The fanless design maintains stable operation up to 50 °C ambient in commercial mode and 60 °C with an industrial SSD, enabling continuous 7×24 duty cycles. Throttling only engages if the chassis temperature exceeds its rated envelope, so long shifts run without performance drops. The resistive screen withstands more than 50 million touches for long service life.

Přednosti

  • IP65 front panel resists water and dust ingress
  • Core i7-10510U up to 4.90 GHz handles heavy workloads
  • Fanless aluminium alloy cooling runs silently 24/7
  • Dual Intel LAN plus 2 COM ports connect industrial gear
  • 128 GB SATA SSD with M.2 2280 slot for expansion

Specifikace

Pro tento produkt zatím nejsou zveřejněny žádné specifikace.

Otázky k tomuto produktu

How do I embed the A22 into a panel cut-out, and which orientation step do installers often miss?

Cut a 528 x 320 mm opening, slide the unit in from the front, and secure the mounting brackets; the step often missed is aligning the IP65 gasket so the front seal sits flat before tightening.

Which storage drive will need replacement first under heavy write cycles, and what is the upgrade path?

The 128 GB M.2 2280 SATA SSD will wear first; you can add a second 2.5" SATA SSD or HDD internally and migrate the OS to it.

At what ambient temperature does the fanless aluminium chassis hit its thermal limit during continuous load?

The chassis is rated for 0 – 50 °C commercial or –20 – 60 °C with an industrial SSD; sustained full-load operation at the top of those ranges will throttle the i7-10510U first.
