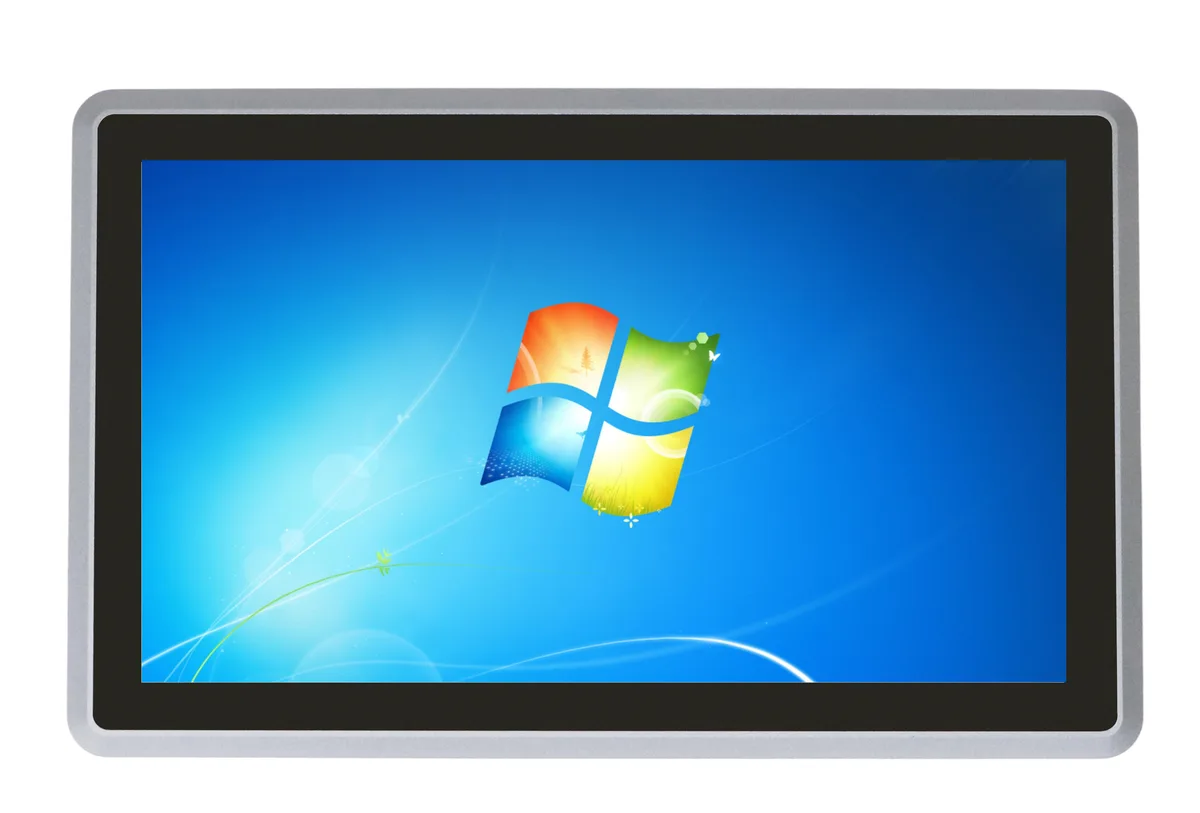

Gray 15.6 inch all-in-one with flat IP65 front panel and capacitive touchscreen

partaker

Partaker A28 15.6" all-in-one PC i3-5005U 8GB 512GB

SKU CH-01EC-XEVAB

15.6-inch Full HD capacitive touch all-in-one with fanless aluminium chassis, IP65 front, dual LAN, dual COM, 8 GB DDR3, 512 GB mSATA, Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A28 15.6" Capacitive I3 5005U 8GB RAM / 512GB SSD

  • 6" Full HD touch display delivers crisp visuals at 1920x1080 resolution
  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • IP65-rated front panel resists dust and water ingress in harsh environments

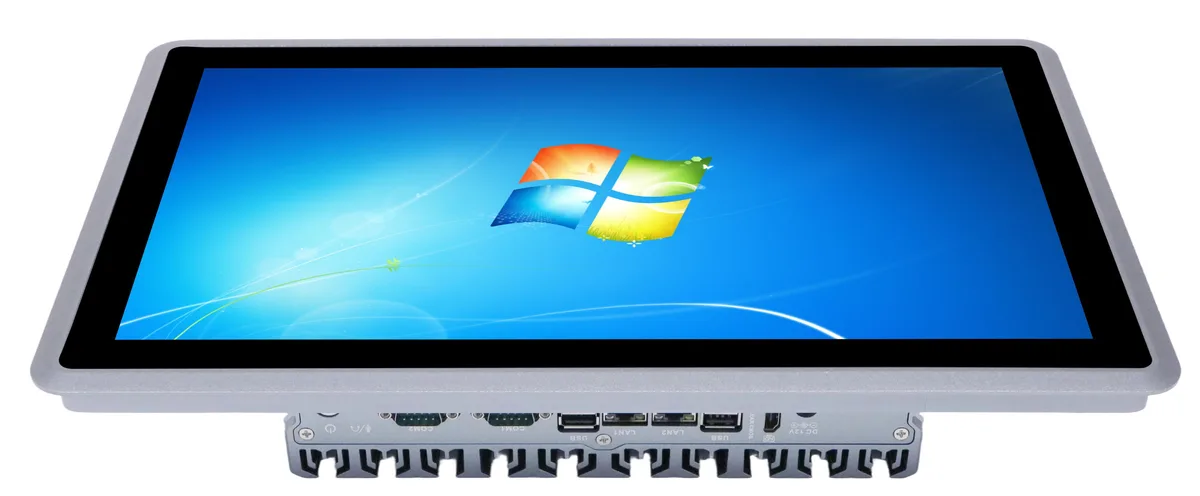

  • Dual Gigabit LAN plus four USB and two COM ports connect industrial equipment
  • 8 GB DDR3 with 512 GB mSATA storage handles embedded workloads reliably

Industrial Panel PC with IP65 Front

The Partaker A28 is a 15.6-inch all-in-one computer built around an Intel Core i3-5005U processor running at 2.00 GHz. It ships with 8GB of DDR3 memory and a 512GB mSATA solid-state drive, running Windows 10 Pro out of the box. The aluminium alloy chassis carries an IP65-rated front panel designed for embedded mounting in dusty or wet environments.

Fanless Cooling Across Extended Temperatures

A fanless design removes moving parts, allowing silent operation from -20 to +60 degrees Celsius with the solid-state drive installed. The system accepts standard 12V DC input and can be configured for a wide 9 to 36V range to suit industrial power supplies. Dual Gigabit LAN ports, two configurable COM ports, four USB ports and HDMI output provide connectivity for automation and display tasks.

Capacitive Touchscreen at 1920x1080 Resolution

The 15.6-inch TFT-LCD panel delivers Full HD resolution at 400 cd/m2 brightness with a 16:9 aspect ratio and wide viewing angles. A projected capacitive touchscreen is fitted as standard, with a resistive option available for gloved operation. Two 82W speakers are integrated behind the flat front bezel for audible alerts in noisy settings.

Přednosti

  • 6" Full HD touch display delivers crisp visuals at 1920x1080 resolution
  • Fanless aluminium chassis runs silently from -20 to +60 °C
  • IP65-rated front panel resists dust and water ingress in harsh environments
  • Dual Gigabit LAN plus four USB and two COM ports connect industrial equipment
  • 8 GB DDR3 with 512 GB mSATA storage handles embedded workloads reliably

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15.6"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How much power does the fanless i3-5005U system draw when running continuously?

It accepts 12 V DC input with a customisable 9–36 V wide-range option; the 2.00 GHz dual-core processor and 15.6" 400 cd/m² panel operate without a fan in a -20 to +60 °C range.

Which cables and mounts must I already have to install the IP65 front panel?

You need a 12 V DC supply (or 9–36 V wide-range source), a panel cutout of 385 × 234.3 mm for embedded mounting, and any HDMI or COM cables for the dual Gigabit LAN, two RS232/485 ports and four USB ports.

Will the DDR3 memory slots and mSATA drive work with older industrial modules I keep in stock?

Two DDR3 slots support up to 16 GB total, the mSATA slot takes the 512 GB SSD supplied, and two mini PCIe slots can host legacy Wi-Fi, 3G/4G or additional COM expansion cards.
