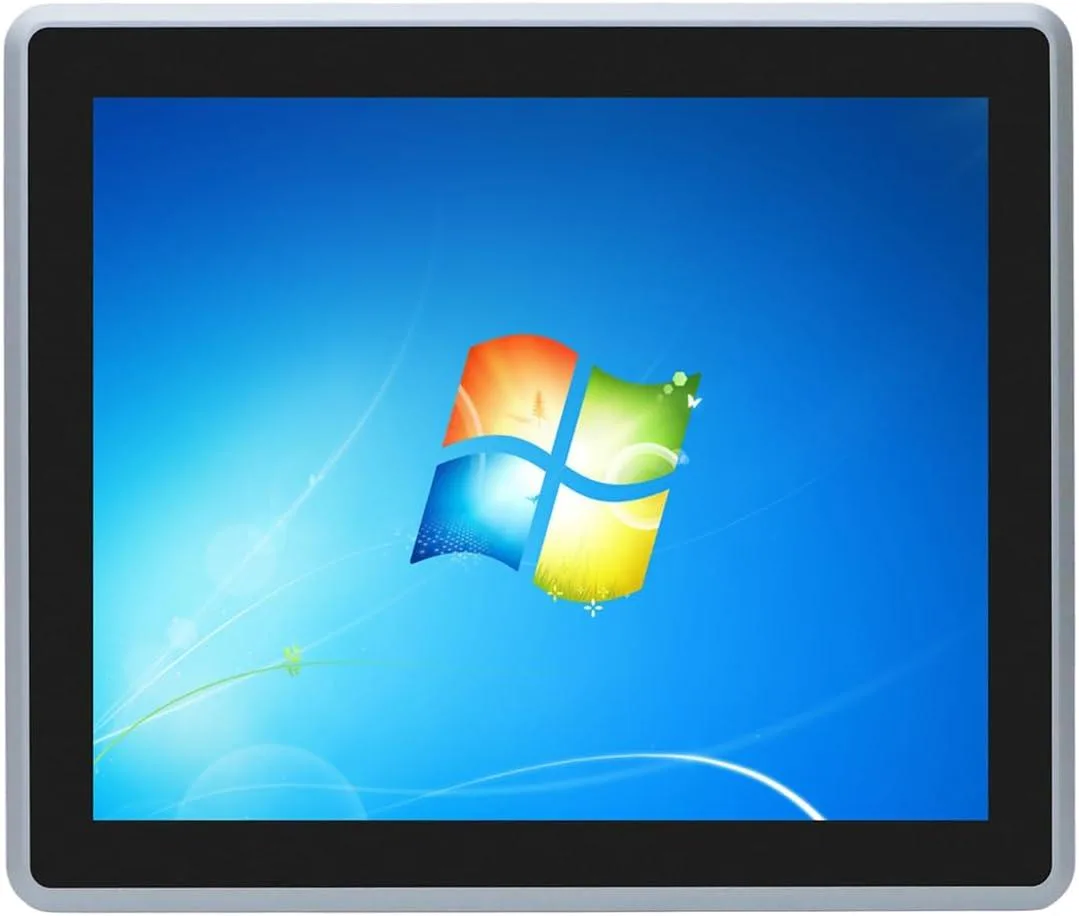

17 inch gray industrial all-in-one with flat capacitive touch screen

partaker

Partaker A29 17" All-in-One PC i5-5200U 8GB 512GB Windows 11 Pro

SKU CH-01CS-4WCED

17-inch industrial all-in-one with IP65 front panel, capacitive touch, fanless cooling, Core i5-5200U, 8GB RAM and 512GB storage running Windows 11 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A29 17" Capacitive I5 5200U 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in harsh environments

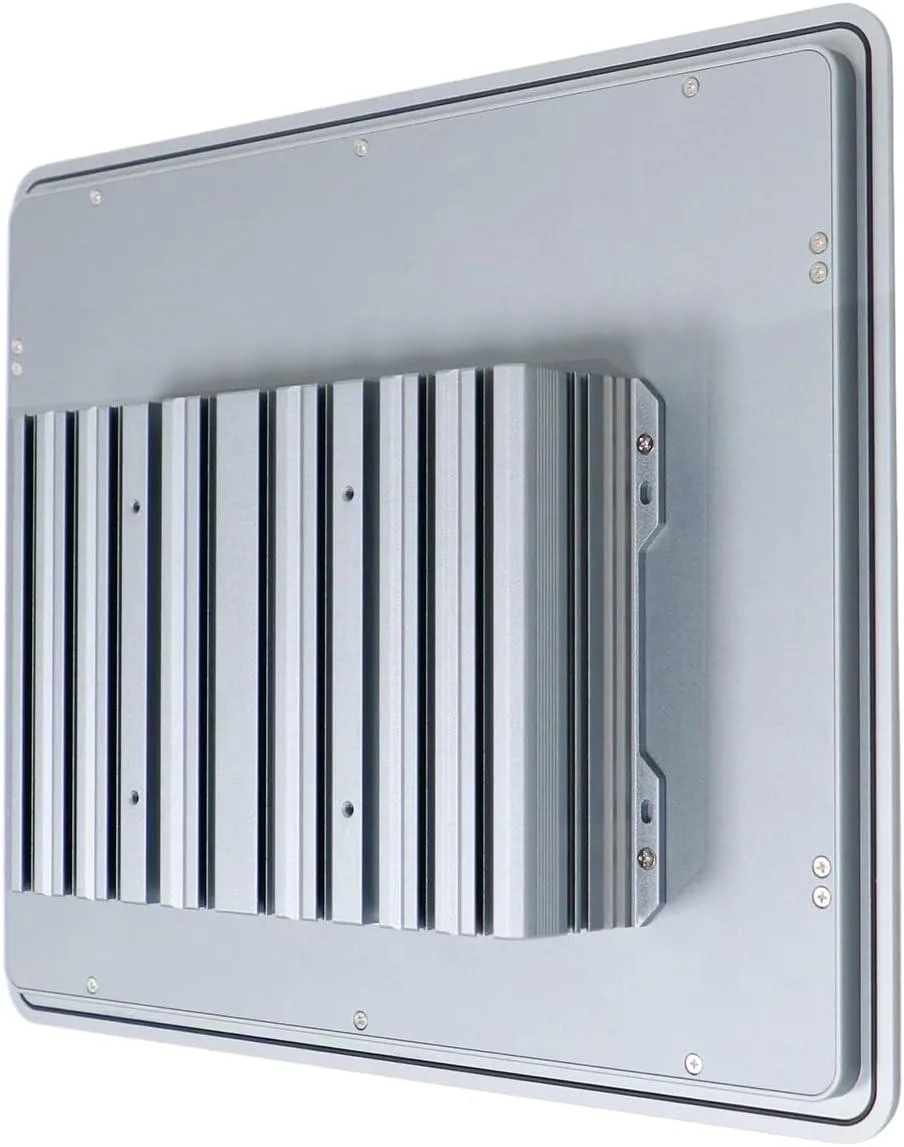

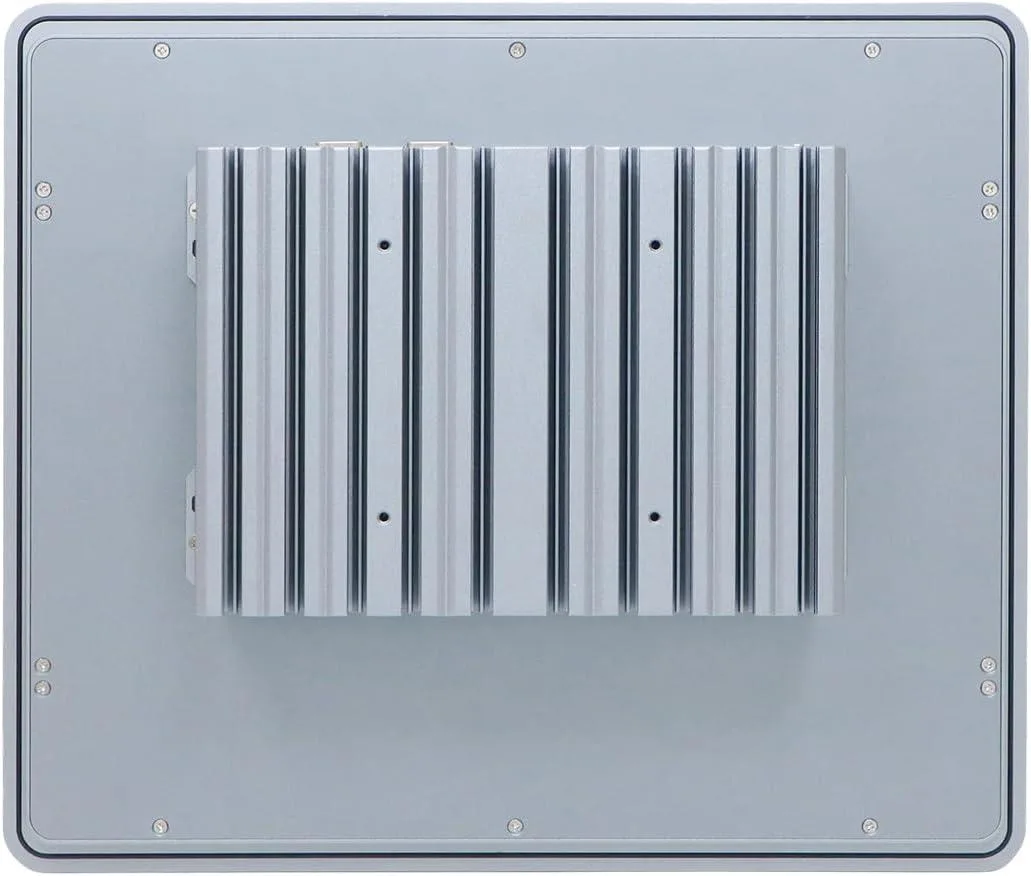

  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Capacitive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports give flexible industrial connectivity
  • Dual storage with mSATA and 2.5″ SATA allows easy capacity expansion

Industrial 17-Inch Touch Panel PC

The Partaker A29 is a fanless all-in-one computer built around an Intel Core i5-5200U processor with 8 GB of DDR3L memory and a 512 GB SSD. Its IP65-rated flat front panel and 1280×1024 capacitive touchscreen suit factory automation, kiosk and HMI deployments that need silent 24/7 operation in harsh environments.

Installation and Common Pitfalls

The unit supports embedded, wall, desktop or cantilever mounting using the supplied clips; a cut-out of 389×321 mm is required for panel mounting. Installers often forget the 12 V DC input requirement and try to feed mains voltage directly, or they omit the Mini PCIe antennas when adding wireless modules, leaving the slots unused.

Pre-Order Compatibility Checks

Verify that your enclosure can accommodate the 408.5×346×78 mm chassis and 5.5 kg weight with adequate airflow for the -20 °C to 60 °C operating range. Confirm that legacy RS232 or RS485 devices match the dual COM pin-out and that any expansion cards fit the two Mini PCIe slots with SIM support.

Přednosti

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Capacitive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports give flexible industrial connectivity
  • Dual storage with mSATA and 2.5″ SATA allows easy capacity expansion

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size17"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How can I verify the fanless cooling is keeping the i5-5200U within its -20 °C to 60 °C operating range after installation?

The aluminium chassis acts as a heatsink; with an SSD fitted the unit is rated for continuous operation from -20 °C to 60 °C ambient, so stable performance and no thermal throttling under load confirm the passive cooling is working.

What items are included in the packing list and which expansion modules must be purchased separately?

The box contains the Panel PC, 12 V power supply, AC power cord, four embedded mounting clips and a warranty card; Wi-Fi, Bluetooth, 3G or 4G Mini PCIe cards with SIM are not included and must be bought separately.

Which storage configuration should I choose between the mSATA SSD and the 2.5″ SATA bay for the 512 GB capacity?

The 512 GB SSD ships in the mSATA slot; the 2.5″ SATA bay remains free for adding a second drive if you need more capacity or redundancy.
